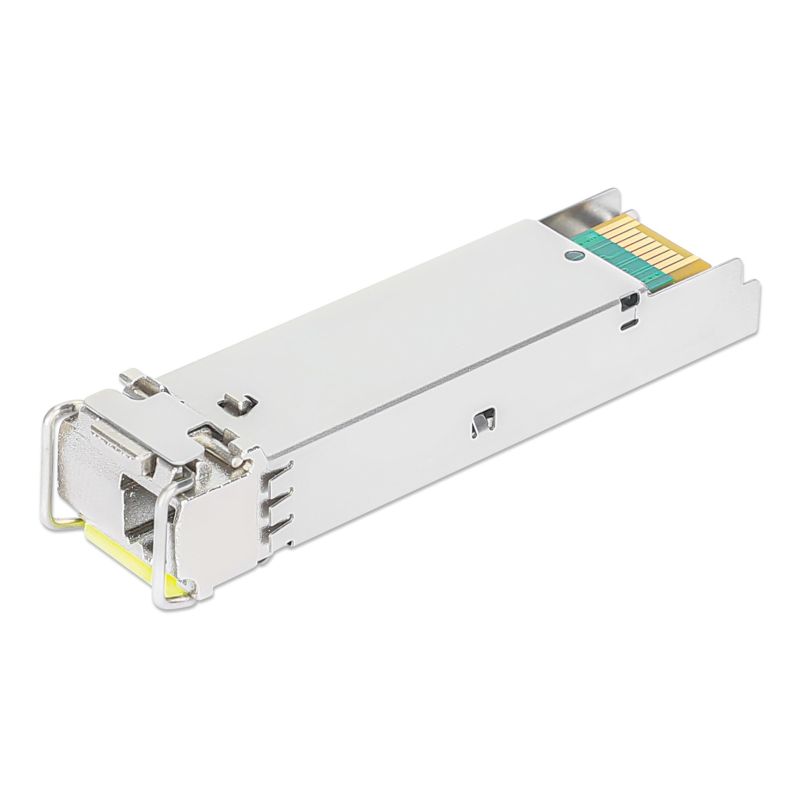

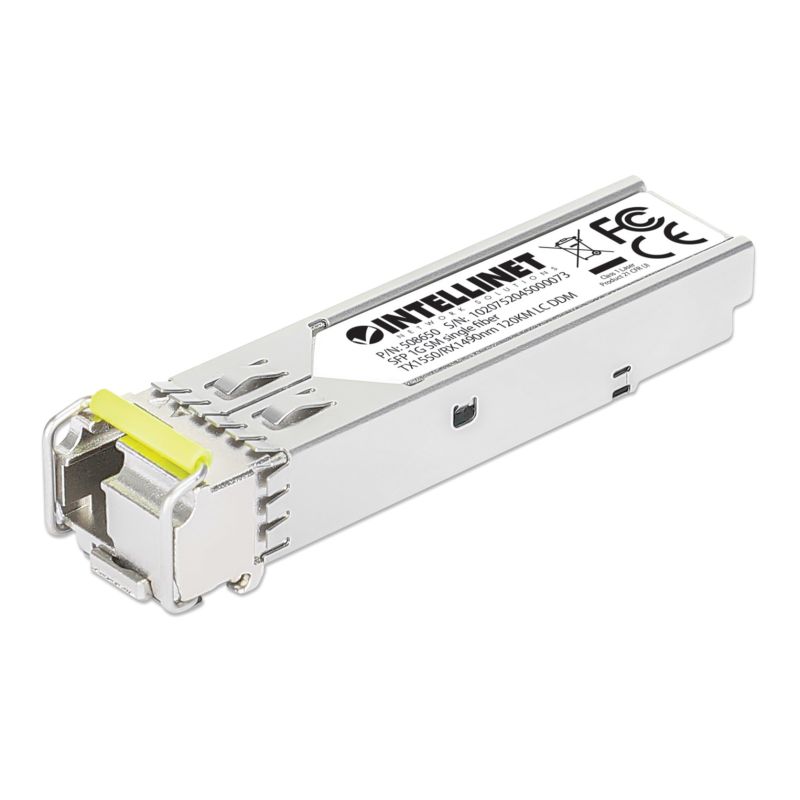

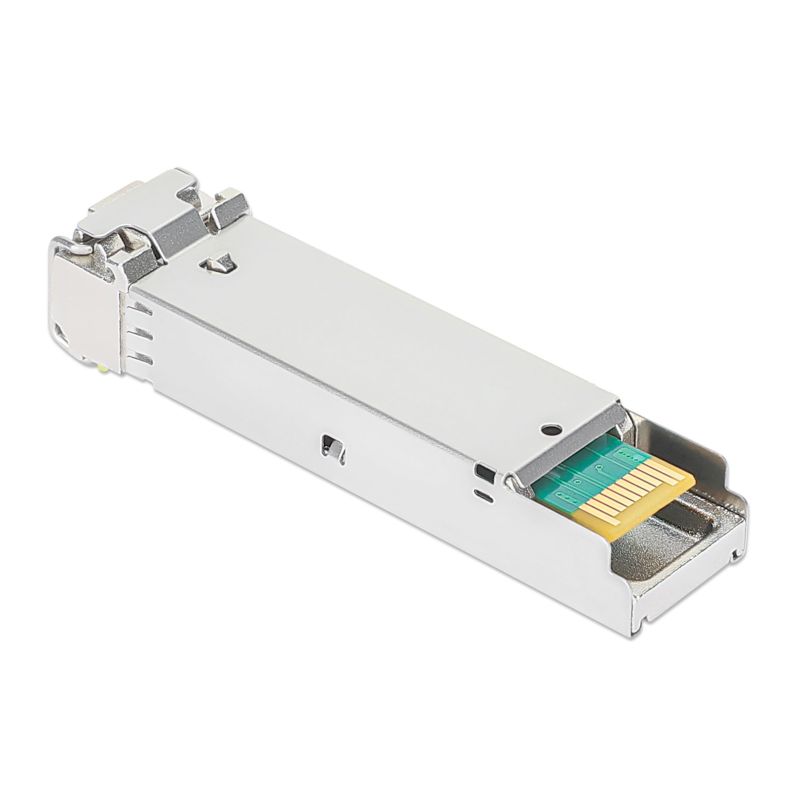

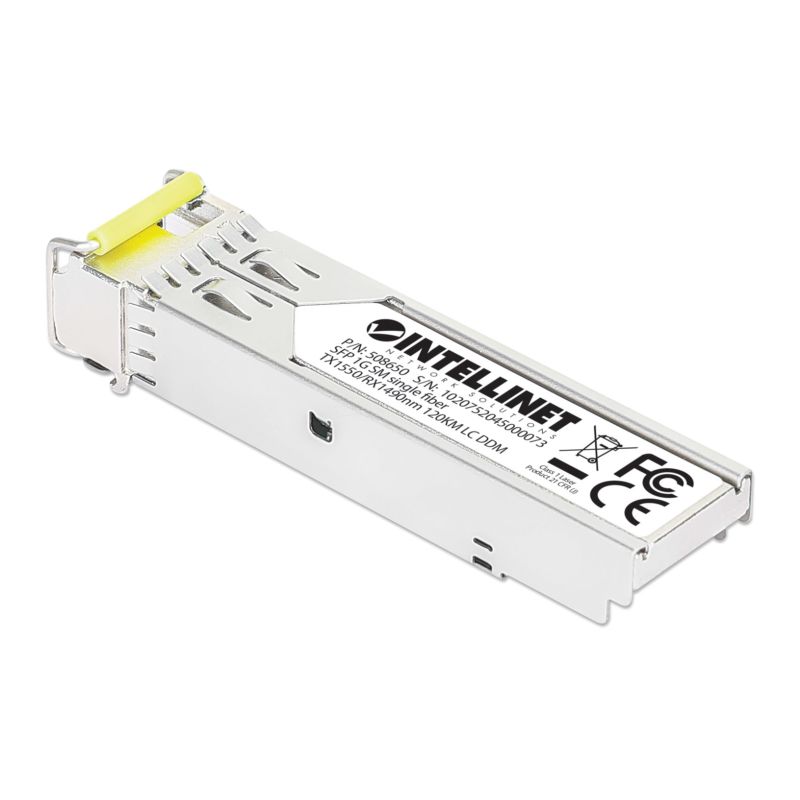

Intellinet 508650 Network Transceiver Module 1000 Mbit/s Fiber Optic Mini-GBIC/SFP
Intellinet 508650 Network Transceiver Module 1000 Mbit/s Fiber Optic Mini-GBIC/SFP
Intellinet 508650 Network Transceiver Module 1000 Mbit/s Fiber Optic Mini-GBIC/SFP
PRICE:
187,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Hot Plug Support: Yes
- Product color: Silver
- Housing material: Metal
- Brand Compatibility: MSA Compliant
- Power
- Power consumption: 1 W
- Maximum voltage: 3.3 V
- Weight and dimensions
- Product height: 12 mm
- Product weight: 20 g
- Product depth: 57 mm
- Product width: 14 mm
- Working conditions
- Temperature range (storage): -40 - 85 °C
- Temperature range (operation): 0 - 70 °C
- Relative humidity range: 10 - 85%
- Efficiency
- SFP Transceiver Type: Fiber Optic
- Wavelength-division multiplexing (WDM): Yes

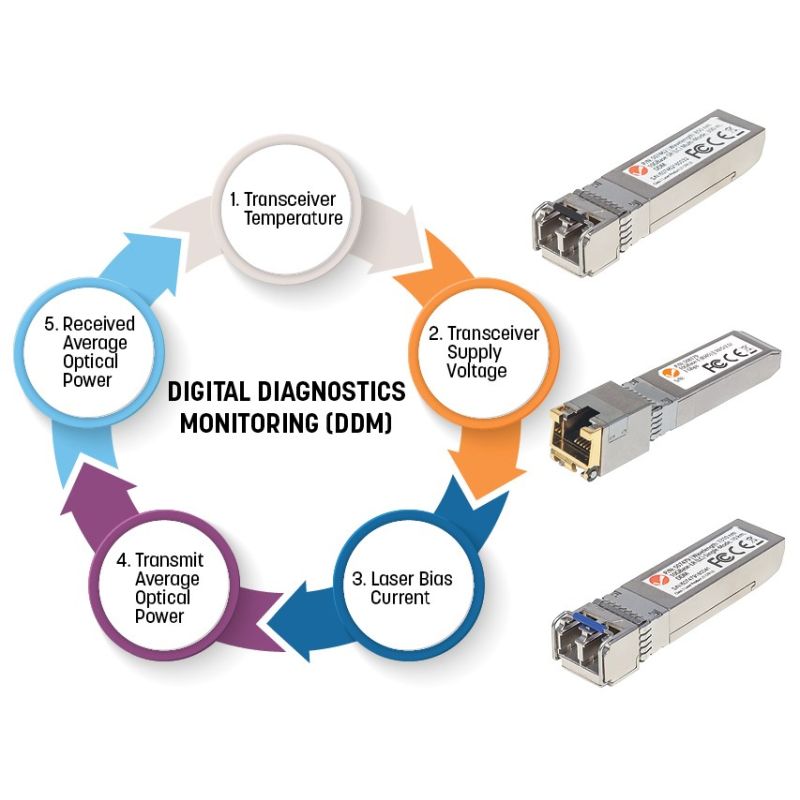

- Digital Diagnostic Monitoring (DDM): Yes
- Tx power (maximum): 5 dBmW
- Ta wavelength (max): 1550 nm
- RX wavelength (max): 1490 nm
- Supported fiber optic cable diameters: 9/125 µm
- Interface type: mini-GBIC/SFP
- Communication standards: IEEE 802.3z
- Single-mode fiber (SMF) support: Yes
- Fiber optic connector: LC
- SFP network card standard: BX-D
- Tx power (minimum): 0 dBmW
- Maximum transfer distance: 120000 m
- Fiber Ethernet cabling technology: 1000BASE
- Maximum data transfer speed: 1000 Mbit/s
- Packaging data
- Weight with packaging: 30 g
- Packaging type: Box
- Package contents
- Number of pieces: 1
- Certificates
- Certificates of conformity
- Federal Communications Commission (FCC)
- CE
- RoHS
- Certificates of conformity
- Logistics data
- Products in the main (outer) box: 48 pcs.
- Main (outer) case length: 310 mm
- Height of the standard (outer) box: 250 mm
- Width of the collection box (external): 200 mm
- Main (outer) housing gross weight: 2.6 kg
- Sustainable development
- Sustainability: Yes
