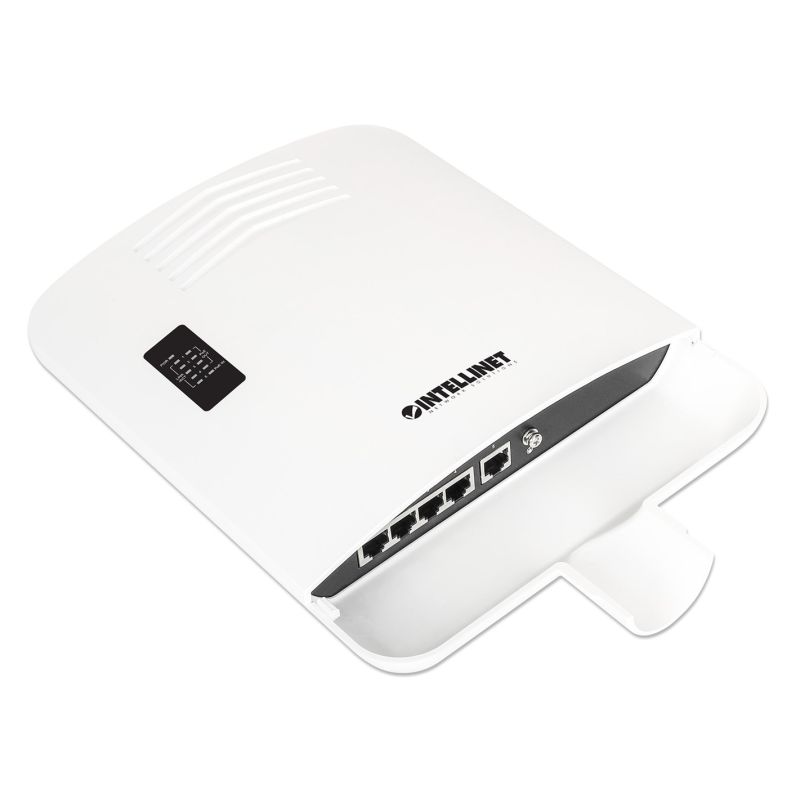

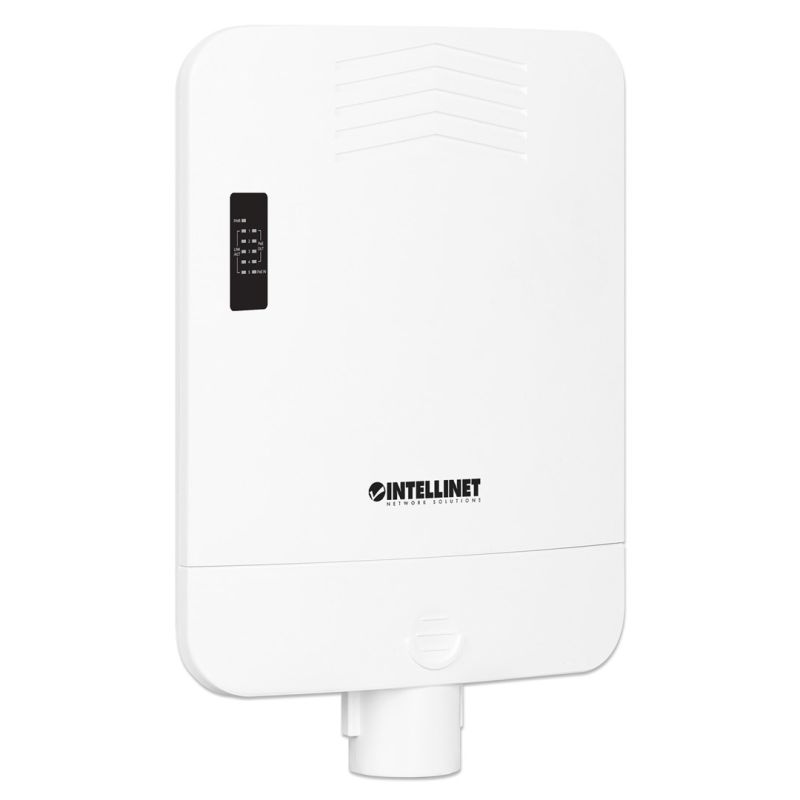

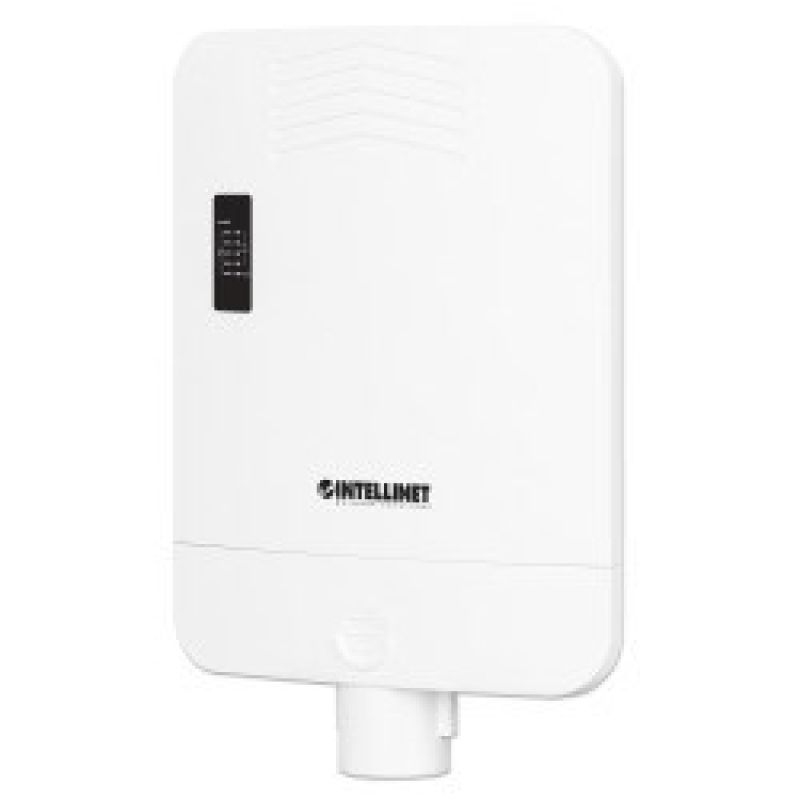

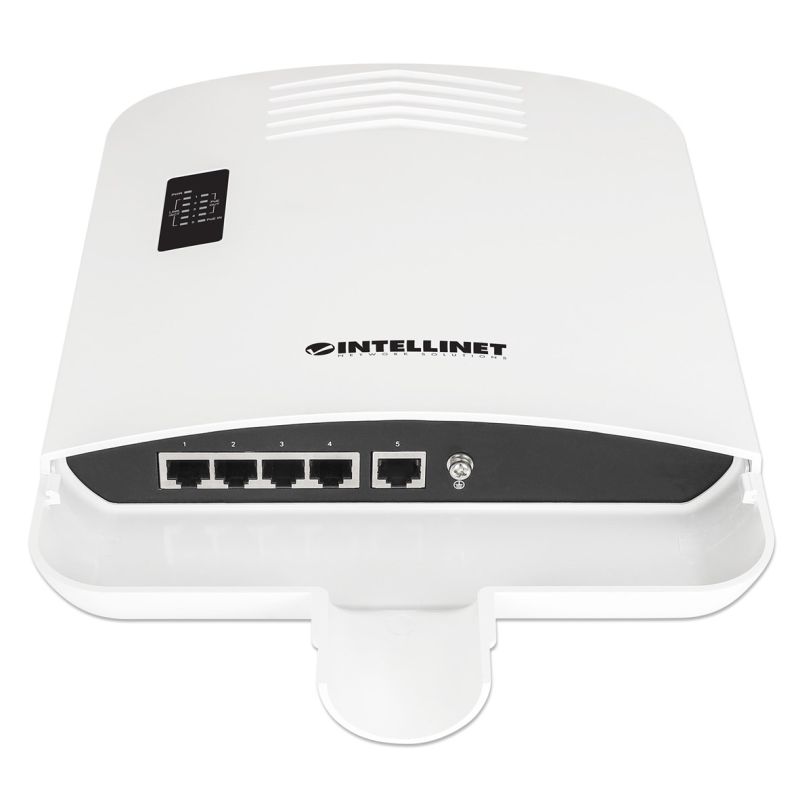

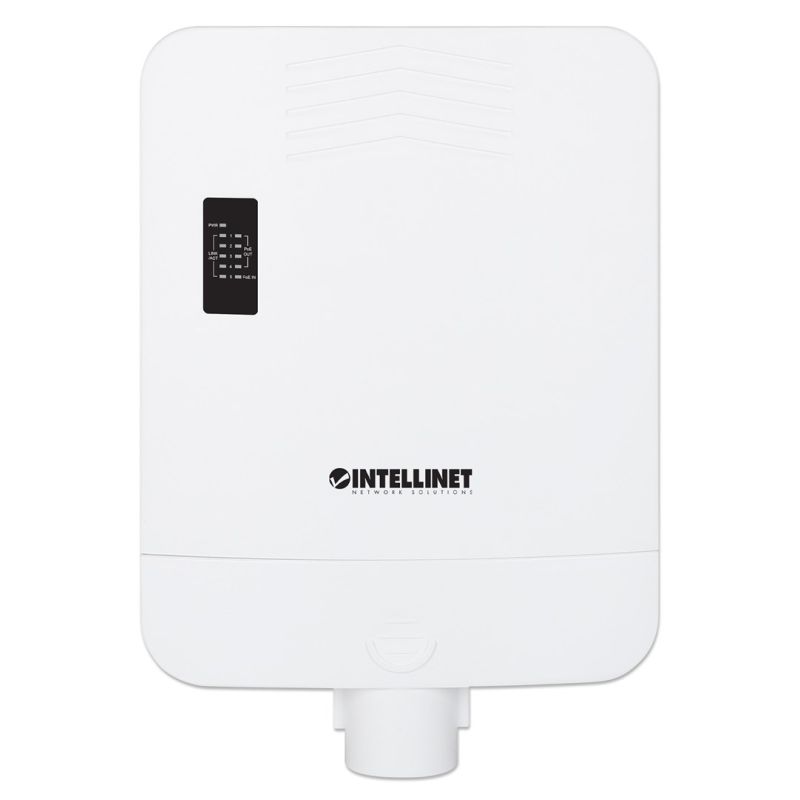

Intellinet 509220 Gigabit Ethernet (10/100/1000) Network Links PoE Support White
Intellinet 509220 Gigabit Ethernet (10/100/1000) Network Links PoE Support White
Intellinet 509220 Gigabit Ethernet (10/100/1000) Network Links PoE Support White
PRICE:
185,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Housing material: Plastic
- Rack mounting options: No
- Product color: White
- Stackable: No
- LED diodes
- PoE
- Power supply
- Link
- IP protection class: IP65
- Power
- Power source: PoE
- Weight and dimensions
- Product height: 65 mm
- Product depth: 299 mm
- Product weight: 1 kg
- Product width: 206 mm
- Working conditions
- Relative humidity range: 0 - 90%
- Permissible relative humidity: 0 - 95%
- Temperature range (operation): -40 - 80 °C
- Temperature range (storage): -40 - 80 °C
- Network
- Supported cable types
- Cat8.1
- Cat6a
- Cat6
- Cat5e
- Auto MDI/MDI-X: Yes
- Communication standards
- IEEE 802.3at
- IEEE 802.3u
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3bt
- IEEE 802.3ab
- IEEE 802.3
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
- Supported cable types
- Efficiency
- MTBF (Mean Time Between Failures): 50000 h
- Packaging data
- Packaging depth: 350 mm
- Package width: 310 mm
- Weight with packaging: 1.3 kg
- Package height: 90 mm
- Package contents
- User Manual: Yes
- Certificates
- Certificates of conformity
- RoHS
- CE
- Certificates of conformity
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 5
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Logistics data
- Main (outer) housing gross weight: 6.93 kg
- Height of the standard (outer) box: 335 mm
- Products in the main (outer) box: 6 pcs.
- Main (outer) case length: 565 mm
- Width of the collection box (external): 365 mm
- Data transfer
- Address table size: 2000 entries
- Transfer speed: 7.44 Mpps
- Store-and-forward: Yes
- Jumbo Frame Compatible: Yes
- Jumbo Frames Expansion: 9216
- Packet buffer memory: 2 MB
- Routing/switching capacity: 10 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 85 W
- Safety warning
- Warnings
- Ensure the device is adequately ventilated during operation.
- This product is not suitable for disposal in regular trash. Please dispose of used electronic equipment at a recycling center in accordance with local regulations.
- Do not open the casing or attempt to repair it yourself.
- Warnings
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Intellinet |
| Colour | White |
