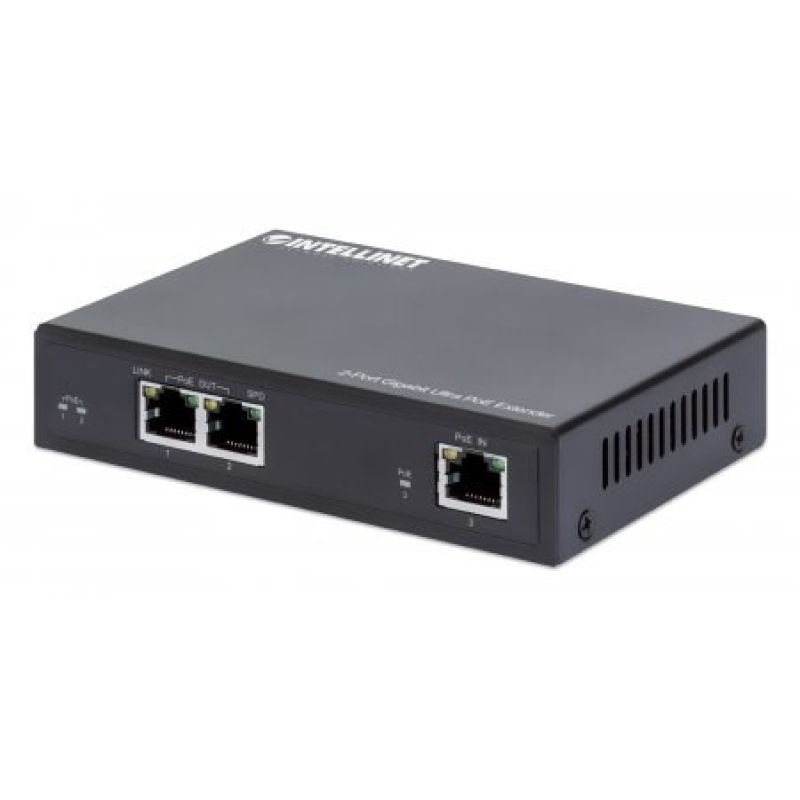

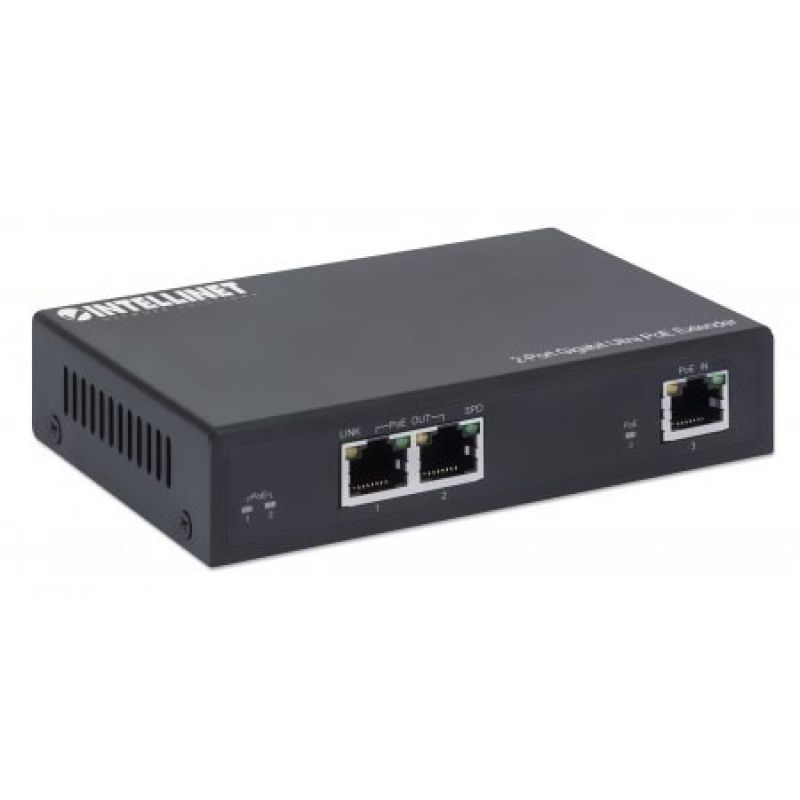

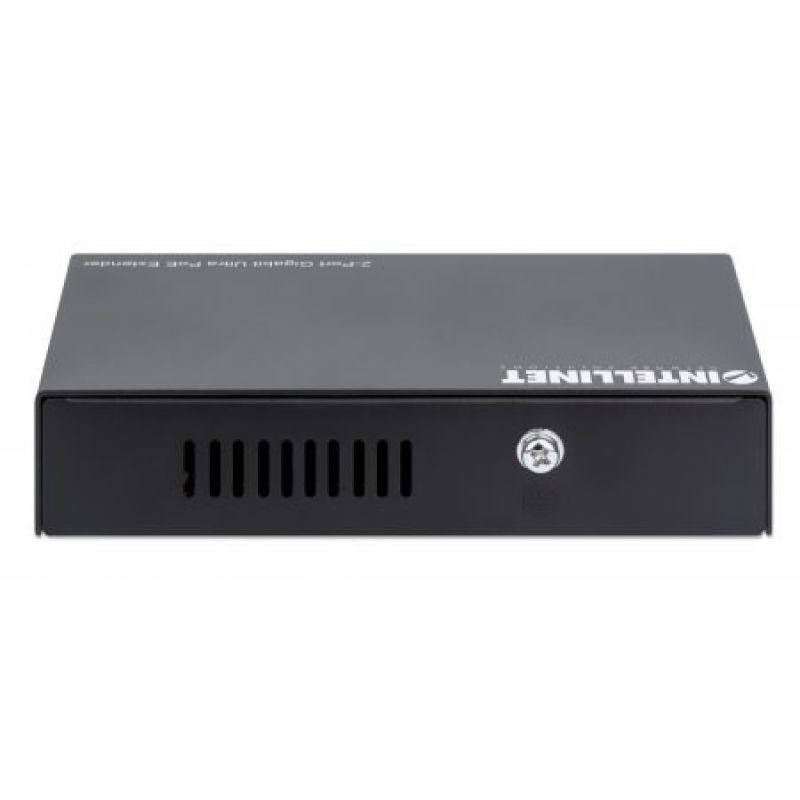

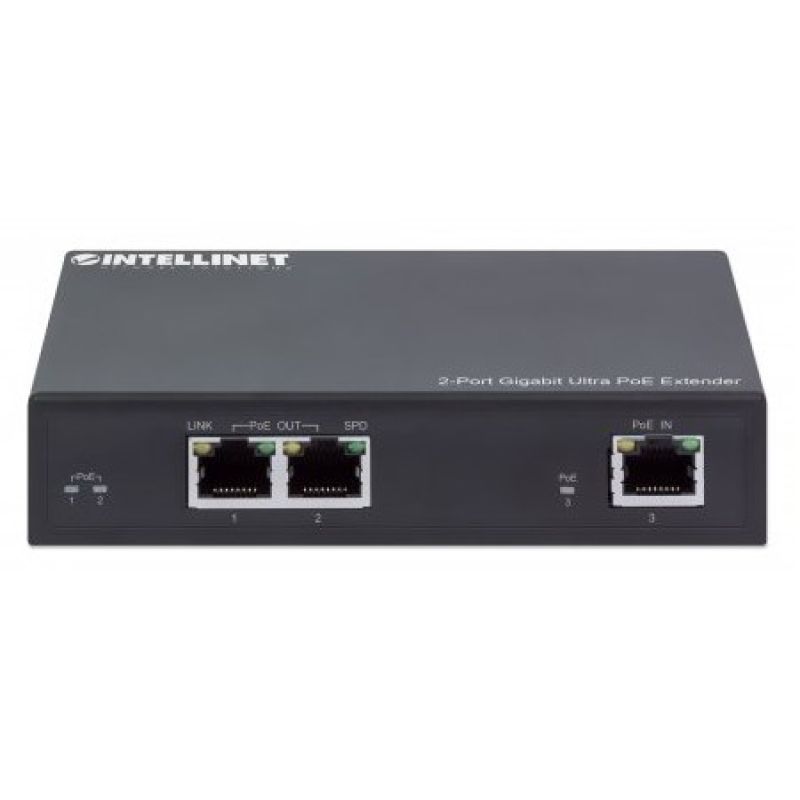

Intellinet 561600 Network Extender Network Transmitter Black 10, 100, 1000 Mbit/s
Intellinet 561600 Network Extender Network Transmitter Black 10, 100, 1000 Mbit/s
Intellinet 561600 Network Extender Network Transmitter Black 10, 100, 1000 Mbit/s
PRICE:
108,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- LED diodes
- Link
- Action
- PoE
- Product color: Black
- Housing material: Metal
- LED diodes
- Power
- Total Power over Ethernet (PoE) budget: 60 W
- PoE Support: Yes
- Power over Ethernet (PoE) voltage range: 44 - 57 V

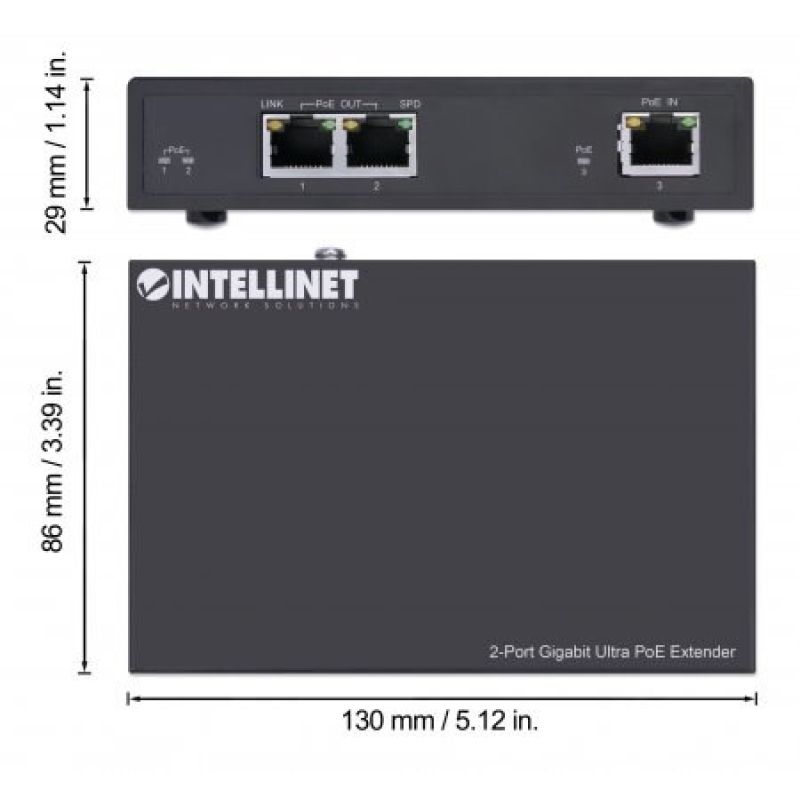

- Weight and dimensions
- Product width: 130 mm
- Product weight: 331 g
- Product height: 29 mm
- Product depth: 86 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Temperature range (storage): -10 - 70 °C
- Relative humidity range: 20 - 85%
- Network
- Communication standards
- IEEE 802.3at
- IEEE 802.3u
- IEEE 802.3
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3bt
- IEEE 802.3ab
- Cabling technology: 10/100/1000Base-T(X)
- Communication standards
- Efficiency
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- Model: Network Transmitter
- Jumbo Frame Compatible: Yes
- Flow Control Support: Yes
- Address table size: 2048 entries
- Two-way duplex transmission: Full
- Maximum transfer distance: 100 m
- Real data transfer speed: 6000 Mbit/s
- Supported cable types: Cat5e
- Data transfer speed via Ethernet LAN
- Package contents
- User Manual: Yes
- Certificates
- Certificates of conformity
- Federal Communications Commission (FCC)
- CE
- UL
- RoHS
- Certificates of conformity
- Ports and interfaces
- Number of Fast Ethernet (PoE) ports: 2
- Number of Ethernet LAN ports (RJ-45): 3
- Logistics data
- Harmonized System (HS) code: 85176990
- Safety warning
- Warnings
- Store in a dry place, avoid contact with water.
- This product may contain electronic components. It should not be disposed of in regular trash.
- Do not disassemble the device, it may contain small parts that may cause damage.
- Warnings
| Name | Details |
|---|---|
| Producer | Intellinet |
