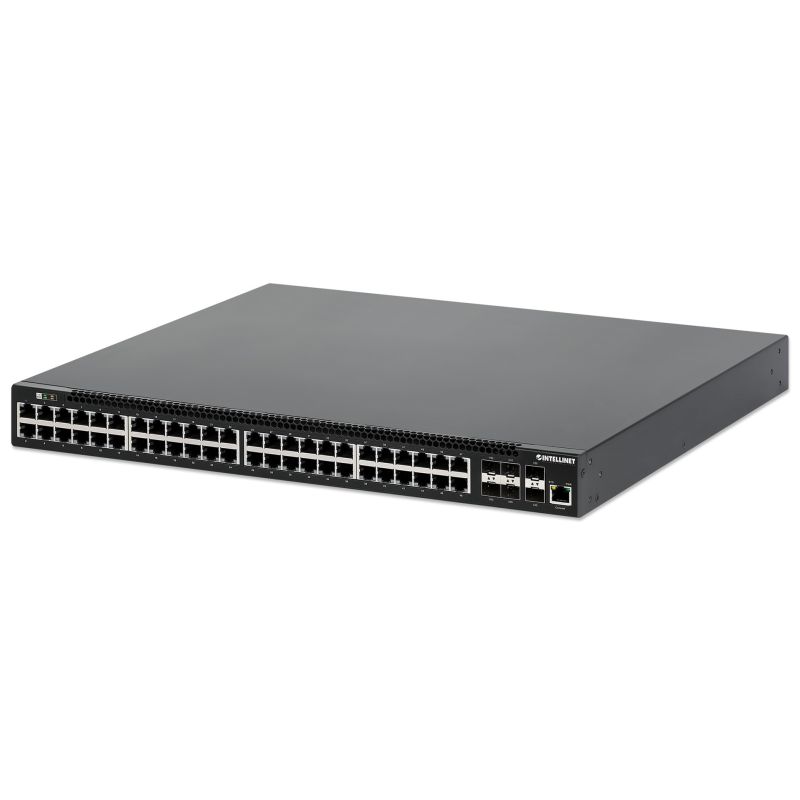

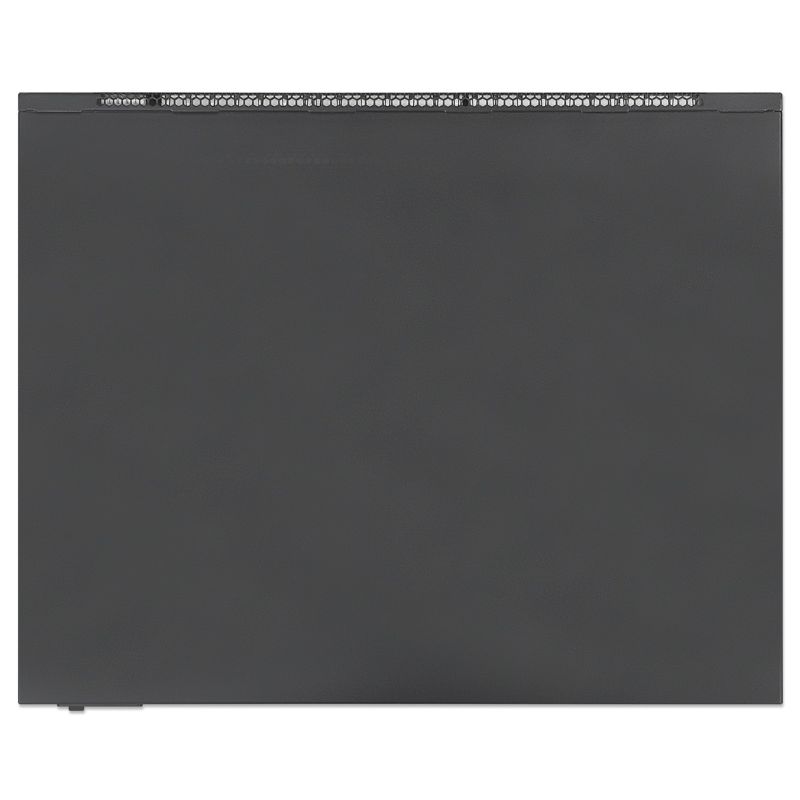

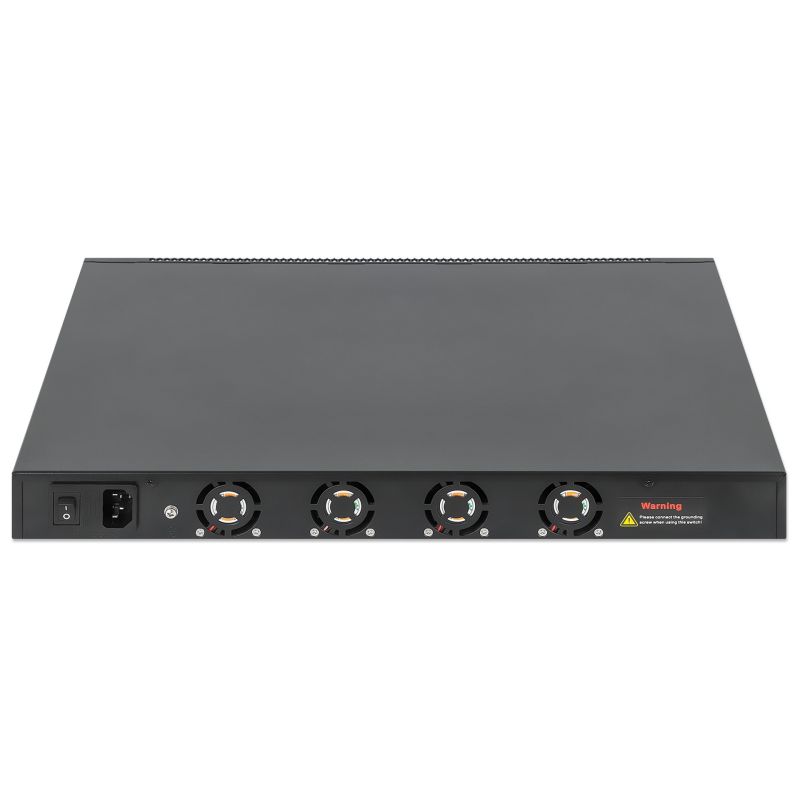

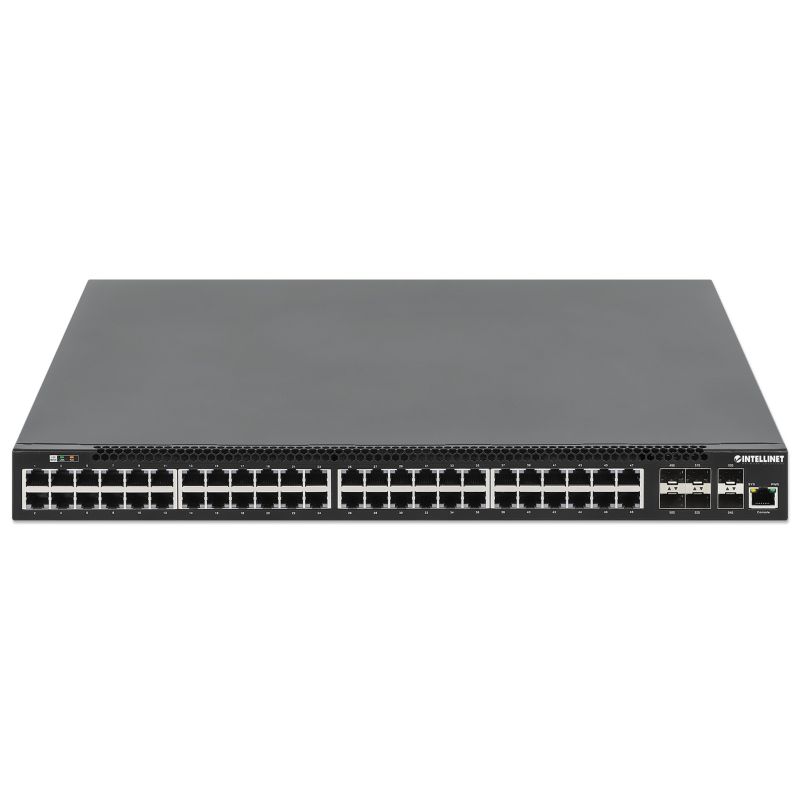

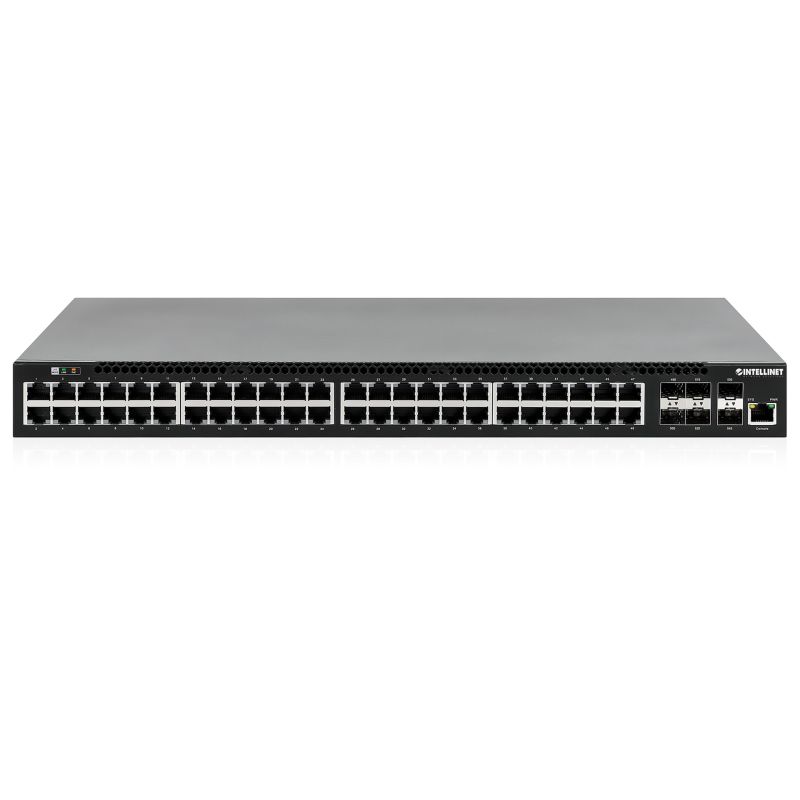

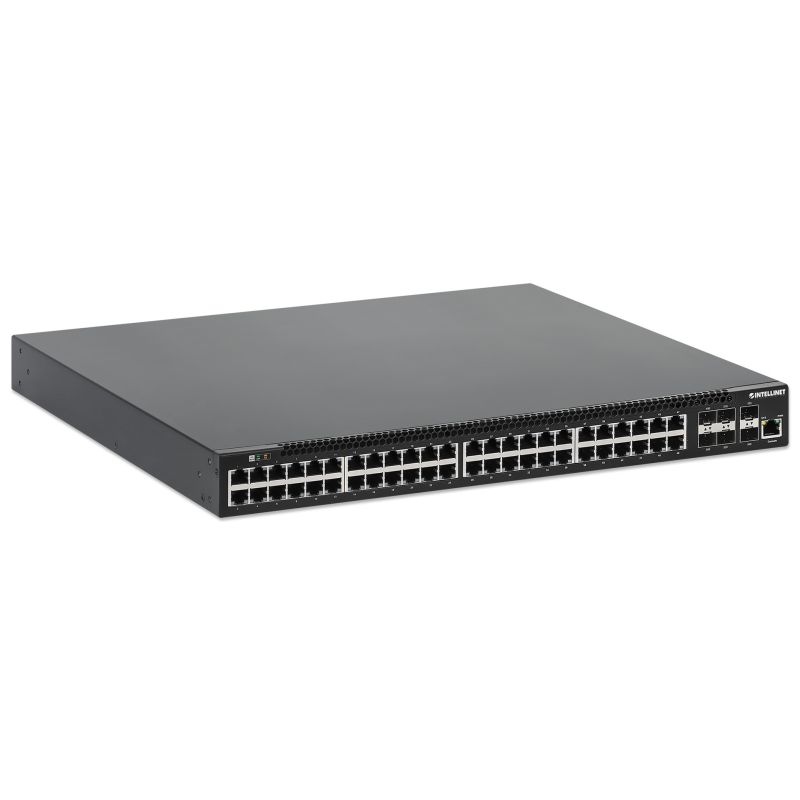

Intellinet 562041 Managed Network Switch L3 Gigabit Ethernet (10/100/1000) PoE Support Black
Intellinet 562041 Managed Network Switch L3 Gigabit Ethernet (10/100/1000) PoE Support Black
Intellinet 562041 Managed Network Switch L3 Gigabit Ethernet (10/100/1000) PoE Support Black
PRICE:
2318,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- LED diodes
- Power supply
- Action
- PoE
- Link
- Product color: Black
- Number of fans: 3 fans
- Housing material: Metal
- Rack mounting options: Yes
- LED diodes
- Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power protection features
- Overvoltage protection
- Surge protection
- Overload
- Short circuit
- Power source: AC
- Power consumption (max): 900 W
- Weight and dimensions
- Product weight: 5.5 kg
- Product height: 44 mm
- Product depth: 350 mm
- Product width: 440 mm
- Security
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- DHCP functions
- DHCP server
- DHCP client
- DHCP snooping
- DHCP relay
- Management features
- System Event Report: Yes
- Switch Layer: L3
- Switch type: Managed
- Website management: Yes
- Quality of Service (QoS) Support: Yes
- ARP Inspection: Yes
- Working conditions
- Temperature range (storage): -10 - 70 °C
- Temperature range (operation): 0 - 40 °C
- Permissible relative humidity: 10 - 95%
- Relative humidity range: 5 - 95%
- Network
- Connection Aggregator: Yes
- Flow Control Support: Yes
- Frequency Limit: Yes
- Virtual LAN Features
- Port-based VLAN
- Tagged VLAN
- Auto-Negotiation: Yes
- Traffic Growth Control: Yes
- Half-duplex: Yes
- MAC address auto-aging supported: Yes
- MAC address auto-learning supported: Yes
- Communication standards
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.1p
- IEEE 802.3ae
- IEEE 802.3ab
- IEEE 802.1D
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3z
- IEEE 802.3at
- IEEE 802.3ad
- IEEE 802.1s
- IEEE 802.1Q
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- Auto MDI/MDI-X: Yes
- Port Mirroring: Yes
- Full duplex: Yes
- 10G Support: Yes
- Copper Ethernet cabling technology
- 100BASE-TX
- 10BASE-T
- 1000BASE-T
- VLAN support: Yes
- Auto Detection: Yes
- IP forwarding: Yes
- Supported cable types: Cat5e
- Efficiency
- MTBF (Mean Time Between Failures): 90000 h
- Packaging data
- Weight with packaging: 6.44 kg
- Packaging type: Box
- Package width: 505 mm
- Package height: 100 mm
- Package depth: 425 mm
- Package contents
- Hook mounting kit: Yes
- User Manual: Yes
- Wires: Alternating Current
- Certificates
- Certificates of conformity
- RoHS
- CE
- Certificates of conformity
- Protocols
- Route Selection Protocol
- RIP
- OSPF
- VRRP
- Management protocols: SNMP
- IPv6 FIB entries: 6000
- IPv4 FIB: 24000
- Route Selection Protocol
- Ports and interfaces
- Number of SFP+ Module slots: 6
- Power Connector: AC Input Socket
- Basic RJ-45 Switching Number of Ethernet Ports: 48
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Number of Gigabit Ethernet ports: 48
- Other functions
- Warranty period: 3 years
- Logistics data
- Products in the main (outer) box: 3 pcs.
- Height of the standard (outer) box: 465 mm
- Width of the collection box (external): 355 mm
- Main (outer) housing gross weight: 20.7 kg
- Main (outer) box length: 550 mm
- Data transfer
- Transfer speed: 160.7 Mpps
- Store-and-forward: Yes
- Address table size: 32000 entries
- Packet buffer memory: 16 MB
- Routing/Switching Throughput: 216 Gbps
- Jumbo Frame Compatible: Yes
- Jumbo Frames Expansion: 12000
- Power over Ethernet (PoE)
- Power over Ethernet Plus (PoE +) ports: 48
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 850 W
- Power over Ethernet (PoE) power per port: 30 W
- Power over Ethernet: 52V
- Multicast functions
- Multicast Support: Yes
| Name | Details |
|---|---|
| Producer | Intellinet |
