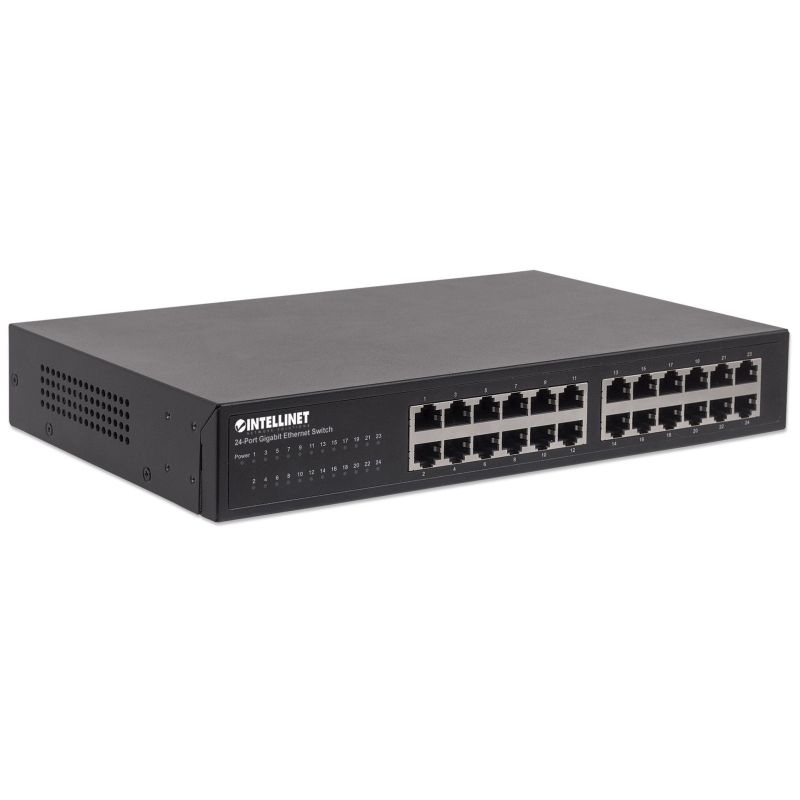

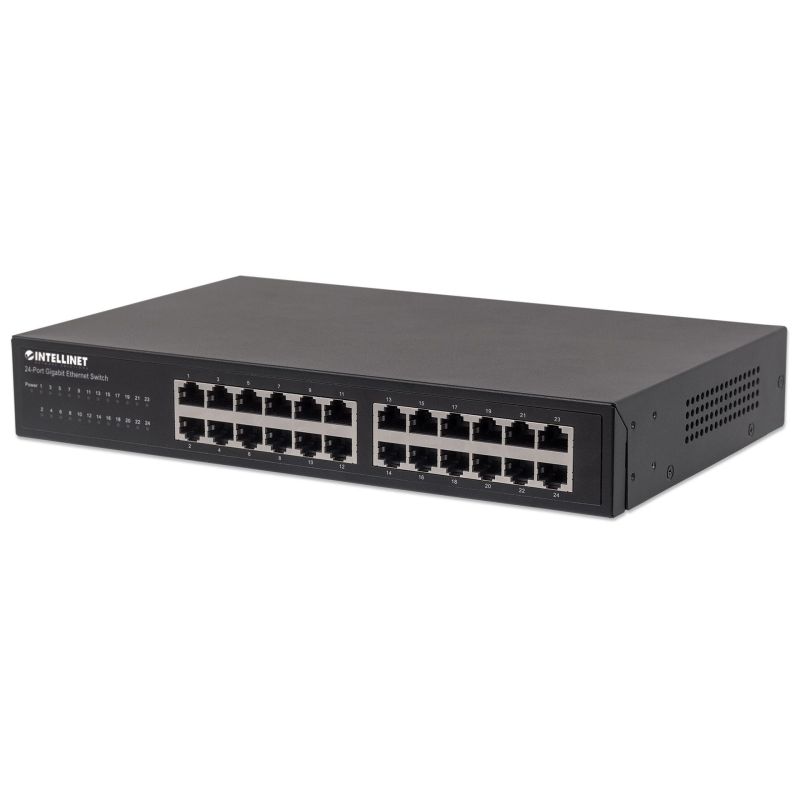

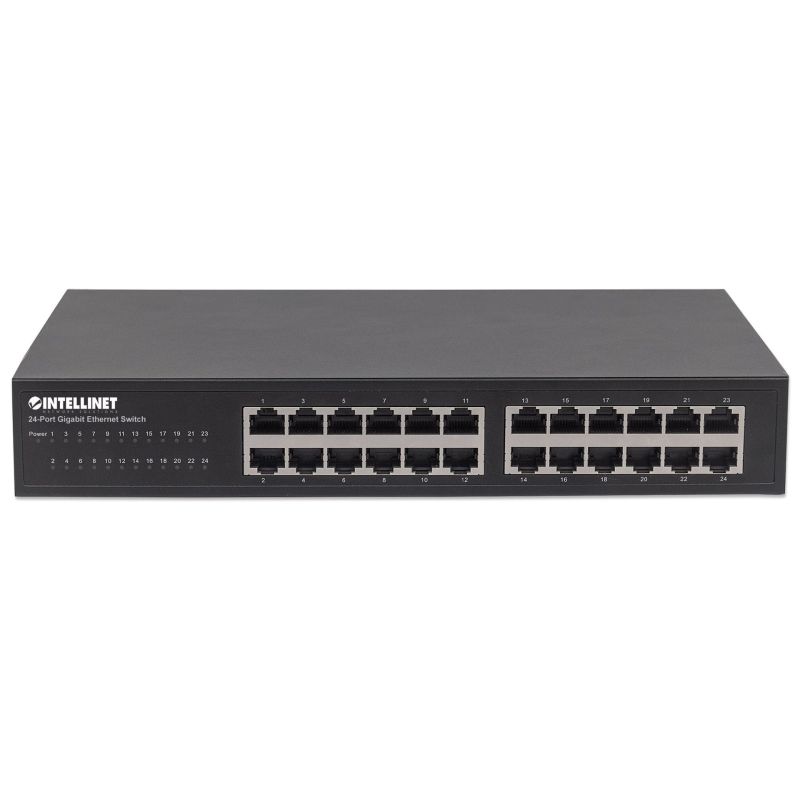

INTELLINET GIGABIT SWITCH 24X 10/100/1000 RJ45 DES
INTELLINET GIGABIT SWITCH 24X 10/100/1000 RJ45 DES
INTELLINET GIGABIT SWITCH 24X 10/100/1000 RJ45 DES
PRICE:
167,99
€
IN A WAREHOUSE
6 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- LED diodes
- Action
- Power supply
- Link

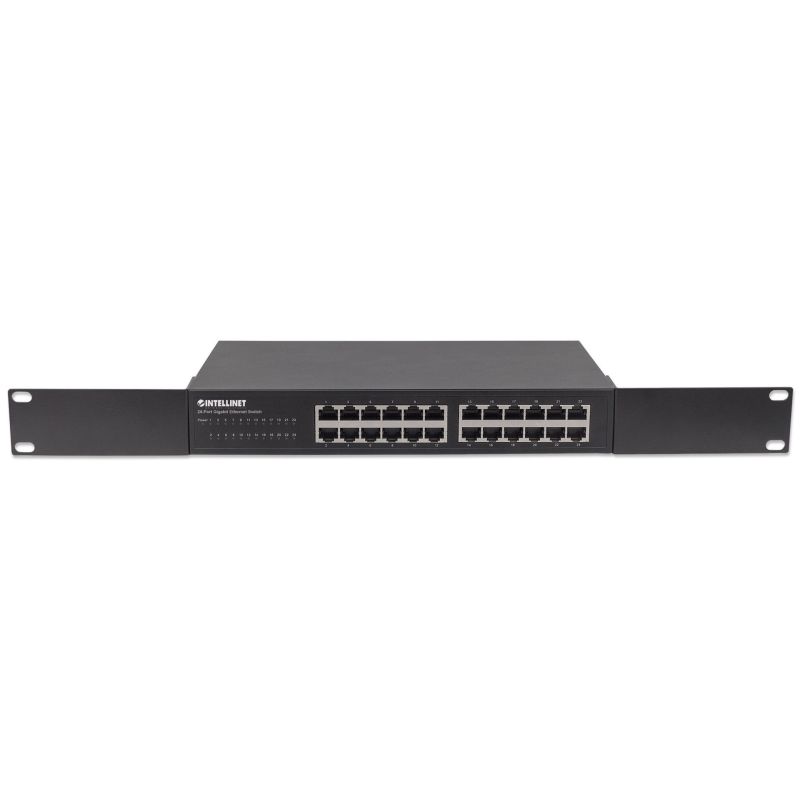

- Rack mounting options: Yes
- Product color: Black
- Housing material: Metal
- LED diodes
- Power
- Power consumption (max): 16 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Weight and dimensions
- Product weight: 2.6 kg
- Product depth: 180 mm
- Product width: 280 mm
- Product height: 44 mm
- Management features
- Wireless Access Point Control and Provisioning (CAPWAP): Yes
- Working conditions
- Temperature range (storage): -20 - 70 °C
- Temperature range (operation): 0 - 40 °C
- Relative humidity range: 10 - 90%
- Network
- Auto Detection: Yes
- MAC address auto-learning supported: Yes
- Supported cable types
- Cat5
- Cat3
- Cat5e
- Cat4
- MAC address auto-aging supported: Yes
- Copper Ethernet cabling technology
- 100BASE-TX
- 1000BASE-T
- 10BASE-T
- Communication standards
- IEEE 802.3ab
- IEEE 802.3az
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3
- Auto MDI/MDI-X: Yes
- Full duplex: Yes
- Auto-Negotiation: Yes
- 10G Support: No
- Flow Control Support: Yes
- Package contents
- Hook mounting kit: Yes
- Wires: Alternating Current
- User Guide: Yes
- Certificates
- Certificates of conformity
- Federal Communications Commission (FCC)
- CE
- Certificates of conformity
- Ports and interfaces

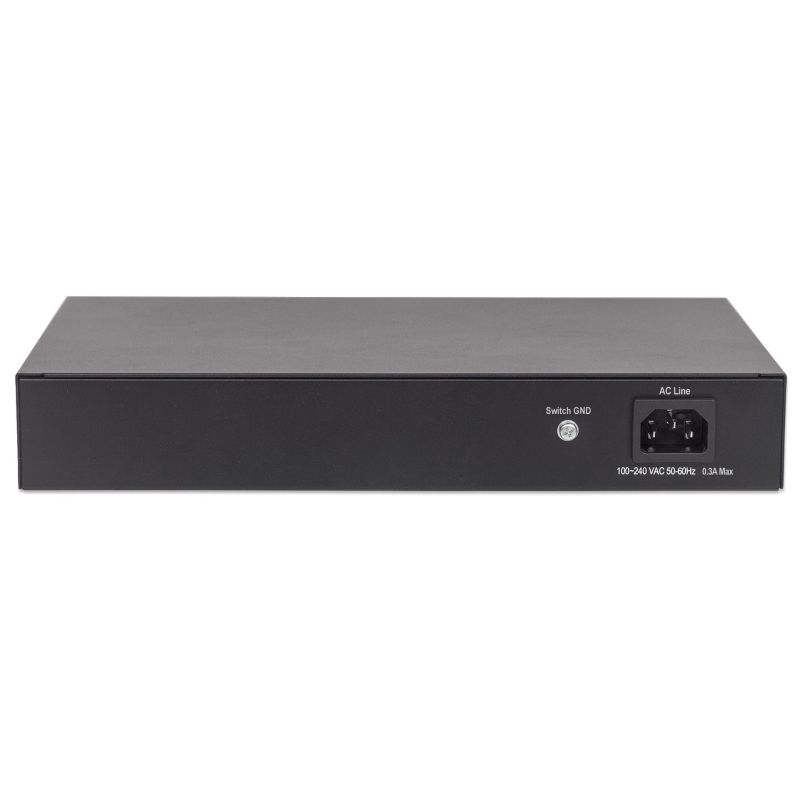

- Power Connector: AC Input Socket
- Basic RJ-45 Switching Number of Ethernet Ports: 24
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Packet forwarding range (10 Mbps): 14880 pps
- Packet forwarding range (1 Gbps): 1488000 pps
- Store-and-forward: Yes
- Packet forwarding range (100 Mbps): 148800 pps
- Jumbo Frames Expansion: 9000
- Packet buffer memory: 0.512 MB
- Jumbo Frame Compatible: Yes
- Address table size: 16384 entries
- Routing/switching capacity: 48 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: No
- Safety warning
- Warnings
- This product is not suitable for disposal in regular trash. Please dispose of used electronic equipment at a recycling center in accordance with local regulations.
- Ensure the device is adequately ventilated during operation.
- Do not open the casing or attempt to repair it yourself.
- Warnings
| Name | Details |
|---|---|
| Producer | Intellinet |
