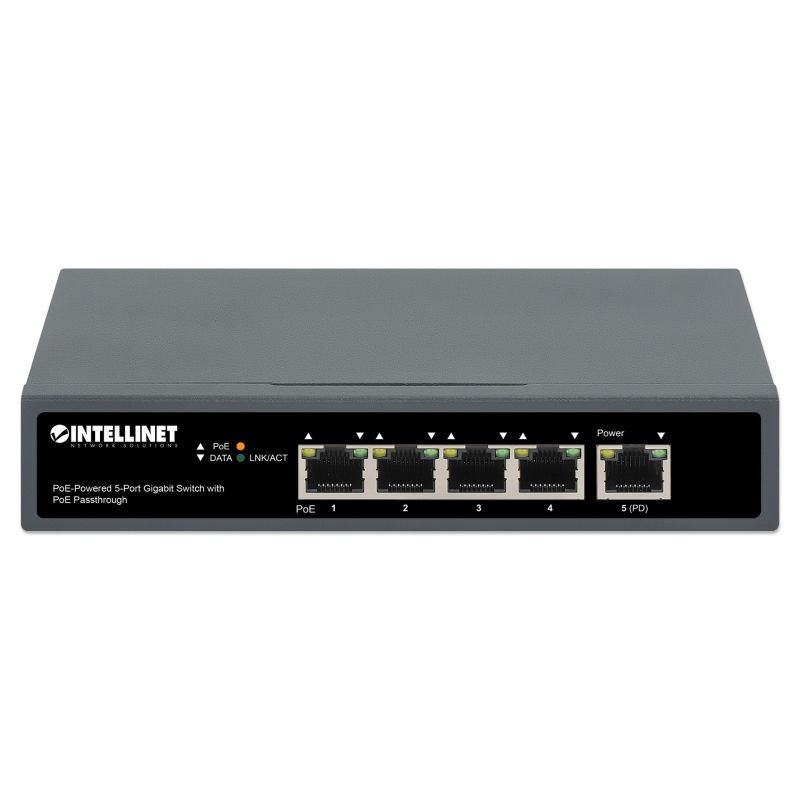

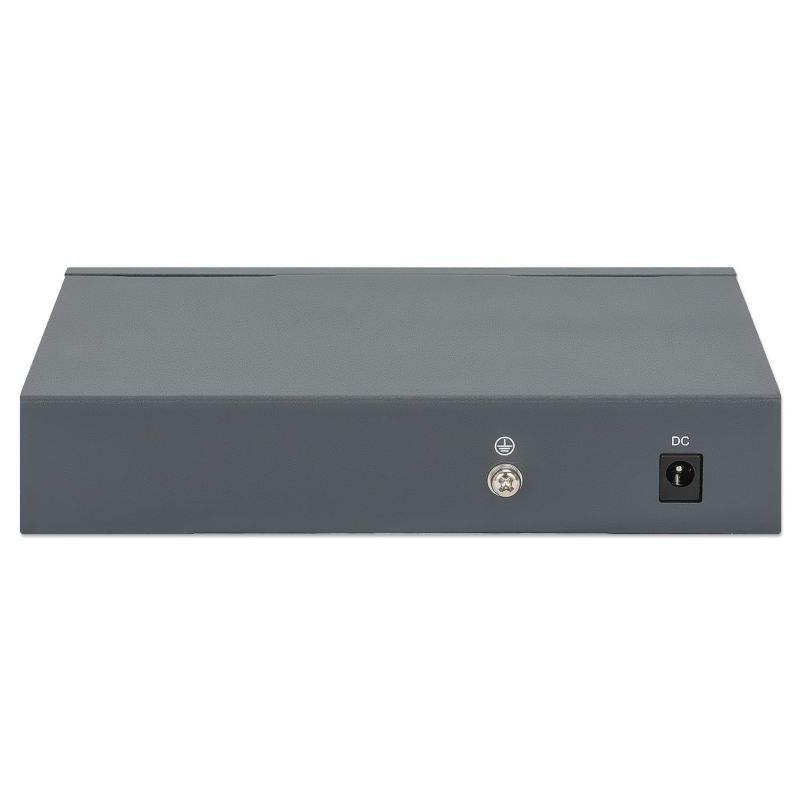

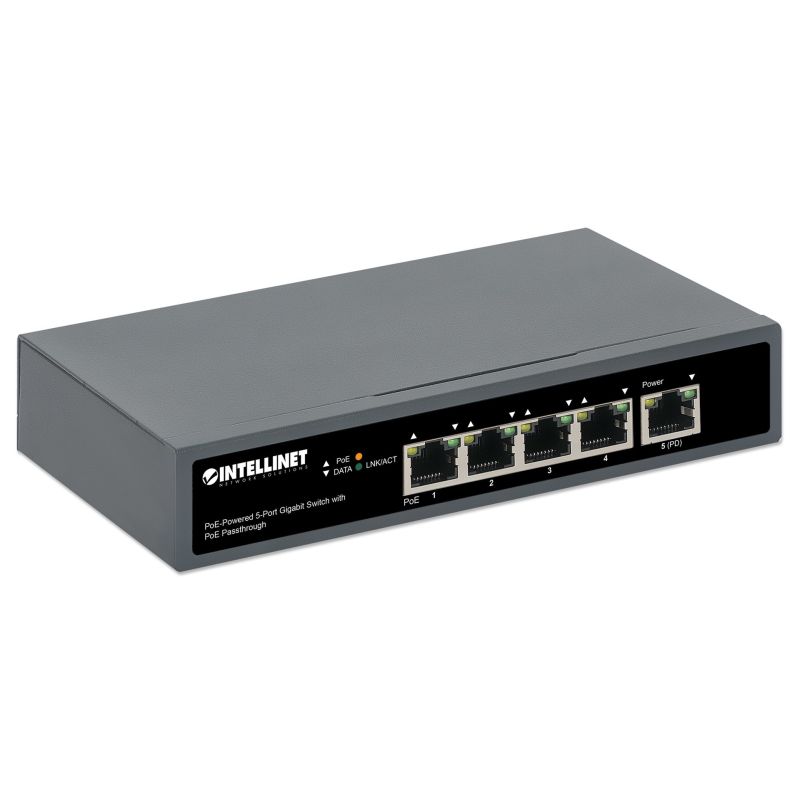

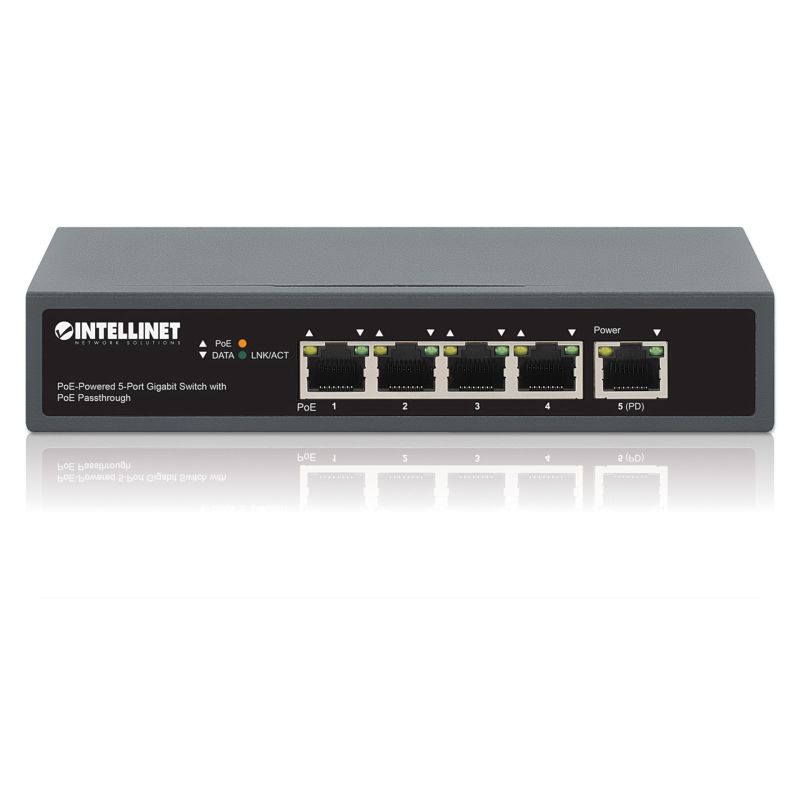

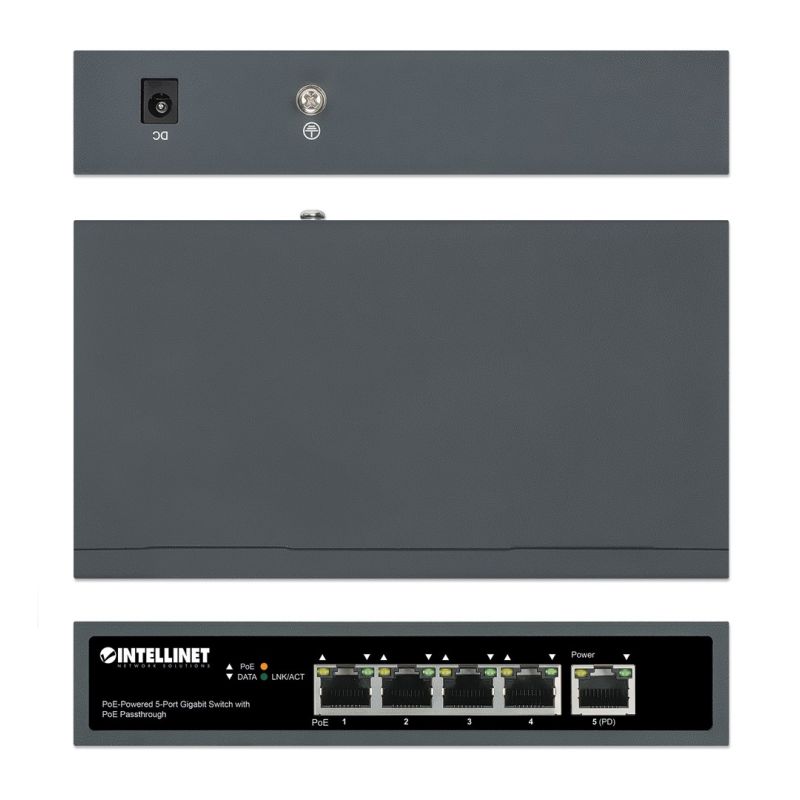

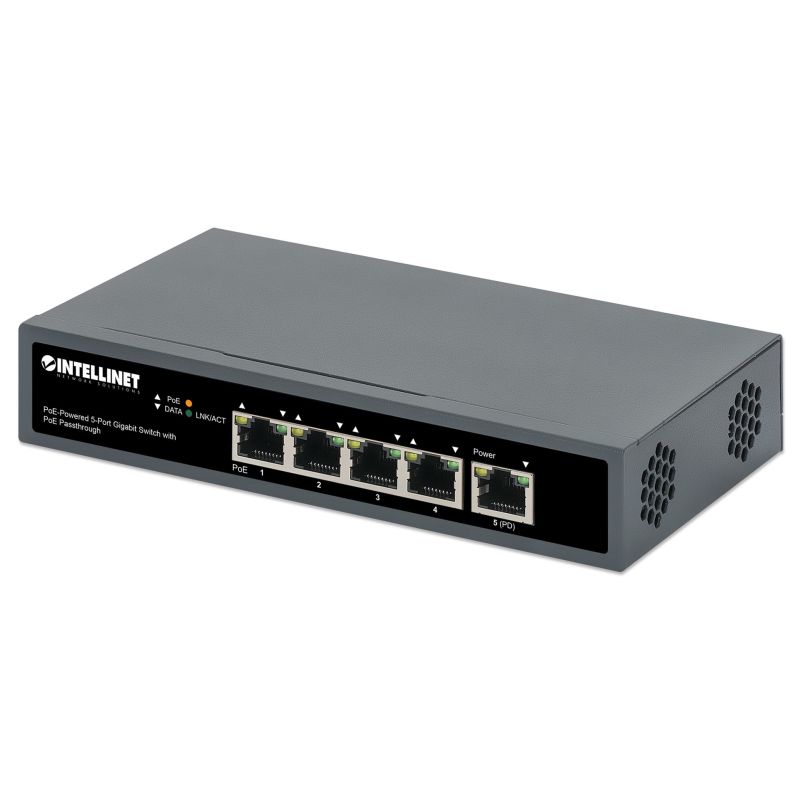

INTELLINET SWITCH GIGABIT 5X POE PASSTHROUGH POWER SUPPLY
INTELLINET SWITCH GIGABIT 5X POE PASSTHROUGH POWER SUPPLY
INTELLINET SWITCH GIGABIT 5X POE PASSTHROUGH POWER SUPPLY
PRICE:
108,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- LED diodes
- PoE
- Power supply
- Action
- Link
- Housing material: Metal
- Wall mountable: Yes
- LED diodes
- Power
- AC input voltage: 100 - 240 V
- Power consumption (max): 72 W
- Power supply included: Yes
- AC input frequency: 50 - 60 Hz
- Power source: AC
- Weight and dimensions
- Product depth: 93 mm
- Product weight: 400 g
- Product height: 32 mm
- Product width: 168 mm
- Working conditions
- Temperature range (storage): 0 - 70 °C
- Temperature range (operation): 0 - 40 °C
- Relative humidity range: 10 - 90%
- Network
- 10G Support: No
- Flow Control Support: Yes
- Communication standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3bt
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3at
- Copper Ethernet cabling technology
- 100BASE-TX
- 1000BASE-T
- 10BASE-T
- Supported cable types
- Cat5e
- Cat5
- Cat3
- Full duplex: Yes
- Packaging data
- Weight with packaging: 900 g
- Package contents
- User Manual: Yes
- Wires: Alternating Current
- Certificates
- Certificates of conformity
- RoHS
- Federal Communications Commission (FCC)
- CE
- Certificates of conformity
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 5
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Data transfer
- Store-and-forward: Yes
- Packet forwarding range (1 Gbps): 1488000 pps
- Jumbo Frame Compatible: Yes
- Packet forwarding range (10 Mbps): 14880 pps
- Packet buffer memory: 1 MB
- Address table size: 2048 entries
- Packet forwarding range (100 Mbps): 148800 pps
- Routing/switching capacity: 10 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 65 W
- Safety warning
- Warnings
- This product is not suitable for disposal in regular trash. Please dispose of used electronic equipment at a recycling center in accordance with local regulations.
- Do not open the casing or attempt to repair it yourself.
- Ensure the device is adequately ventilated during operation.
- Warnings
| Name | Details |
|---|---|
| Producer | Intellinet |
