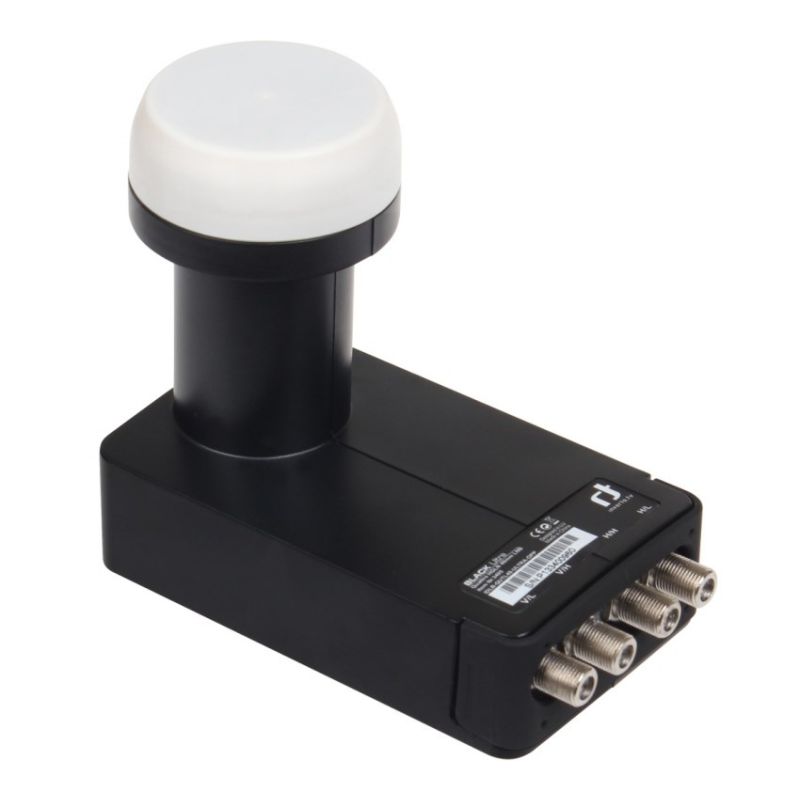

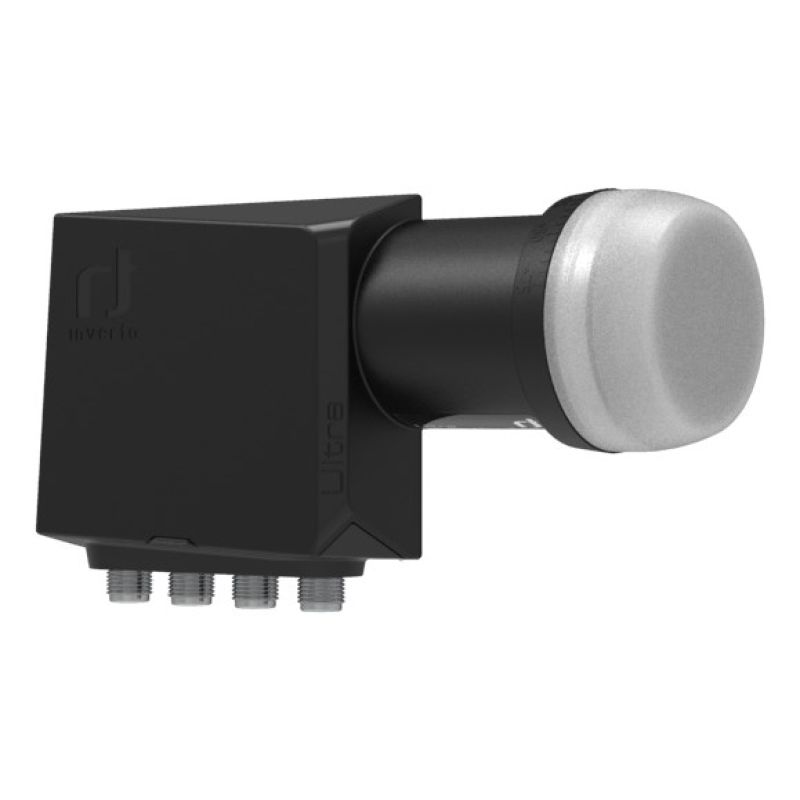

Inverto IDLT-QTL412-ULTRA-OPN LNB Black, Gray
Inverto IDLT-QTL412-ULTRA-OPN LNB Black, Gray
Inverto IDLT-QTL412-ULTRA-OPN LNB Black, Gray
PRICE:
46,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Certificates of conformity
- CE
- UKCA
- Certificates of conformity
- Characteristics
- Output impedance: 75 Ω
- Voltage standing wave ratio (VSRW): 2.0 : 1 max.
- Product color
- Black
- Gray
- Model: Quattro LNB
- Wave Gain (±): 1 dB
- Image rejection: 50 dBmW
- Upper output signal frequency range: 1100 - 2150 MHz
- Cross-polarization isolation: 22 dB
- Local oscillator (LO) phase noise (10 kHz): -80 dBc/Hz
- Conversion gain range: 60 - 70 dB
- Noise figure: 0.2 dB
- Low frequency output signal range: 950 - 1950 MHz
- Temperature drift (±): 2 MHz
- Initial accuracy (±): 1 MHz
- Compression point (1 dB): 0 dBmW
- High Input Frequency Bandwidth: 11.7 - 12.75 GHz
- Low LO frequency: 9.75 GHz
- Low Input Frequency Bandwidth: 10.7 - 11.7 GHz
- High LO frequency: 10.6 GHz
- Power
- Power consumption: 230 mA
- Weight and dimensions
- Product height: 79 mm
- Product width: 142 mm
- Product weight: 177 g
- Satellite converter diameter: 4.9 cm
- Working conditions
- Temperature range (operation): -30 - 60 °C
- Packaging data
- Quantity: 1
- Package depth: 86 mm
- Weight with packaging: 220 g
- Package height: 57 mm
- Package width: 148 mm
- Ports and interfaces
- RF connector type: F
- Logistics data
- Products per pallet: 1800 pcs.
