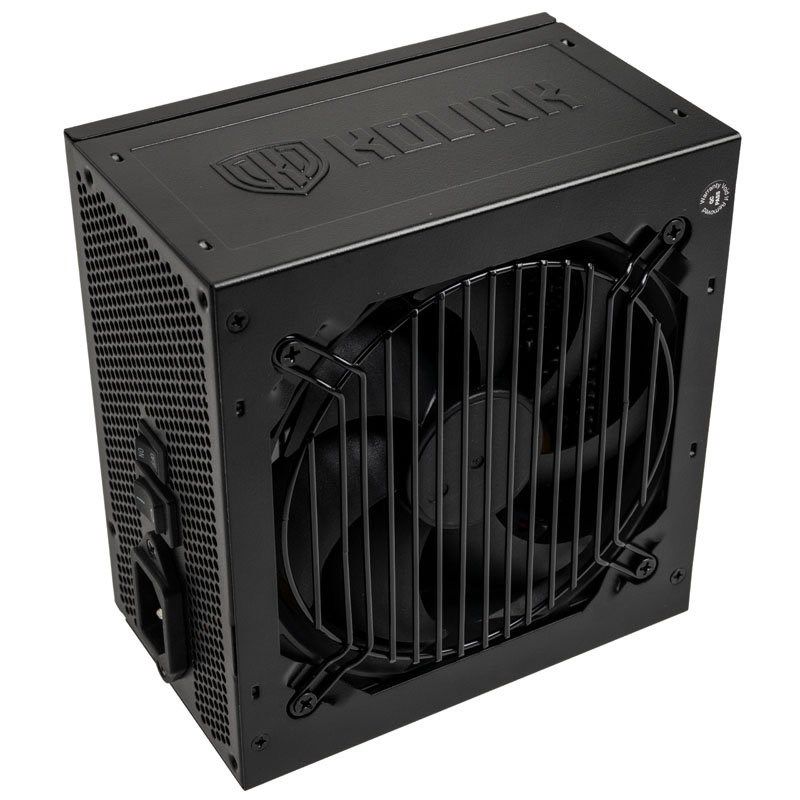

Kolink Regulator 80 PLUS Gold Power Supply, ATX 3.0, PCIe 5.0, Modular - 750 W
Kolink Regulator 80 PLUS Gold Power Supply, ATX 3.0, PCIe 5.0, Modular - 750 W
Kolink Regulator 80 PLUS Gold Power Supply, ATX 3.0, PCIe 5.0, Modular - 750 W
PRICE:
148,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Black

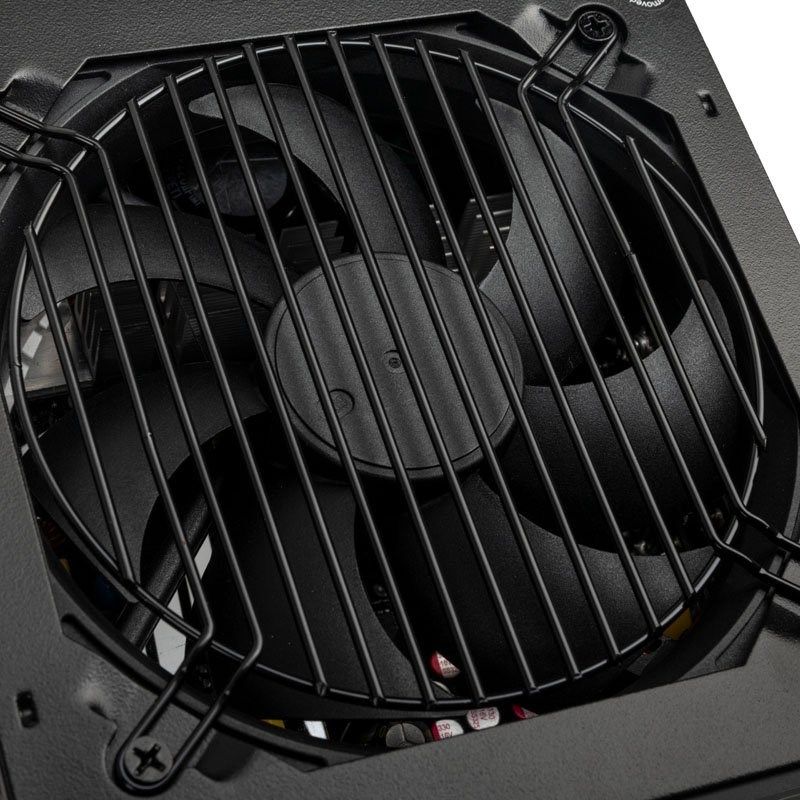

- Cooling type: Active
- Built-in switch: Yes
- Fan bowl diameter: 12 cm
- Power
- Maximum input current (@ 220V): 11 A
- AC input voltage: 100 - 240 V
- Maximum output current (+3.3V): 20 A
- Efficiency: 92%
- Maximum output current (+12V): 62.5A
- AC input frequency: 47 - 63 Hz
- PFC (Power Factor Correction) Type: Active
- Total power (+3.3V): 130 W
- Input current: 5.5 - 11 A
- Power protection features
- Overvoltages and inrush current
- Overload protection
- Short circuit
- Overheating protection
- Protection against overvoltage
- Overcurrent
- Low voltage protection
- Maximum input current (@ 110V): 5.5 A
- Total power: 700 W
- Hold time: 17 ms
- Maximum output current (+5 Vsb): 3 A
- Maximum output current (-12V): 0.3A
- Total power (-12V): 3.6 W
- Total power (+12V): 750 W
- Total power (+5V): 130 W
- Total power (+5 Vsb): 15 W
- Maximum output current (+5V): 20A
- Weight and dimensions
- Product height: 86 mm
- Product width: 140 mm
- Product depth: 150 mm
- Working conditions
- Temperature range (operation): 0 - 50 °C
- Efficiency
- ATX version: 3.0
- Intended use: PC
- Bearing Technology: FDB
- MTBF (Mean Time Between Failures): 15000 h
- 80 PLUS Certificate: 80 PLUS Gold
- Power supply type (PSU): ATX
- Packaging data

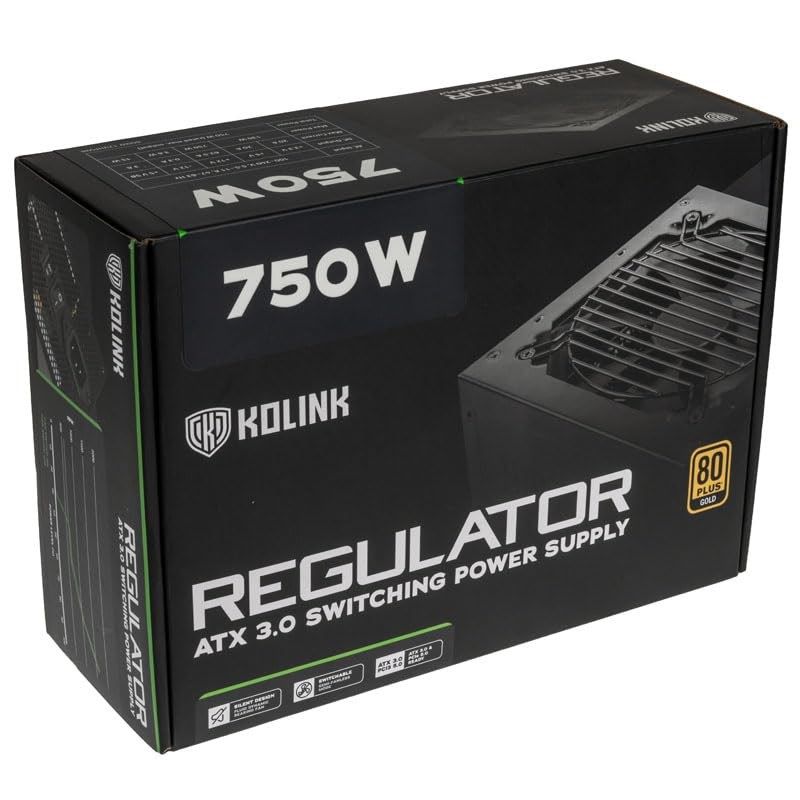

- Packaging type: Box
- Package depth: 210 mm
- Weight with packaging: 2.47 kg
- Package width: 295 mm
- Package height: 110 mm
- Package contents

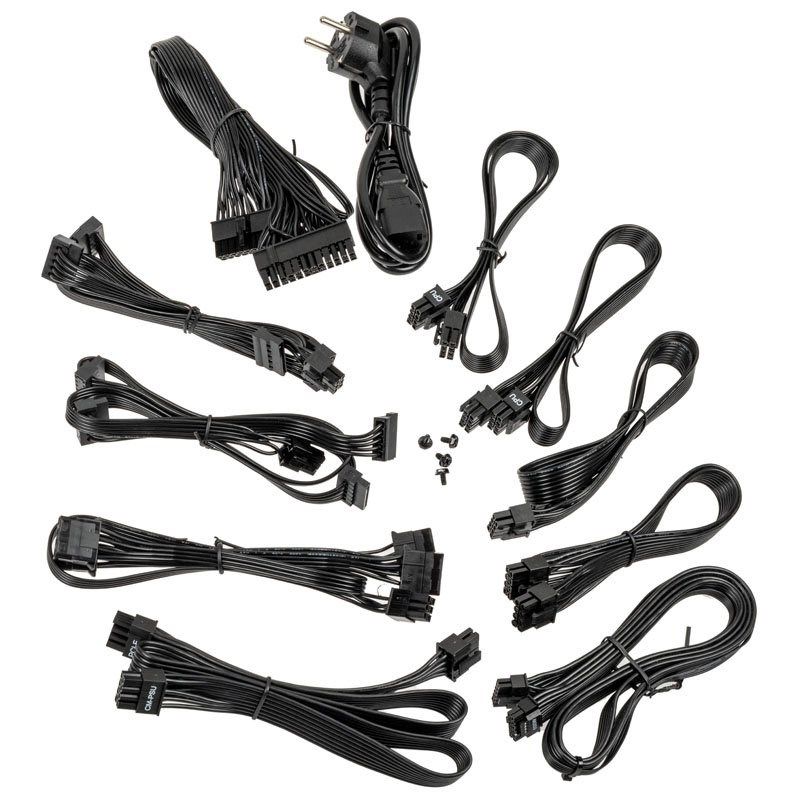

- Cables: Processor, PATA, SATA

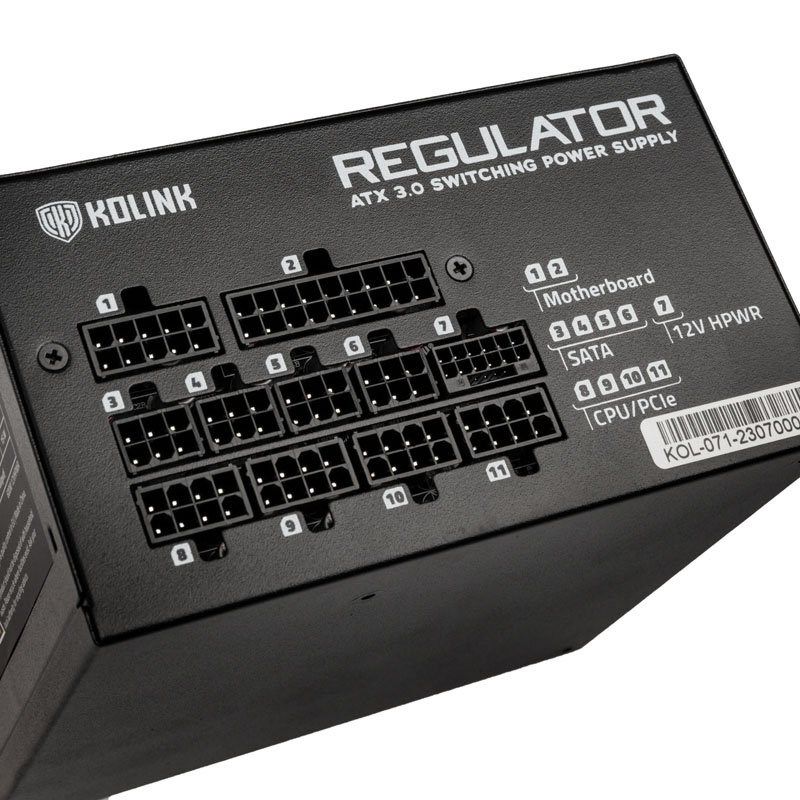

- Ports and interfaces
- Number of SATA power cables: 2
- CPU power supply connector (4+4 pin): Yes
- EPS power connector (4+4 pin): Yes
- Number of PATA power connectors: 4
- Number of SATA power connectors: 3
- Peripheral (Molex) Power Connectors (4-pin): 4
- Peripheral (Molex) Power Cable Length
- 650
- 950 mm
- 500 mm
- 800
- SATA power cable length
- 500 mm
- 800 mm
- 650
- PCI Express power connectors (6+2 pin): 2
- CPU power cable length: 65 cm
- ATX power supply connector (20+4 pin): Yes
- Wiring Type: Fully Modular
- Motherboard power connector: 20+4 pin ATX
- Motherboard cable length: 60 cm
- Safety warning
- Warnings
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Do not open the housing – risk of electric shock.
- Warnings
| Name | Details |
|---|---|
| Producer | KOLINK |
