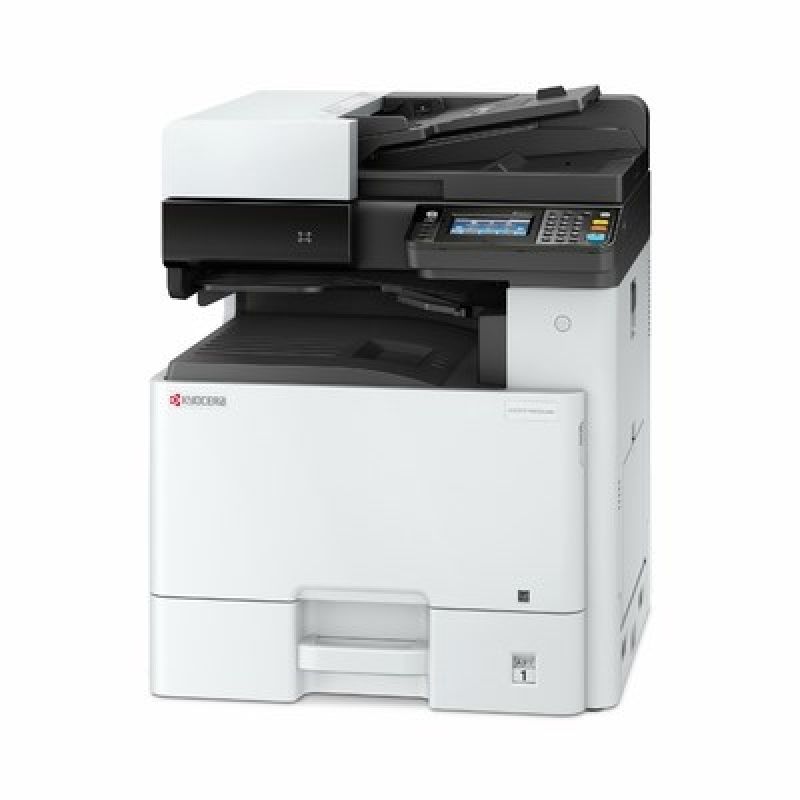

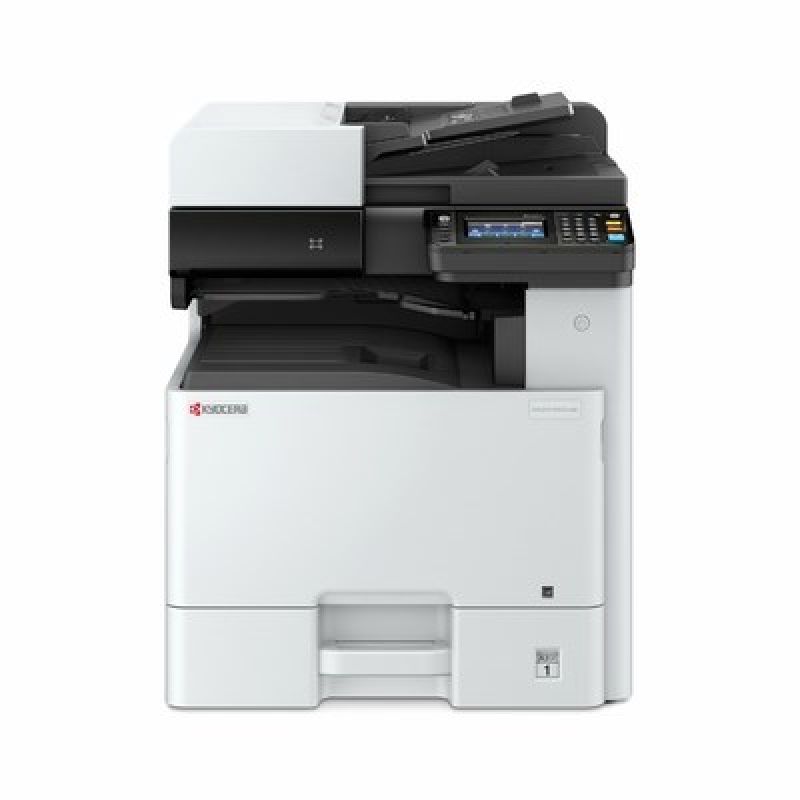

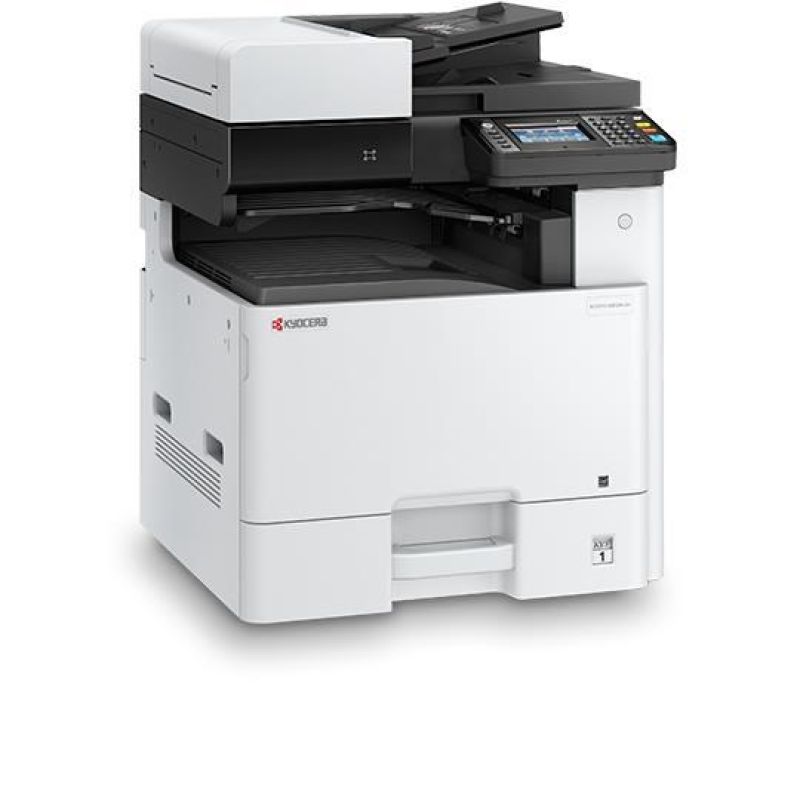

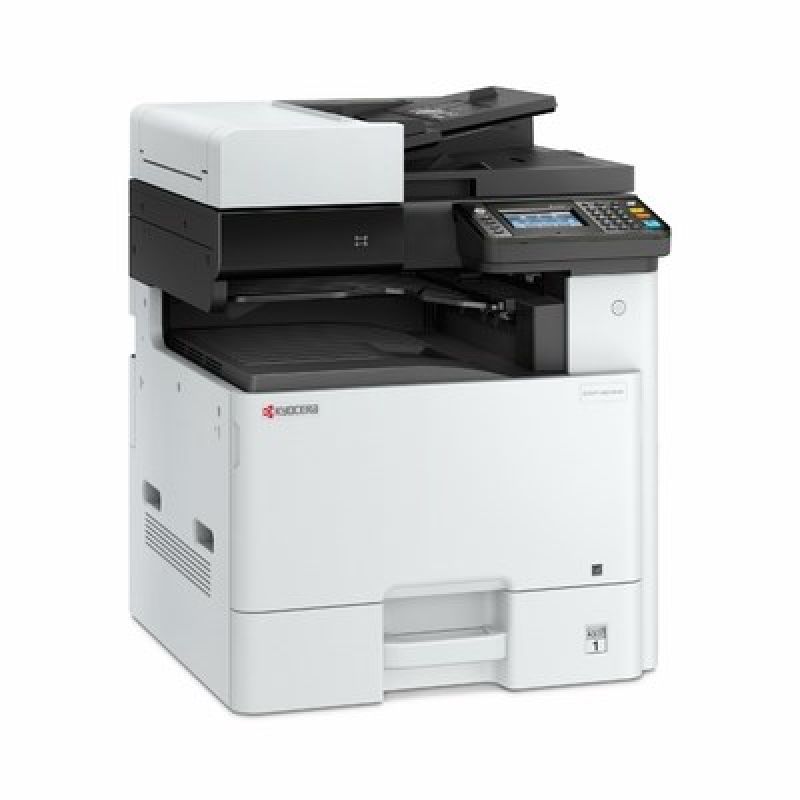

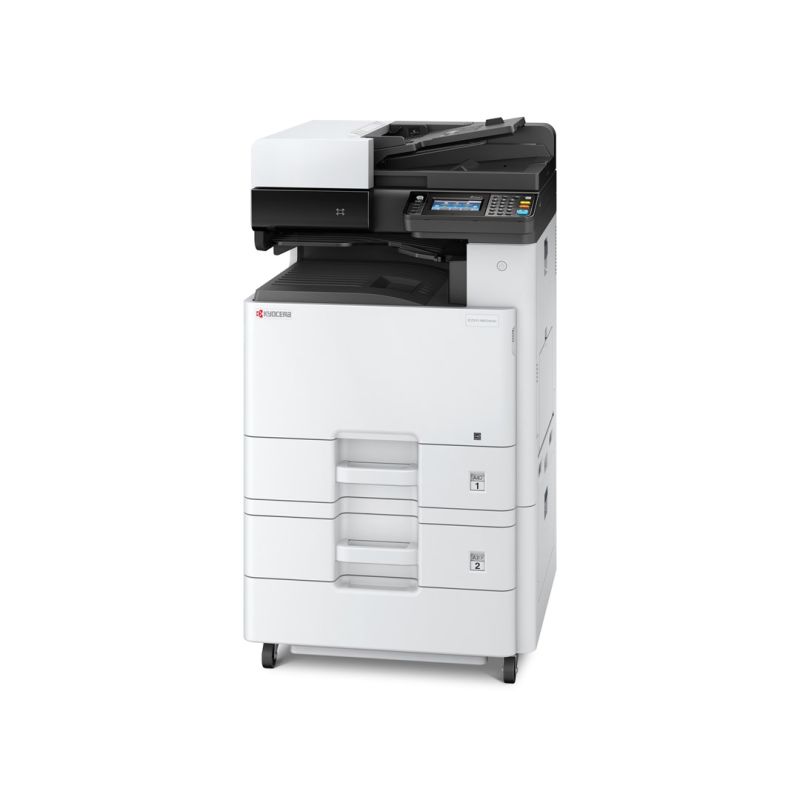

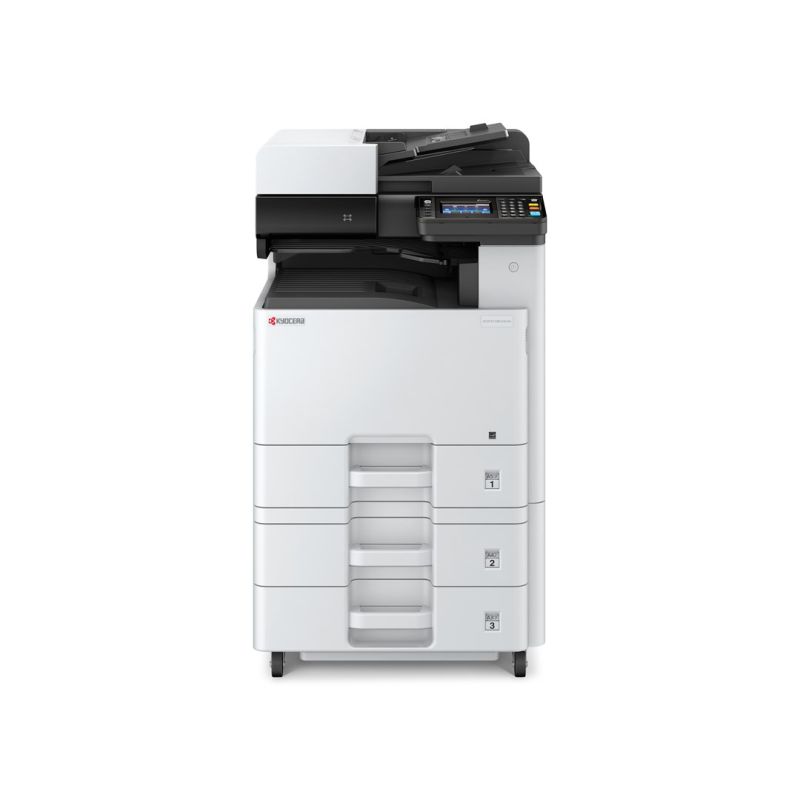

Kyocera ECOSYS M8124cidn Laser A3
Kyocera ECOSYS M8124cidn Laser A3
Sign up and unlock up to 10% off!
- Technical details
- Certificates of conformity
- RoHS
- REACH
- Certificates of conformity
- Characteristics
- Page description languages
- PCL 6
- PCL 5e
- PCL XL
- PostScript 3
- OpenXPS
- Microsoft XPS
- Printer fonts
- Windows
- Barcode
- PCL
- Bitmap
- Optional features: Fax
- Number of printer fonts: 101
- Print Cartridge Color(s): Black, Cyan, Magenta, Yellow
- Maximum duty cycle: 100,000 pages/month
- Duplex function
- Scanning
- Copy
- Number of print cartridges: 4
- Duty cycle (recommended): 2000 - 5000 pages/month
- Page description languages
- Design
- Product color: Black
- Screen type: TFT
- Screen diagonal: 4.3"
- Built-in display: Yes
- Touchscreen: Yes
- Color display: Yes
- Control Type: Touch
- Power
- Off mode: 0.1 W
- Power consumption in energy-saving mode: 40 W
- AC input voltage: 220 - 240 V
- Power consumption (max): 1575 W
- AC input frequency: 50 - 60 Hz
- Power consumption (sleep mode): 0.5 W
- Average power consumption while copying: 510 W
- Average power consumption while printing: 510 W
- Average power consumption (in operation): 510 W
- Power consumption (standby): 80 W
- Weight and dimensions
- Product weight: 76 kg
- Product height: 753 mm
- Product depth: 590 mm
- Product width: 590 mm
- Working conditions
- Temperature range (operation): 10 - 32.5 °C
- Relative humidity range: 10 - 80%
- Temperature range (storage): -20 - 40 °C
- Network
- Wi-Fi: No
- Cabling technology: 10/100/1000Base-T(X)
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- Bluetooth: No
- Wired LAN: Yes
- Email Protocols
- SMTP
- POP3
- Mobile printing technologies
- Apple AirPrint
- Kyocera Mobile Print
- Mopria Print Service
- Google Cloud Print
- NFC: No
- Email via SSL: Yes
- System requirements
- Supported Mac operating systems
- Mac OS X 10.9 Mavericks
- Mac OS X 10.5 Leopard
- Mac OS X 10.10 Yosemite
- Mac OS X 10.13 High Sierra
- Mac OS X 10.12 Sierra
- Mac OS X 10.6 Snow Leopard
- Mac OS X 10.7 Lion
- Mac OS X 10.11 El Capitan
- Mac OS X 10.14 Mojave
- Mac OS X 10.15 Catalina
- Mac OS X 10.8 Mountain Lion
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Supported Mac operating systems
- Efficiency
- Integrated card reader: Yes
- Processor clock speed: 1200 MHz
- Number of processor cores: 2
- Processor type: ARM Cortex-A9
- Supported memory cards: SD
- Sound pressure level (printing): 53 dB
- Maximum internal memory: 3000 MB
- Sound pressure level (copying): 53 dB
- Built-in processor: Yes
- Internal memory capacity: 1.5 GB
- Sound pressure level (standby): 34 dB
- Packaging data
- Package depth: 760 mm
- Package width: 760 mm
- Package height: 995 mm
- Weight with packaging: 104 kg
- Package contents
- Wires: Alternating Current
- Quick Installation Guide: Yes
- Drivers included: Yes
- User Manual: Yes
- Cartridge capacity (CMY): 1500 pages
- Cartridge capacity (black): 3000 pages
- Power cord included: Yes
- Includes insert(s): Yes
- Imaging Unit Included: Yes
- Certificates
- Waste Electrical and Electronic Equipment (WEEE) Disposal: Yes
- Ports and interfaces
- Number of USB 2.0 ports: 3
- Direct Printing: Yes
- USB port: Yes
- Optional communication solutions
- Ethernet
- Wireless LAN
- Standard interfaces: Ethernet, USB 2.0
- Other functions
- Finisher Options: No
- Print speed
- Printing technology: Laser
- Print speed (A3, black, normal): 12 ppm
- Economical printing: Yes
- Duplex printing modes: Automatic
- Poster printing function: Yes
- Barcode printing: Yes
- Printing: Color printing
- Color resolution: 1200 x 1200 DPI
- Nw-1 Print Function: Yes
- Dual print speed (color, normal quality, A4/US Letter): 22 ppm
- Watermark Printing: Yes
- Secure PDF Printing Feature: Yes
- First page out time (color): 10.2 sec
- Print speed (A3, color, normal mode): 12 ppm
- Print speed (color, normal quality, A4/US Letter): 24 ppm
- Dual print speed (black, normal quality, A4/US Letter): 22 ppm
- First page out time (A4, black): 7.5 sec
- N-up printing
- 4
- 2
- Print speed (A4/US Letter, black, normal): 24 ppm
- Dual Printing: Yes
- Maximum resolution: 9600 x 600 DPI
- Secure Print: Yes
- Black print resolution: 1200 x 1200 DPI
- Warm-up time: 30 sec
- Copying
- The n-in-one function (N=)
- 2
- 4
- Copy reduction/enlargement: 25 - 400%
- Copy speed (black, normal, A4): 24 cpm
- Copy Programming Function: Yes
- Maximum number of copies: 999 copies
- ID card copy function: Yes
- First copy out time (color, normal): 9.8 sec
- First copy out time (black): 7.6 sec
- Copy speed (color, normal quality A3): 12 copies/min
- Duplex copy speed (Letter, black): 22 ppm
- Copy speed (color, normal mode, A4): 24 copies/min
- Copying: Color Copying
- Copy speed (black, normal quality A3): 12 cpm
- N-in-1 copy function: Yes
- Maximum copy resolution: 600 x 600 DPI
- Two-sided copying: Yes
- Duplex Copy Mode: Automatic
- The n-in-one function (N=)
- Input and output power
- Automatic paper feeder capacity: 50 sheets
- Multipurpose feeder: Yes
- Paper input type
- Paper feeder
- Cassette
- Maximum input capacity (sheets): 1600 sheets
- Automatic Document Feeder (ADF): Yes
- Total number of feeders: 1
- Total input capacity: 500 sheets.
- Paper tray 3 input capacity: 500 sheets
- Paper tray 2 capacity: 500 sheets
- Maximum number of feeders: 3
- Total output capacity: 280 sheets
- Maximum output capacity (sheets): 280 sheets
- Multipurpose tray capacity: 100 sheets
- Paper tray 1 capacity: 500 sheets
- Fax
- Modem speed: 33.6 Kbit/s
- Fax resolution (black and white): 400 x 400 DPI
- Two-sided faxing: Yes
- Fax transmission speed: 3 sec/page
- Fax coding methods
- MH
- MR
- MMR
- JBIG
- Fax: No
- Logistics data
- Harmonized System (HS) code: 84433100
- Scanning
- Photo compression format
- TIFF
- JPEG
- MMR
- Maximum scanning area: 297 x 420 mm
- Duplex scanning speed (black): 16 pages/min
- Dual Scan: Yes
- Scanning: Color scanning
- Scanning speed (color): 50 pages/min
- Duplex scanning mode: Automatic
- Scanner drivers
- TWAIN
- WIA
- Supported document formats
- XPS
- Grayscale levels: 256
- Optical scanning resolution: 600 x 600 DPI
- Scanner Type: Flatbed Scanner and ADF
- Duplex scanning speed (color): 16 pages/min
- Scanning speed (black): 50 pages/min
- Scanning technology: CIS/CCD
- Scan to
- USB
- SMB
- TWAIN
- FTP
- WIA
- Photo compression format
- Paper handling
- Adjust media width: 98 - 297 mm
- Maximum print area: 297 x 432 mm
- Maximum ISO paper size (A-series): A3
- ISO A series sizes (A0…A9)
- A4
- A6
- A3
- A5
- Paper tray media types: Plain blank paper
- Non-ISO media sizes
- Folio
- Legal
- Book (media size)
- Letter
- Media weight in multipurpose tray: 60 - 256 g/m²
- Recommended media weight for double-sided printing (g/m2): 60 - 220 g/m²
- Minimum media thickness: 0.11 mm
- Paper feed weight: 60 - 256 g/m²
- Adjust carrier length: 148 - 432 mm
- Types of multi-purpose feeders
- Legal
- Letter
- ISO B series sizes (B0…B9): B5
- Safety warning
- Warnings
- Avoid contact with ink, it may cause skin irritation.
- Do not throw used devices and toners into regular trash, they may contain substances harmful to the environment.
- Follow local regulations regarding the disposal of electronic multifunction devices.
- Warnings
| Name | Details |
|---|---|
| Producer | Kyocera |
