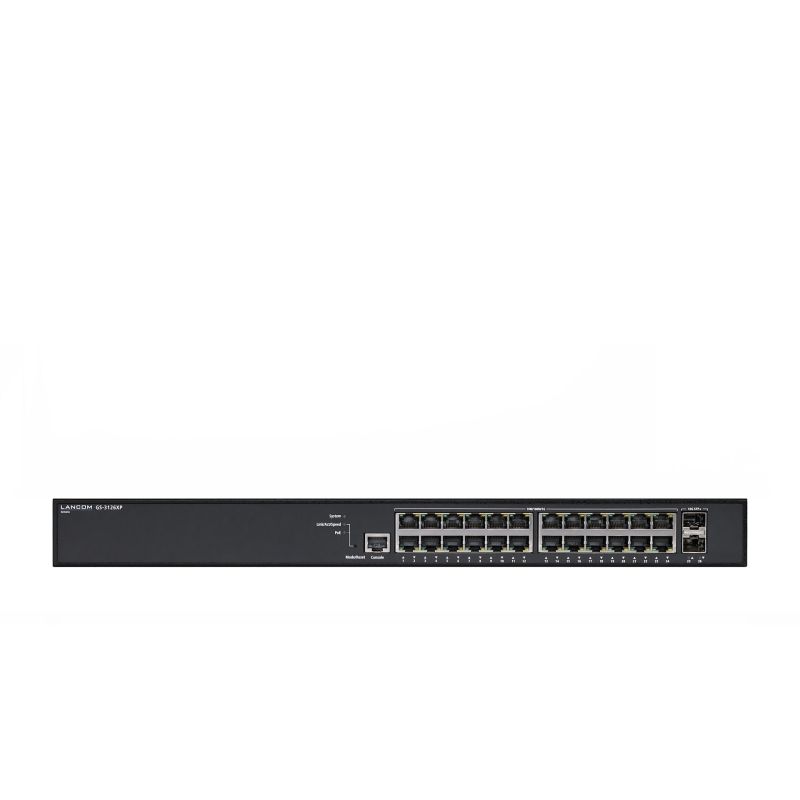

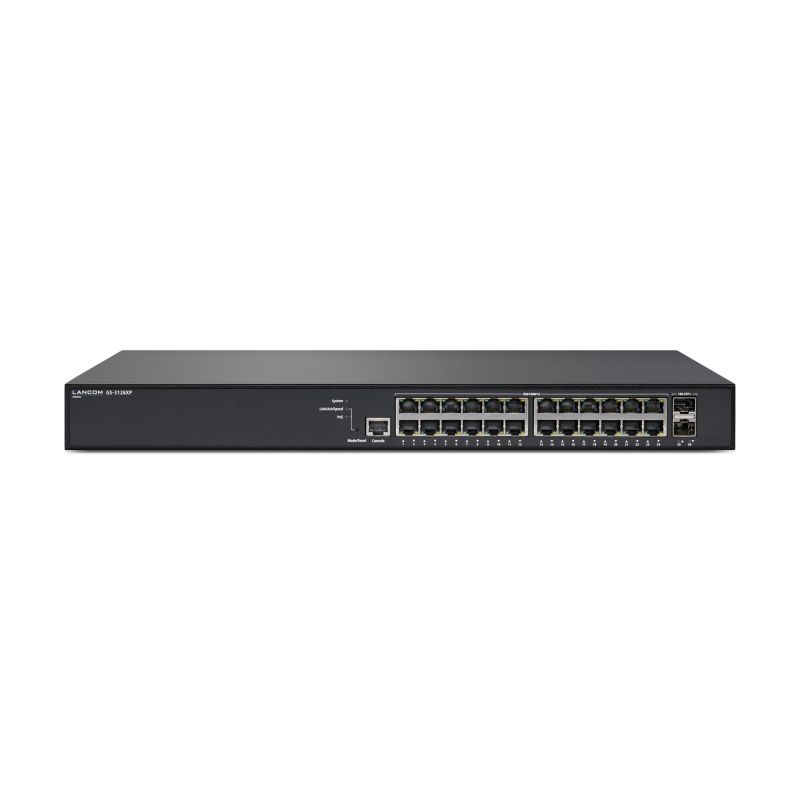

LANCOM GS-3126XP Switch - 24 ports
LANCOM GS-3126XP Switch - 24 ports
LANCOM GS-3126XP Switch - 24 ports
PRICE:
1654,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Rack mounting options: Yes
- LED diodes
- PoE
- System
- Action
- Speed
- Link
- Number of fans: 1 fan
- Layout: 1U
- Housing material: Metal
- Product color: Black
- Power
- Power consumption (max): 230 W
- AC input voltage: 100 - 240 V
- Power source: AC/PoE
- AC input frequency: 50 - 60 Hz
- Power supply included: Yes
- Weight and dimensions
- Product width: 442 mm
- Product height: 44 mm
- Product depth: 211 mm
- Product weight: 2.7 kg
- Security
- MAC address filtering: Yes
- Encryption/Security: SNMPv3
- Supports SSH/SSL: Yes
- Access Control List (ACL): Yes
- Authentication: Guest VLAN
- DHCP functions
- DHCP Option 82
- DHCP Option 66
- DHCP client
- DHCP server
- DHCP Option 67
- DHCP snooping
- DHCP relay
- Authentication type: RADIUS, IEEE 802.1x, TACACS+
- IGMP snooping: Yes
- IGMP Proxy: Yes
- Loop protection: Yes
- Management features
- Website management: Yes
- Quality of Service (QoS) Support: Yes
- Configuring Location Settings (CLI): Yes
- Switch Layer: L3
- Switch type: Managed
- Working conditions
- Relative humidity range: 10 - 90%
- Temperature range (operation): 0 - 40 °C
- Heat emission: 154 BTU/h
- Network
- VLAN support: Yes
- Number of VLANs: 4096
- Communication standards
- IEEE 802.3x
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.1p
- IEEE 802.3ae
- IEEE 802.3
- IEEE 802.1ad
- IEEE 802.1x
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3az
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.1ak
- IEEE 802.1s
- IEEE 802.3ad
- IEEE 802.1Q
- 10G Support: Yes
- Virtual LAN Features
- Voice VLAN
- Port-based VLAN
- Tagged VLAN
- MAC address-based VLAN
- IP subnet–based VLAN
- VLAN Identifier (VLAN ID)
- Private VLAN
- MVRP
- Connection Aggregator: Yes
- Spanning Tree Protocol: Yes
- Traffic Growth Control: Yes
- Port Mirroring: Yes
- Flow Control Support: Yes
- Efficiency
- Device software updates: Yes
- Noise level: 40 dB
- Packaging data
- Weight with packaging: 4 kg
- Package height: 985 mm
- Package width: 470 mm
- Package depth: 540 mm
- Mounting Brackets Included: Yes
- Package contents
- Wires
- Alternating current
- Serial
- Quick Start Guide: Yes
- Wires
- Certificates
- Certificates of conformity
- CE
- Federal Communications Commission (FCC)
- Certificates of conformity
- Protocols
- IP Source Protection (IPSG): Yes
- GARP VLAN Registration Protocol (GVRP): Yes
- Ports and interfaces
- Power Connector: AC Input Socket
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Basic RJ-45 Switching Number of Ethernet Ports: 24
- Number of SFP+ Module slots: 2
- Number of Gigabit Ethernet ports: 24
- Console port: RJ-45
- Logistics data
- Customs product code (TARIC): 85176200
- Country of origin: Taiwan
- Harmonized System (HS) code: 85176990
- Data transfer
- Address table size: 32000 entries
- Jumbo Frame Compatible: Yes
- Routing/switching capacity: 88 Gbit/s
- Static Route: Yes
- Jumbo Frames Expansion: 10240
- Number of static routes: 128
- Bandwidth: 130 Mpps
- Store-and-forward: Yes
- Power over Ethernet (PoE)
- Total Power over Ethernet (PoE) budget: 185 W
- PoE Support: Yes
- Power over Ethernet Plus (PoE +) ports: 24
- Multicast functions
- Multicast Listener Discovery (MLD) snooping: Y
- Multicast Support: Yes
