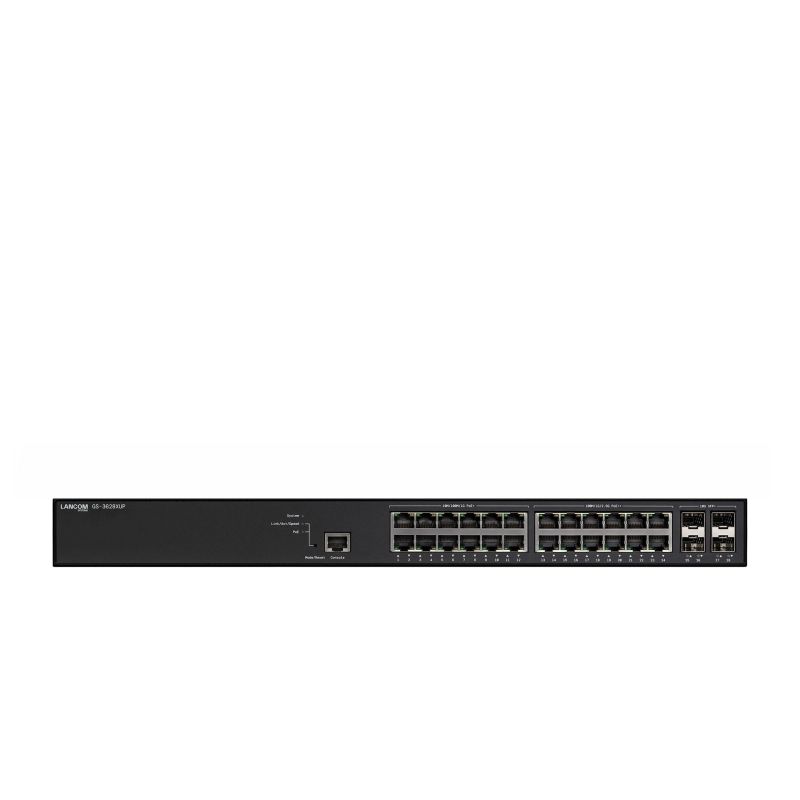

LANCOM GS-3628XUP L3 2.5G Ethernet (100/1000/2500) PoE Support 1U Black
LANCOM GS-3628XUP L3 2.5G Ethernet (100/1000/2500) PoE Support 1U Black
LANCOM GS-3628XUP L3 2.5G Ethernet (100/1000/2500) PoE Support 1U Black
PRICE:
4271,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Layout: 1U
- Product color: Black
- Number of fans: 1 fan
- Rack mounting options: Yes
- Housing material: Metal
- Power
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 860 W
- Power source: AC
- AC input voltage: 100 - 240 V
- Weight and dimensions
- Product weight: 4.9 kg
- Product depth: 375 mm
- Product width: 442 mm
- Product height: 44 mm
- Security
- Encryption/Security: SNMPv3
- DHCP functions
- DHCP client
- DHCP server
- DHCP Option 67
- DHCP snooping
- DHCP Option 82
- DHCP Option 66
- DHCP relay
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Supports SSH/SSL: Yes
- IGMP Proxy: Yes
- Authentication type: IEEE 802.1x, RADIUS, TACACS+
- Management features
- Website management: Yes
- Quality of Service (QoS) Support: Yes
- Switch Layer: L3
- Configuring Location Settings (CLI): Yes
- Working conditions
- Relative humidity range: 10 - 90%
- Temperature range (operation): 0 - 40 °C
- Heat emission: 410 BTU/h
- Network
- Communication standards
- IEEE 802.3bt
- IEEE 802.3af
- IEEE 802.1s
- IEEE 802.3u
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.1w
- IEEE 802.1ak
- IEEE 802.1x
- IEEE 802.1AX
- IEEE 802.3
- IEEE 802.3bz
- IEEE 802.1ad
- IEEE 802.1p
- IEEE 802.3az
- IEEE 802.3at
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.1Q
- Flow Control Support: Yes
- Traffic Growth Control: Yes
- Cable length measurement: Yes
- Virtual LAN Features
- Tagged VLAN
- IP subnet–based VLAN
- Voice VLAN
- VLAN Identifier (VLAN ID)
- MAC address-based VLAN
- Port-based VLAN
- Private VLAN
- Spanning Tree Protocol: Yes
- Connection Aggregator: Yes
- Number of VLANs: 4093
- VLAN support: Yes
- Port Mirroring: Yes
- Communication standards
- Efficiency
- Device software updates: Yes
- Noise level: 48 dB
- Packaging data
- Mounting Brackets Included: Yes
- Package contents
- Wires
- Alternating current
- Serial
- Quick Start Guide: Yes
- Wires
- Certificates
- Certificates of conformity
- Federal Communications Commission (FCC)
- CE
- Certificates of conformity
- Protocols
- IP Source Protection (IPSG): Yes
- GARP VLAN Registration Protocol (GVRP): Yes
- Ports and interfaces
- Number of 2.5G Ethernet ports (copper): 12
- Basic Ethernet Switching RJ-45 Ports Type: 2.5G Ethernet (100/1000/2500)
- Basic RJ-45 Switching Number of Ethernet Ports: 48
- Number of Gigabit Ethernet ports: 12
- Power Connector: AC Input Socket
- Console port: RJ-45
- Number of SFP+ Module slots: 4
- Logistics data
- Customs product code (TARIC): 85176200
- Country of origin: Taiwan
- Data transfer
- Jumbo Frame Compatible: Yes
- Address table size: 32000 entries
- Routing/Switching Throughput: 164 Gbit/s
- Packet buffer memory: 4 MB
- Static Route: Yes
- Store-and-forward: Yes
- Jumbo Frames Expansion: 10240
- Bandwidth: 122 Mpps
- Number of static routes: 128
- Power over Ethernet (PoE)
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 740 W
- Power over Ethernet Plus (PoE +) ports: 24
- Power over Ethernet (PoE) power per port: 90 W
- Multicast functions
- Multicast Listener Discovery (MLD) snooping: Y
- Multicast Support: Yes
