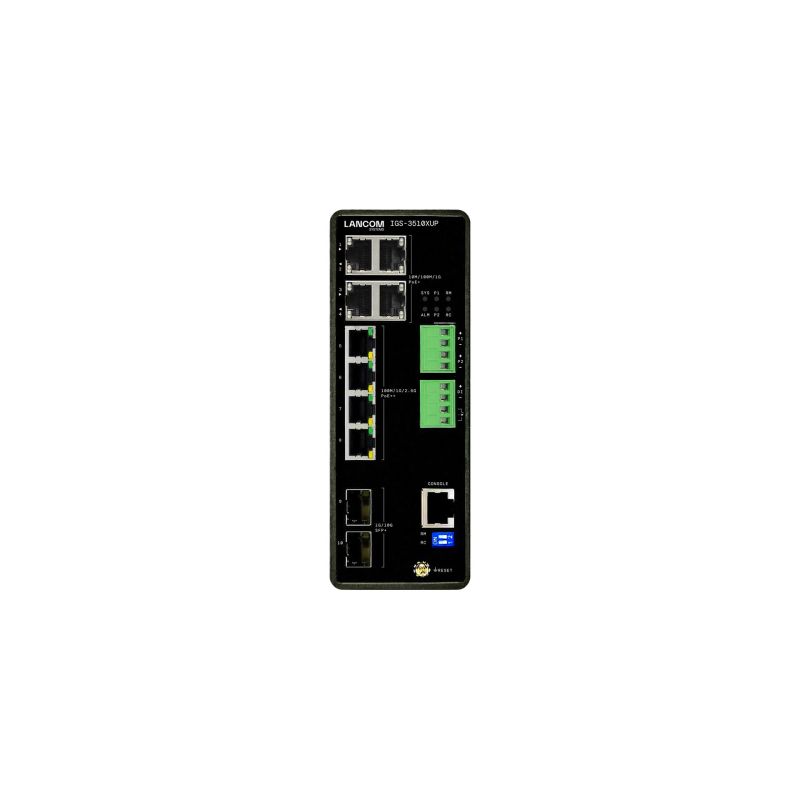

LANCOM IGS-3510XUP Managed L3 2.5G Ethernet (100/1000/2500) PoE Support Black
LANCOM IGS-3510XUP Managed L3 2.5G Ethernet (100/1000/2500) PoE Support Black
LANCOM IGS-3510XUP Managed L3 2.5G Ethernet (100/1000/2500) PoE Support Black
PRICE:
3506,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Housing material: Metal
- DIN rail mounting: Yes
- Reset button: Yes
- Product color: Black
- Power
- Power Supply Included: No
- Power source: DC/PoE
- Power consumption (max): 375 W
- Weight and dimensions
- Product depth: 130 mm
- Product height: 168 mm
- Product weight: 900 g
- Product width: 70 mm
- Security
- IGMP Proxy: Yes
- DHCP functions
- DHCP client
- DHCP snooping
- DHCP Option 82
- DHCP Option 66
- DHCP server
- DHCP Option 67
- DHCP relay
- IGMP snooping: Yes
- Authentication type: IEEE 802.1x, RADIUS, TACACS+
- Authentication: Guest VLAN
- Supports SSH/SSL: Yes
- Access Control List (ACL): Yes
- Management features
- Website management: Yes
- Quality of Service (QoS) Support: Yes
- Switch Layer: L3
- Switch type: Managed
- Configuring Location Settings (CLI): Yes
- Working conditions
- Relative humidity range: 10 - 90%
- Temperature range (operation): -40 - 60 °C
- Heat emission: 51 BTU/h
- Network
- Communication standards
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.1p
- IEEE 802.3ae
- IEEE 802.1s
- IEEE 802.1AX
- IEEE 802.3ad
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.3az
- IEEE 802.3at
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.1ak
- IEEE 802.1ad
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3bt
- 10G Support: Yes
- Number of VLANs: 4093
- Cable length measurement: Yes
- Spanning Tree Protocol: Yes
- VLAN support: Yes
- Virtual LAN Features
- Private VLAN
- MAC address-based VLAN
- Tagged VLAN
- IP subnet–based VLAN
- VLAN Identifier (VLAN ID)
- Port-based VLAN
- MVRP
- Voice VLAN
- Port Mirroring: Yes
- Flow Control Support: Yes
- Connection Aggregator: Yes
- Traffic Growth Control: Yes
- Ethernet Ring Protection Switching (ERPS): Yes
- Communication standards
- Efficiency
- Device software updates: Yes
- No fan: Yes
- Package contents
- Wires: Serial
- Quick Start Guide: Yes
- Certificates
- Certificates of conformity
- CE
- Federal Communications Commission (FCC)
- Certificates of conformity
- Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- IP Source Protection (IPSG): Yes
- Ports and interfaces
- Number of Gigabit Ethernet ports: 4
- Basic Ethernet Switching RJ-45 Ports Type: 2.5G Ethernet (100/1000/2500)
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Console port: RJ-45
- Number of SFP+ Module slots: 2
- Number of 2.5G Ethernet ports (copper): 4
- Logistics data
- Country of origin: Taiwan
- Customs product code (TARIC): 85176200
- Data transfer
- Jumbo Frame Compatible: Yes
- Routing/switching capacity: 68 Gbit/s
- Bandwidth: 51 Mpps
- Static Route: Yes
- Store-and-forward: Yes
- Address table size: 16000 entries
- Jumbo Frames Expansion: 10240
- Number of static routes: 128
- Power over Ethernet (PoE)
- Power over Ethernet Plus (PoE +) ports: 8
- Total Power over Ethernet (PoE) budget: 360 W
- PoE Support: Yes
- Power over Ethernet (PoE) power per port: 90 W
- Multicast functions
- Multicast Support: Yes
- Multicast Listener Discovery (MLD) snooping: Y
