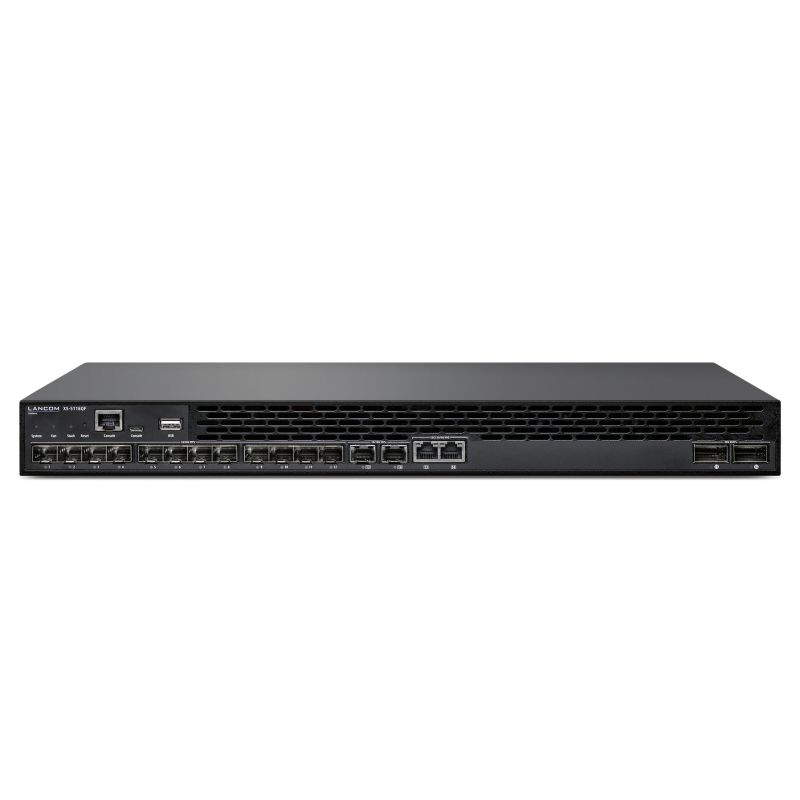

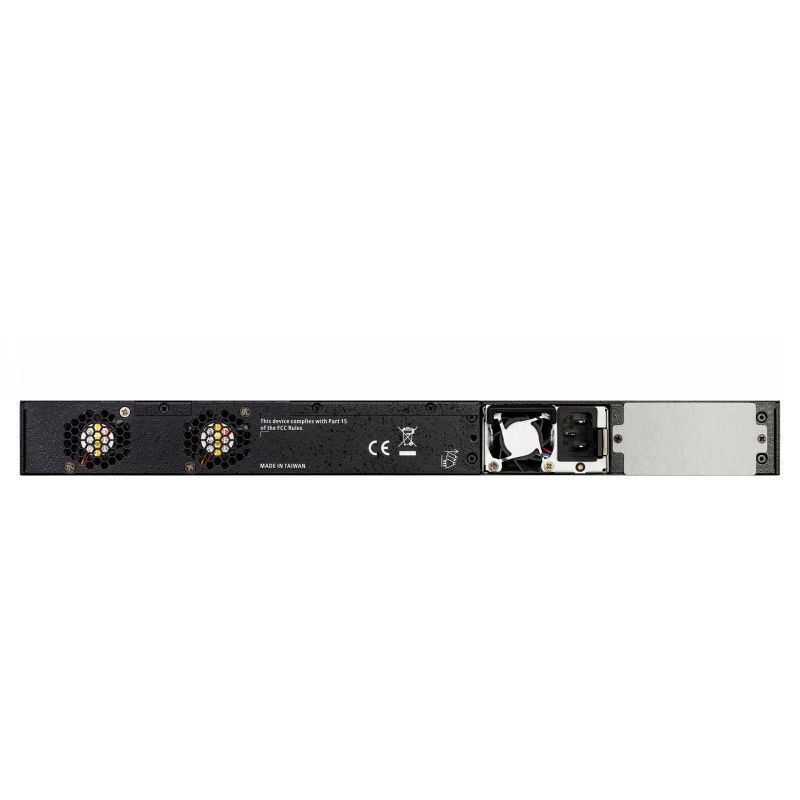

LANCOM switch XS-5116QF 12x SFP+ / 2x Combo-SFP+ / 2x QSFP+
LANCOM switch XS-5116QF 12x SFP+ / 2x Combo-SFP+ / 2x QSFP+
LANCOM switch XS-5116QF 12x SFP+ / 2x Combo-SFP+ / 2x QSFP+
PRICE:
9432,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Black
- LEDs: Yes
- Rack mounting options: Yes
- Layout: 1U
- Number of fans: 2 fans
- Power
- AC input frequency: 50 - 60 Hz
- Number of power units: 2
- Power source: AC
- AC input voltage: 100 - 240 V
- Power consumption (max): 46 W
- Weight and dimensions
- Product weight: 4.9 kg
- Product width: 442 mm
- Product height: 44 mm
- Product depth: 375 mm
- Security
- Encryption/Security
- SNMPv3
- SNMP
- SNMPv2
- Authentication type: RADIUS
- DHCP functions
- DHCP client
- DHCP relay
- DHCP server
- IGMP snooping: Yes
- Access Control List (ACL): Yes
- Supports SSH/SSL: Yes
- Encryption/Security
- Management features
- Configuring Location Settings (CLI): Yes
- MIB Support: Y
- Switch type: Managed
- Switch Layer: L2/L3
- Quality of Service (QoS) Support: Yes
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Heat emission: 157 BTU/h
- Relative humidity range: 10 - 90%
- Network
- Communication standards
- IEEE 802.3x
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.3
- IEEE 802.3ad
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.1x
- IEEE 802.3ak
- IEEE 802.3ae
- IEEE 802.3ab
- IPv4 routes: 16000
- IPv6 routes: 16000
- Rule-Based Routing: Yes
- Virtual LAN Features
- Voice VLAN
- Private VLAN
- Traffic Growth Control: Yes
- IP forwarding: Yes
- Connection Aggregator: Yes
- Flow Control Support: Yes
- Spanning Tree Protocol: Yes
- Port Mirroring: Yes
- Data transfer speed via Ethernet LAN: 1000, 2500, 5000, 10000 Mbit/s
- Number of VLANs: 4093
- VLAN support: Yes
- 10G Support: Yes
- Communication standards
- Efficiency
- Device software updates: Yes
- Noise level: 40 dB
- Packaging data
- Package depth: 534 mm
- Weight with packaging: 6 kg
- Package width: 470 mm
- Package height: 100 mm
- Package contents
- User Manual: Yes
- Wires
- Serial
- Alternating current
- Micro USB
- Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- Route Selection Protocol
- OSPFv2
- OSPFv3
- Management protocols: SNMP
- Ports and interfaces
- QSFP + Number of modular slots: 2
- Console Port: RJ-45/Micro-USB
- Basic RJ-45 Switching Number of Ethernet Ports: 2
- Number of SFP+ Module slots: 12
- Basic Ethernet Switching RJ-45 Ports Type: 10G Ethernet (100/1000/10000)
- Logistics data
- Customs product code (TARIC): 85176200
- Country of origin: Taiwan
- Harmonized System (HS) code: 85176990
- Data transfer
- Jumbo Frames Expansion: 12000
- Address table size: 32000 entries
- Jumbo Frame Compatible: Yes
- Bandwidth: 440000 Mpps
- Packet buffer memory: 4 MB
- Multicast functions
- Multicast Support: Yes
