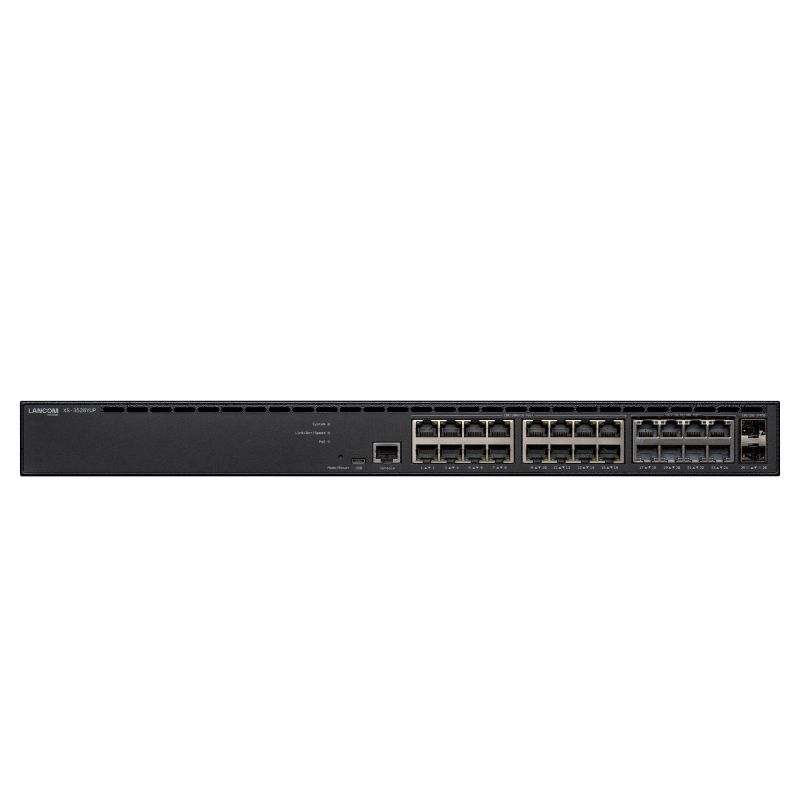

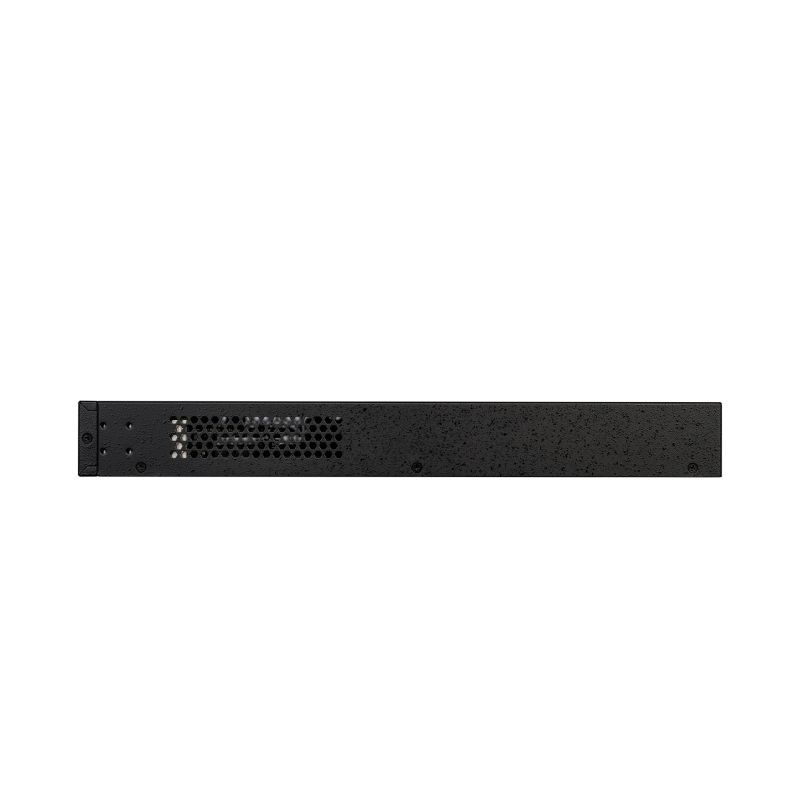

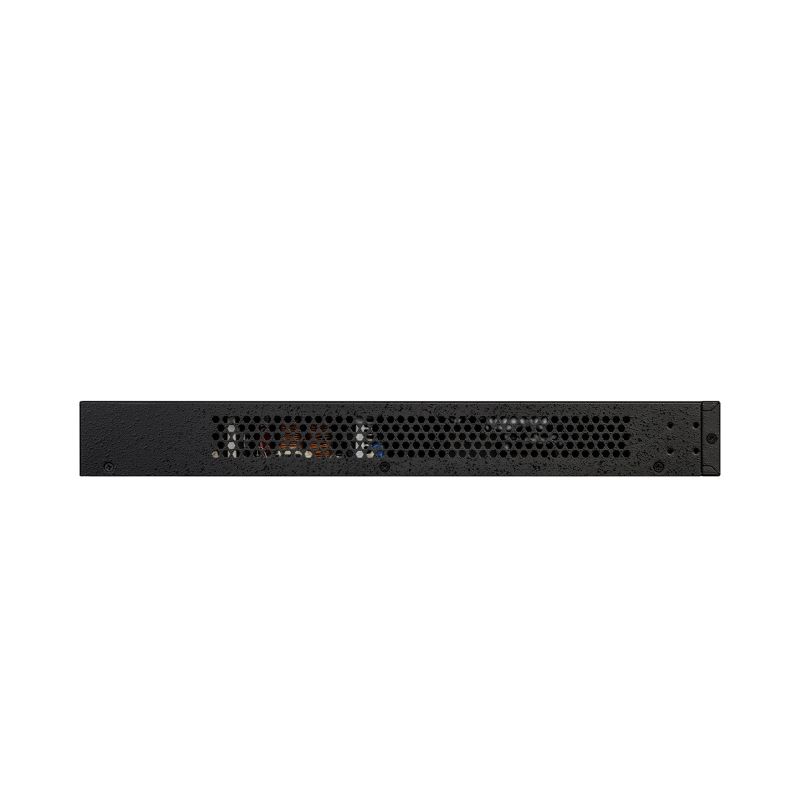

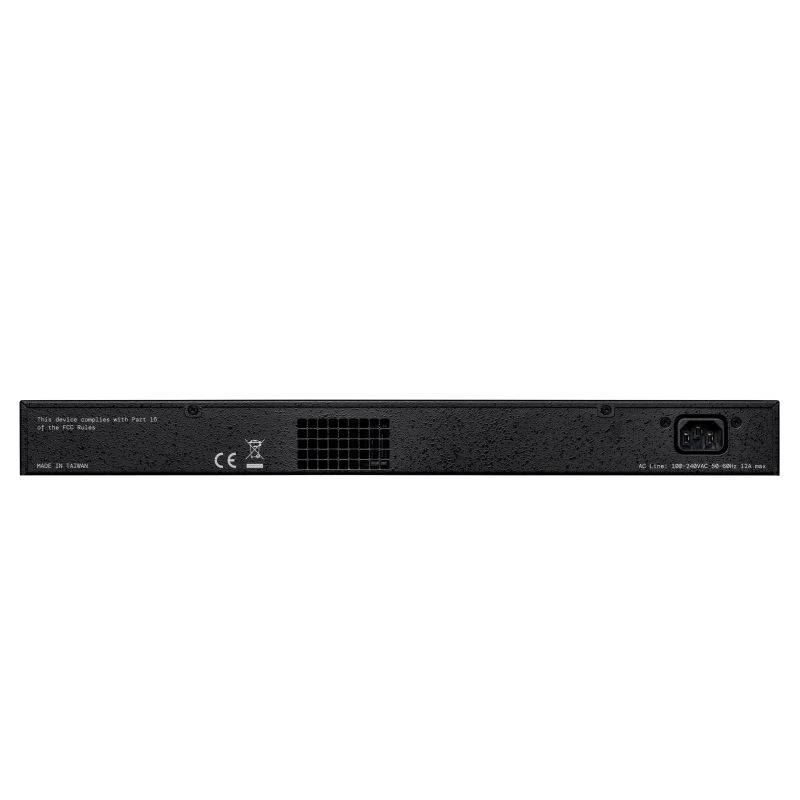

LANCOM XS-3526YUP Managed L2/L3 2.5G Ethernet (100/1000/2500) PoE Support 1U Black
LANCOM XS-3526YUP Managed L2/L3 2.5G Ethernet (100/1000/2500) PoE Support 1U Black
LANCOM XS-3526YUP Managed L2/L3 2.5G Ethernet (100/1000/2500) PoE Support 1U Black
PRICE:
6192,99
€
IN A WAREHOUSE
6 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Layout: 1U
- Product color: Black
- LEDs: Yes
- Rack mounting options: Yes
- Housing material: Metal
- Number of fans: 1 fan
- Power
- AC input frequency: 50/60 Hz
- AC input voltage: 100 - 240 V
- Power consumption (max): 865 W
- Power source: AC
- Power supply included: Yes
- Weight and dimensions
- Product weight: 4.9 kg
- Product height: 44 mm
- Product width: 442 mm
- Product depth: 375 mm
- Security
- MAC address filtering: Yes
- Access Control List (ACL): Yes
- IGMP Proxy: Yes
- Supports SSH/SSL: Yes
- Static Port Protection: Yes
- IGMP snooping: Yes
- DHCP functions: DHCP server
- Authentication type: IEEE 802.1x, RADIUS, TACACS+
- IGMP entries: 1024
- Management features
- Quality of Service (QoS) Support: Yes
- MIB Support: MIB II, Bridge MIB, Interface MIB, SMON MIB, IGMP MIB
- Switch type: Managed
- Configuring Location Settings (CLI): Yes
- System Event Report: Yes
- Switch Layer: L2/L3
- Working conditions
- Relative humidity range: 10 - 90%
- Temperature range (operation): 0 - 40 °C
- Heat emission: 375 BTU/h
- Network
- Communication standards
- IEEE 802.1D
- IEEE 802.1s
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1w
- IEEE 802.3bt
- VLAN support: Yes
- Supported cable types
- Cat7
- Cat6
- Frequency Limit: Yes
- Virtual LAN Features: Voice VLAN
- Flow Control Support: Yes
- Number of VLANs: 4093
- IP forwarding: Yes
- Connection Aggregator: Yes
- Traffic Growth Control: Yes
- Port Mirroring: Yes
- 10G Support: Yes
- Communication standards
- Efficiency
- Noise level: 48 dB
- Packaging data
- Package width: 480 mm
- Weight with packaging: 5.22 kg
- Package depth: 570 mm
- Package height: 100 mm
- Package contents
- User Manual: Yes
- Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 24
- Number of 10G Ethernet ports (copper): 8
- Basic Ethernet Switching RJ-45 Ports Type: 2.5G Ethernet (100/1000/2500)
- Number of Gigabit Ethernet ports: 16
- Power Connector: AC Input Socket
- Console port: RJ-45
- Number of SFP28 ports: 2
- Logistics data
- Country of origin: Taiwan
- Customs product code (TARIC): 85176200
- Data transfer
- Jumbo Frame Compatible: Yes
- Static Route: Yes
- Packet buffer memory: 4 MB
- Address table size: 32000 entries
- Jumbo Frames Expansion: 10240
- Performance: 292 Gbps
- Power over Ethernet (PoE)
- PoE Support: Yes
- Number of Fast Ethernet (PoE) ports: 8
- Multicast functions
- Multicast Listener Discovery (MLD) snooping: Y
- Multicast Support: Yes
