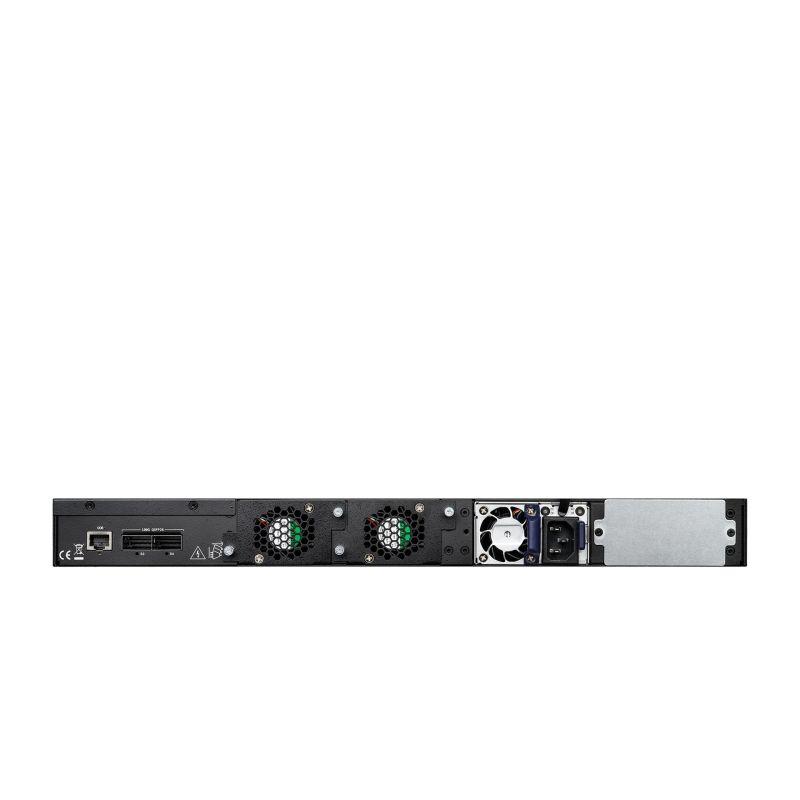

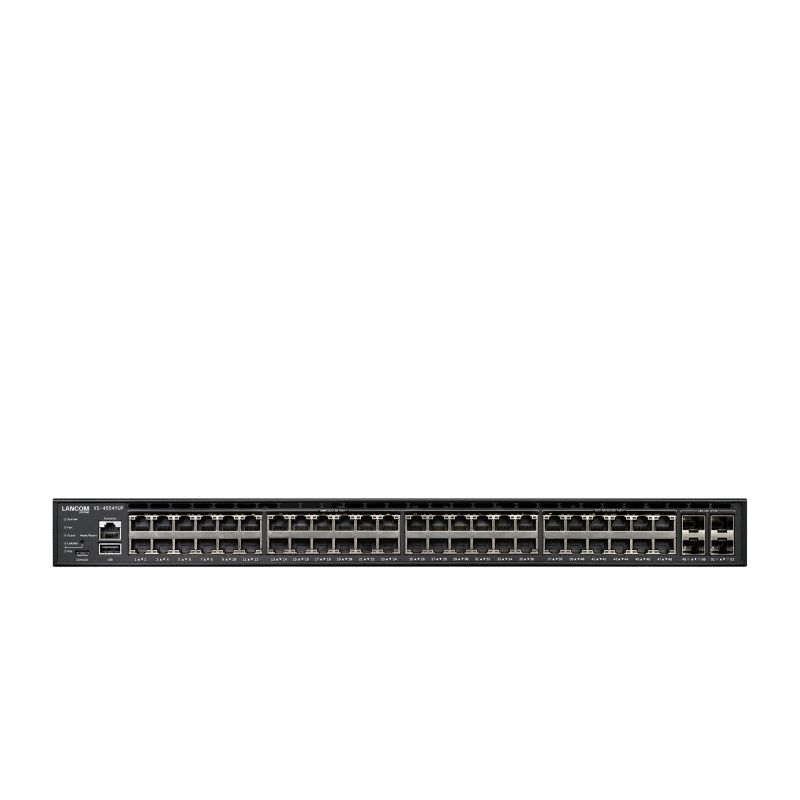

LANCOM XS-4554YUP Managed L3 10G Ethernet (100/1000/10000) PoE Support 1U Black
LANCOM XS-4554YUP Managed L3 10G Ethernet (100/1000/10000) PoE Support 1U Black
LANCOM XS-4554YUP Managed L3 10G Ethernet (100/1000/10000) PoE Support 1U Black
PRICE:
19298,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Black
- Stackable: Yes
- DIN rail mounting: Yes
- Housing material: Metal
- Number of fans: 2 fans
- Layout: 1U
- Rack mounting options: Yes
- Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power supply included: Yes
- Power source: AC/PoE
- Power consumption (max): 1650 W
- Weight and dimensions
- Product width: 442 mm
- Product weight: 7 kg
- Product depth: 440 mm
- Product height: 44 mm
- Security
- IGMP snooping: Yes
- DHCP functions
- DHCP server
- DHCP relay
- DHCP client
- DHCP snooping
- Authentication: Guest VLAN
- Supports SSH/SSL: Yes
- Access Control List (ACL): Yes
- Authentication type: IEEE 802.1x, RADIUS, TACACS+
- IGMP Proxy: Yes
- Management features
- Website management: Yes
- Switch type: Managed
- Switch Layer: L3
- Configuring Location Settings (CLI): Yes
- ARP Inspection: Yes
- Quality of Service (QoS) Support: Yes
- Working conditions
- Heat emission: 715 BTU/h
- Relative humidity range: 10 - 90%
- Temperature range (operation): 0 - 40 °C
- Network
- Communication standards
- IEEE 802.1p
- IEEE 802.3ae
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.1ak
- IEEE 802.1s
- IEEE 802.1AX
- IEEE 802.3z
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.1as
- IEEE 802.3az
- IEEE 802.3at
- IEEE 802.3ac
- IEEE 802.1Qbb
- IEEE 802.3bj
- IEEE 802.1Q
- IEEE 802.1v
- IEEE 802.3
- IEEE 802.3bz
- IEEE 802.1ad
- IEEE 802.3ad
- IEEE 802.1Qav
- IEEE 802.1x
- IEEE 802.3ak
- IEEE 802.3ab
- IEEE 802.3an
- IEEE 802.3bt
- IEEE 802.3ba
- Spanning Tree Protocol: Yes
- Number of VLANs: 4093
- 10G Support: Yes
- Virtual LAN Features
- IP subnet–based VLAN
- VLAN Identifier (VLAN ID)
- Tagged VLAN
- Private VLAN
- MVRP
- MAC address-based VLAN
- Protocol-based VLAN
- Port-based VLAN
- Voice VLAN
- Flow Control Support: Yes
- Cable length measurement: Yes
- Traffic Growth Control: Yes
- Connection Aggregator: Yes
- Port Mirroring: Yes
- VLAN support: Yes
- Communication standards
- Efficiency
- Device software updates: Yes
- Noise level: 60 dB
- Packaging data
- Mounting Brackets Included: Yes
- Railings: Yes
- Package depth: 590 mm
- Weight with packaging: 6.7 kg
- Package height: 130 mm
- Package width: 630 mm
- Package contents
- Wires
- Serial
- Micro USB
- Alternating current
- Quick Start Guide: Yes
- Wires
- Certificates
- Certificates of conformity
- CE
- Federal Communications Commission (FCC)
- Certificates of conformity
- Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- Route Selection Protocol
- OSPFv3
- BGP4
- VRRP
- OSPFv2
- IP Source Protection (IPSG): Yes
- Ports and interfaces
- Power Connector: AC Input Socket
- Basic RJ-45 Switching Number of Ethernet Ports: 48
- Console Port: RJ-45/Micro-USB
- Basic Ethernet Switching RJ-45 Ports Type: 10G Ethernet (100/1000/10000)
- Number of SFP28 ports: 4
- Number of QSFP28 ports: 2
- Number of 10G Ethernet ports (copper): 12
- Number of management ports: 1 pc.
- Number of USB Type-A ports: 1
- Number of 2.5G Ethernet ports (copper): 36
- Logistics data
- Country of origin: Taiwan
- Customs product code (TARIC): 85176200
- Data transfer
- Address table size: 32000 entries
- Bandwidth: 758 Mpps
- Packet buffer memory: 8 MB
- Store-and-forward: Yes
- Static Route: Yes
- Jumbo Frames Extension: 12288
- Number of static routes: 16000
- Routing/switching capacity: 1020 Gbit/s
- Jumbo Frame Compatible: Yes
- Power over Ethernet (PoE)
- Number of Power over Ethernet 4PPoE (PoE++) ports: 48
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 720 W
- Power over Ethernet (PoE) power per port: 90 W
- Multicast functions
- Multicast Support: Yes
- Multicast Listener Discovery (MLD) snooping: Y
