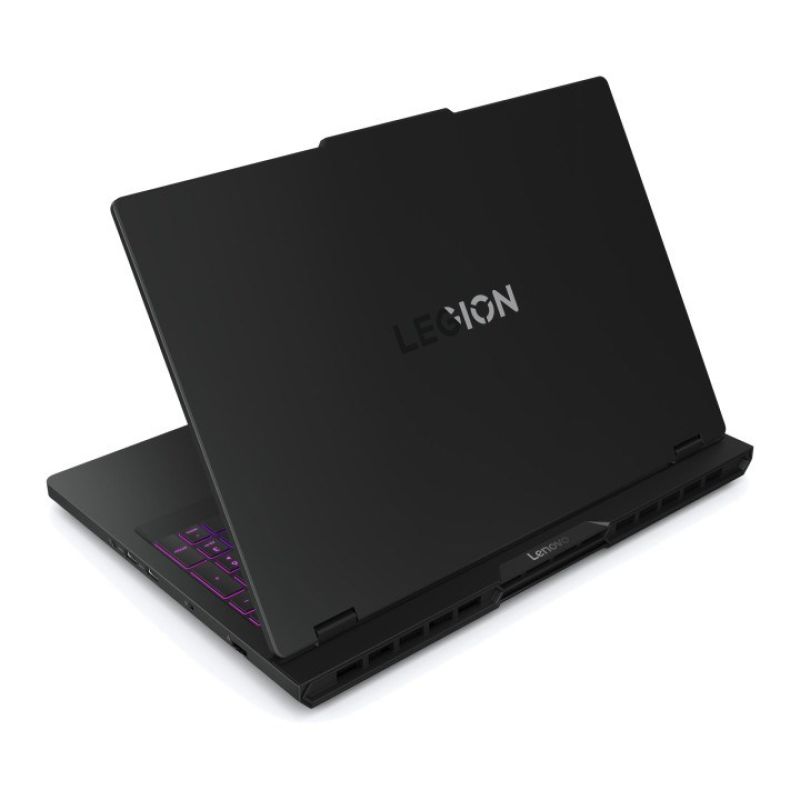

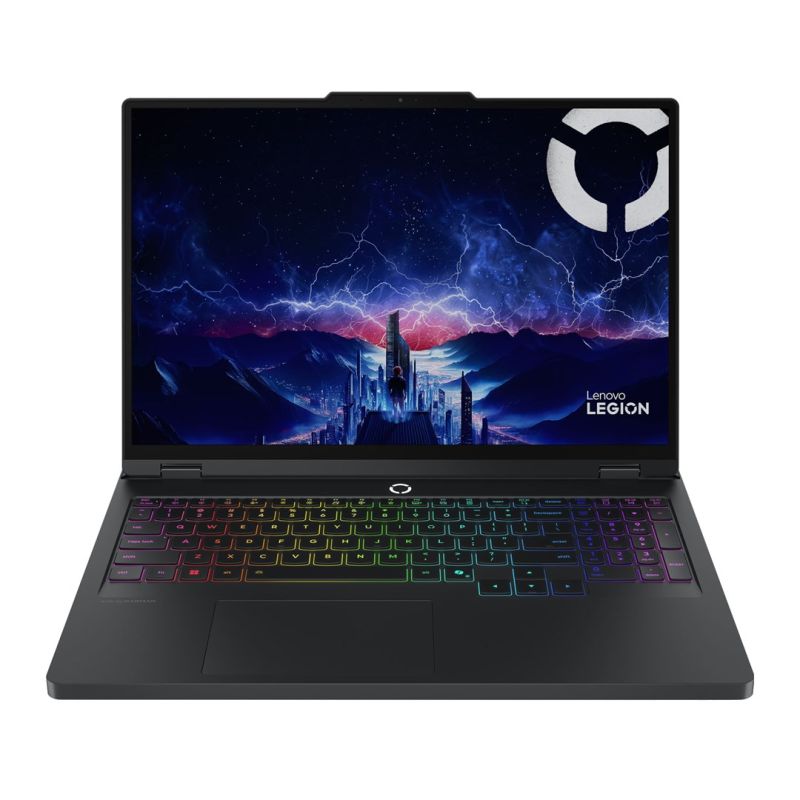

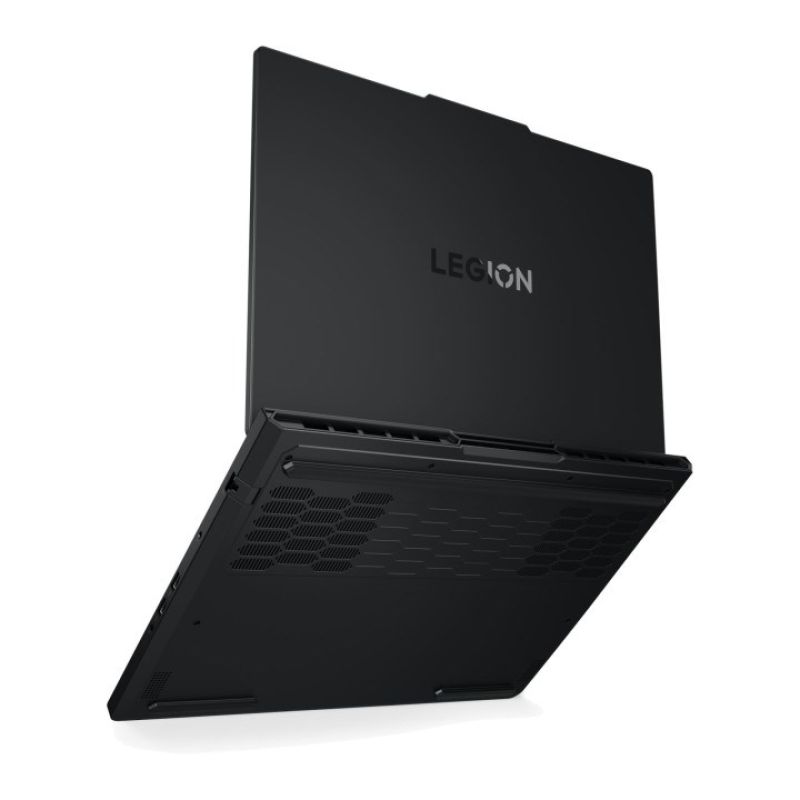

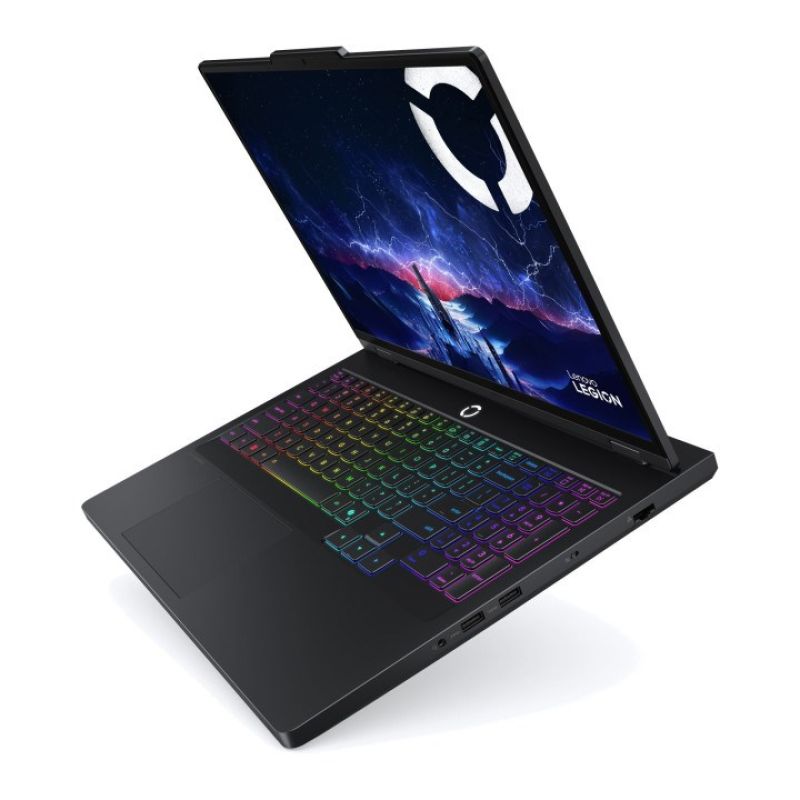

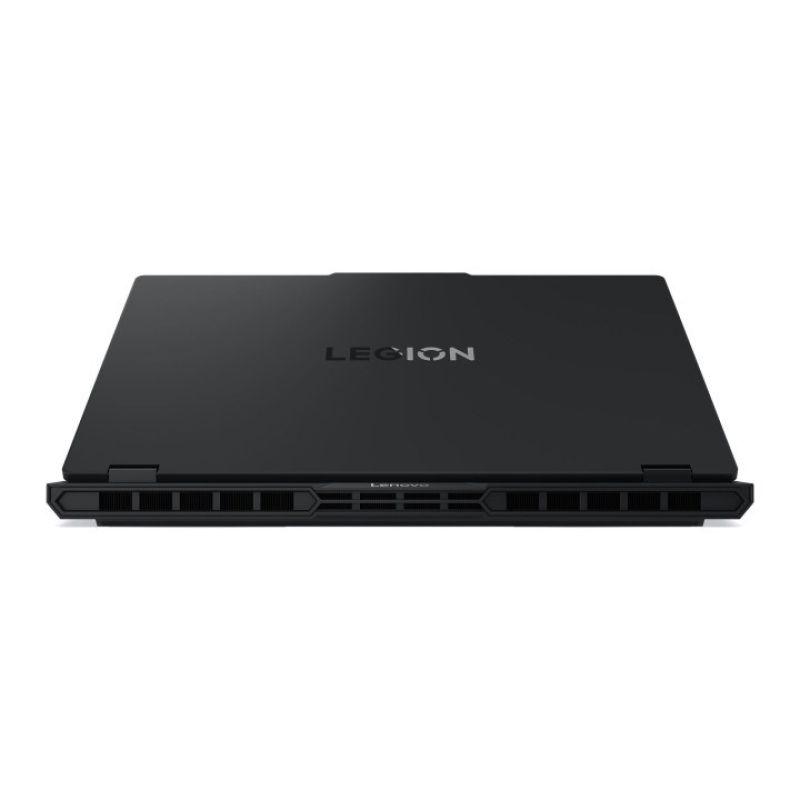

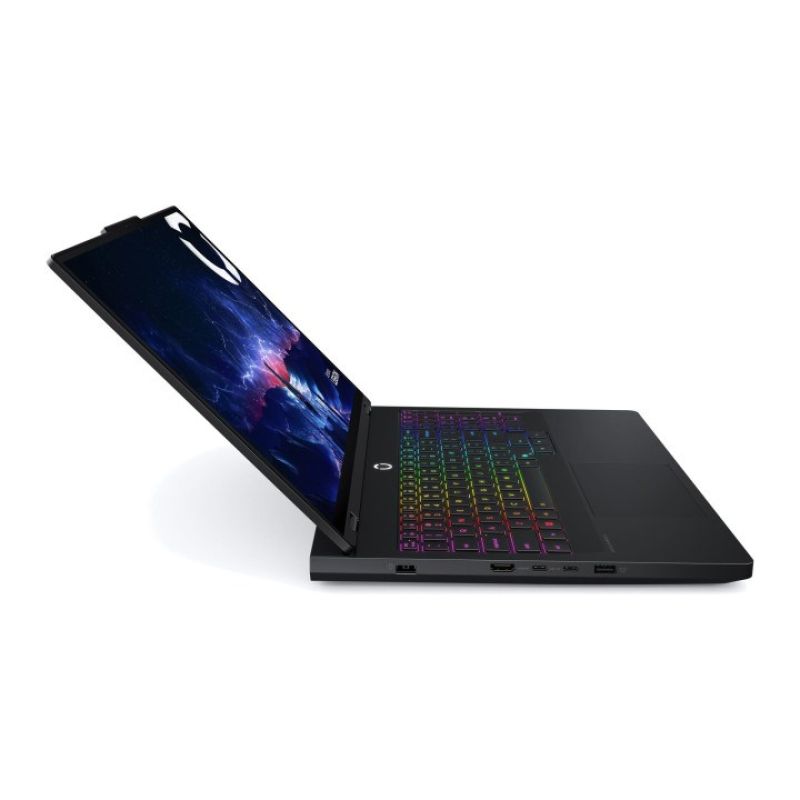

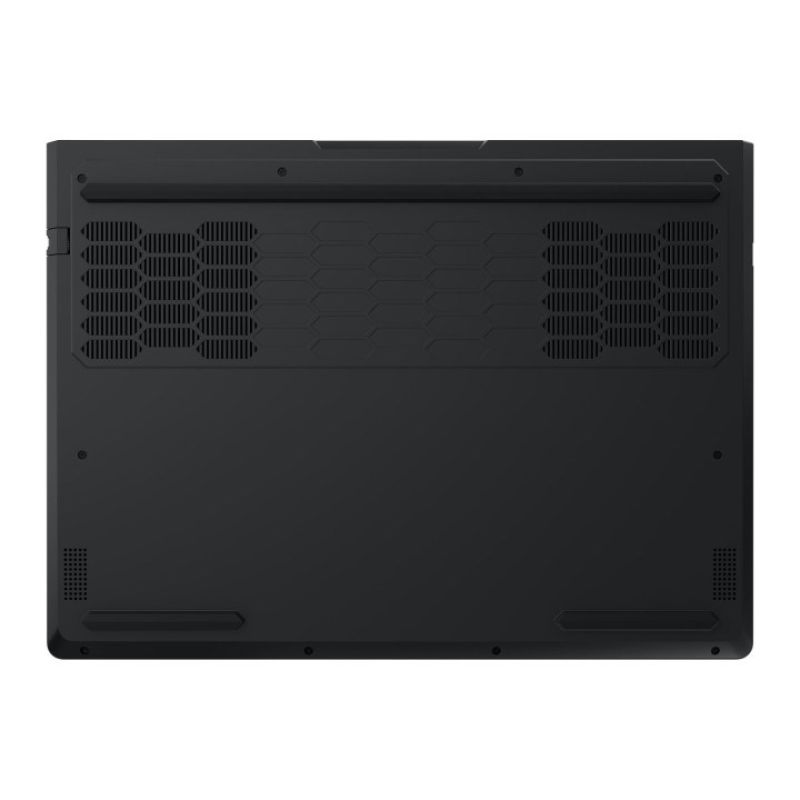

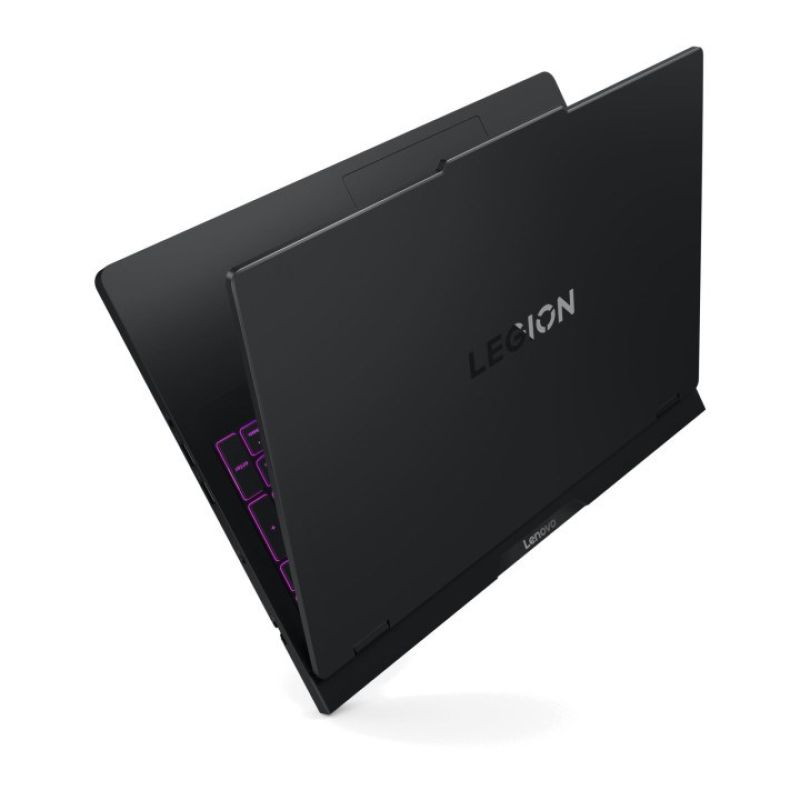

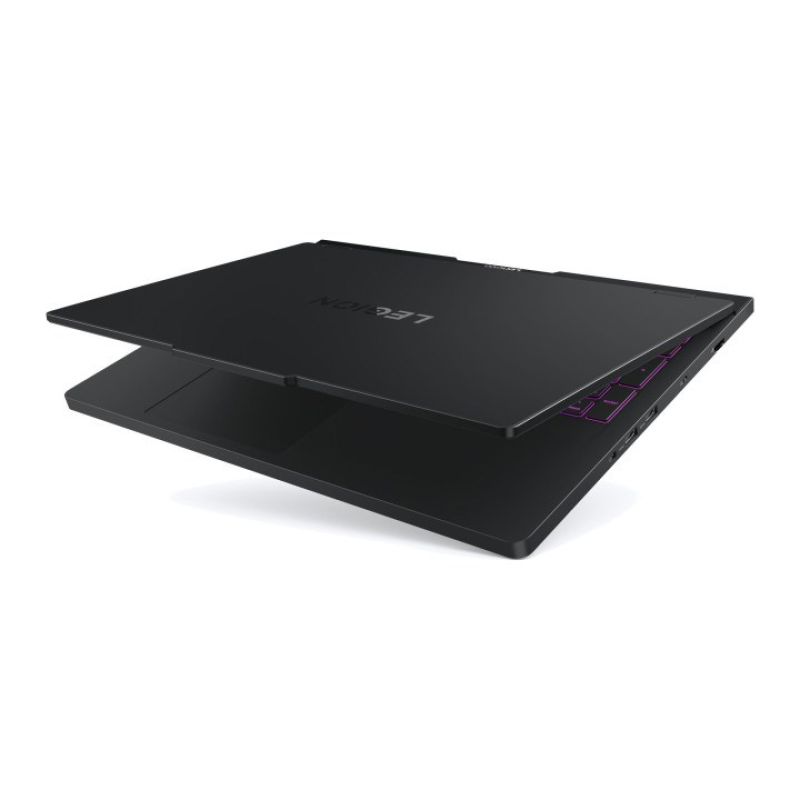

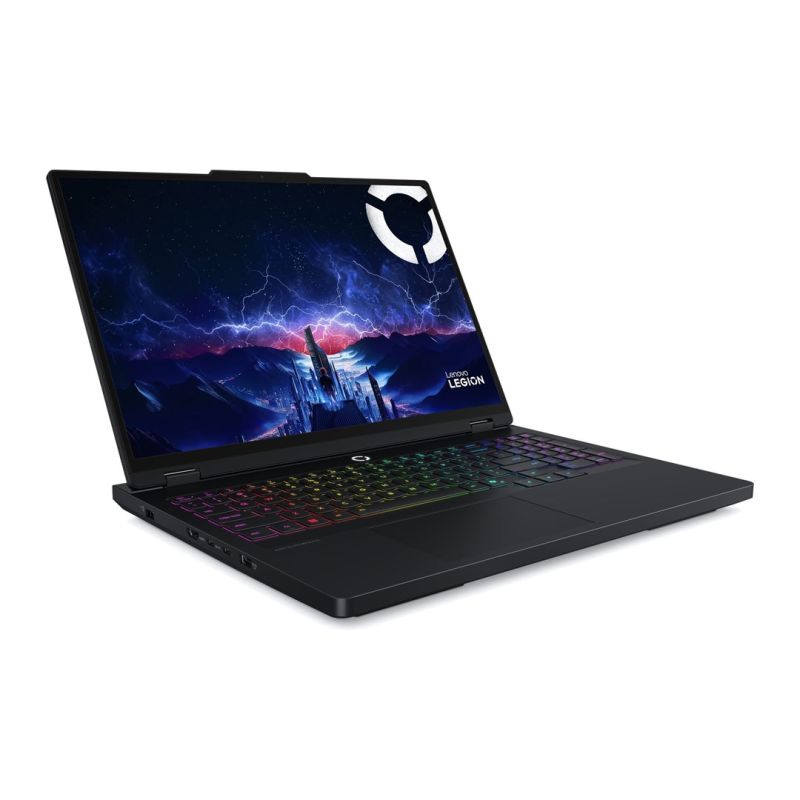

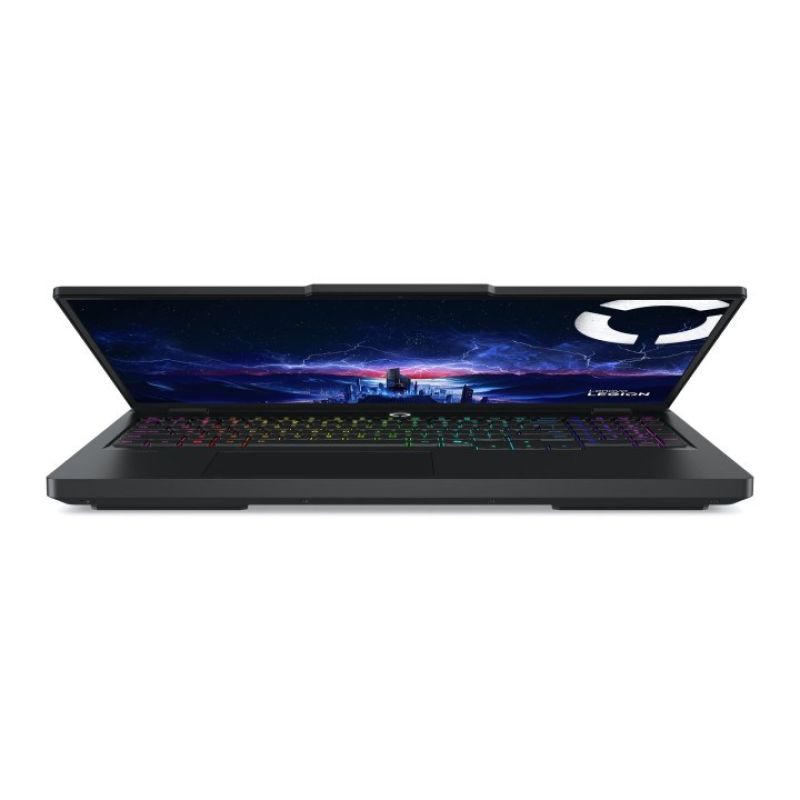

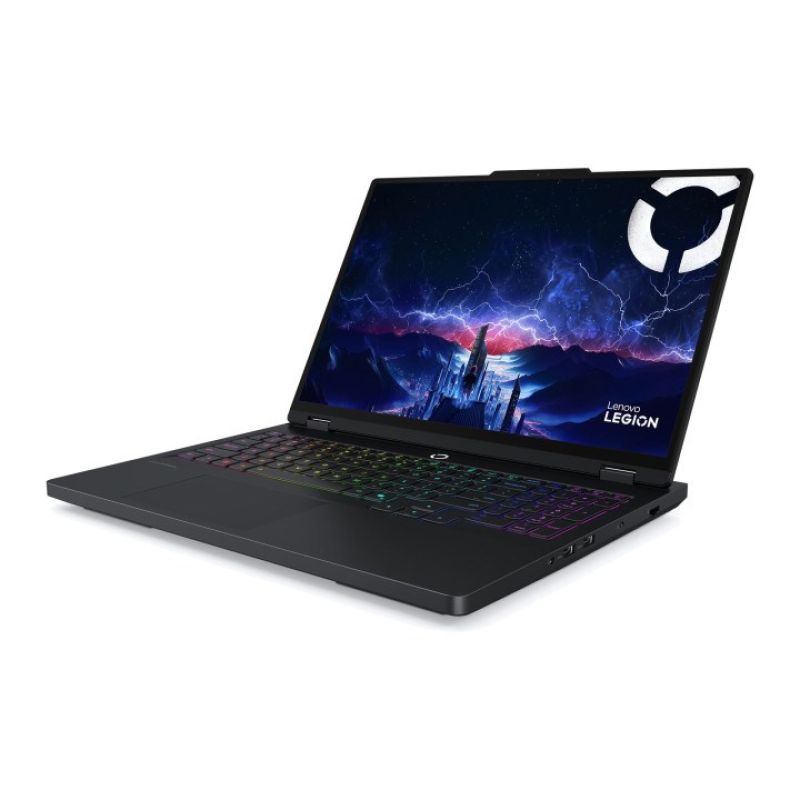

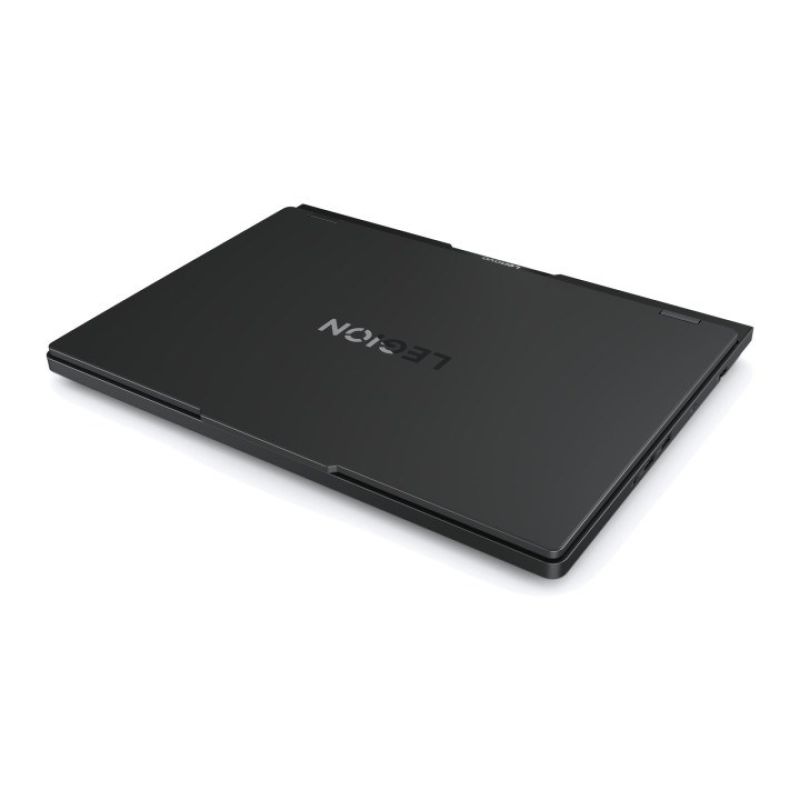

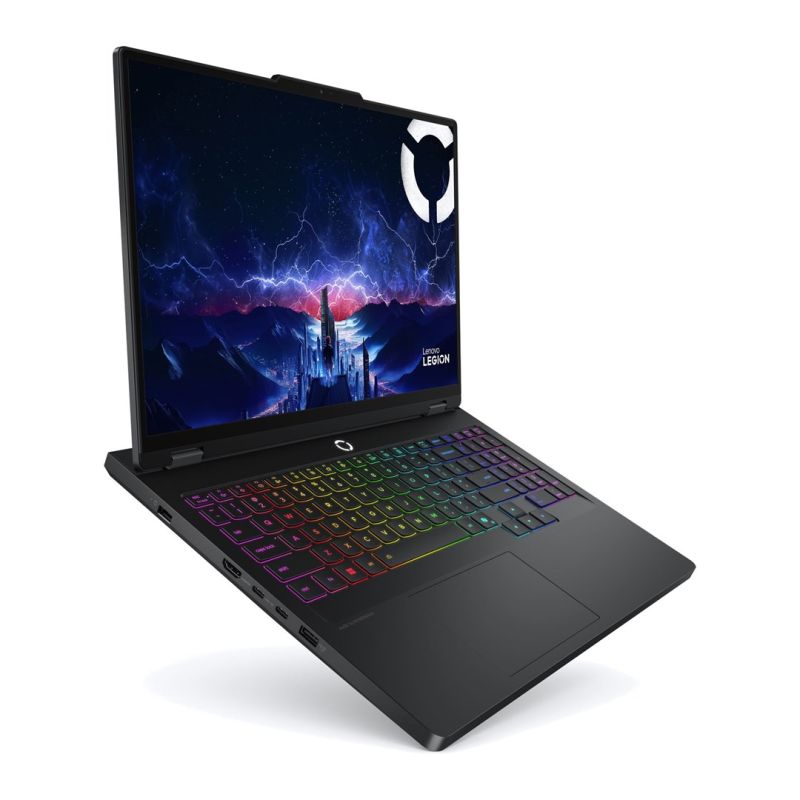

Lenovo Legion Pro 5 16IAX10 Ultra 7 255HX 16" WQXGA OLED 500nits 165Hz Glossy 32GB DDR5 5600 SSD1TB GeForce RTX 5060 8GB 80Wh NoOS Eclipse Black
Lenovo Legion Pro 5 16IAX10 Ultra 7 255HX 16" WQXGA OLED 500nits 165Hz Glossy 32GB DDR5 5600 SSD1TB GeForce RTX 5060 8GB 80Wh NoOS Eclipse Black
Sign up and unlock up to 10% off!
- Processor
- Maximum processor clock speed: 5.2 GHz
- Processor manufacturer: Intel
- Processor Cache: 30 MB
- Processor model: 255HX
- Number of threads: 20
- Number of processor cores: 20
- Processor type: Intel Core Ultra 7
- Efficient cores: 8
- High-performance core base frequency
- 1.8 GHz
- 2.4 GHz
- Processor generation: Intel Core Ultra (Series 2)
- Effective cores: 12
- Performance-Core Max Turbo Frequency: 5.2 GHz
- Maximum turbo power: 160 W
- Base CPU power: 55 W
- Performance-Core Max Turbo Frequency: 4.5 GHz
- Graphics
- Dedicated graphics card: Yes
- Dedicated graphics card model: NVIDIA GeForce RTX 5060
- Graphics card memory: 8 GB
- Dedicated graphics card type: GDDR7
- Dedicated GPU manufacturer: NVIDIA
- Memory
- Memory type: SO-DIMM
- Memory clock speed: 5600 MHz
- RAM: 32 GB
- Maximum memory capacity: 32 GB
- RAM type: DDR5-SDRAM
- Memory slots: SO-DIMM x 2
- Memory chip: 2 x 16 GB
- Design
- Product type: Laptop
- Housing material
- Aluminum
- PC-ABS
- Product color: Black
- Color name: Eclipse Black
- Power
- AC adapter input voltage: 100 - 240 V
- Supported AC adapter power: 245 W
- AC adapter frequency: 50/60 Hz
- USB Power: Yes
- USB Type-C charging port: Yes
- Weight and dimensions
- Product depth: 268.1 mm
- Product width: 364.4 mm
- Product weight: 2.43 kg
- Height (front): 2.17 cm
- Height (back): 2.6 cm
- Security
- Fingerprint reader: No
- Trusted Platform Module (TPM): Yes
- TPM version: 2.0
- Network
- Wired LAN: Yes
- Bluetooth version: 5.4
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- Bluetooth: Yes
- Antenna type: 2x2
- WWAN: Not Installed
- Efficiency
- Motherboard Chipset: Intel HM870
- Display
- Resolution: 2560 x 1600 px
- Screen diagonal: 16"
- Native aspect ratio: 16:10
- Brightness: 500 cd/m²
- LED backlight: Yes
- Matrix type: OLED
- HD Type: WQXGA
- Display surface: Glossy
- Touchscreen: No
- High Dynamic Range (HDR) Support: Yes
- RGB color space: DCI-P3
- Maximum refresh rate: 165 Hz
- Color palette: 100%
- High Dynamic Range (HDR) technology
- Dolby Vision
- DisplayHDR True Black 1000
- Audio
- Audio chip: Realtek ALC3306
- Built-in microphone: Yes
- Number of built-in speakers: 2
- Number of built-in microphones: 2
- Speaker power: 2 W
- Software
- Installed operating system: None
- Data carrier
- SSD type: M.2
- Total disk capacity: 1 TB
- SSD storage capacity: 1 TB
- Media: SSD
- NVMe: Yes
- Integrated card reader: No
- Optical drive: No
- SSD storage interface: PCI Express 4.0
- Total SSD capacity: 1 TB
- Number of SSDs installed: 1
- Ports and interfaces
- Number of HDMI ports: 1
- Headset/Microphone Combo Port: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- HDMI version: 2.1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of Thunderbolt 4 ports: 1
- Battery
- Battery capacity: 80 Wh
- Camera
- Front camera resolution: 5 Mpix

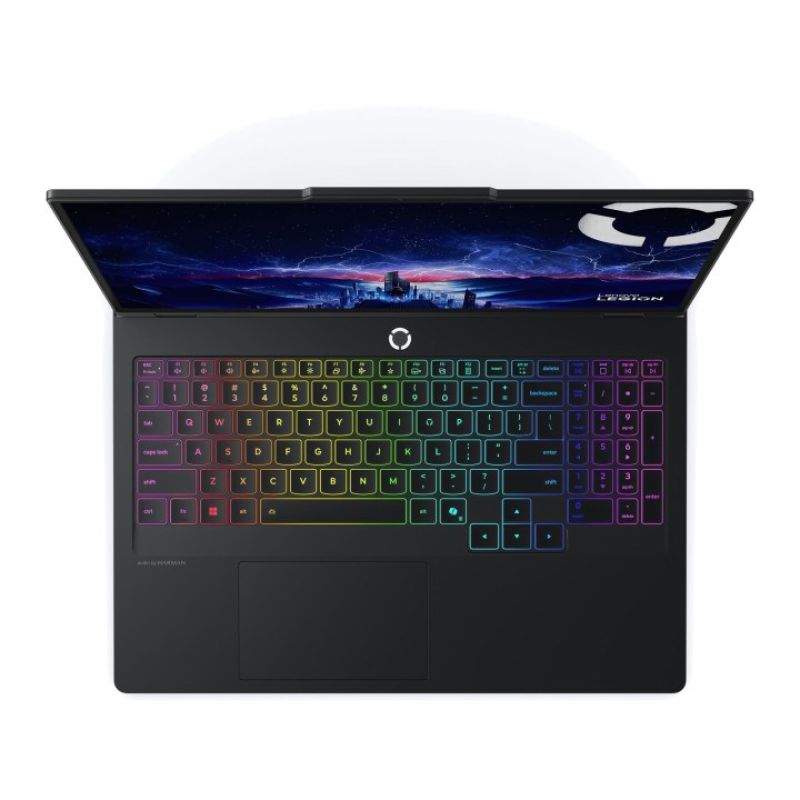

- Keyboard
- Numeric keypad: Yes
- Pointing device: Touchpad
- Keyboard backlight color: RGB
- Backlit keyboard: Yes
- Keyboard backlight zone: 24-zone RGB
- Copilot key: Yes
- Neural Processor (NPU)
- NPU Performance up to: 13 TOPs
- Neural Processing Unit (NPU): Intel AI Boost
