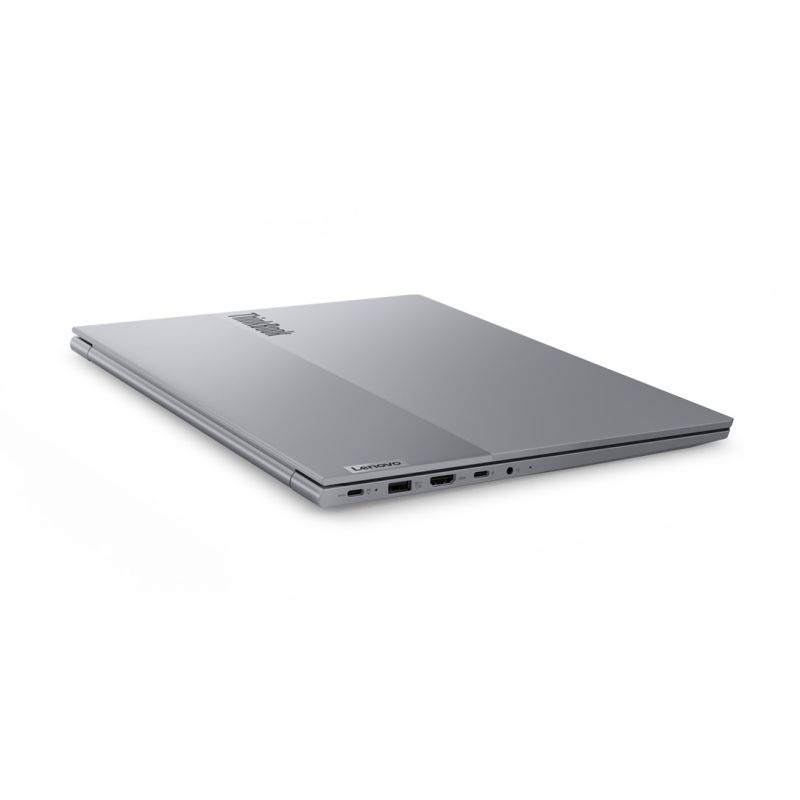

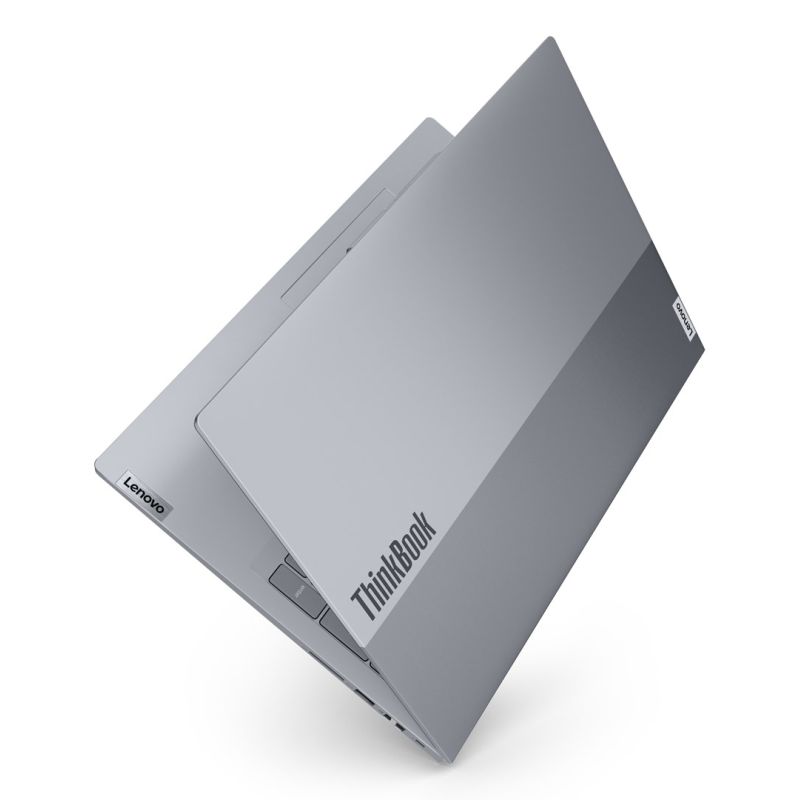

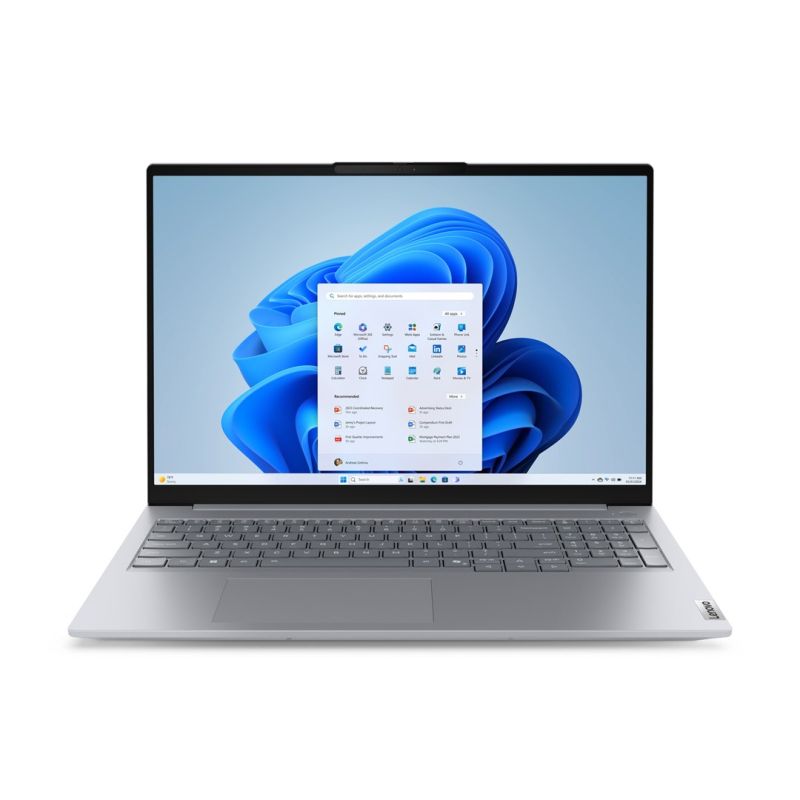

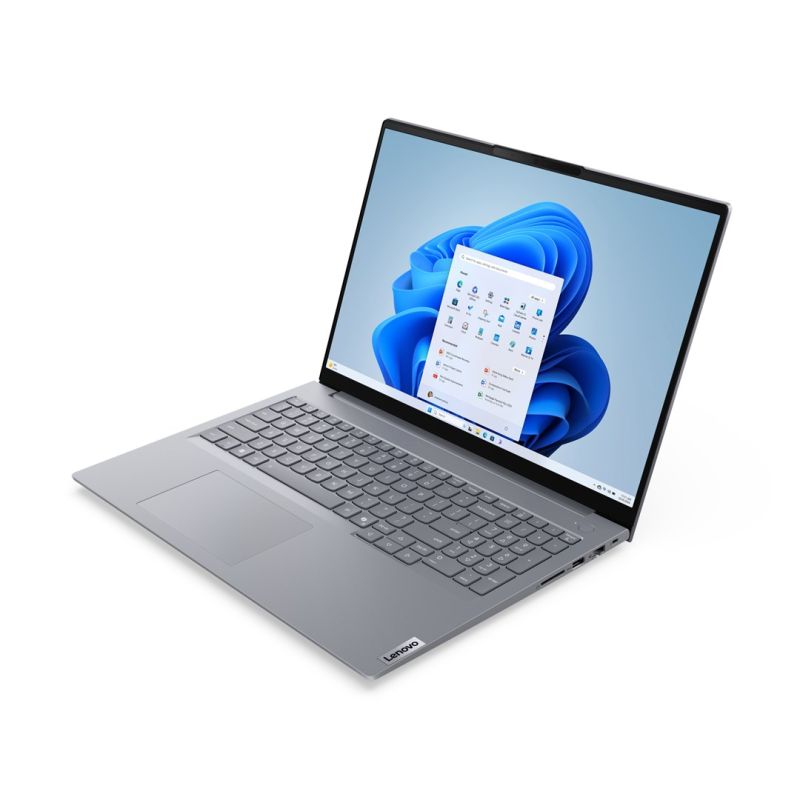

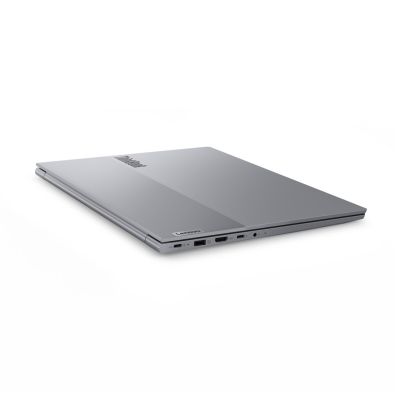

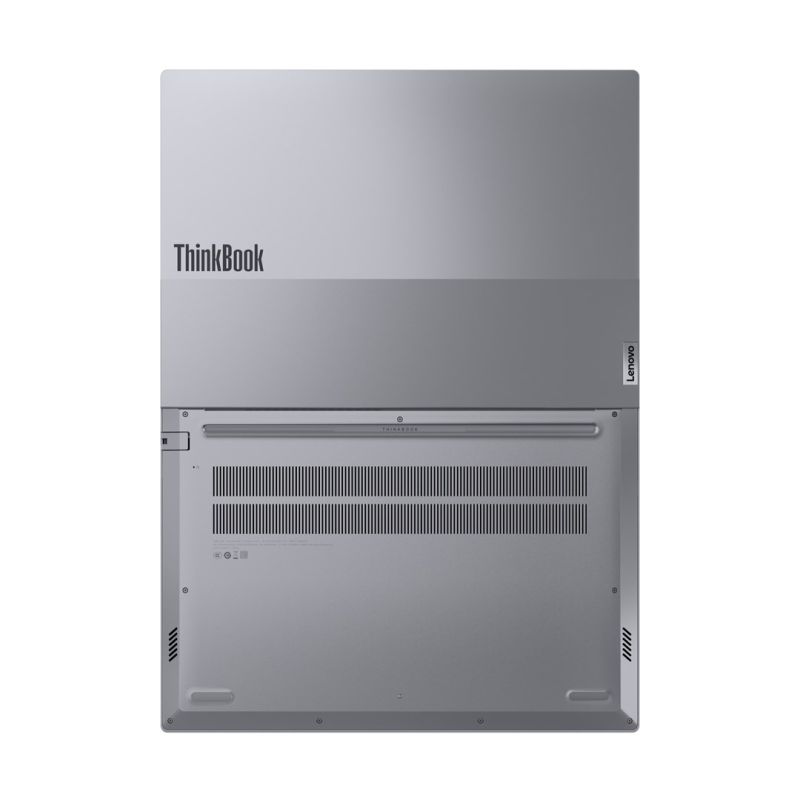

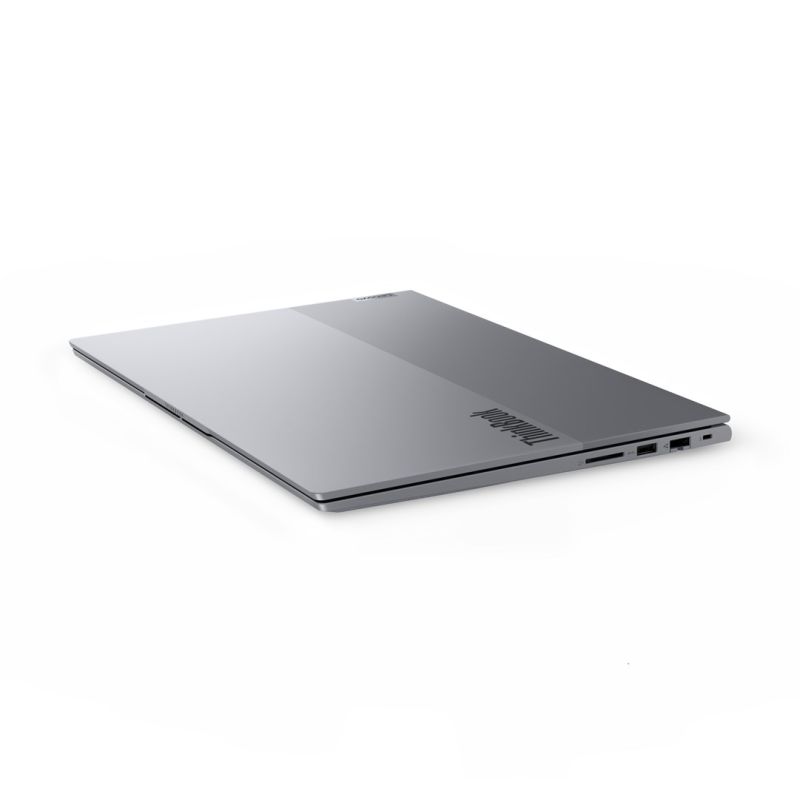

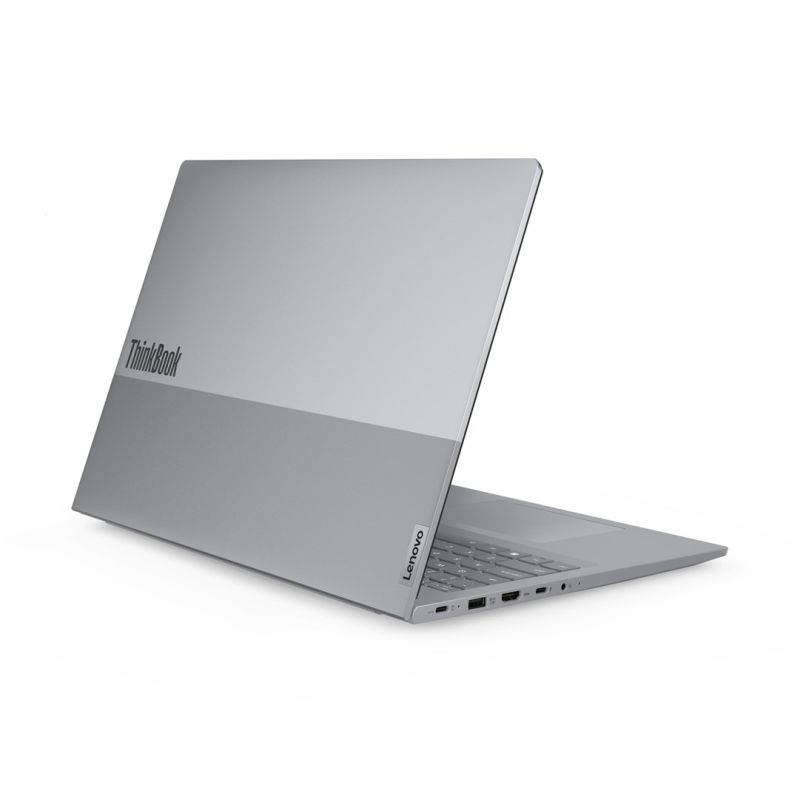

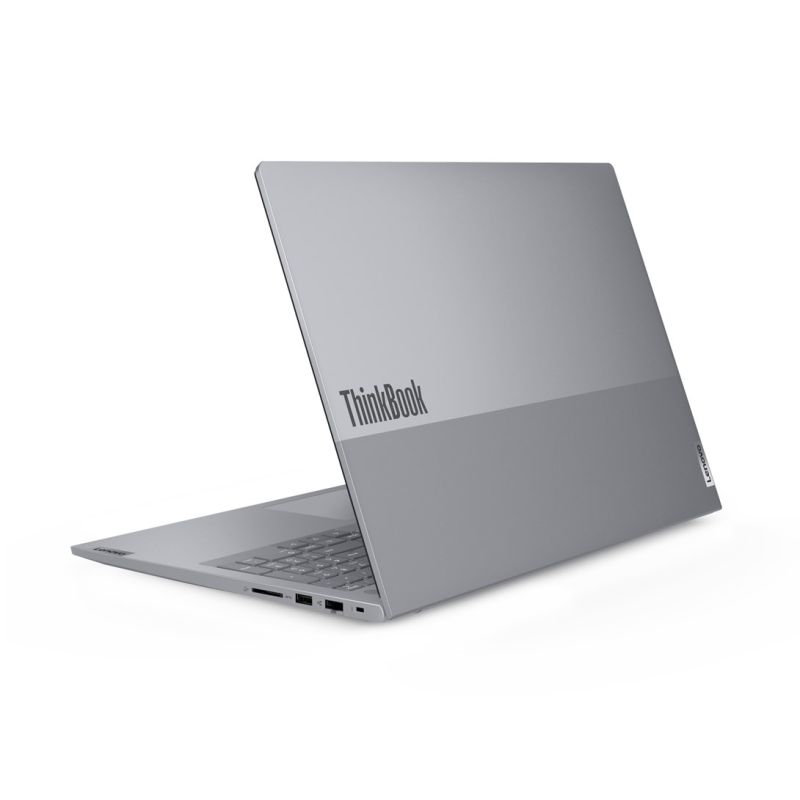

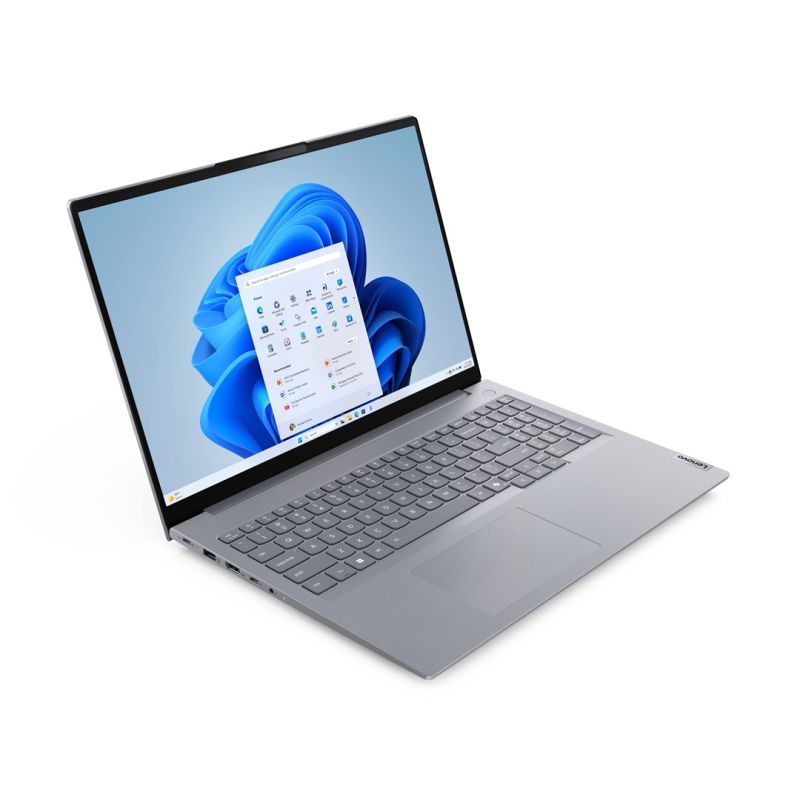

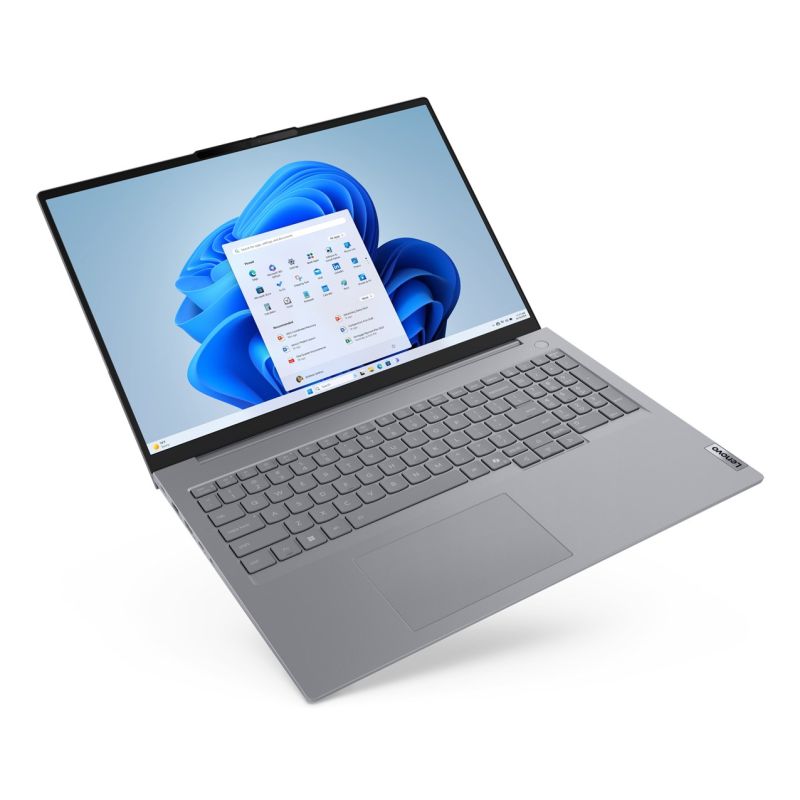

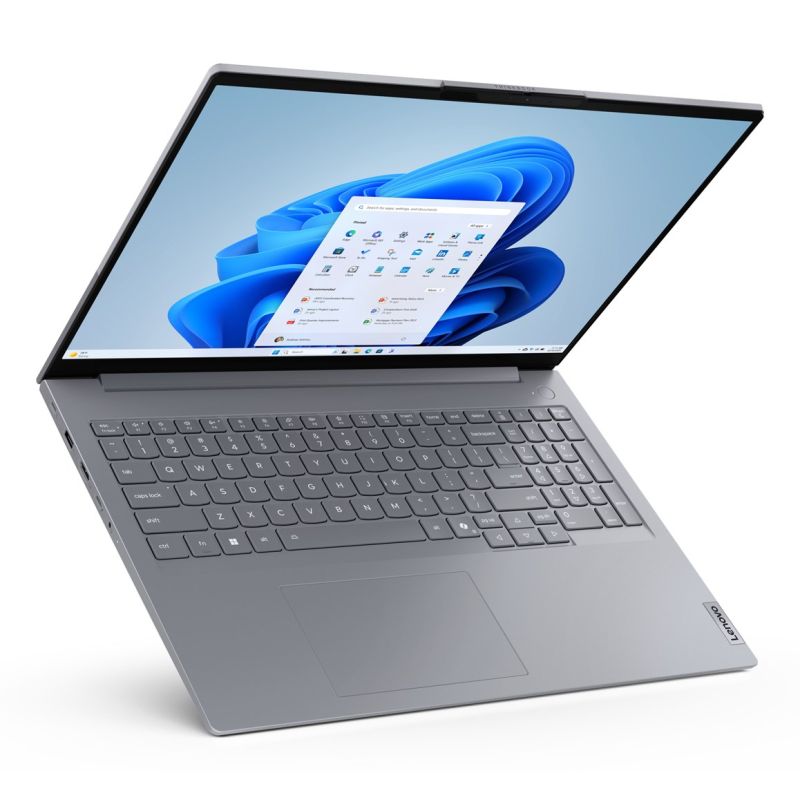

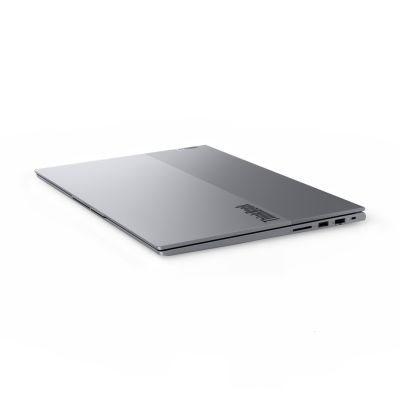

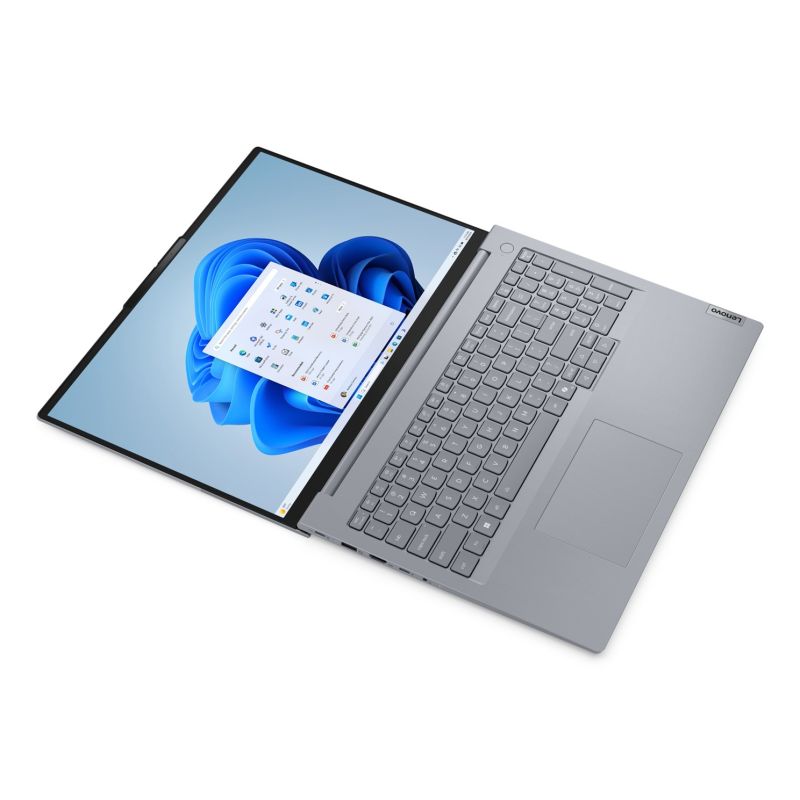

Lenovo ThinkBook 16 G8 IAL Ultra 5 225U 16" WUXGA IPS 300nits AG 16GB DDR5 5600 SSD512 Intel Graphics Cam1080p 45Wh W11Pro Arctic Gray 3Y OnSite
Lenovo ThinkBook 16 G8 IAL Ultra 5 225U 16" WUXGA IPS 300nits AG 16GB DDR5 5600 SSD512 Intel Graphics Cam1080p 45Wh W11Pro Arctic Gray 3Y OnSite
Sign up and unlock up to 10% off!
- Processor
- Base processor power: 15 W
- Processor generation: Intel Core Ultra (Series 2)
- Maximum turbo power: 115 W
- Efficient cores: 2
- High-performance core base frequency
- 1.3 GHz
- 1.5 GHz
- Effective cores: 8
- Performance-Core Max Turbo Frequency: 3.8 GHz
- Performance-Core Max Turbo Frequency: 4.8 GHz
- Low-power-efficiency core base frequency: 700 MHz
- Low-power cores: 2
- Low Power Efficiency - Core Max Turbo Frequency: 2.4 GHz
- Maximum processor clock speed: 4.8 GHz
- Number of processor cores: 12
- Processor type: Intel Core Ultra 5
- Number of threads: 14
- Processor Cache: 12 MB
- Processor manufacturer: Intel
- Processor model: 225U
- Graphics
- Built-in graphics processor manufacturer: Intel
- Dedicated graphics card model: Not available
- Built-in graphics card model: Intel Graphics
- Dedicated graphics card: No
- Built-in graphics card: Yes
- Integrated graphics card type: Intel Graphics
- Memory
- Memory chip: 1 x 16 GB
- Memory slots: SO-DIMM x 2
- Maximum memory capacity: 64 GB
- RAM type: DDR5-SDRAM
- Memory Channel Support: Single Channel
- Memory clock speed: 5600 MHz
- Memory type: SO-DIMM
- RAM: 16 GB
- Design
- Housing material: Acrylonitrile butadiene styrene (ABS), Aluminum, Polycarbonate (PC)
- Product type: Laptop
- Color name: Arctic gray
- Product color: Gray
- Power
- USB Type-C charging port: Yes
- AC adapter frequency: 50/60 Hz
- Supported AC adapter power: 65W
- USB Power: Yes
- AC adapter input voltage: 100 - 240 V
- Weight and dimensions
- Product weight: 1.7 kg
- Product depth: 253.5 mm
- Product width: 356 mm
- Product height: 17.5 mm
- Security
- Password protection: Yes
- Fingerprint reader: Yes
- Windows Hello: Yes
- TPM version: 2.0
- Kensington Lock: Yes
- Trusted Platform Module (TPM): Yes
- Cable lock slot type: Kensington
- Working conditions
- Maximum transport height: 3048 m
- Temperature range (operation): 5 - 35 °C
- Temperature range (storage): 5 - 43 °C
- Permissible relative humidity: 5 - 95%
- Relative humidity range: 8 - 95%
- Network
- WWAN: Not Installed
- Mobile network connectivity: No
- Bluetooth version: 5.3
- Bluetooth: Yes
- Antenna type: 2x2
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: Wi-Fi 6E (802.11ax)
- Wired LAN: Yes
- Efficiency
- Motherboard Chipset: Intel SoC
- Package contents
- AC adapter: Yes
- Display
- RGB color space: NTSC
- Matrix type: IPS
- Touchscreen: No
- Brightness: 300 cd/m²
- Contrast ratio (typical): 1000:1
- Matte screen: Yes
- Color palette: 45%
- Maximum refresh rate: 60 Hz
- Native aspect ratio: 16:10
- Resolution: 1920 x 1200 px
- Screen diagonal: 16"
- HD Type: WUXGA
- LED backlight: Yes
- Audio
- Number of built-in microphones: 2
- Number of built-in speakers: 2
- Speaker power: 2 W
- Audio chip: Realtek ALC3287
- Built-in microphone: Yes
- Sound system: Dolby Sound
- Software
- Operating system architecture: 64-bit
- Operating system language
- English
- German
- French
- Dutch
- Italian
- Installed operating system: Windows 11 Pro PL
- Trial Software: Office
- Certificates
- Certificates of conformity: RoHS
- Data carrier
- Number of SSDs installed: 1
- SSD memory capacity: 512 GB
- SSD storage interface: PCI Express 4.0
- SSD type: M.2
- NVMe: Yes
- Total SSD capacity: 512 GB
- M.2 SSD size: 2242 (22 x 42 mm)
- Optical drive: No
- Integrated card reader: Yes
- Supported memory cards: SD
- Total disk capacity: 512 GB
- Media: SSD

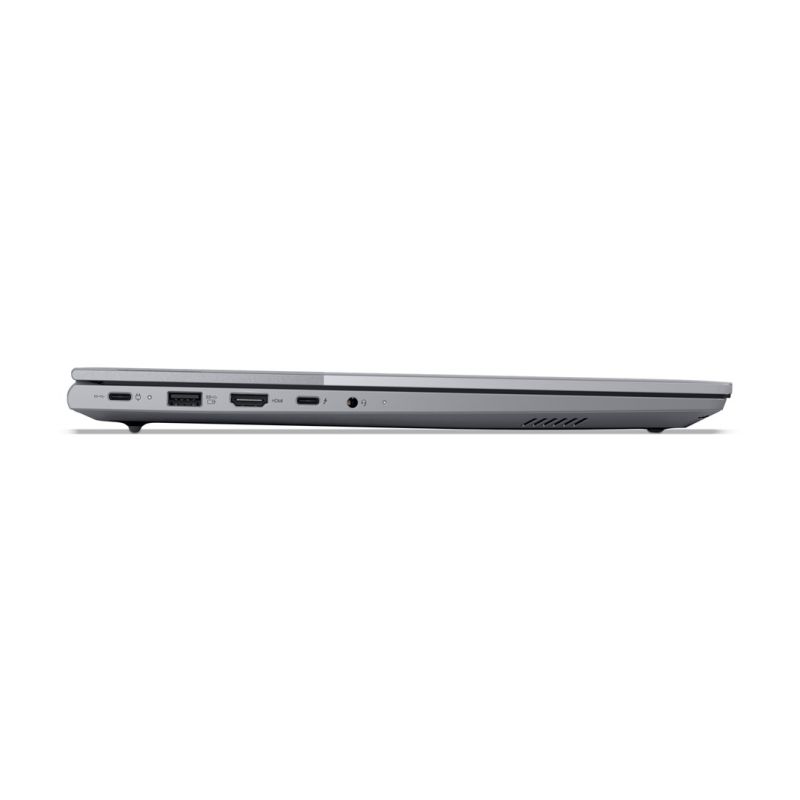

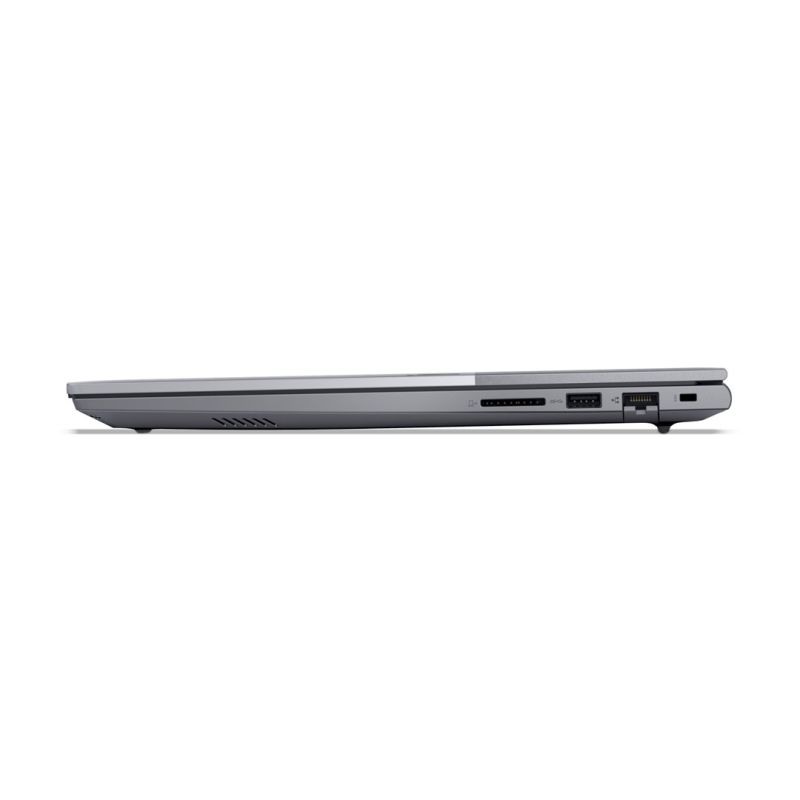

- Ports and interfaces
- Intel® Thunderbolt 4 Technology: Yes
- Number of Thunderbolt 4 ports: 1
- USB Sleep-and-Charge Ports: 1
- USB Sleep-and-Charge: Yes
- DisplayPort USB Type-C Alternate Mode: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- HDMI version: 2.1
- Number of HDMI ports: 1
- Headset/Microphone Combo Port: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Battery
- Fast charging time (50%): 30 min
- Battery operation time: 7.7 h
- Battery capacity: 45 Wh
- Maximum video playback time: 13.1 h
- Fast charging: Yes
- Battery type: Lithium Polymer (LiPo)
- Camera
- Infrared (IR) camera: Yes
- Camera resolution - front: 1920 x 1080 px
- Front camera type: Full HD
- Front camera: Yes

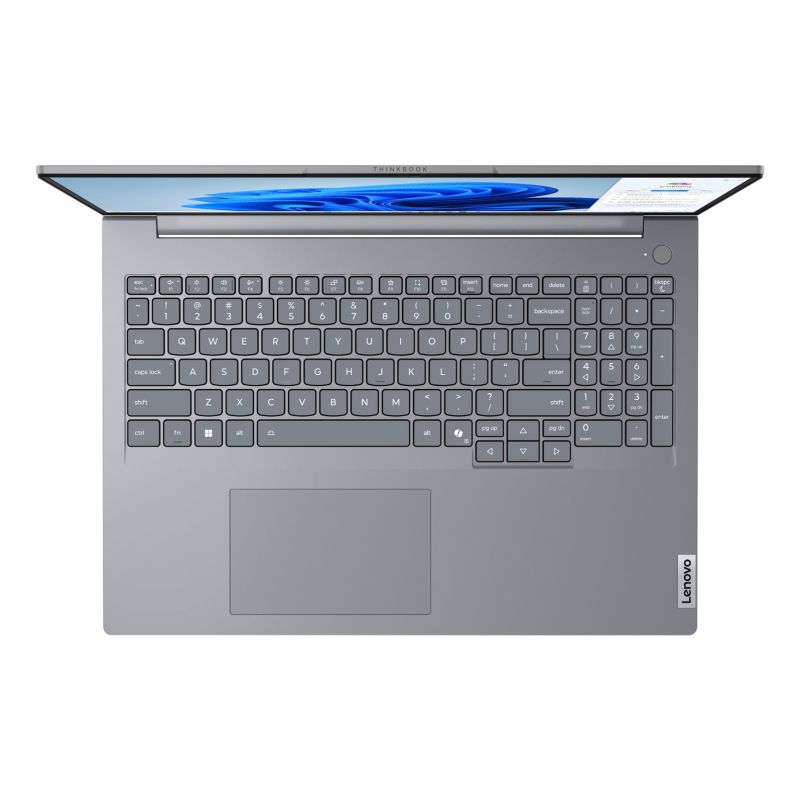

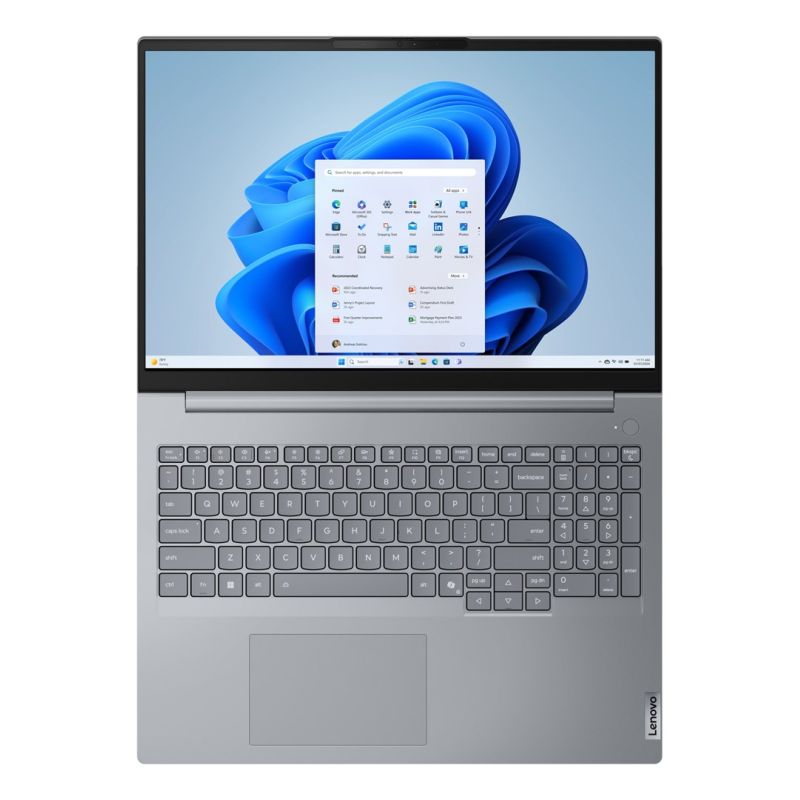

- Keyboard
- Copilot key: Yes
- Liquid-resistant keyboard: Yes
- Backlit keyboard: Yes
- Numeric keypad: Yes
- Pointing device: Touchpad
- Neural Processor (NPU)
- AI software frameworks powered by NPU
- Windows ML
- OpenVINO
- WebNN
- ONNX RT
- DirectML
- Rarity Support: Yes
- Windows Studio Effects Support: Yes
- Neural Processing Unit (NPU): Intel AI Boost
- AI software frameworks powered by NPU
| Name | Details |
|---|---|
| Producer | Lenovo |
