LevelOne 10x GE OSW-1031 Switch 8x Outputs 802.3at/af PoE - Switch - Power over Ethernet (OSW-1031)
LevelOne 10x GE OSW-1031 Switch 8x Outputs 802.3at/af PoE - Switch - Power over Ethernet (OSW-1031)
LevelOne 10x GE OSW-1031 Switch 8x Outputs 802.3at/af PoE - Switch - Power over Ethernet (OSW-1031)
PRICE:
740,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- LED diodes
- Power supply
- Link
- IP protection class: IP55
- Rack mounting options: No
- Stackable: No
- Product color: Black
- LED diodes
- Power
- Power consumption (max): 120 W
- Power supply included: Yes
- Power source: AC
- AC input frequency: 50/60 Hz
- AC input voltage: 100 - 240 V
- Weight and dimensions
- Product width: 280 mm
- Product weight: 8 kg
- Product height: 250 mm
- Product depth: 200 mm
- Management features
- Switch Type: Unmanaged
- Working conditions
- Temperature range (storage): -40 - 75 °C
- Temperature range (operation): -20 - 65 °C
- Relative humidity range: 0 - 90%
- Permissible relative humidity: 0 - 90%
- Network
- 10G Support: No
- Auto MDI/MDI-X: Yes
- Auto-Negotiation: Yes
- Data transfer speed via Ethernet LAN: 1000 Mbit/s
- Full duplex: Yes
- Communication standards
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3u
- IEEE 802.3z
- IEEE 802.3at
- IEEE 802.3af
- Copper Ethernet cabling technology
- 100BASE-TX
- 1000BASE-T
- 1000BASE-X
- 10BASE-T
- Flow Control Support: Yes
- Half-duplex: Yes
- Efficiency
- MTBF (Mean Time Between Failures): 4000000 h
- Without fan: No
- Packaging data
- Packaging type: Box

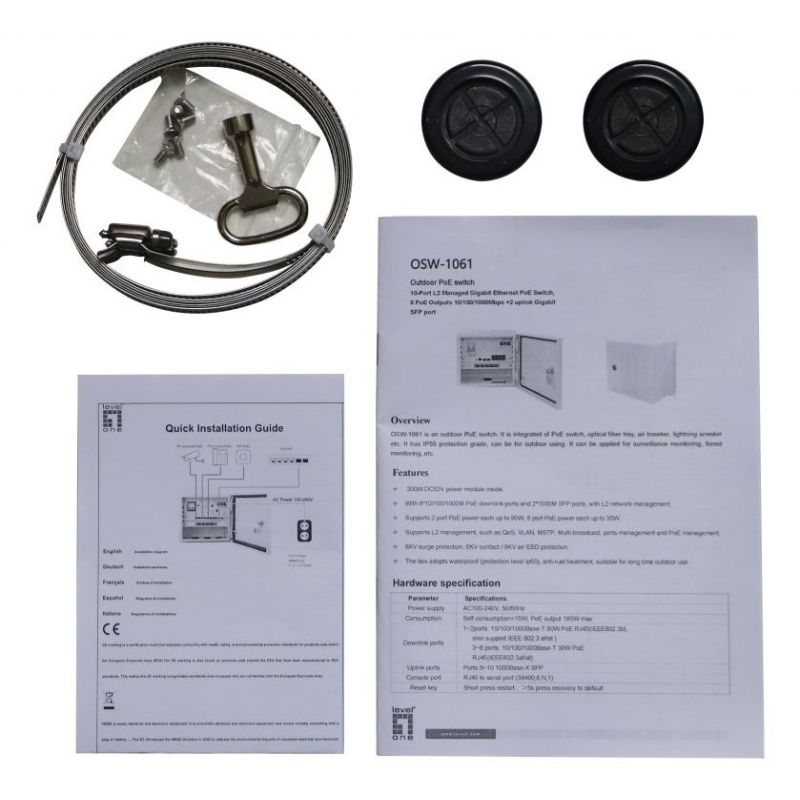

- Package contents
- Quick Start Guide: Yes
- User Manual: Yes
- Certificates
- Certificates of conformity
- Federal Communications Commission (FCC)
- CE
- Certificates of conformity
- Ports and interfaces
- Power connector: DC-in jack
- Basic Ethernet Switching RJ-45 Ports Type: 2.5G Ethernet (100/1000/2500)
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Number of SFP+ Module slots: 2
- Number of 2.5G Ethernet ports (copper): 8
- Data transfer
- Packet buffer memory: 12 MB
- Jumbo Frames Expansion: 9000
- Jumbo Frame Compatible: Yes
- Address table size: 4000 entries
- Routing/switching capacity: 20 Gbit/s
- Power over Ethernet (PoE)
- Number of Fast Ethernet (PoE) ports: 8
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 115 W
