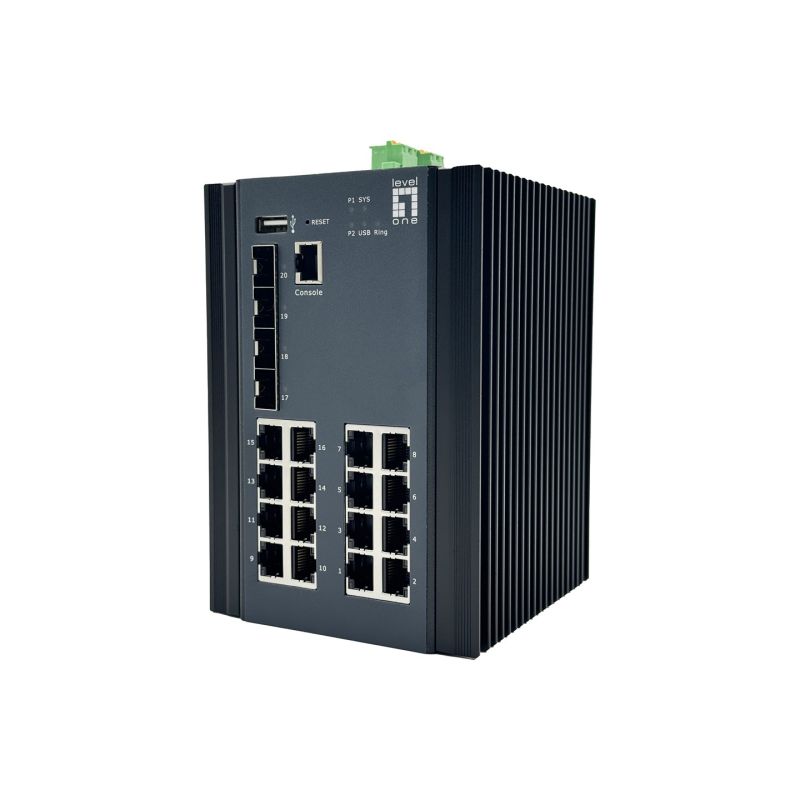

LevelOne 20x GE IGU-2071 Switch 16x 1GbE 4x 2.5GbE SFP sw
LevelOne 20x GE IGU-2071 Switch 16x 1GbE 4x 2.5GbE SFP sw
LevelOne 20x GE IGU-2071 Switch 16x 1GbE 4x 2.5GbE SFP sw
PRICE:
1209,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Gross pallet width: 120 cm
- Gross pallet length: 80 cm
- Collecting boxes (external) per pallet (air): 26 pcs.
- Pallet height (air): 167.4 cm
- Design
- LED diodes
- Power supply
- System
- USB
- IP protection class: IP40
- Product color: Black

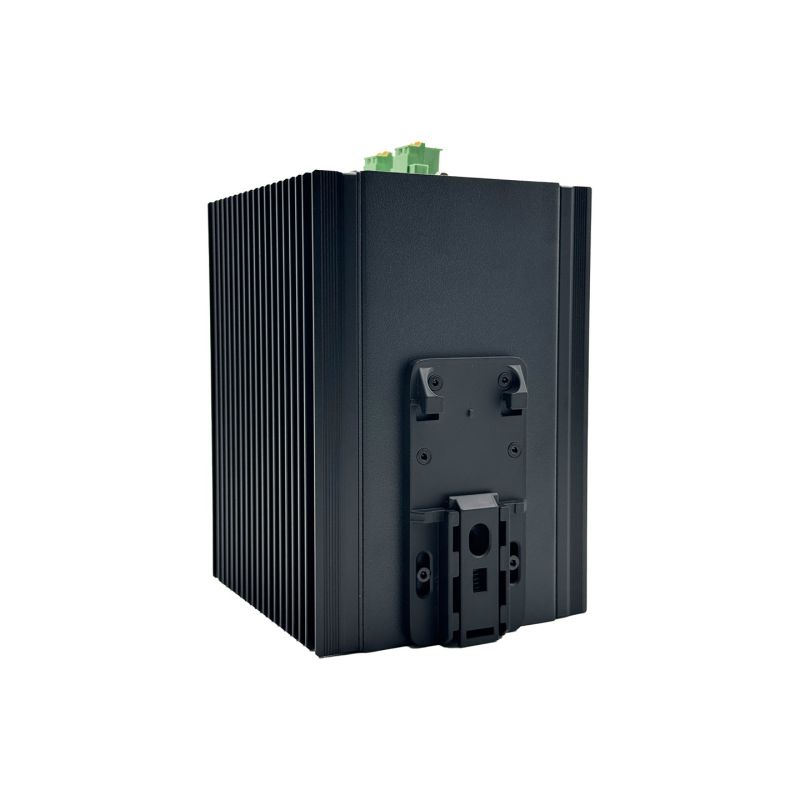

- DIN rail mounting: Yes
- LED diodes
- Power
- Backup Power Supply (RPS) Support: Yes

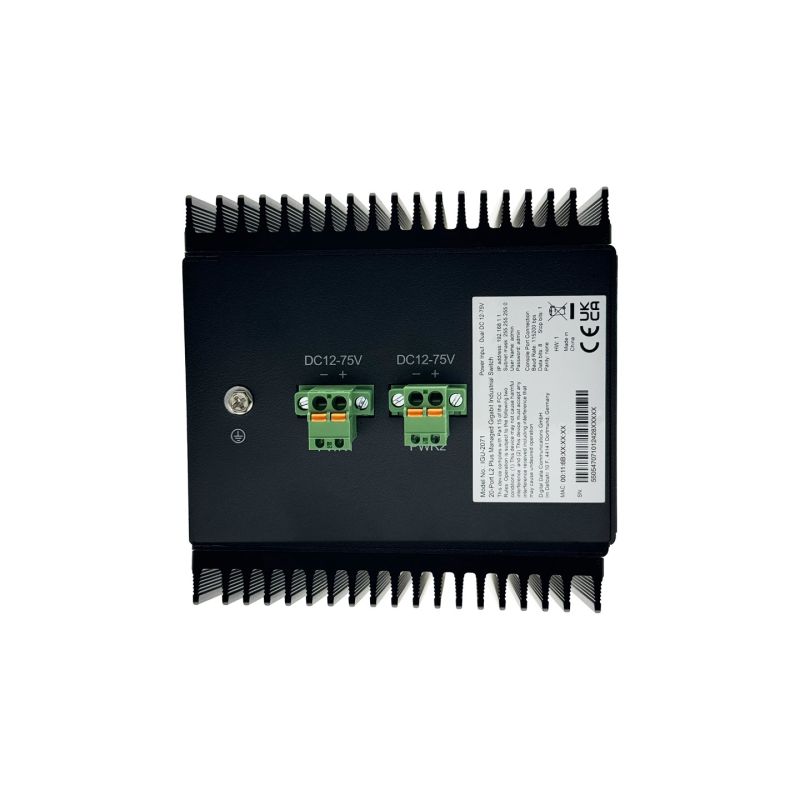

- Power source: DC
- Power Supply Included: No
- Power consumption (max): 22 W
- Protection against sudden voltage increases
- Yes
- 6 kV
- Number of power units: 2
- Weight and dimensions
- Product depth: 115 mm
- Product width: 110 mm
- Product height: 158 mm
- Product weight: 2.08 kg
- Security
- DHCP functions: DHCP server
- Authentication type: IEEE 802.1x, RADIUS
- Authentication: MAC-based authentication, Port-based authentication
- IP-MAC-Port Binding: Yes
- IGMP snooping: Yes
- Packet Filtering: Y
- Access Control List (ACL): Yes
- Management features
- Quality of Service (QoS) Support: Yes
- Website management: Yes
- Switch Layer: L2+
- Switch type: Managed
- ARP Inspection: Yes
- System Event Report: Yes
- Working conditions
- Temperature range (storage): -40 - 85 °C
- Temperature range (operation): -40 - 80 °C
- Permissible relative humidity: 5 - 95%
- Relative humidity range: 10 - 90%
- Network
- VLAN support: Yes
- Communication standards
- IEEE 802.1Q
- IEEE 802.3ad
- IEEE 802.3x
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3
- IEEE 802.1x
- IEEE 802.3u
- IEEE 802.1s
- Copper Ethernet cabling technology
- 100BASE-TX
- 10BASE-T
- 1000BASE-T
- 1000BASE-X
- Connection Aggregator: Yes
- Ethernet Ring Protection Switching (ERPS): Yes
- Flow Control Support: Yes
- Spanning Tree Protocol: Yes
- 10G Support: No
- Efficiency
- No fan: Yes
- Packaging data
- Packaging depth: 180 mm
- Weight with packaging: 2.41 kg
- Package width: 230 mm
- Package height: 142 mm
- Strip included: Yes
- DIN rail included: Yes
- Package contents
- Quick Start Guide: Yes
- Cables: LAN (RJ-45)
- Certificates
- Certificates of conformity
- CE
- Federal Communications Commission (FCC)
- RoHS
- UKCA
- Certificates of conformity
- Protocols
- IP Source Protection (IPSG): Yes
- Ports and interfaces
- Number of USB 2.0 ports: 1
- Console port: RJ-45
- Number of SFP Combo Ports: 4
- Basic RJ-45 Switching Number of Ethernet Ports: 16
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Number of Gigabit Ethernet ports: 16
- Logistics data
- Products in the main (outer) box: 6 pcs.
- Country of origin: China
- Harmonized System (HS) code: 851762
- Width of the collection box (external): 580 mm
- Height of the standard (outer) box: 255 mm
- Main (outer) housing gross weight: 15.2 kg
- Main (outer) case length: 310 mm
- Data transfer
- Jumbo Frame Compatible: Yes
- Routing/switching capacity: 52 Gbit/s
- Jumbo Frames Expansion: 10000
- Packet buffer memory: 12 MB
- Address table size: 16000 entries
- Forwarding speed: 77.3 Mpps
- Power over Ethernet (PoE)
- PoE Support: No
