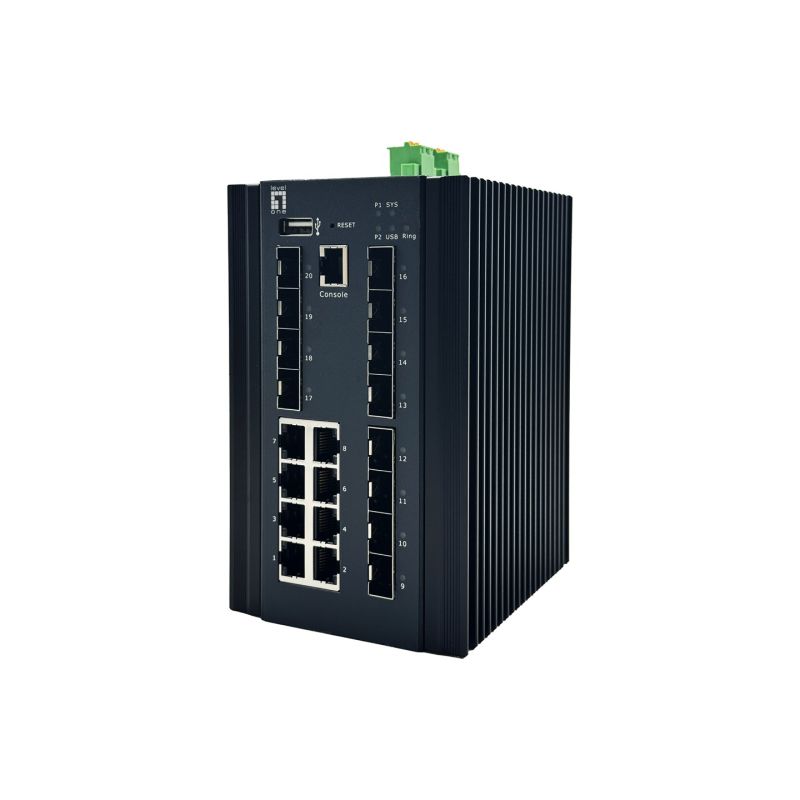

LevelOne 20x GE IGX-2072 Switch 8x 1GbE 8x 2.5GbE SFP+ sw
LevelOne 20x GE IGX-2072 Switch 8x 1GbE 8x 2.5GbE SFP+ sw
LevelOne 20x GE IGX-2072 Switch 8x 1GbE 8x 2.5GbE SFP+ sw
PRICE:
1654,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Gross pallet length: 80 cm
- Gross pallet width: 120 cm
- Design
- LED diodes
- USB
- System
- Ring

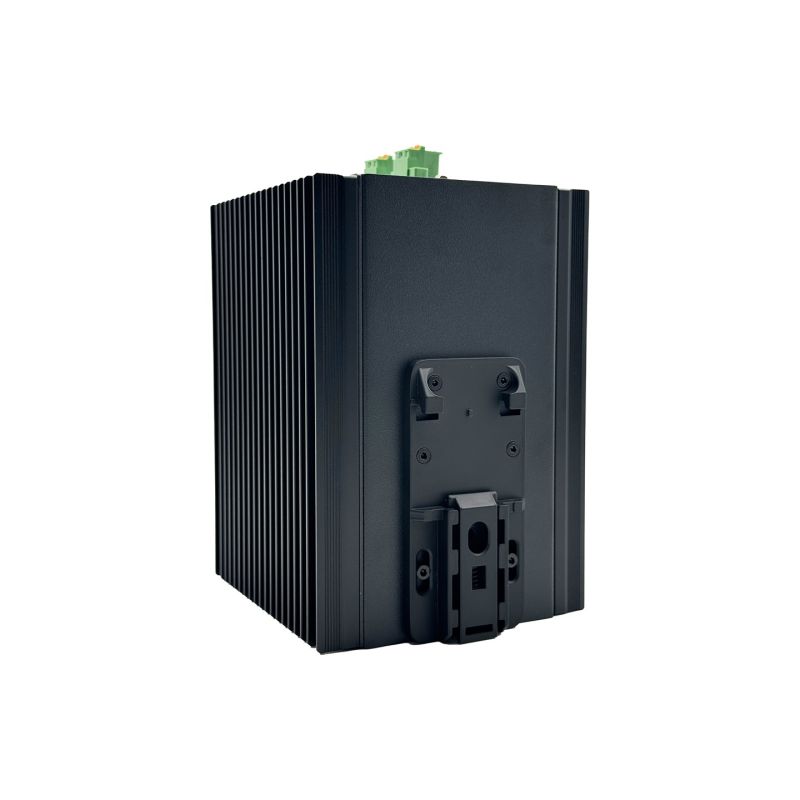

- DIN rail mounting: Yes
- IP protection class: IP40
- Product color: Black
- LED diodes

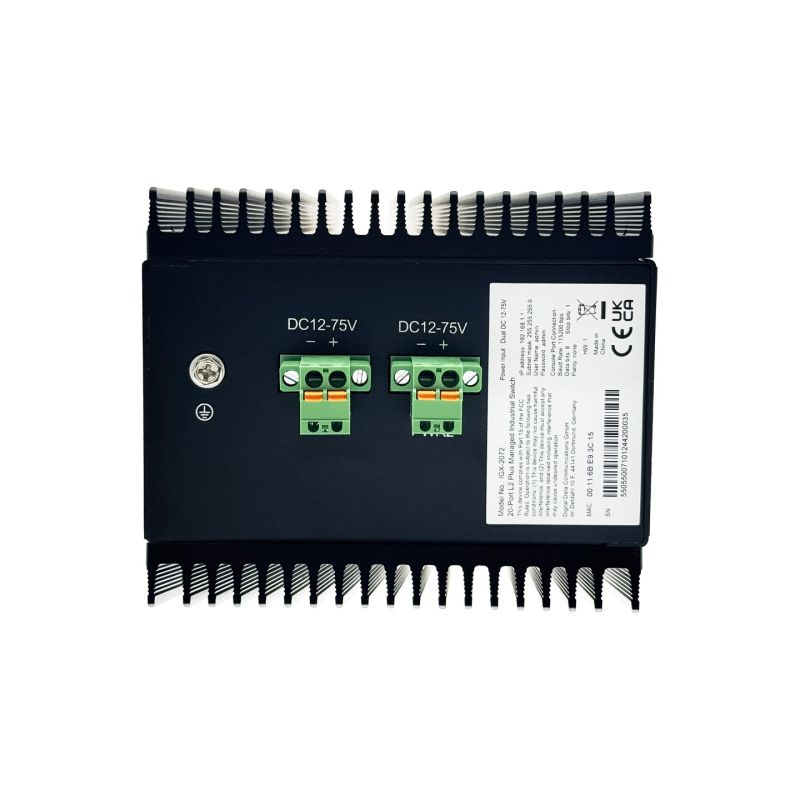

- Power
- Power source: DC
- Protection against sudden voltage increases
- 6 kV
- Yes
- Voltage: 12 - 75 V
- Backup Power Supply (RPS) Support: Yes
- Power consumption (max): 27 W
- Weight and dimensions
- Product depth: 115 mm
- Product weight: 1.79 kg
- Product width: 110 mm
- Product height: 158 mm
- Security
- Password protection: Yes
- Access Control List (ACL): Yes
- Packet Filtering: Y
- Authentication type: IEEE 802.1x
- Loop protection: Yes
- IGMP snooping: Yes
- MAC address filtering: Yes
- DHCP functions: DHCP server
- IP-MAC-Port Binding: Yes
- Queue planning algorithms
- Weighted Round Robin (WRR)
- SP
- Encryption/Security: HTTPS
- Management features
- ARP Inspection: Yes
- Switch type: Managed
- Configuring Location Settings (CLI): Yes
- Website management: Yes
- System Event Report: Yes
- Switch Layer: L2+
- Quality of Service (QoS) Support: Yes
- Working conditions
- Temperature range (storage): -40 - 85 °C
- Permissible relative humidity: 5 - 95%
- Temperature range (operation): -40 - 80 °C
- Relative humidity range: 10 - 90%
- Network
- Virtual LAN Features
- Protocol-based VLAN
- MAC address-based VLAN
- VLAN mapping
- IP subnet–based VLAN
- Stacked VLAN
- Spanning Tree Protocol: Yes
- Communication standards
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.1Q
- IEEE 802.3x
- IEEE 802.3ad
- IEEE 802.3z
- IEEE 802.1x
- 10G Support: Yes
- Frequency Limit: Yes
- Flow Control Support: Yes
- Ethernet Ring Protection Switching (ERPS): Yes
- Cable length measurement: Yes
- VLAN support: Yes
- Connection Aggregator: Yes
- Port Mirroring: Yes
- Traffic Growth Control: Yes
- Virtual LAN Features
- Efficiency
- Telnet: Yes
- MTBF (Mean Time Between Failures): 200000 h
- No fan: Yes
- Device software updates: Yes
- Dying Gasp: Yes
- Packaging data
- Packaging depth: 180 mm
- DIN rail included: Yes
- Package height: 138 mm
- Weight with packaging: 2.12 kg
- Package width: 232 mm

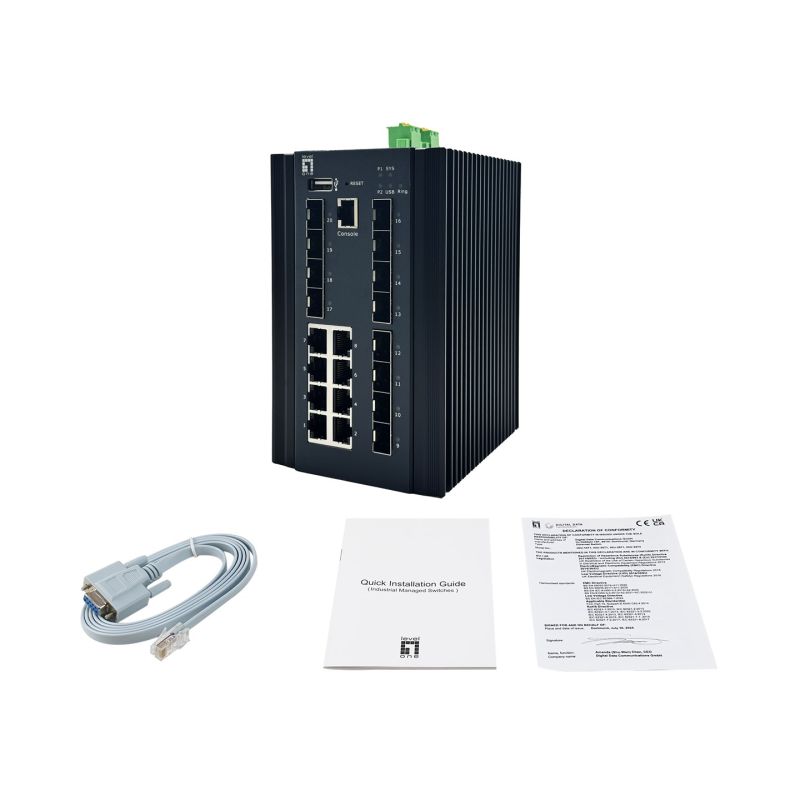

- Package contents
- Cables: LAN (RJ-45) to DB9
- Quick Start Guide: Yes
- Certificates
- Certificates of conformity
- UKCA
- RoHS
- CE
- Federal Communications Commission (FCC)
- Certificates of conformity
- Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- IP Source Protection (IPSG): Yes
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Number of Gigabit Ethernet ports: 8
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Console port: RJ-45
- Number of USB Type-A ports: 1
- Number of SFP Module slots: 8
- Number of SFP+ Module slots: 4
- Other functions
- Terminal Port Blocking: Yes
- Logistics data
- Harmonized System (HS) code: 851762
- Width of the collection box (external): 440 mm
- Main (outer) case length: 375 mm
- Products in the main (outer) box: 6 pcs.
- Country of origin: China
- Gross pallet height: 167.4 cm
- Gross weight of the main (outer) housing: 15 kg
- Height of the standard (outer) box: 255 mm
- Data transfer
- Static Route: Yes
- Routing/switching capacity: 112 Gbit/s
- Jumbo Frames Expansion: 10000
- Jumbo Frame Compatible: Yes
- Address table size: 16000 entries
- Packet buffer memory: 12 MB
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
