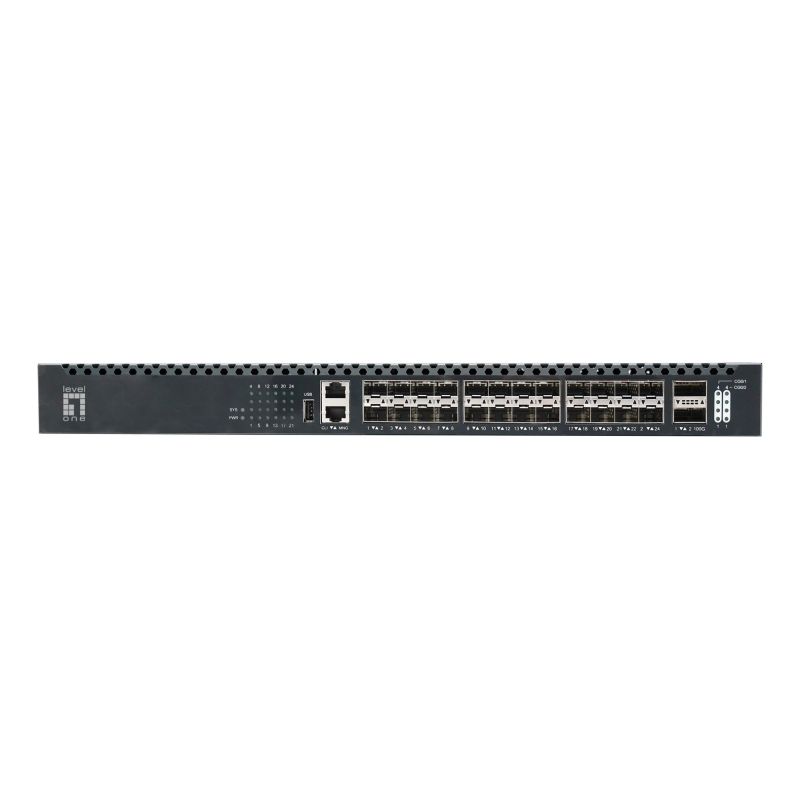

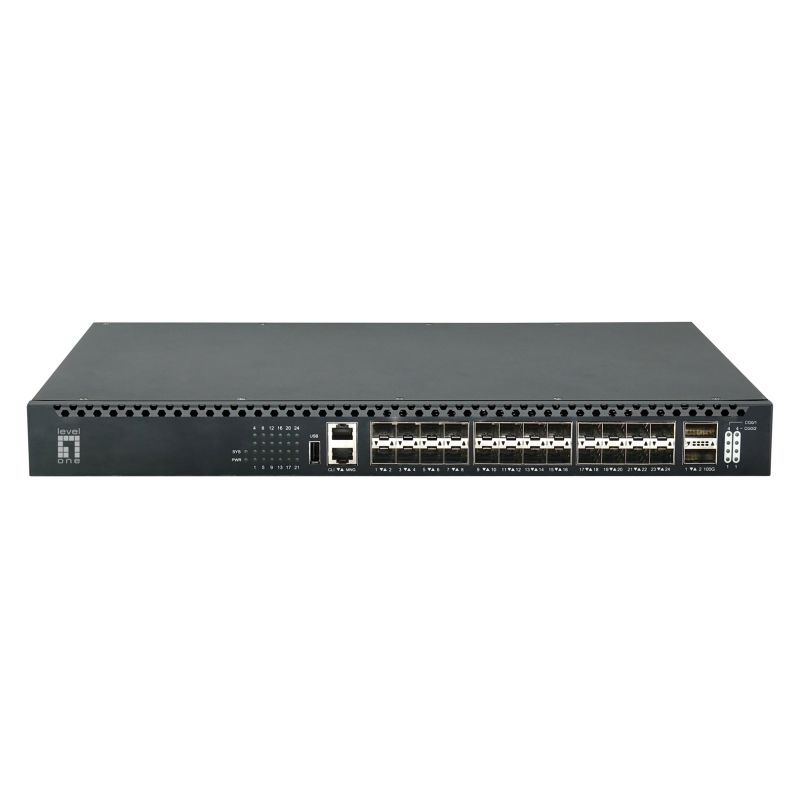

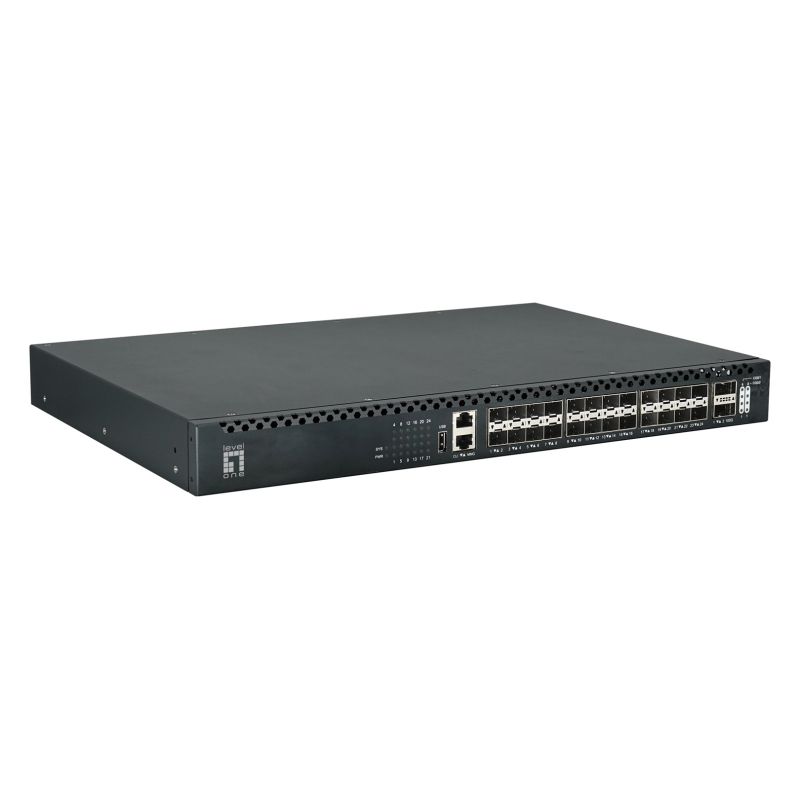

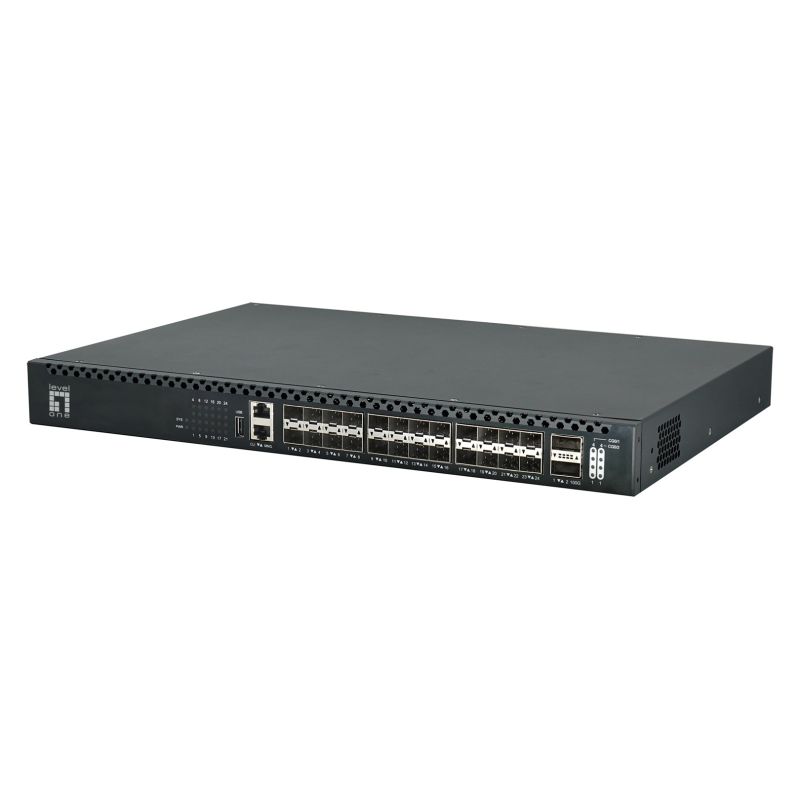

LevelOne 24x10GSFP+/2x 100GQSFP TOR Managed L3 1Gbps Switch
LevelOne 24x10GSFP+/2x 100GQSFP TOR Managed L3 1Gbps Switch
LevelOne 24x10GSFP+/2x 100GQSFP TOR Managed L3 1Gbps Switch
PRICE:
2716,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Gross pallet length: 100 cm
- Gross pallet width: 120 cm
- Pallet height (air): 164.9 cm
- Collective boxes (external) per pallet (air): 18 pcs.
- Design
- Product color: Black
- Rack mounting options: Yes
- Power
- Number of power units: 2
- Power supply included: Yes
- AC input frequency: 50 Hz
- AC input voltage: 100 - 240 V
- Power consumption: 26 W
- Backup Power Supply (RPS) Support: Yes
- Power source: AC
- Power consumption (max): 64 W
- Weight and dimensions
- Product weight: 4.25 kg
- Product depth: 300 mm
- Product height: 44.5 mm
- Product width: 442.5 mm
- Security
- IGMP snooping: Yes
- DHCP functions
- DHCP Option 82
- DHCP snooping
- DoS attack prevention: Yes
- Access Control List (ACL): Yes
- Root protection: Yes
- Queue planning algorithms
- Weighted Round Robin (WRR)
- SP
- Weighted random early detection (WRED)
- WRR+SP
- Authentication type: IEEE 802.1x, RADIUS, TACACS+
- IP-MAC-Port Binding: Yes
- BPDU Filtering/Protection: Yes
- MAC address filtering: Yes
- Management features
- Switch Layer: L3
- Switch type: Managed
- Traffic Classification: Yes
- Quality of Service (QoS) Support: Yes
- Website management: Yes
- Working conditions
- Heat emission: 238.91 BTU/h
- Temperature range (storage): -20 - 70 °C
- Temperature range (operation): -10 - 50 °C
- Relative humidity range: 10 - 90%
- Permissible relative humidity: 5 - 95%
- Network
- 10G Support: No
- Virtual LAN Features
- Protocol-based VLAN
- Private VLAN
- MAC address auto-aging supported: Yes
- MAC address auto-learning supported: Yes
- Number of VLANs: 4000
- Spanning Tree Protocol: Yes
- Connection Aggregator: Yes
- Quick lower: Yes
- 6to4 Tunnel: Yes
- VLAN Mapping Type
- VLAN Mapping N:1
- 1:1 VLAN Mapping
- Rule-Based Routing: Yes
- Ethernet Ring Protection Switching (ERPS): Yes
- Communication standards
- IEEE 802.1AE
- IEEE 802.1w
- IEEE 802.1ag
- IEEE 802.1D
- IEEE 802.3ah
- IEEE 802.3az
- IEEE 802.1s
- VLAN support: Yes
- Efficiency
- Manually configurable tunnel: Yes
- sFlow: Yes
- Without fan: No
- Noise level: 57 dB
- Flash memory size: 4096 MB
- Internal memory capacity: 2 GB
- MTBF (Mean Time Between Failures): 200000 h
- Packaging data
- Rubber feet: Yes
- Weight with packaging: 7.45 kg
- Package depth: 448 mm
- Package width: 576 mm
- Package height: 94 mm
- Package contents
- Hook mounting kit: Yes
- Quick Start Guide: Yes
- Wires: Alternating Current
- Certificates
- Certificates of conformity
- UKCA
- Federal Communications Commission (FCC)
- RoHS
- Certificates of conformity
- Protocols
- Route Selection Protocol
- VRRP
- HSRP
- BGP4+
- RIP-2
- RIP-1
- BGP
- OSPFv3
- RIPng
- MPLS
- OSPF
- GARP VLAN Registration Protocol (GVRP): Yes
- Internal Automatic Tunnel Addressing Protocol (ISATAP): Yes
- Route Selection Protocol
- Ports and interfaces
- Console port: RJ-45
- Basic Ethernet Switching RJ-45 Ports Type: No
- Number of SFP+ Module slots: 24
- Number of management ports: 1 pc.
- Number of USB 2.0 ports: 1
- Number of QSFP28 ports: 2
- Logistics data
- Main (outer) case length: 462 mm
- Main (outer) housing gross weight: 15.7 kg
- Width of the collection box (external): 605 mm
- Height of the standard (outer) box: 215 mm
- Country of origin: China
- Products in the main (outer) box: 2 pcs.
- Harmonized System (HS) code: 851762
- Data transfer
- Address table size: 128000 entries
- Transfer speed: 660 Mpps
- Packet buffer memory: 4.5 MB
- Jumbo Frame Compatible: Yes
- Jumbo Frames Expansion: 16000
- Path MTU Discovery: Yes
- Routing/switching capacity: 880 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
- Multicast features: Multicast traffic suppression
