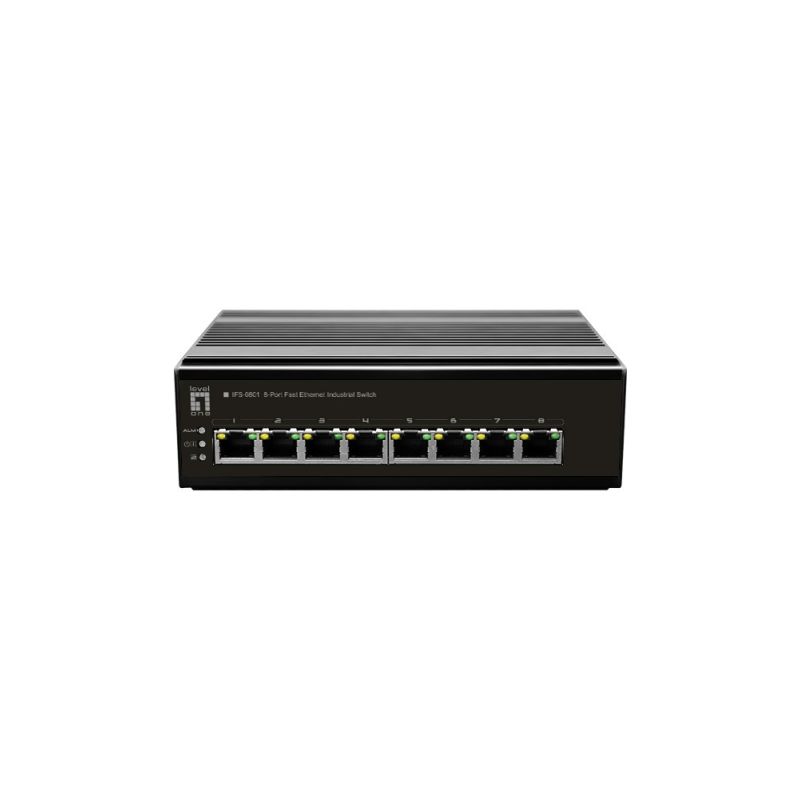

LevelOne 8-Port FE IFS-0801 DIN Rail Switch, -30°C to 65°C

Name: LevelOne 8-Port FE IFS-0801 DIN Rail Switch, -30°C to 65°C
SKU: 7137953
Price: 170.99 EUR
Availability: InStock

PRICE: 170,99 €

QUANTITY BUY NOW

N/A

IN A WAREHOUSE above 10 pcs

We'll ship this product in 9 days.

FREE EUROPE SHIPPING FROM 149 €! 30 DAYS FOR A RETURN!

Design
- LED diodes
  - Link
  - Power supply
  - Action
- Product color: Black
- Wall mountable: Yes
- DIN rail mounting: Yes
Power
- Voltage: 12 - 60 V
- Power source: AC/DC
- Protection against sudden voltage increases
  - Yes
  - 8 kV
- Power supply included: Yes
Weight and dimensions
- Product height: 50 mm
- Product depth: 114 mm
- Product width: 165 mm
- Product weight: 450 g
Management features
- Switch Type: Unmanaged
Working conditions
- Temperature range (storage): -40 - 85 °C
- Temperature range (operation): -40 - 75 °C
- Relative humidity range: 0 - 95%
- Permissible relative humidity: 0 - 95%
Network
- Communication standards
  - IEEE 802.3x
  - IEEE 802.3u
  - IEEE 802.3
- Copper Ethernet cabling technology
  - 100BASE-TX
  - 10BASE-T
- Auto MDI/MDI-X: Yes
- Auto-Negotiation: Yes
- 10G Support: No
- Full duplex: Yes
- Flow Control Support: Yes
- Half-duplex: Yes
Packaging data
- Strip included: Yes
Package contents
- Quick Start Guide: Yes
Certificates
- Certificates of conformity
  - Federal Communications Commission (FCC)
  - CE
Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Number of Fast Ethernet ports (copper): 8
- Basic Ethernet switching RJ-45 ports type: Fast Ethernet (10/100)
Other functions
- Terminal Port Blocking: Yes
Data transfer
- Packet buffer memory: 1 MB
- Address table size: 8000 entries
- Routing/Switching Throughput: 1.6 Gbps
Power over Ethernet (PoE)
- PoE Support: No
Sustainable development
- Sustainability: Yes

Name	Details
Category	Networking & Communication, Computers and accessories
Product Type	Network switches
Producer	No name
Department	Electronics
