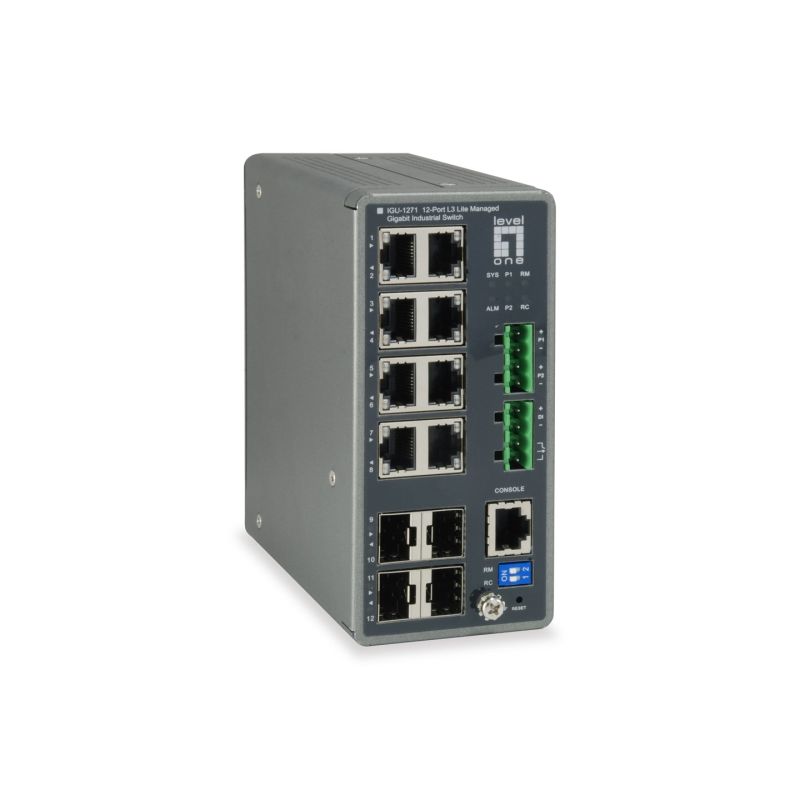

LevelOne 8xGE/4xSFP TURING Managed L3 1Gbps Industrial Switch
LevelOne 8xGE/4xSFP TURING Managed L3 1Gbps Industrial Switch
LevelOne 8xGE/4xSFP TURING Managed L3 1Gbps Industrial Switch
PRICE:
1234,99
€
IN A WAREHOUSE
6 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Safety: UL,CB
- LED diodes
- System
- Status
- Power supply
- Alarm
- Reset button: Yes
- Product color: Gray
- DIN rail mounting: Yes
- Power
- Power consumption (max): 239.2 W
- DC input voltage: 48 - 57 V
- Weight and dimensions
- Product weight: 700 g
- Product width: 62 mm
- Product depth: 130 mm
- Product height: 135 mm
- Security
- Root protection: Yes
- DHCP functions
- DHCP server
- DHCP relay
- DHCP client
- DHCP snooping
- Loop protection: Yes
- BPDU Filtering/Protection: Yes
- Access Control List (ACL): Yes
- Management features
- Website management: Yes
- Switch type: Managed
- System Event Report: Yes
- Switch Layer: L3
- Working conditions
- Relative humidity range: 10 - 90%
- Temperature range (operation): -40 - 75 °C
- Permissible relative humidity: 10 - 90%
- Temperature range (storage): -40 - 85 °C
- Heat emission: 36.03 BTU/h
- Network
- Communication standards
- IEEE 802.1x
- IEEE 802.3
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.1p
- IEEE 802.1s
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.1Q
- IEEE 802.3ah
- IEEE 802.3az
- IEEE 802.3ac
- IEEE 802.3ad
- IEEE 802.3ab
- IEEE 802.1ag
- Copper Ethernet cabling technology
- 10BASE-T
- 100BASE-TX
- 1000BASE-T
- VLAN support: Yes
- Ethernet Ring Protection Switching (ERPS): Yes
- 10G Support: No
- Traffic Growth Control: Yes
- Port Mirroring: Yes
- Connection Aggregator: Yes
- Spanning Tree Protocol: Yes
- Communication standards
- Efficiency
- Flash memory size: 32 MB
- Internal memory capacity: 128 MB
- Device software updates: Yes
- sFlow: Yes
- MTBF (Mean Time Between Failures): 476206 h
- Remarking priority: Y
- Packaging data
- Package depth: 207 mm
- Packaging type: Box
- Package width: 255 mm
- Package height: 85 mm
- Weight with packaging: 900 g
- Driver CD: Yes
- Package contents
- Quick Start Guide: Yes
- Cables: LAN (RJ-45)
- Protocols
- Supported network protocols: IPv4/IPv6
- Management protocols: SNMP, Web, Telnet, SSH
- Ports and interfaces
- Console port: RJ-45
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Number of SFP Module slots: 4
- Logistics data
- Country of origin: Taiwan
- Products in the main (outer) box: 10 pcs.
- Harmonized System (HS) code: 85176990
- Height of the standard (outer) box: 220 mm
- Main (outer) housing gross weight: 2.4 kg
- Main (outer) case length: 445 mm
- Width of the collection box (external): 520 mm
- Data transfer
- Address table size: 8000 entries
- Static Route: Yes
- Packet buffer memory: 0.5 MB
- Jumbo Frame Compatible: Yes
- Store-and-forward: Yes
- Jumbo Frames Expansion: 9216
- Routing/Switching Throughput: 24 Gbit/s
- Forwarding speed: 17.856 Mpps
- Power over Ethernet (PoE)
- PoE Support: No
