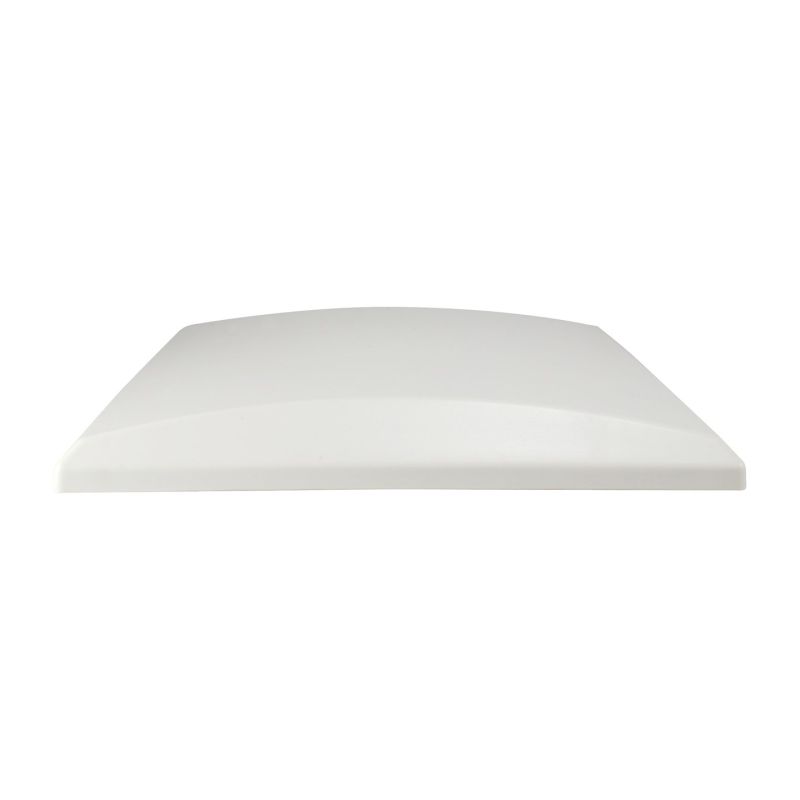

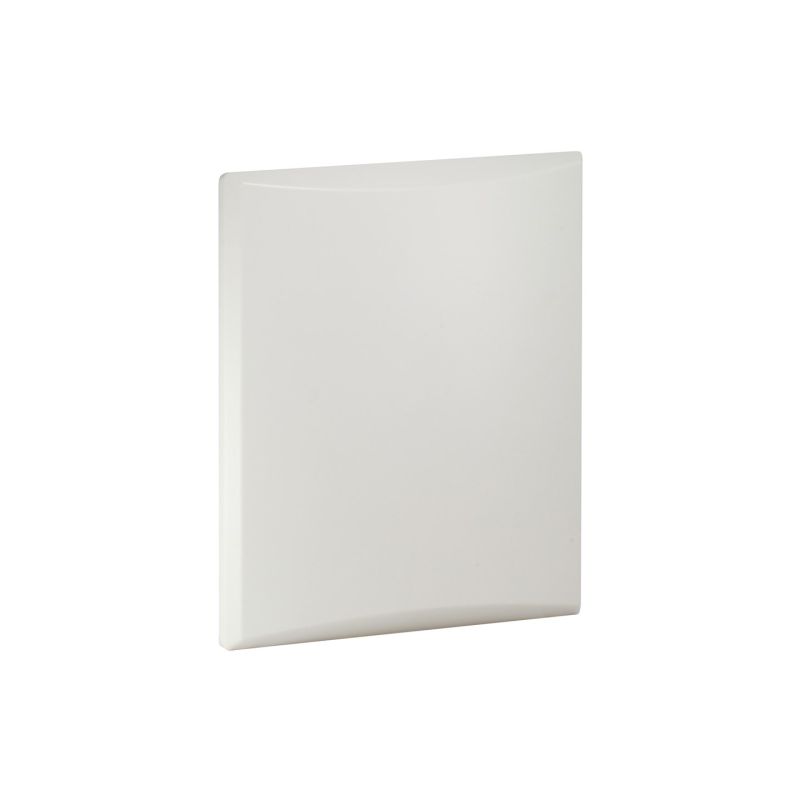

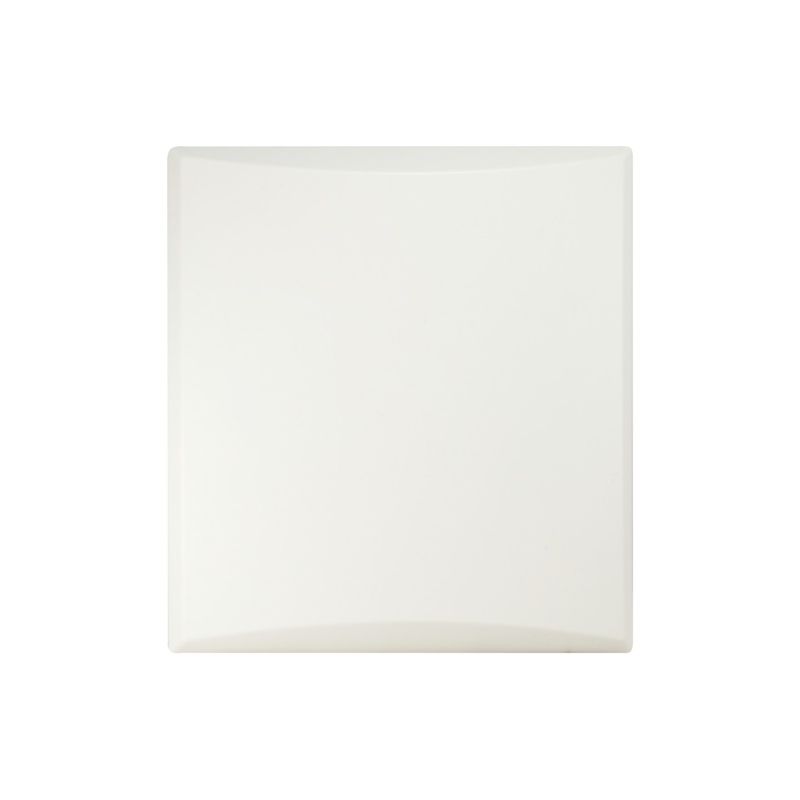

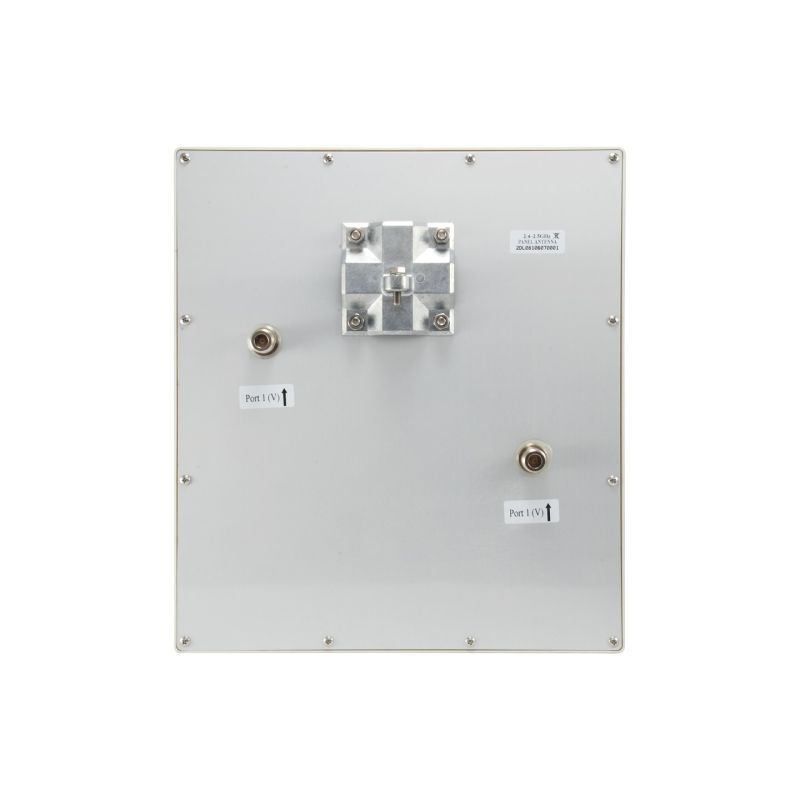

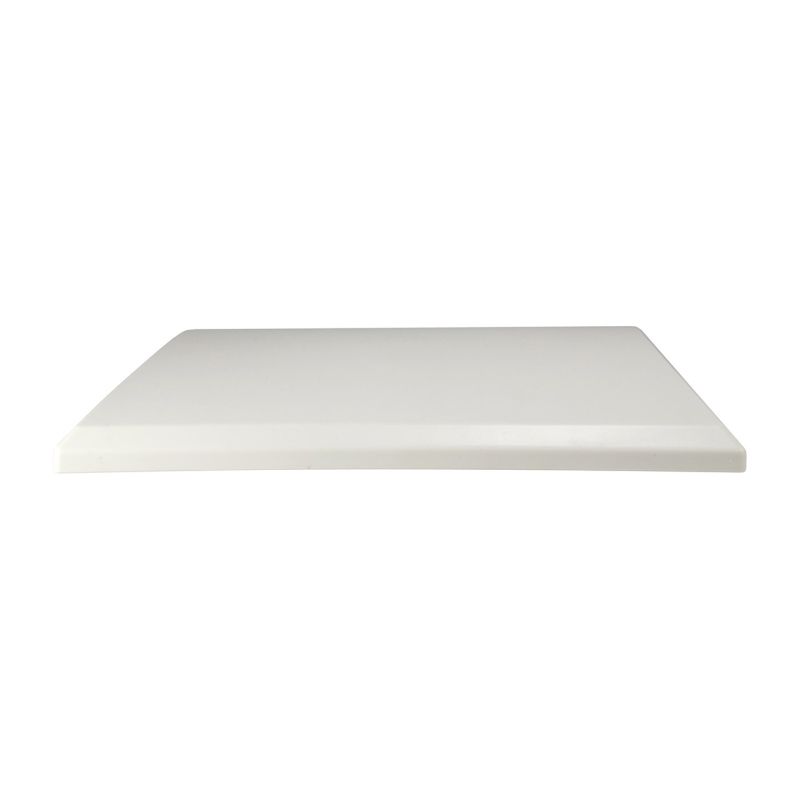

LevelOne Direct/Dual Polarization 15dBi 2.4GHz Panel Antenna
LevelOne Direct/Dual Polarization 15dBi 2.4GHz Panel Antenna
LevelOne Direct/Dual Polarization 15dBi 2.4GHz Panel Antenna
PRICE:
395,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Maximum wind speed: 180 km/h
- Voltage Standing Wave Ratio (VSRW): 2.0
- Maximum cable loss with connections: -10 dB
- Polarization: Dual Polarization
- Intended use: Indoor/outdoor
- Security features
- Waterproof
- Snow resistant
- Dust resistant
- Product color: Gray
- Antenna type: Directional antenna
- Antenna plug type: N-Type
- Weight and dimensions
- Product height: 35 mm
- Product depth: 330 mm
- Product width: 295 mm
- Product weight: 904 g
- Working conditions
- Relative humidity range: 0 - 95%
- Temperature range (operation): -30 - 60 °C
- Efficiency
- Impedance: 50 Ω
- Vertical beamwidth: 15°
- Horizontal beamwidth: 30°
- Frequency band: 2.4 ~ 2.5 GHz
- Antenna gain level (max): 15 dBi
- Communication standards
- IEEE 802.11ac
- IEEE 802.11b
- IEEE 802.11n
- IEEE 802.11g
- Packaging data
- Packaging type: Box
- Package depth: 354 mm
- Package height: 84 mm
- Package width: 333 mm
- Weight with packaging: 1.81 kg
- Package contents
- Quick Installation Guide: Yes

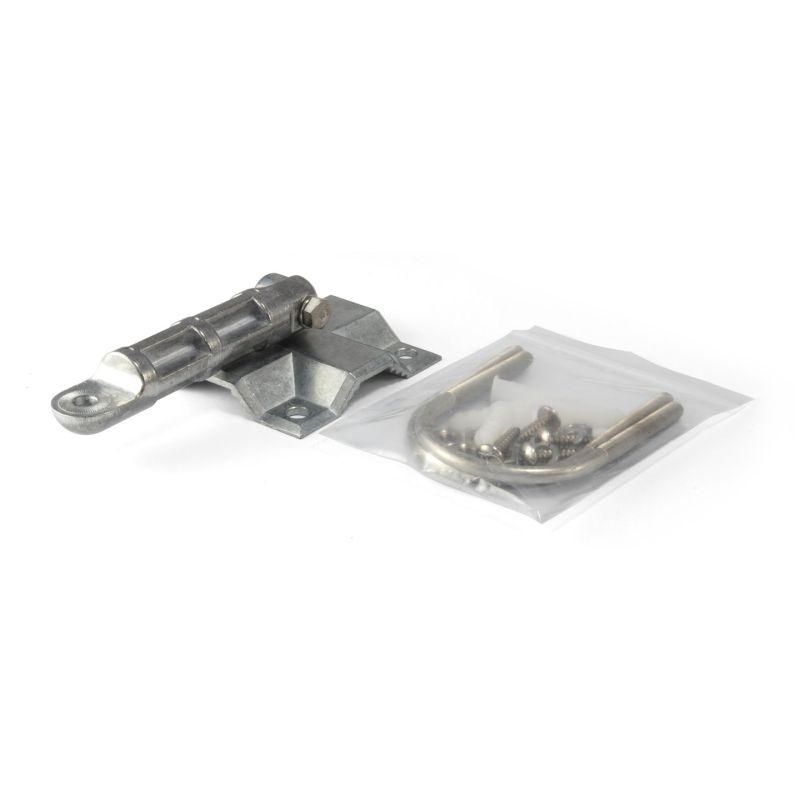

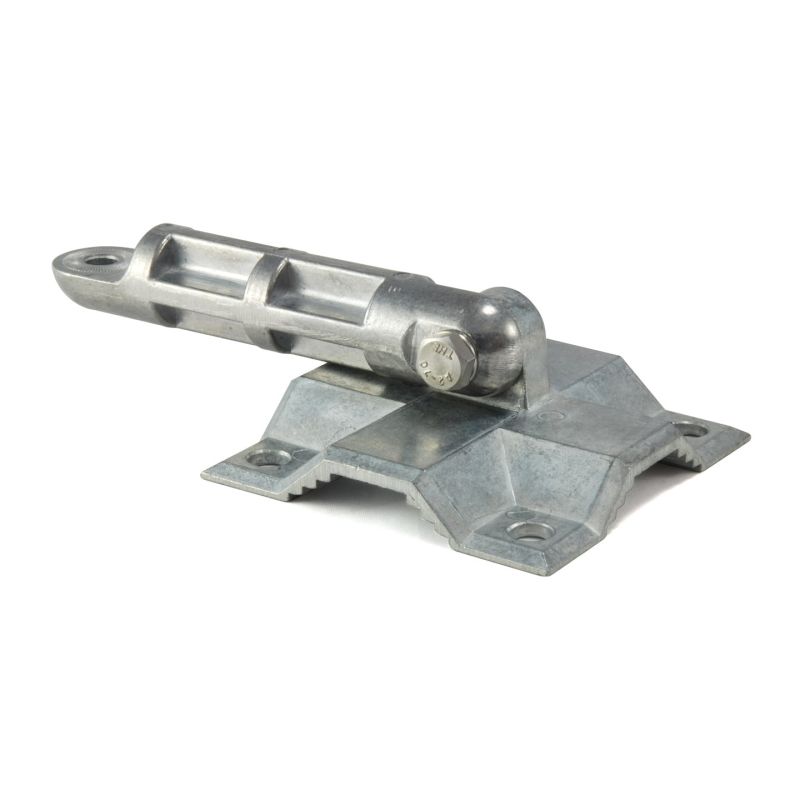

- Mounting kit: Yes
- Logistics data
- Gross weight of the main (outer) housing: 20 kg
- Main (outer) case length: 447 mm
- Products in the main (outer) box: 10 pcs.
- Height of the standard (outer) box: 370 mm
- Width of the collection box (external): 460 mm
- Harmonized System (HS) code: 85177100
- Country of origin: Taiwan
