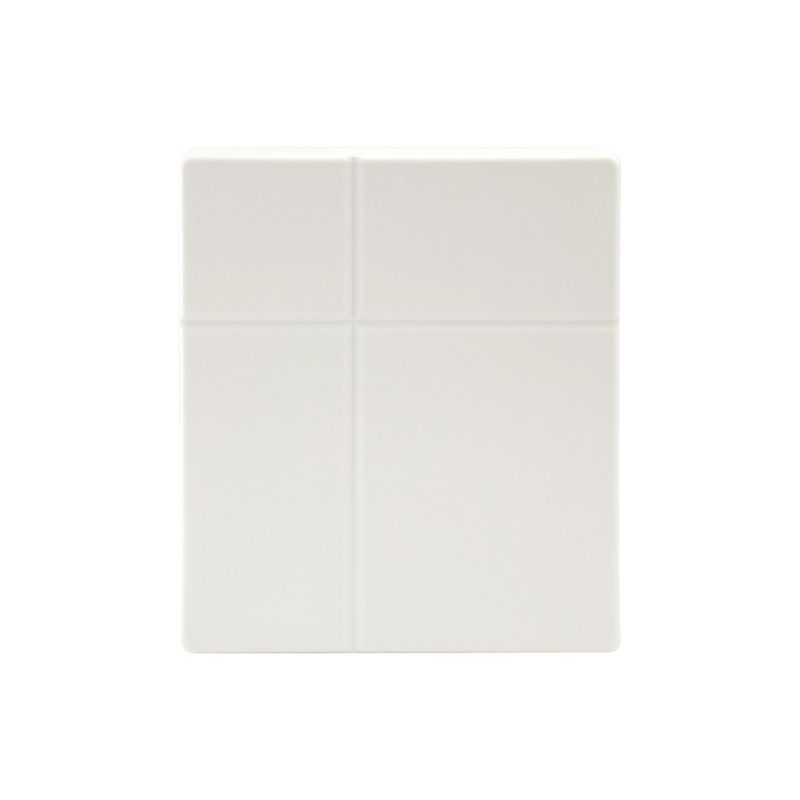

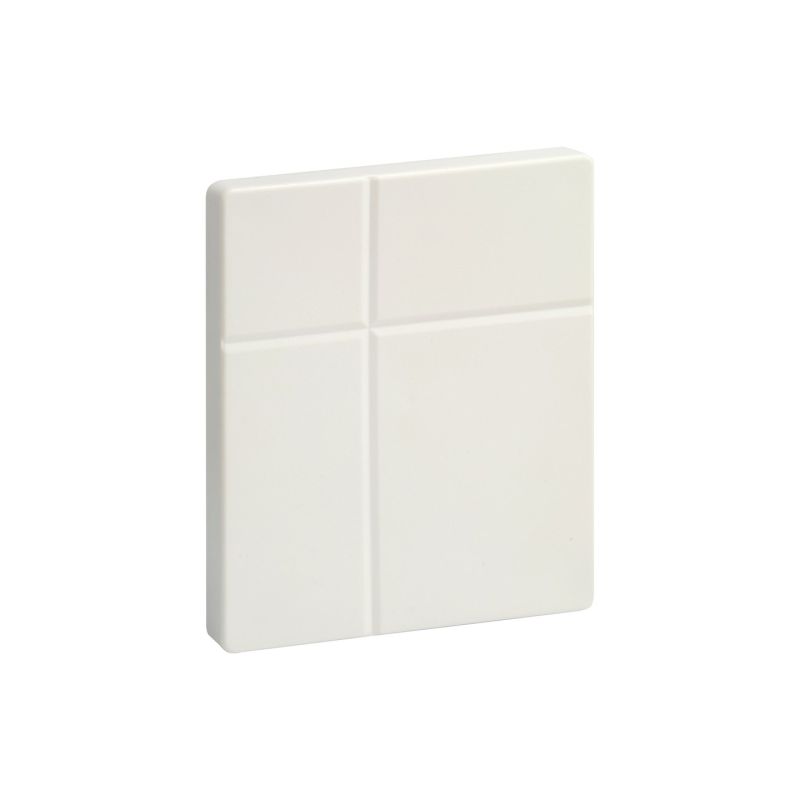

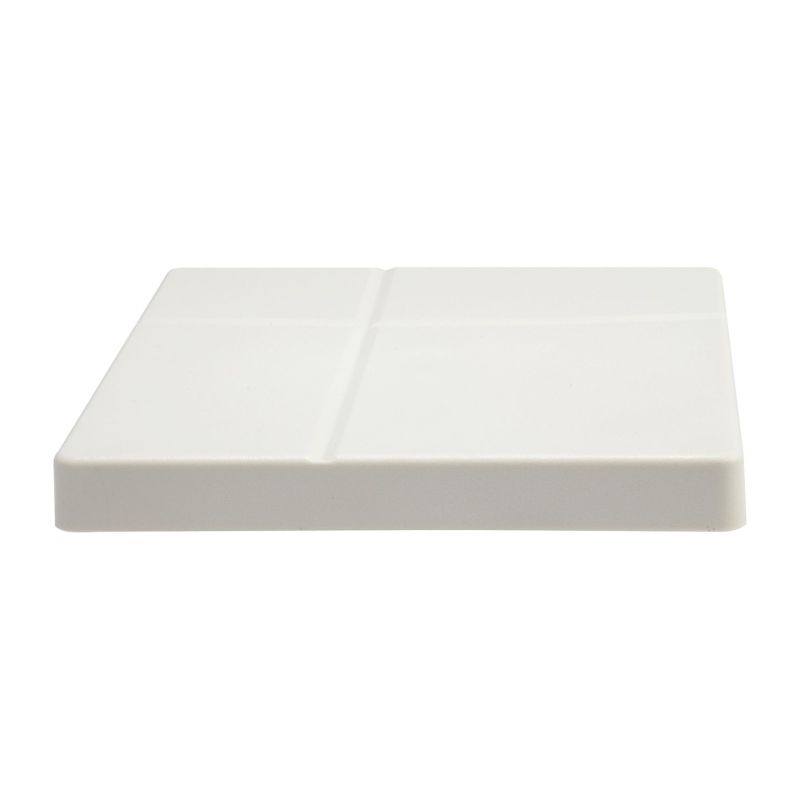

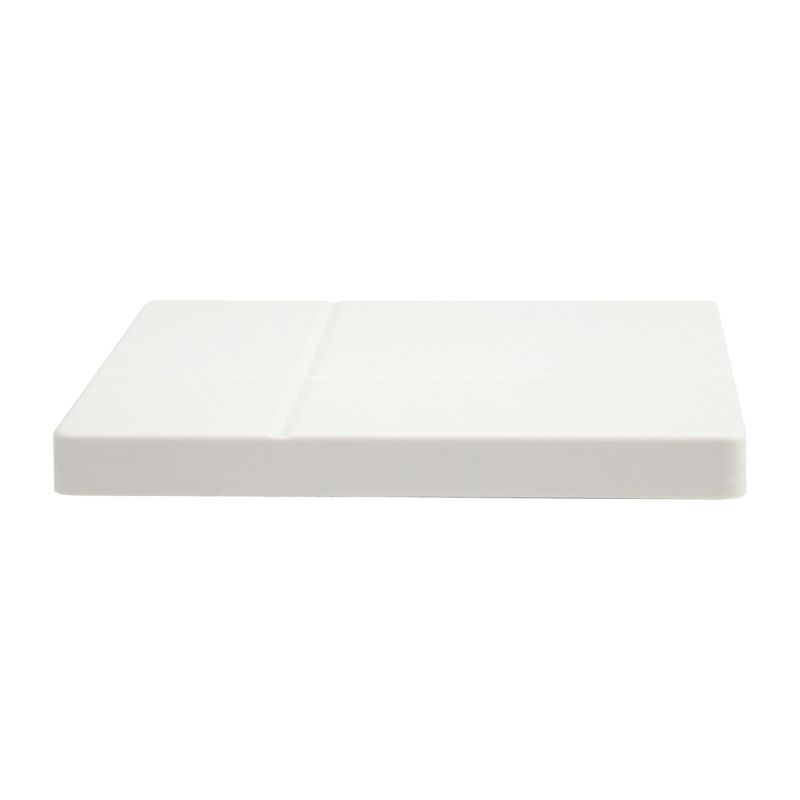

LevelOne Direct/Dual Polarization 15dBi 5GHz Panel Antenna
LevelOne Direct/Dual Polarization 15dBi 5GHz Panel Antenna
LevelOne Direct/Dual Polarization 15dBi 5GHz Panel Antenna
PRICE:
306,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Product color: Gray
- Antenna type: Directional antenna

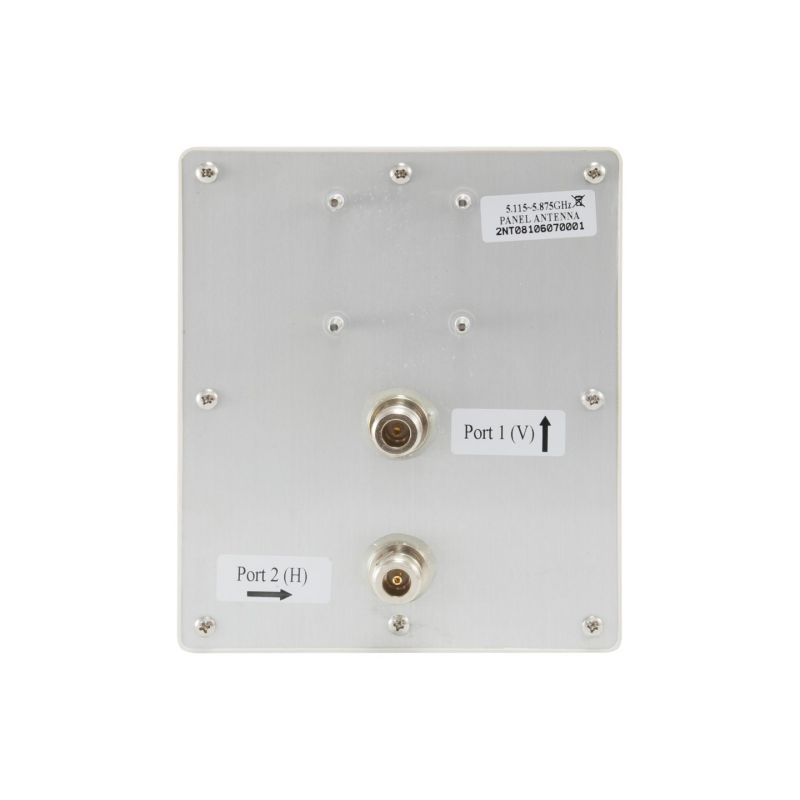

- Antenna plug type: N-Type
- Maximum wind speed: 180 km/h
- Security features
- Snow resistant
- Dust resistant
- Waterproof
- Voltage Standing Wave Ratio (VSRW): 2.0
- Maximum cable loss with connections: -10 dB
- Intended use: Indoor/outdoor
- Polarization: Dual Polarization
- Weight and dimensions
- Product weight: 208 g
- Product depth: 162.5 mm
- Product height: 16 mm
- Product width: 137.5 mm
- Working conditions
- Relative humidity range: 0 - 95%
- Temperature range (operation): -30 - 60 °C
- Efficiency
- Antenna gain level (max): 15 dBi
- Communication standards
- IEEE 802.11a
- IEEE 802.11n
- Frequency band: 5.1 ~ 5.9 GHz
- Horizontal beamwidth: 22°
- Impedance: 50 Ω
- Vertical beamwidth: 15°
- Packaging data
- Packaging type: Box
- Package depth: 218 mm
- Package height: 74 mm
- Weight with packaging: 726 g
- Package width: 161 mm
- Package contents
- Quick Installation Guide: Yes

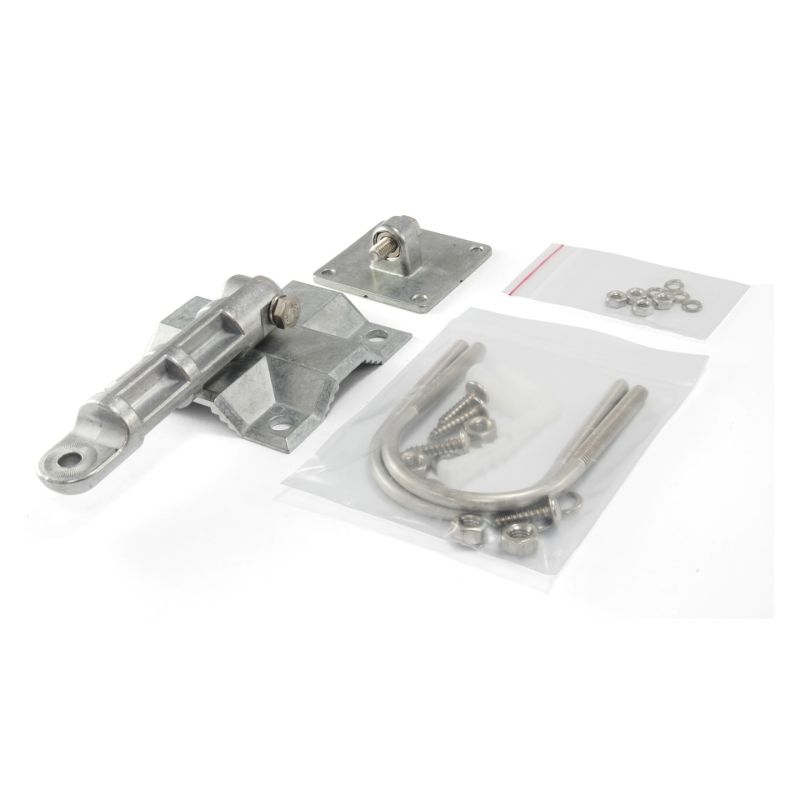

- Mounting kit: Yes
- Logistics data
- Country of origin: Taiwan
- Height of the standard (outer) box: 340 mm
- Products in the main (outer) box: 20 pcs.
- Harmonized System (HS) code: 85177100
- Main (outer) box length: 450 mm
- Width of the collection box (external): 370 mm
- Gross weight of the main (outer) housing: 15.5 kg
