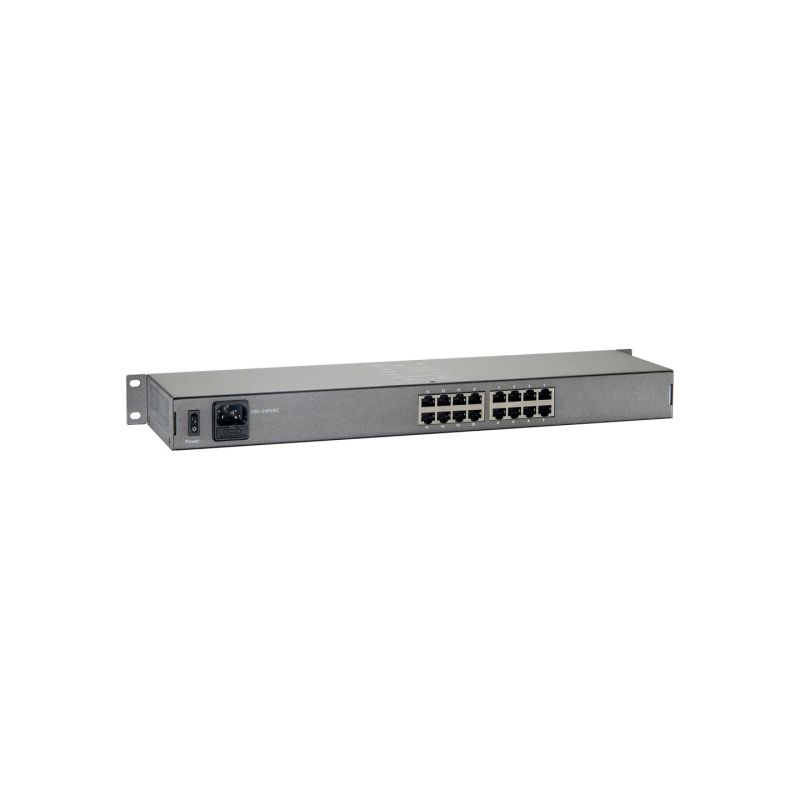

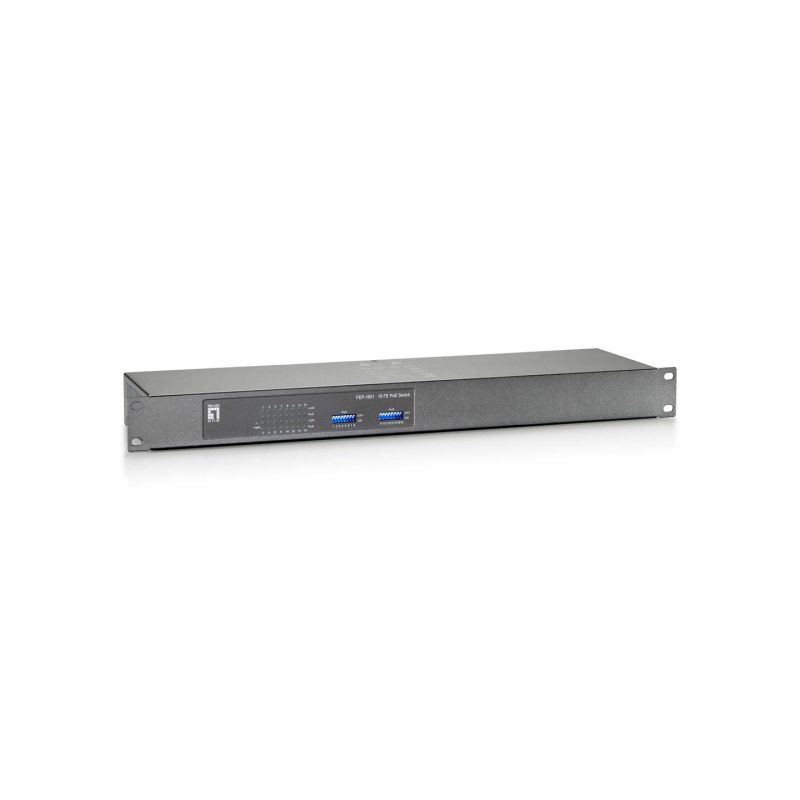

LevelOne FEP-1601W120 16 x 10/100 PoE+ Switch Desktop, Rack-Mountable
LevelOne FEP-1601W120 16 x 10/100 PoE+ Switch Desktop, Rack-Mountable
LevelOne FEP-1601W120 16 x 10/100 PoE+ Switch Desktop, Rack-Mountable
PRICE:
493,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Built-in switch: Yes
- Rack mounting options: Yes
- LED diodes
- PoE
- Action
- Power supply
- Product color: Gray
- Power
- Power Protection Features: Overcurrent
- Input current: 5 A
- AC input voltage: 100 - 240 V
- Power consumption: 120 W
- AC input frequency: 50 - 60 Hz
- Weight and dimensions
- Product width: 480 mm
- Product weight: 2.2 kg
- Product height: 44 mm
- Product depth: 118 mm
- Working conditions
- Temperature range (storage): -40 - 70 °C
- Temperature range (operation): 0 - 45 °C
- Permissible relative humidity: 10 - 90%
- Relative humidity range: 10 - 90%
- Network
- Full duplex: Yes
- Copper Ethernet cabling technology
- 100BASE-TX
- 10BASE-T
- Auto-Negotiation: Yes
- 10G Support: No
- Flow Control Support: Yes
- Communication standards
- IEEE 802.3x
- IEEE 802.3u
- IEEE 802.3
- Auto MDI/MDI-X: Yes
- Efficiency
- Buffer size: 160 KB
- Packaging data
- Package depth: 146 mm
- Packaging type: Box
- Package width: 222 mm
- Package height: 78 mm
- Weight with packaging: 400 g
- Package contents
- Wires: Alternating Current
- User Manual: Yes
- Ports and interfaces
- Basic Ethernet switching RJ-45 ports type: Fast Ethernet (10/100)
- Basic RJ-45 Switching Number of Ethernet Ports: 16
- Logistics data
- Width of the collection box (external): 420 mm
- Harmonized System (HS) code: 85176990
- Products in the main (outer) box: 10 pcs.
- Main (outer) case length: 310 mm
- Gross weight of the main (outer) housing: 17 kg
- Height of the standard (outer) box: 260 mm
- Country of origin: Taiwan
- Data transfer
- Packet forwarding range (10 Mbps): 14880 pps
- Packet forwarding range (100 Mbps): 148000 pps
- Store-and-forward: Yes
- Routing/Switching Throughput: 3.2 Gbps
- Address table size: 4000 entries
- Power over Ethernet (PoE)
- PoE Support: Yes
- Number of Fast Ethernet (PoE) ports: 16
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 112 W
