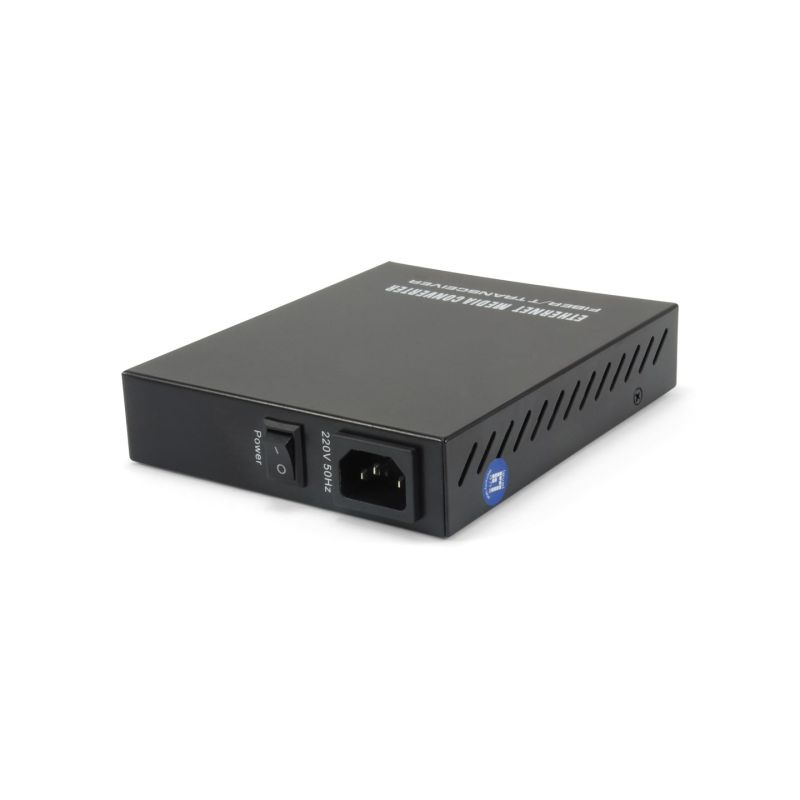

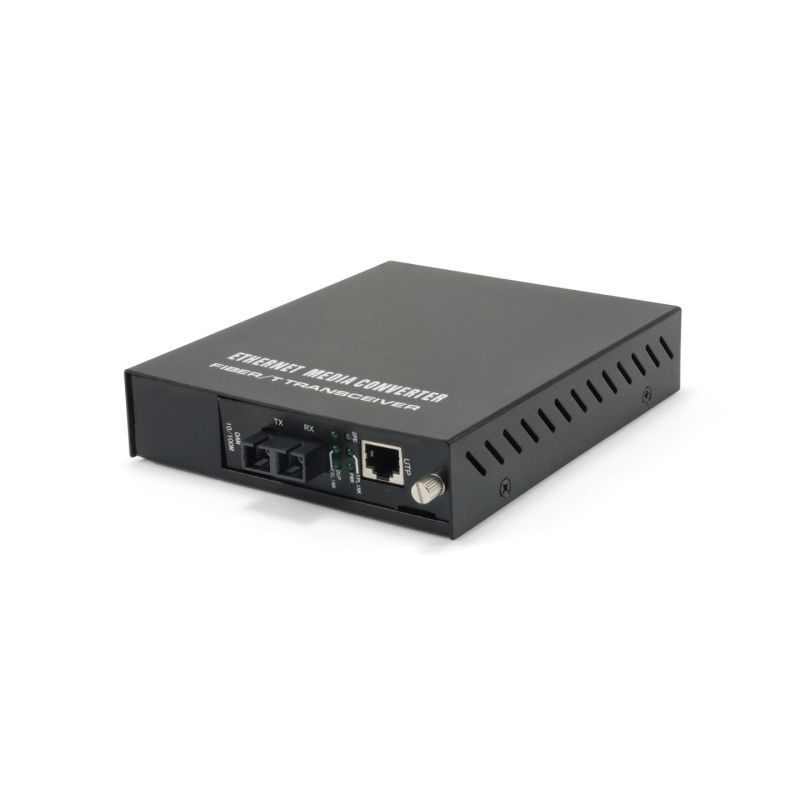

LevelOne FVM-1101 - Media converter - Ethernet, Fast Ethernet - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC multimode - up to 2 km - 1310 nm
LevelOne FVM-1101 - Media converter - Ethernet, Fast Ethernet - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC multimode - up to 2 km - 1310 nm
LevelOne FVM-1101 - Media converter - Ethernet, Fast Ethernet - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC multimode - up to 2 km - 1310 nm
PRICE:
306,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- LED diodes
- Action
- Power supply
- FDX
- Link
- Website management: Yes
- Product color: Black
- LED diodes
- Power
- Operating voltage: 5 V
- Output current: 2 A
- Voltage: 100 - 240 V
- Weight and dimensions
- Product height: 32 mm
- Product width: 127 mm
- Product depth: 156 mm
- Product weight: 720 g
- Working conditions
- Relative humidity range: 5 - 90%
- Temperature range (operation): -10 - 55 °C
- Network
- Flow Control Support: Yes
- Jumbo Frame Compatible: Yes
- Copper Ethernet cabling technology
- 10BASE-T
- 100BASE-FX
- 100BASE-TX
- Store-and-forward: Yes
- Output interface converter
- 100Base-TX
- 10Base-T
- Jumbo Frames Expansion: 9000
- Input Interface Converter: 100Base-FX
- Two-way duplex transmission
- Half-duplex
- Full
- VLAN support: Yes
- Ethernet interface type: Fast Ethernet
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 10 Mbps
- Communication standards
- IEEE 802.3
- IEEE 802.3x
- IEEE 802.3u
- IEEE 802.3ah
- Maximum data transfer speed: 100 Mbit/s
- Efficiency
- Wavelength: 1310 nm
- Maximum transfer distance: 2000 m
- Packaging data
- Packaging type: Box
- Weight with packaging: 880 g
- Package width: 185 mm
- Package height: 62 mm
- Package depth: 275 mm
- Certificates
- Certificates of conformity: RoHS
- Ports and interfaces
- Fiber optic connector
- SC
- LC
- ST
- Number of ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Connection method: Wired
- Fiber optic connector
- Logistics data
- Harmonized System (HS) code: 85176990
- Products in the main (outer) box: 17 pcs.
- Main (outer) case length: 480 mm
- Gross weight of the main (outer) housing: 17.5 kg
- Height of the standard (outer) box: 390 mm
- Width of the collection box (external): 360 mm
- Country of origin: China
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | No name |
