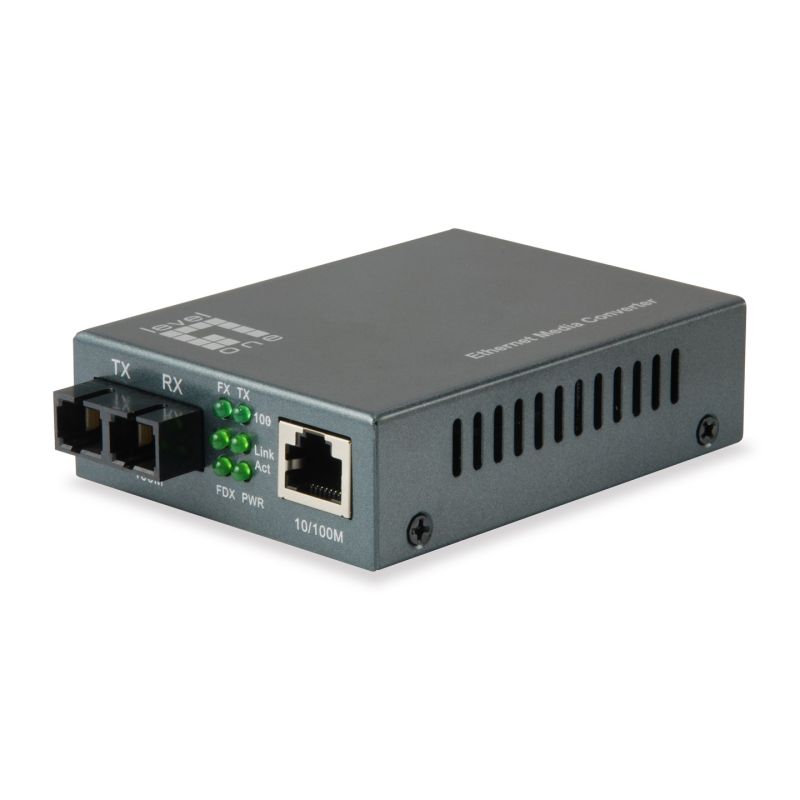

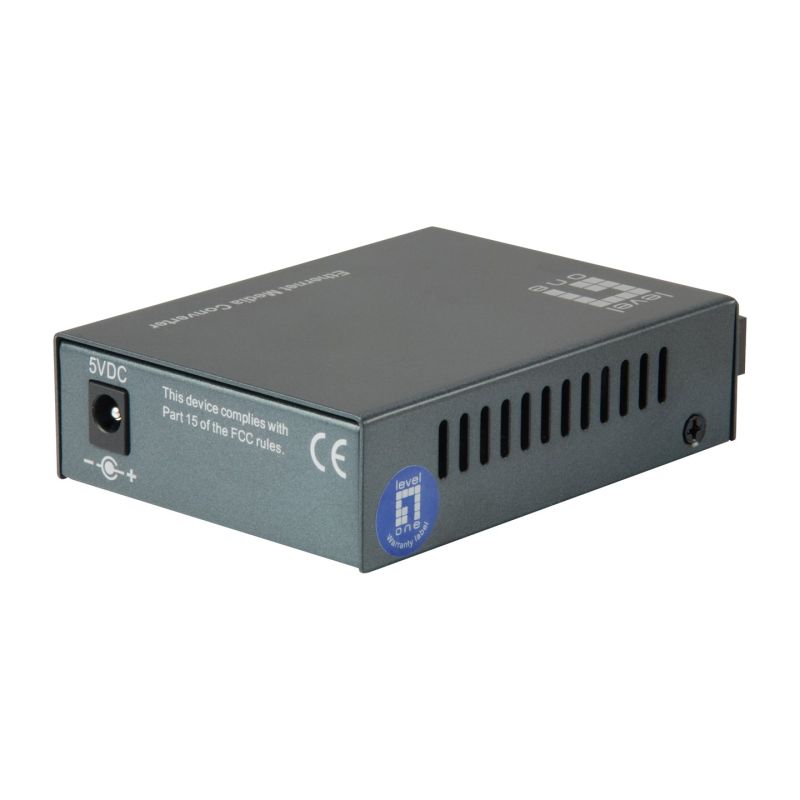

LevelOne FVT-1102 Network Converter 100 Mbit/s 1310 nm Single Black
LevelOne FVT-1102 Network Converter 100 Mbit/s 1310 nm Single Black
LevelOne FVT-1102 Network Converter 100 Mbit/s 1310 nm Single Black
PRICE:
56,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Internal: No
- LEDs: Yes
- Product color: Black
- Power
- Input current: 1 A
- Voltage: 5V
- Weight and dimensions
- Product width: 94 mm
- Product depth: 71 mm
- Product height: 26 mm
- Product weight: 200 g
- Working conditions
- Temperature range (storage): -20 - 70 °C
- Relative humidity range: 5 - 90%
- Temperature range (operation): 0 - 50 °C
- Network
- Copper Ethernet cabling technology
- 100BASE-TX
- 10BASE-T
- Output interface converter
- 100Base-TX
- 10Base-T
- Store-and-forward: Yes
- Ethernet interface type: Fast Ethernet
- Two-way duplex transmission: Full
- Auto MDI/MDI-X: Yes
- Auto-Negotiation: Yes
- Flow Control Support: Yes
- Fiber Ethernet cabling technology: 100BASE-FX
- Input Interface Converter: 100Base-FX
- Maximum data transfer speed: 100 Mbit/s
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 10 Mbps
- Communication standards
- IEEE 802.3u
- IEEE 802.3
- IEEE 802.3x
- Copper Ethernet cabling technology
- Efficiency
- MTBF (Mean Time Between Failures): 100000 h
- Single-mode fiber structure: Single
- Supported fiber optic cable diameters
- 50/125
- 62.5/125 µm
- Maximum transfer distance: 20000 m
- Wavelength: 1310 nm
- Packaging data
- Package height: 58 mm
- Packaging depth: 150 mm
- Package width: 230 mm
- Weight with packaging: 300 g
- Packaging type: Blister
- Package contents
- Quick Installation Guide: Yes
- AC adapter: Yes
- Certificates
- Certificates of conformity: RoHS
- Ports and interfaces
- Number of ports: 1
- Fiber optic connector: SC
- Number of Ethernet LAN ports (RJ-45): 1
- DC output socket: Yes
- Connection method: Wired
- Logistics data
- Harmonized System (HS) code: 85176990
- Width of the collection box (external): 440 mm
- Gross weight of the main (outer) housing: 32 kg
- Products in the main (outer) box: 40 pcs.
- Height of the standard (outer) box: 305 mm
- Main (outer) case length: 420 mm
- Country of origin: China
