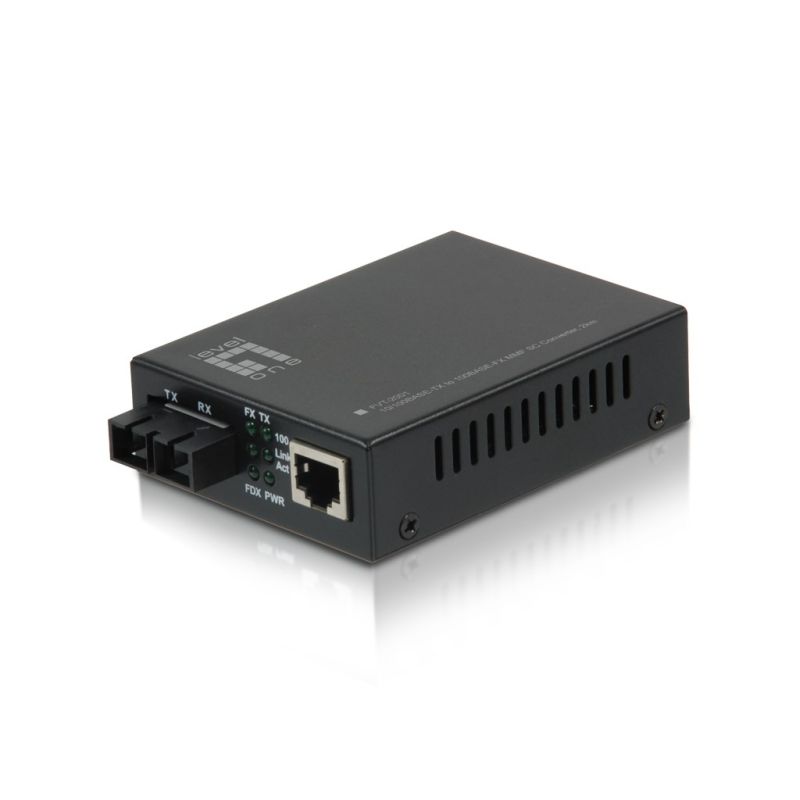

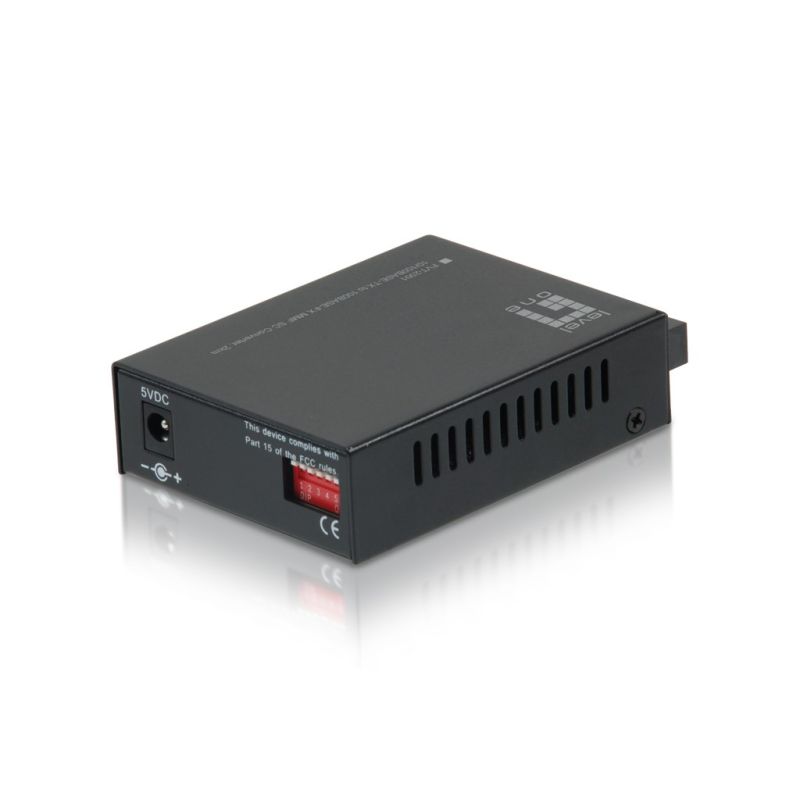

LevelOne FVT-2001 network converter 100 Mbit/s 1310 nm Multifunctional Black
LevelOne FVT-2001 network converter 100 Mbit/s 1310 nm Multifunctional Black
LevelOne FVT-2001 network converter 100 Mbit/s 1310 nm Multifunctional Black
PRICE:
83,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Product color: Black
- Internal: No
- LED diodes
- Action
- Link
- Power
- Input current: 1 A
- Voltage: 5V
- Weight and dimensions
- Product weight: 420 g
- Product width: 94 mm
- Product depth: 70 mm
- Product height: 25 mm
- Working conditions
- Temperature range (operation): 40 - 75 °C
- Relative humidity range: 5 - 90%
- Temperature range (storage): -10 - 55 °C
- Network
- Communication standards
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3
- Data transfer speed via Ethernet LAN
- 10 Mbps
- 100 Mbps
- Maximum data transfer speed: 100 Mbit/s
- Ethernet interface type: Fast Ethernet
- Auto MDI/MDI-X: Yes
- Output interface converter
- 100Base-TX
- 10Base-T
- LLCF (Link Loss Carry Forward) Support: Yes
- Two-way duplex transmission
- Full
- Half-duplex
- Flow Control Support: Yes
- LLR (Link Loss Return) Support: Yes
- Auto-Negotiation: Yes
- Input Interface Converter: 100Base-FX
- Store-and-forward: Yes
- Communication standards
- Efficiency
- Wavelength: 1310 nm
- Single-mode fiber structure: Multifunctional
- Supported fiber optic cable diameters
- 50/125
- 62.5/125 µm
- Maximum transfer distance: 2000 m
- Packaging data
- Package height: 55 mm
- Packaging depth: 125 mm
- Package width: 235 mm
- Weight with packaging: 494 g
- Packaging type: Box
- Package contents
- Quick Installation Guide: Yes
- AC adapter: Yes
- Certificates
- Certificates of conformity: RoHS
- Ports and interfaces
- Connection method: Wired
- DC output socket: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- Number of Fast Ethernet (PoE) ports: 1
- Fiber optic connector: SC
- Logistics data
- Country of origin: China
- Harmonized System (HS) code: 85176990
