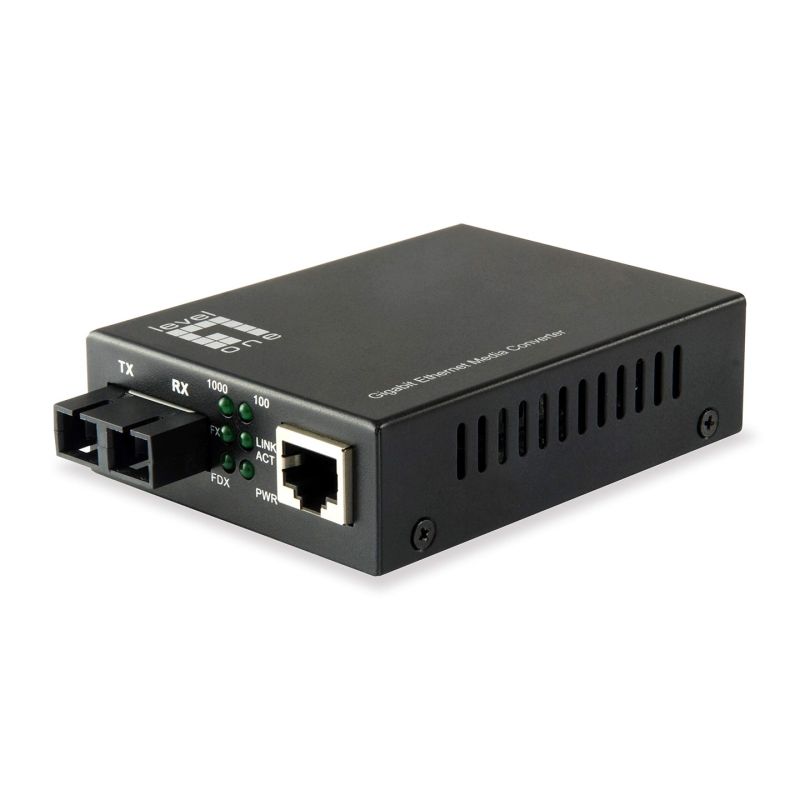

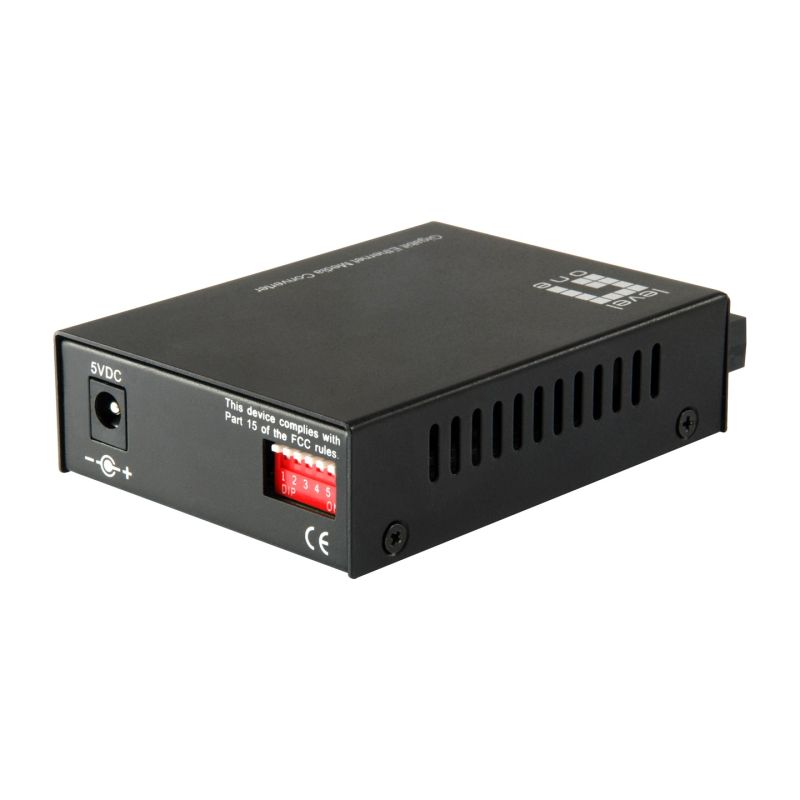

LevelOne GB Converter RJ45->SC 1Gbps SM 1310nm 20km
LevelOne GB Converter RJ45->SC 1Gbps SM 1310nm 20km
LevelOne GB Converter RJ45->SC 1Gbps SM 1310nm 20km
PRICE:
133,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Internal: No
- LEDs: Yes
- Product color: Black
- Power
- Input current: 2 A
- Voltage: 5V
- Weight and dimensions
- Product width: 94 mm
- Product depth: 26 mm
- Product height: 71 mm
- Product weight: 200 g
- Working conditions
- Temperature range (operation): -10 - 55 °C
- Relative humidity range: 5 - 90%
- Temperature range (storage): -40 - 75 °C
- Network
- Maximum data transfer speed: 1000 Mbit/s
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- Communication standards
- IEEE 802.3x
- IEEE 802.3u
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3
- Copper Ethernet cabling technology
- 10BASE-T
- 100BASE-TX
- 1000BASE-T
- Ethernet interface type: Gigabit Ethernet
- Auto MDI/MDI-X: Yes
- Output interface converter
- 10Base-T
- 100Base-TX
- 1000Base-T
- Jumbo Frame Compatible: Yes
- Fiber Ethernet cabling technology
- 1000BASE‑LX
- 1000BASE‑SX
- Store-and-forward: Yes
- Supported cable types
- Cat5
- Cat5e
- LLR (Link Loss Return) Support: Yes
- Jumbo Frames Expansion: 9000
- Two-way duplex transmission: Full
- Input Interface Converter
- 1000Base-SX
- 1000Base-LX
- LLCF (Link Loss Carry Forward) Support: Yes
- Auto-Negotiation: Yes
- Flow Control Support: Yes
- Efficiency
- Wavelength: 1310 nm
- Single-mode fiber structure: Single
- Maximum transfer distance: 20000 m
- Packaging data
- Package depth: 55 mm
- Weight with packaging: 360 g
- Packaging type: Box
- Package width: 120 mm
- Package height: 235 mm
- Package contents
- Quick Installation Guide: Yes
- AC adapter: Yes
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Number of ports: 1
- DC output socket: Yes
- Connection method: Wired
- Fiber optic connector: SC
- Logistics data
- Country of origin: China
- Harmonized System (HS) code: 85176990
- Products in the main (outer) box: 36 pcs.
- Gross weight of the main (outer) housing: 13 kg
- Width of the collection box (external): 360 mm
- Height of the standard (outer) box: 480 mm
- Main (outer) case length: 390 mm
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | No name |
