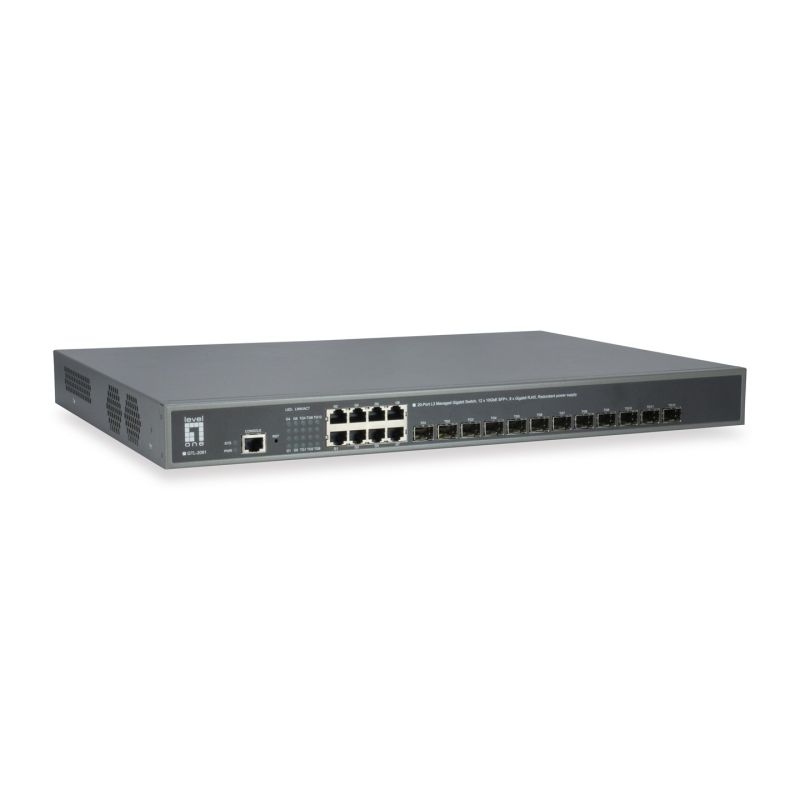

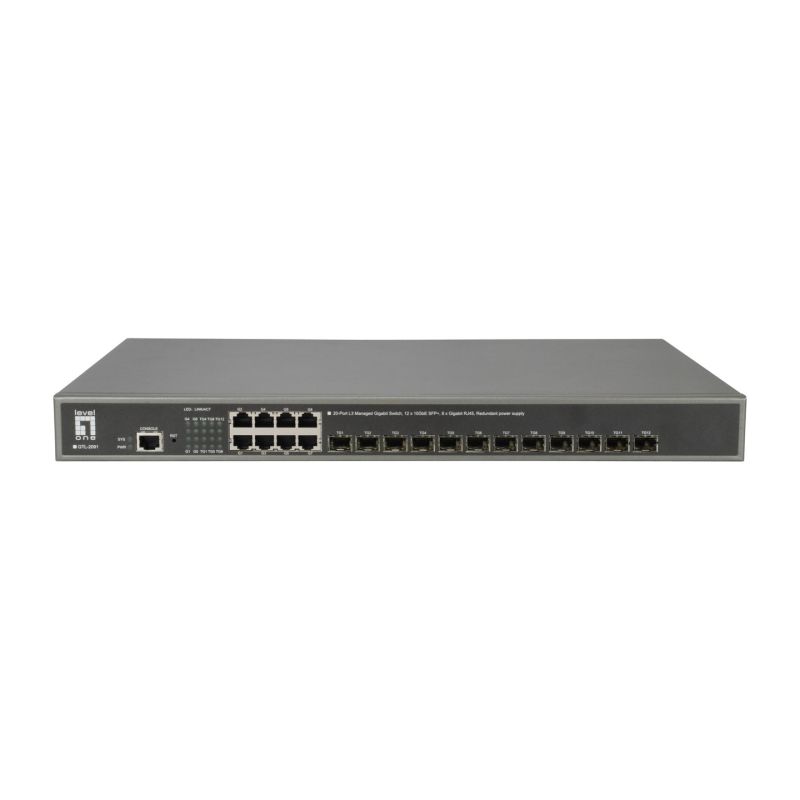

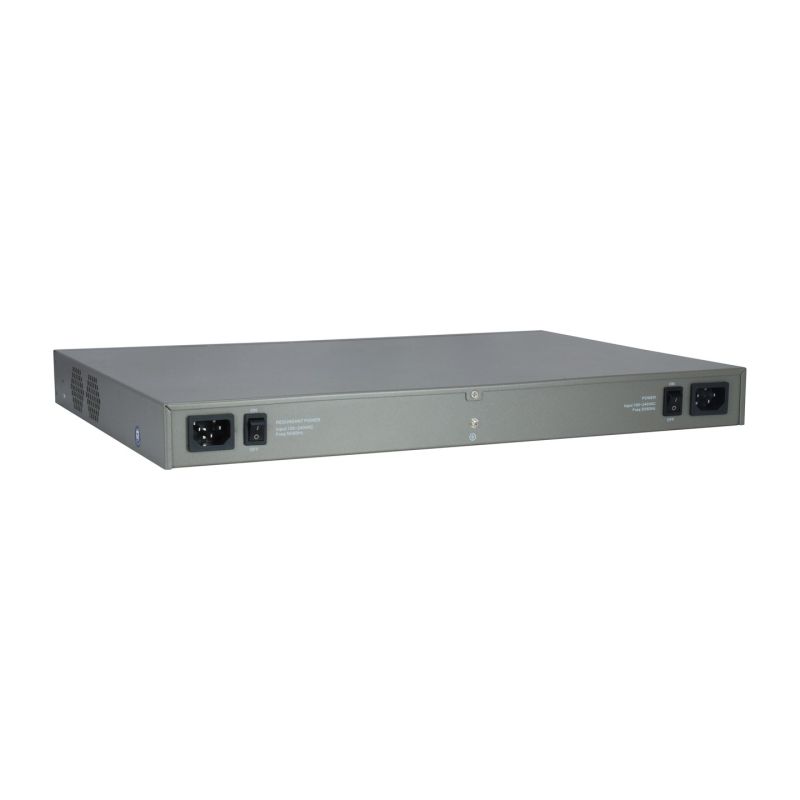

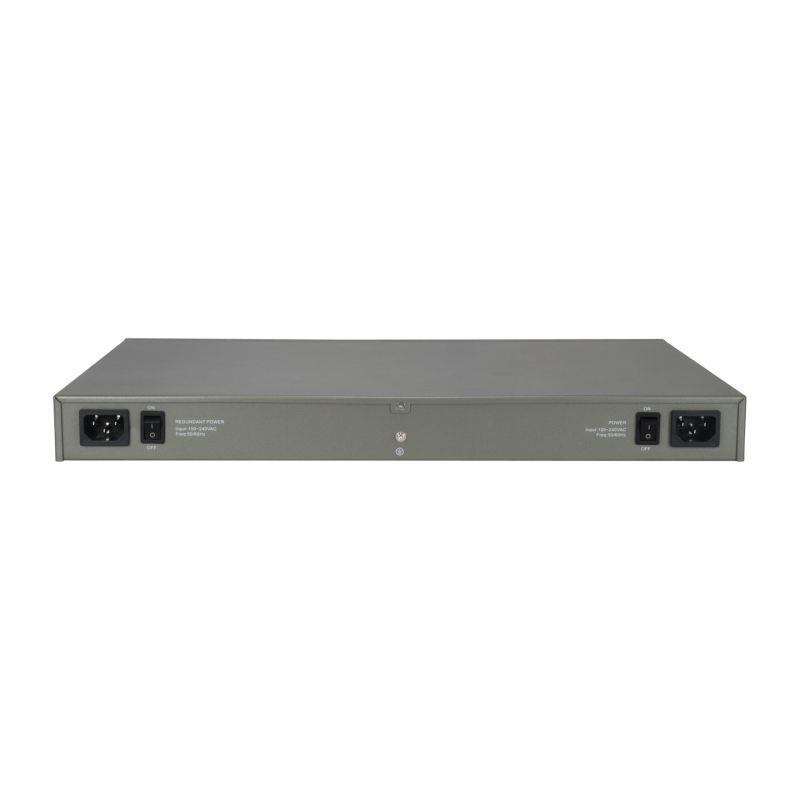

LevelOne GB/L3 20-Port 19" 10 Gb/s Managed Switch
LevelOne GB/L3 20-Port 19" 10 Gb/s Managed Switch
LevelOne GB/L3 20-Port 19" 10 Gb/s Managed Switch
PRICE:
1748,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Gray
- Housing material: Metal
- LED diodes
- System
- Link
- Action
- Power supply
- Reset button: Yes
- Safety: FCC Part 15 Subpart B
- Rack mounting options: Yes
- Power

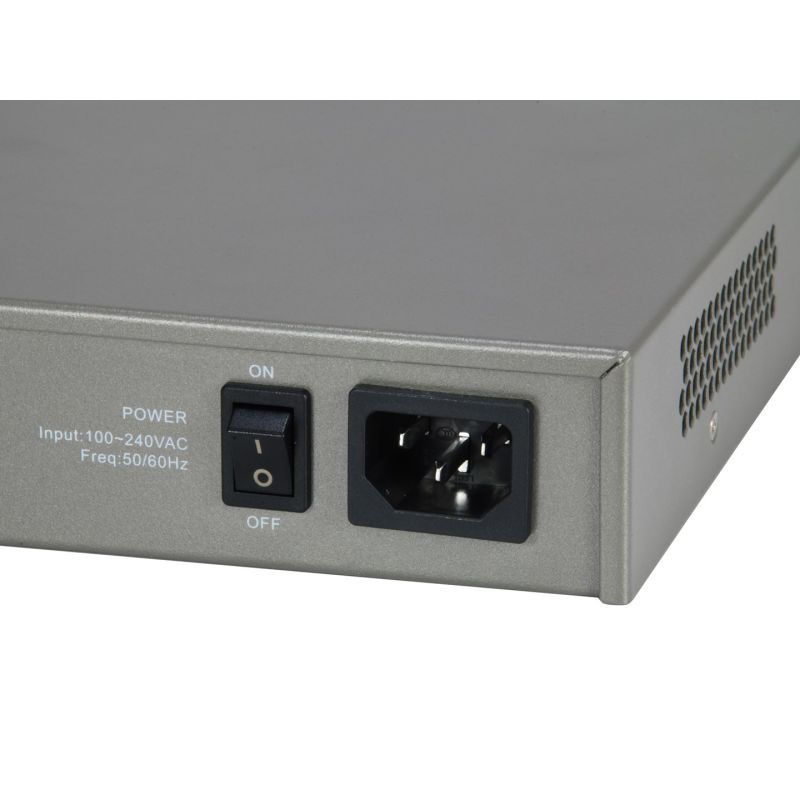

- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz

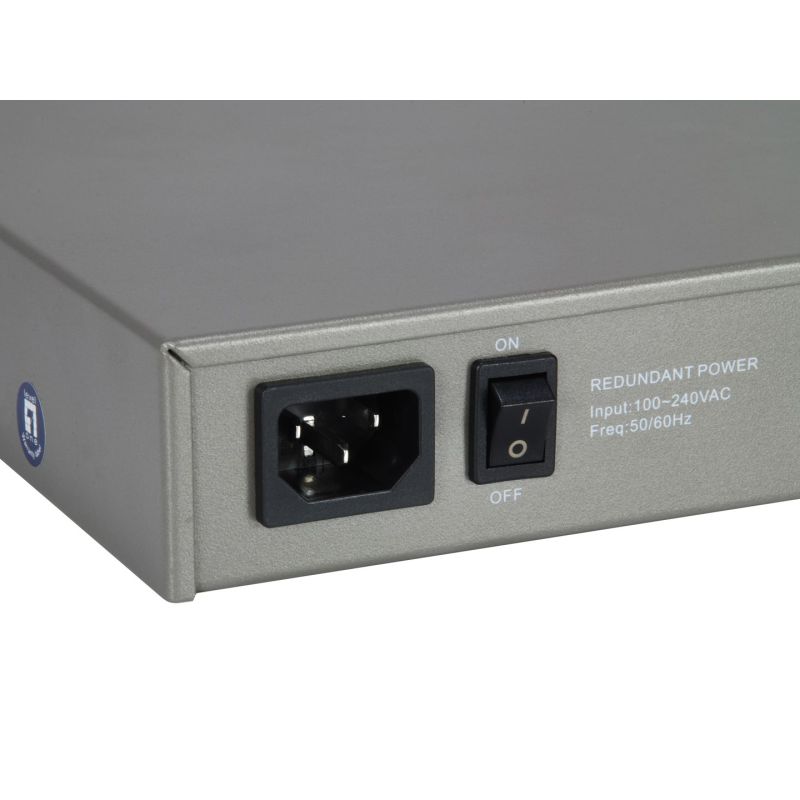

- Backup Power Supply (RPS) Support: Yes
- Power consumption (max): 50 W
- Weight and dimensions
- Product weight: 3.6 kg
- Product depth: 315 mm
- Product height: 44 mm
- Product width: 440 mm
- Security
- DHCP functions
- DHCP client
- DHCP server
- Password protection: Yes
- Access Control List (ACL): Yes
- Queue planning algorithms
- Weighted Round Robin (WRR)
- Deficit Round Robin (DRR)
- DoS attack prevention: Yes
- IGMP Proxy: Yes
- Authentication: Guest VLAN
- Authentication type: AAA, RADIUS
- IGMP snooping: Yes
- IP-MAC-Port Binding: Yes
- DHCP functions
- Management features
- Website management: Yes
- Switch type: Managed
- System Event Report: Yes
- Quality of Service (QoS) Support: Yes
- Switch Layer: L3
- ARP Inspection: Yes
- Configuring Location Settings (CLI): Yes
- Working conditions
- Temperature range (operation): 0 - 50 °C
- Temperature range (storage): -40 - 90 °C
- Heat emission: 170.65 BTU/h
- Permissible relative humidity: 5 - 95%
- Relative humidity range: 10 - 90%
- Network
- Communication standards
- IEEE 802.1p
- IEEE 802.3ae
- IEEE 802.3
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.1w
- IEEE 802.3z
- IEEE 802.3az
- IEEE 802.3x
- IEEE 802.1Q
- IEEE 802.3ah
- IEEE 802.1x
- IEEE 802.1s
- IEEE 802.3ad
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- Flow Control Support: Yes
- Virtual LAN Features
- MAC address-based VLAN
- Voice VLAN
- Private VLAN
- Multicast VLAN
- Port-based VLAN
- Full duplex: Yes
- Traffic Growth Control: Yes
- Network Virtualization Technologies: Q-in-Q Tunneling
- IP forwarding: Yes
- VLAN support: Yes
- Port Mirroring: Yes
- 10G Support: Yes
- Rule-Based Routing: Yes
- Head-of-line (HOL) blocking: Yes
- Spanning Tree Protocol: Yes
- Connection Aggregator: Yes
- Quick lowering: Yes
- Communication standards
- Efficiency
- Maximum data transfer rate: 10000 Mbit/s
- Flash memory size: 16 MB
- Internal memory capacity: 512 MB
- Telnet: Yes
- MTBF (Mean Time Between Failures): 185680 h
- Dying Gasp: Yes
- Packaging data
- Package width: 576 mm
- Package height: 94 mm
- Rubber feet: Yes
- Packaging type: Box
- Driver CD: Yes
- Package depth: 448 mm
- Weight with packaging: 5.3 kg
- Package contents
- Hook mounting kit: Yes
- Wires: Alternating Current
- Quick Start Guide: Yes
- Certificates
- Certificates of conformity: RoHS
- Protocols
- GARP VLAN Registration Protocol (GVRP): Yes

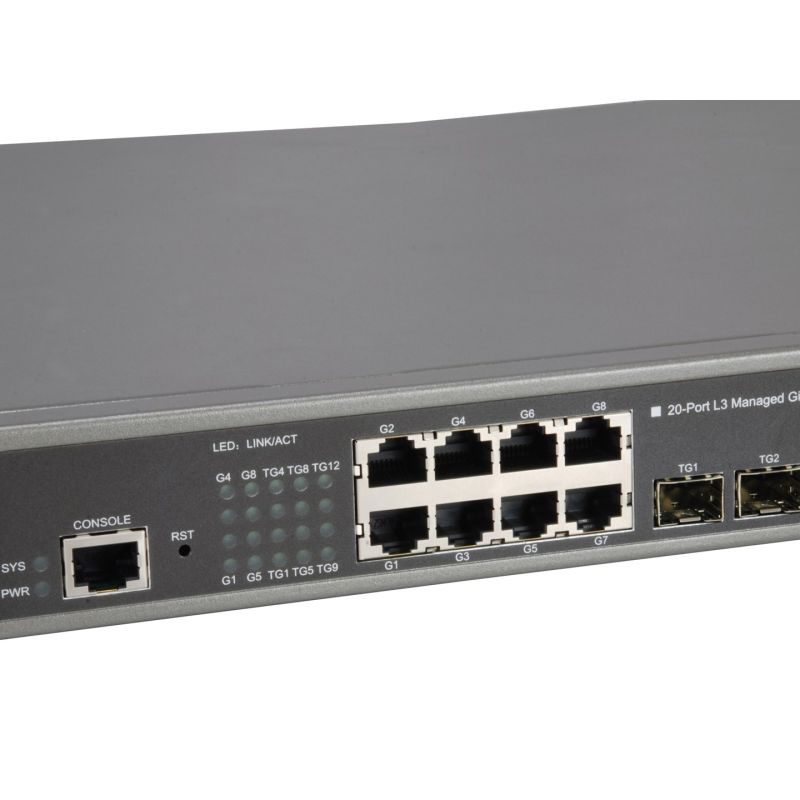

- Ports and interfaces
- Console port: RJ-45
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Number of SFP+ Module slots: 12
- Power Connector: AC Input Socket
- Number of Gigabit Ethernet ports: 8
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Other functions
- Wired LAN: Yes
- Logistics data
- Country of origin: China
- Harmonized System (HS) code: 85176990
- Data transfer
- Routing/Switching Throughput: 256 Gbit/s
- Store-and-forward: Yes
- Packet forwarding range (100 Mbps): 1369047 pps
- Number of rounds: 8
- Address table size: 32000 entries
- Packet buffer memory: 3 MB
- Number of IP interfaces: 256
- Static Route: Yes
- Jumbo Frame Compatible: Yes
- Packet forwarding range (1 Gbps): 13690474 pps
- Jumbo Frames Expansion: 9000
- Packet forwarding range (10 Mbps): 136904 pps
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Number of multicast groups filtered: 256
- Multicast Support: Yes
