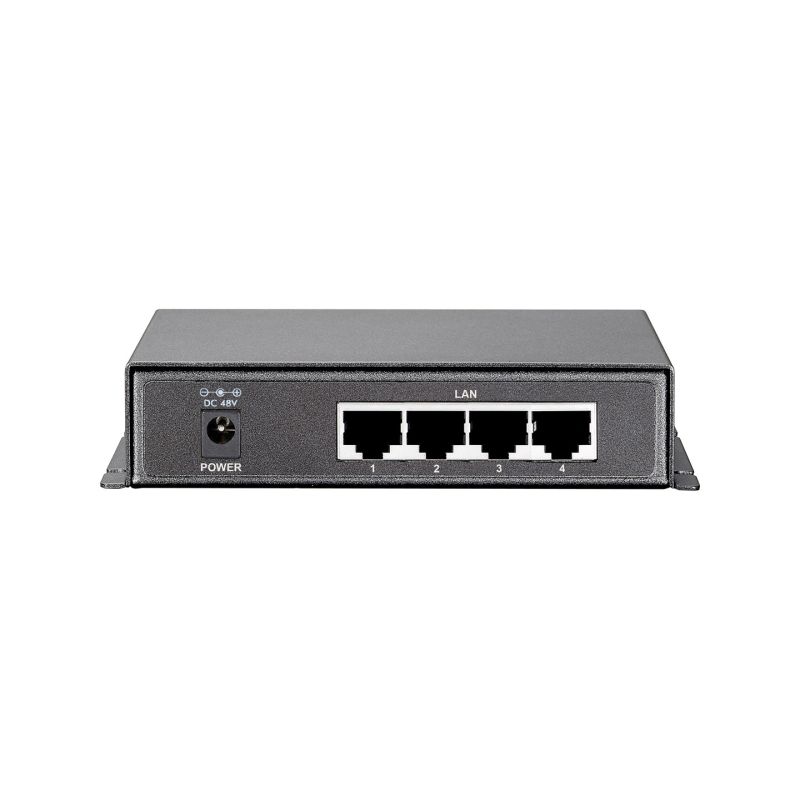

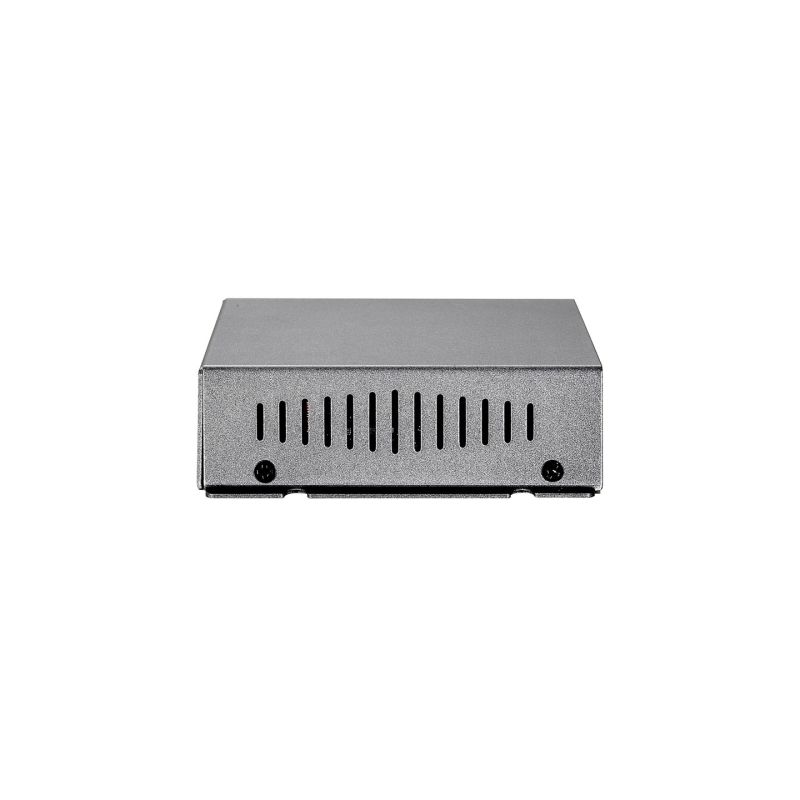

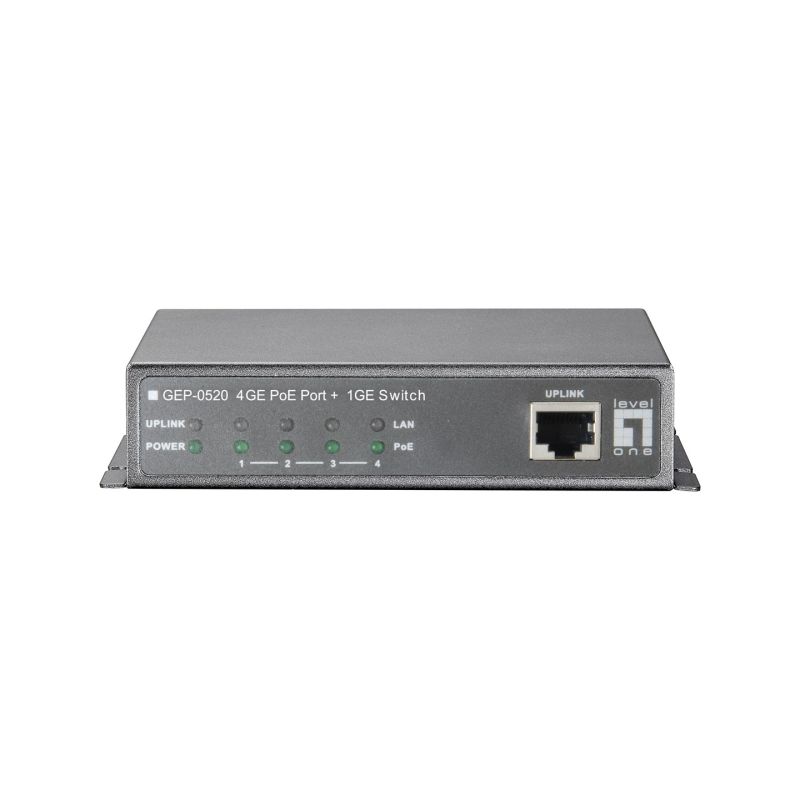

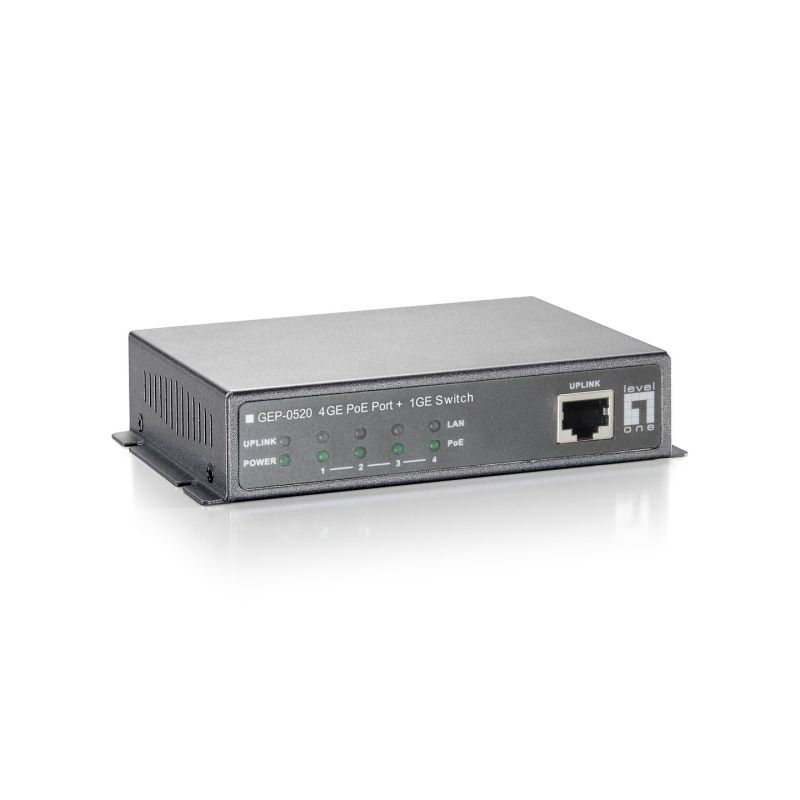

LevelOne GEP-0520 Switch - 4 x 10/100/1000 PoE + 1 x 10/100/1000 - Desktop
LevelOne GEP-0520 Switch - 4 x 10/100/1000 PoE + 1 x 10/100/1000 - Desktop
LevelOne GEP-0520 Switch - 4 x 10/100/1000 PoE + 1 x 10/100/1000 - Desktop
PRICE:
214,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- LED diodes
- PoE
- Uplink
- Power supply
- LAN
- Rack mounting options: No
- Product color: Black
- Stackable: No
- LED diodes
- Power
- Power consumption: 65 W
- Power protection features
- Overcurrent
- Short circuit
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Weight and dimensions
- Product depth: 120 mm
- Product height: 28 mm
- Product width: 90 mm
- Product weight: 800 g
- Working conditions
- Permissible relative humidity: 10 - 90%
- Relative humidity range: 10 - 90%
- Temperature range (operation): 0 - 45 °C
- Temperature range (storage): -40 - 70 °C
- Network
- Supported cable types
- Cat7
- Cat5
- Cat6
- Cat5e
- 10G Support: No
- Copper Ethernet cabling technology
- 100BASE-TX
- 1000BASE-T
- 10BASE-T
- Communication standards
- IEEE 802.3af
- IEEE 802.3ab
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3az
- Supported cable types
- Packaging data
- Packaging depth: 80 mm
- Package height: 235 mm
- Weight with packaging: 1.04 kg
- AC adapter: Yes
- Package width: 150 mm
- Package contents
- Quick Start Guide: Yes
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 5
- Power connector: DC-in jack
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Logistics data
- Country of origin: Taiwan
- Harmonized System (HS) code: 85176990
- Data transfer
- Jumbo Frame Compatible: Yes
- Packet forwarding range (100 Mbps): 148000 pps
- Store-and-forward: Yes
- Jumbo Frames Expansion: 9000
- Address table size: 2048 entries
- Packet forwarding range (1 Gbps): 1488000 pps
- Routing/switching capacity: 10 Gbit/s
- Packet forwarding range (10 Mbps): 14880 pps

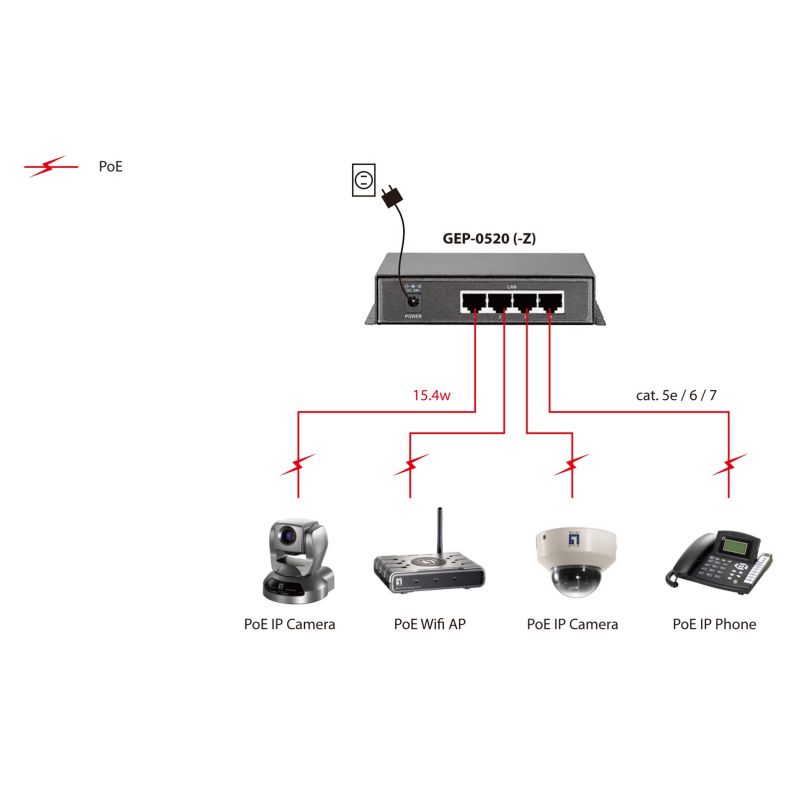

- Power over Ethernet (PoE)
- Number of Fast Ethernet (PoE) ports: 4
- Total Power over Ethernet (PoE) budget: 61.6 W
- PoE Support: Yes
- Power over Ethernet (PoE) power per port: 15.4 W
