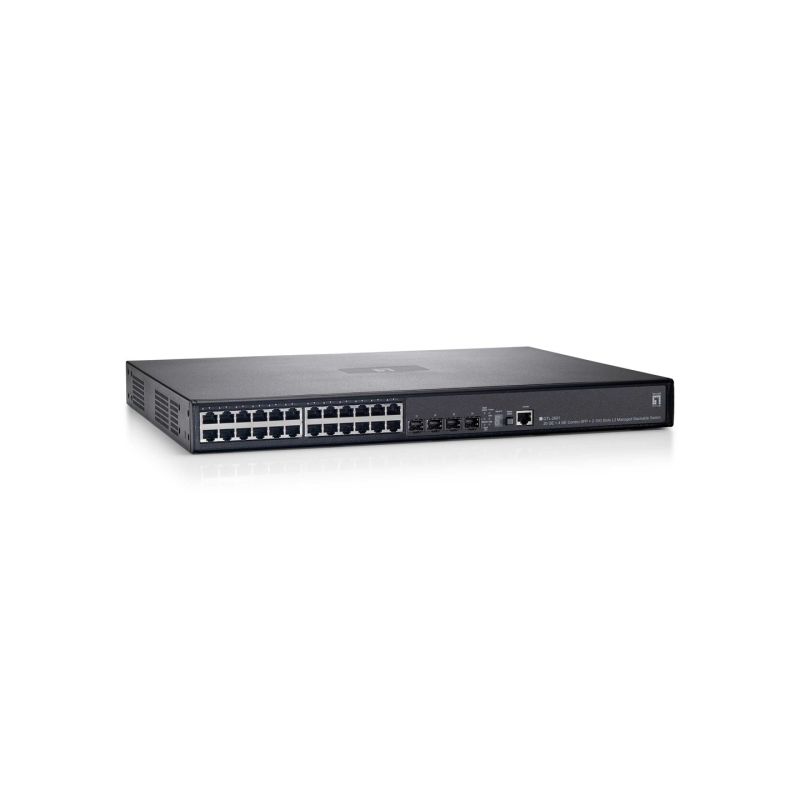

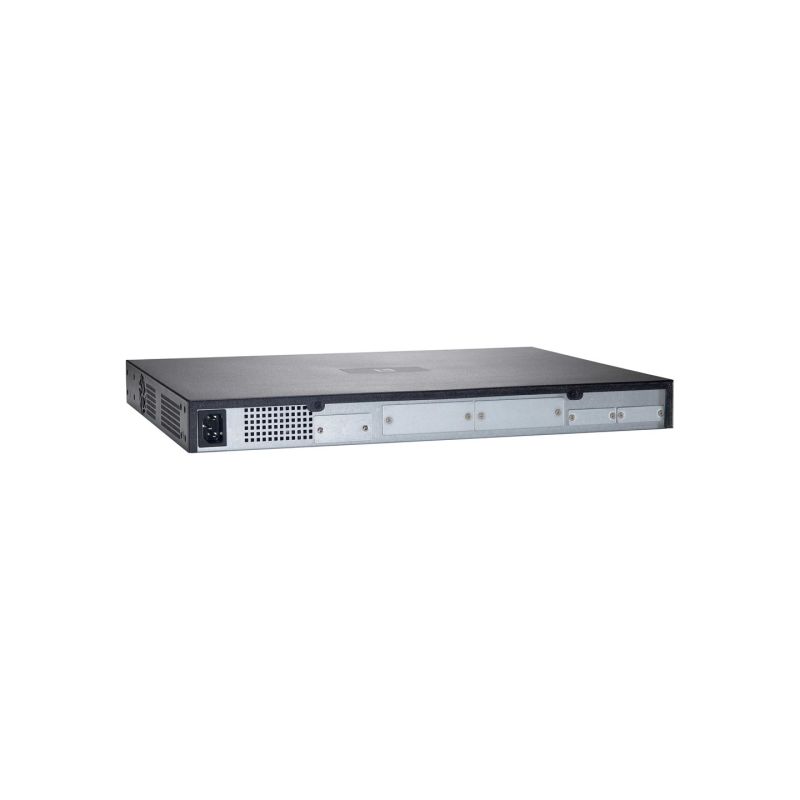

LevelOne GTL-2691 Managed L3 Gigabit Ethernet (10/100/1000) Network Switch Black
LevelOne GTL-2691 Managed L3 Gigabit Ethernet (10/100/1000) Network Switch Black
LevelOne GTL-2691 Managed L3 Gigabit Ethernet (10/100/1000) Network Switch Black
PRICE:
3120,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Black
- LEDs: Yes
- Rack mounting options: Yes
- Stackable: Yes
- Power
- AC input voltage: 100 - 240 V
- AC input frequency: 47/63 Hz
- Power consumption: 49.6 W
- Power consumption (max): 63.96 W
- Weight and dimensions
- Product height: 44 mm
- Product width: 440 mm
- Product depth: 415 mm
- Product weight: 5.7 kg
- Security
- IGMP snooping: Yes
- BPDU Filtering/Protection: Yes
- Supports SSH/SSL: Yes
- Access Control List (ACL): Yes
- Loop protection: Yes
- Auto Edge Port: Yes
- Authentication: MAC-based authentication
- Management features
- Website management: Yes
- Quality of Service (QoS) Support: Yes
- Switch type: Managed
- System Event Report: Yes
- Traffic Classification: Yes
- Switch Layer: L3
- ARP Inspection: Yes
- Working conditions
- Temperature range (operation): 0 - 50 °C
- Temperature range (storage): -40 - 70 °C
- Relative humidity range: 5 - 95%
- Network
- Communication standards
- IEEE 802.3ab
- IEEE 802.1p
- IEEE 802.3ae
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.3
- IEEE 802.1Q
- IEEE 802.1v
- IEEE 802.3x
- IEEE 802.1s
- Full duplex: Yes
- VLAN support: Yes
- 10G Support: Yes
- Frequency Limit: Yes
- Spanning Tree Protocol: Yes
- Virtual LAN Features
- Port-based VLAN
- Private VLAN
- Port Mirroring: Yes
- MAC address auto-learning supported: Yes
- Active connection search: Yes
- Flow Control Support: Yes
- MAC address auto-aging supported: Yes
- Communication standards
- Efficiency
- Device software updates: Yes
- Buffer size: 2048 KB
- Packaging data
- Packaging type: Box
- Packaging depth: 420 mm
- Package width: 530 mm
- Package height: 135 mm
- Protocols
- Supported network protocols: IPv6, IPv4, BOOTP
- Management protocols: Telnet, SNMP, SNTP, RMON,
- Ports and interfaces
- Number of SFP Module slots: 4
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Basic RJ-45 Switching Number of Ethernet Ports: 24
- Number of SFP Combo Ports: 4
- Number of SFP/SFP+ ports: 2
- Console port: RJ-45
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Routing/switching capacity: 128 Gbit/s
- Jumbo Frame Compatible: Yes
- Forwarding speed: 95.2 Mpps
- Store-and-forward: Yes
- Number of rounds: 8
- Jumbo Frames Expansion: 9000
- Address table size: 16000 entries
- Packet forwarding range (100 Mbps): 148000 pps
- Packet forwarding range (1 Gbps): 1488000 pps
- Packet forwarding range (10 Mbps): 14880 pps
- Number of static routes: 512
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
- MAC address table (multicast): 1024 entries
