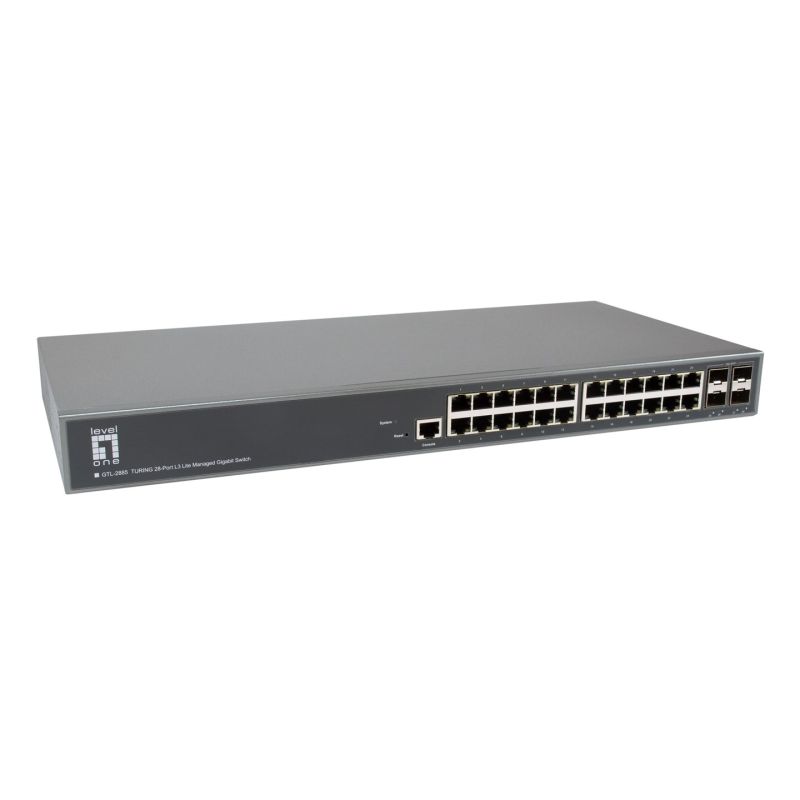

LevelOne GTL-2885 Managed Network Switch L3 Gigabit Ethernet (10/100/1000) Gray
LevelOne GTL-2885 Managed Network Switch L3 Gigabit Ethernet (10/100/1000) Gray
LevelOne GTL-2885 Managed Network Switch L3 Gigabit Ethernet (10/100/1000) Gray
PRICE:
2775,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Gross pallet length: 80 cm
- Gross pallet width: 120 cm
- Pallet height (air): 177.5 cm
- Collective boxes (external) per pallet (air): 14 pcs.
- Design
- Rack mounting options: Yes
- Product color: Gray
- Power
- Power source: AC
- Power consumption (max): 30 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Weight and dimensions
- Product width: 442 mm
- Product height: 44 mm
- Product depth: 211 mm
- Product weight: 2.67 kg
- Security
- DHCP functions
- DHCP client
- DHCP snooping
- DHCP server
- DHCP relay
- DHCPv6 client
- DHCPv6 server
- DHCP Option 82
- IGMP snooping: Yes
- Authentication: Guest VLAN
- Access Control List (ACL): Yes
- Authentication type: RADIUS, TACACS+
- DHCP functions
- Management features
- System Event Report: Yes
- Switch type: Managed
- Switch Layer: L3
- Configuring Location Settings (CLI): Yes
- Traffic Classification: Yes
- Website management: Yes
- Working conditions
- Temperature range (operation): 0 - 50 °C
- Relative humidity range: 0 - 95%
- Temperature range (storage): -20 - 70 °C
- Permissible relative humidity: 5 - 95%
- Network
- Number of VLANs: 4096
- 10G Support: Yes
- VLAN support: Yes
- Port Mirroring: Yes
- Connection Aggregator: Yes
- Virtual LAN Features
- IP subnet–based VLAN
- Protocol-based VLAN
- Voice VLAN
- Port-based VLAN
- MAC address-based VLAN
- Private VLAN
- Spanning Tree Protocol: Yes
- Traffic Growth Control: Yes
- Communication standards
- IEEE 802.3z
- IEEE 802.1s
- IEEE 802.3
- IEEE 802.1x
- IEEE 802.1Q
- IEEE 802.1v
- IEEE 802.3az
- IEEE 802.3ab
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3ad
- IEEE 802.1p
- IEEE 802.3ae
- IEEE 802.1D
- IEEE 802.1ab
- Efficiency
- Plug & Play Support: Yes
- sFlow: Yes
- Without fan: No
- Device software updates: Yes
- Packaging data
- Weight with packaging: 3.8 kg
- Packaging depth: 300 mm
- Package width: 520 mm
- Package height: 90 mm
- Rubber feet: Yes

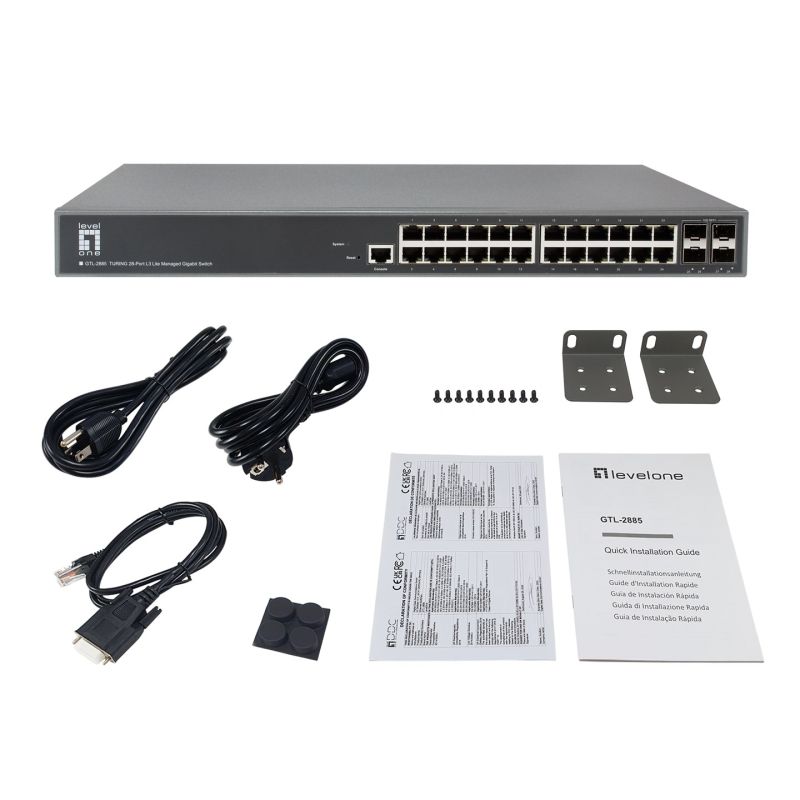

- Package contents
- Wires
- LAN (RJ-45) to DB9
- Alternating current
- Quick Start Guide: Yes
- Hook mounting kit: Yes
- Wires
- Certificates
- Certificates of conformity
- RoHS
- CE
- UKCA
- Low Voltage Directive (LVD)
- Certificates of conformity
- Protocols
- IP Source Protection (IPSG): Yes
- GARP VLAN Registration Protocol (GVRP): Yes
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 24
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Power Connector: AC Input Socket
- Console port: RJ-45
- Number of SFP+ Module slots: 4
- Number of Gigabit Ethernet ports: 24
- Logistics data
- Width of the collection box (external): 540 mm
- Products in the main (outer) box: 5 pcs.
- Main (outer) case length: 492 mm
- Gross weight of the main (outer) housing: 20 kg
- Customs product code (TARIC): 8517620000
- Height of the standard (outer) box: 326 mm
- Country of origin: Taiwan
- Data transfer
- Routing/switching capacity: 128 Gbit/s
- Jumbo Frame Compatible: Yes
- Address table size: 32000 entries
- Static Route: Yes
- Jumbo Frames Expansion: 10000
- Forwarding speed: 95.238 Mpps
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
- Multicast Listener Discovery (MLD) snooping: Y
- MAC address table (multicast): 1024 entries
| Name | Details |
|---|---|
| Producer | No name |
