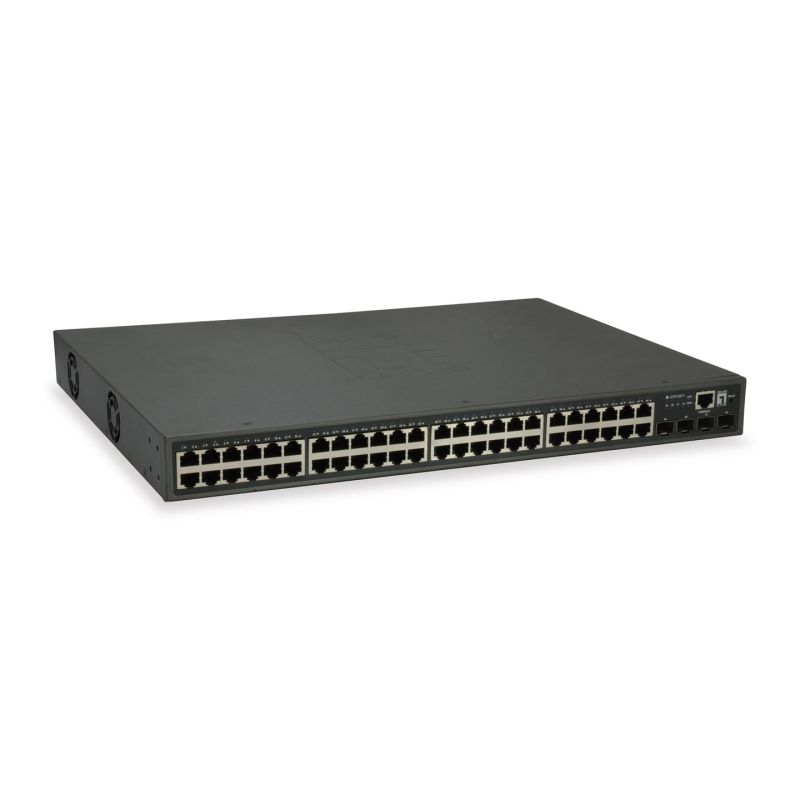

LevelOne GTP-5271 Managed Network Switch L3 Gigabit Ethernet (10/100/1000) PoE Support Gray
LevelOne GTP-5271 Managed Network Switch L3 Gigabit Ethernet (10/100/1000) PoE Support Gray
LevelOne GTP-5271 Managed Network Switch L3 Gigabit Ethernet (10/100/1000) PoE Support Gray
PRICE:
2086,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- LED diodes
- PoE
- Link
- Power supply
- Reset button: Yes
- Rack mounting options: Yes
- Housing material: Metal
- Product color: Gray
- LED diodes
- Power
- Input current: 6 A
- Power consumption (max): 473.7 W
- AC input frequency: 50 - 60 Hz
- AC input voltage: 100 - 240 V
- Weight and dimensions
- Product weight: 4.52 kg
- Product depth: 330 mm
- Product width: 440 mm
- Product height: 44.5 mm
- Security
- Supports SSH/SSL: Yes
- IGMP snooping: Yes
- DHCP functions
- DHCP relay
- DHCP snooping
- DHCP server
- Authentication: Guest VLAN, Web Authentication
- Password protection: Yes
- Access Control List (ACL): Yes
- DoS attack prevention: Yes
- Encryption/Security: SNMPv3
- Authentication type: RADIUS
- Queue planning algorithms
- Priority queuing (PQ)
- Weighted Round Robin (WRR)
- IGMP Proxy: Yes
- Management features
- Switch type: Managed
- Switch Layer: L3
- Configuring Location Settings (CLI): Yes
- Quality of Service (QoS) Support: Yes
- ARP Inspection: Yes
- Working conditions
- Relative humidity range: 10 - 90%
- Temperature range (storage): -40 - 70 °C
- Temperature range (operation): 0 - 45 °C
- Permissible relative humidity: 5 - 90%
- Network
- Network Virtualization Technologies: Q-in-Q Tunneling
- QinQ Implementation: Selective QinQ
- Spanning Tree Protocol: Yes
- 10G Support: Yes
- Frequency Limit: Yes
- Connection Aggregator: Yes
- Number of VLANs: 4096
- Virtual LAN Features
- VLAN Identifier (VLAN ID)
- Voice VLAN
- Protocol-based VLAN
- MAC address-based VLAN
- Tagged VLAN
- Port-based VLAN
- Traffic Growth Control: Yes
- Port Mirroring: Yes
- Communication standards
- IEEE 802.1D
- IEEE 802.3
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.3ah
- IEEE 802.1v
- IEEE 802.1x
- IEEE 802.1ag
- IEEE 802.3ad
- IEEE 802.3az
- VLAN support: Yes
- Efficiency
- Telnet: Yes
- Internal memory capacity: 32 MB
- Device software updates: Yes
- Packaging data
- Rubber feet: Yes
- Package width: 596 mm
- Packaging type: Box
- Package depth: 390 mm
- Package height: 80 mm
- Weight with packaging: 6 kg
- Package contents
- Hook mounting kit: Yes
- Quick Start Guide: Yes
- Wires: Alternating Current
- Certificates
- Certificates of conformity: RoHS
- Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- IPv4 and IPv6 Features: IPv6 Telnet
- Ports and interfaces
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)

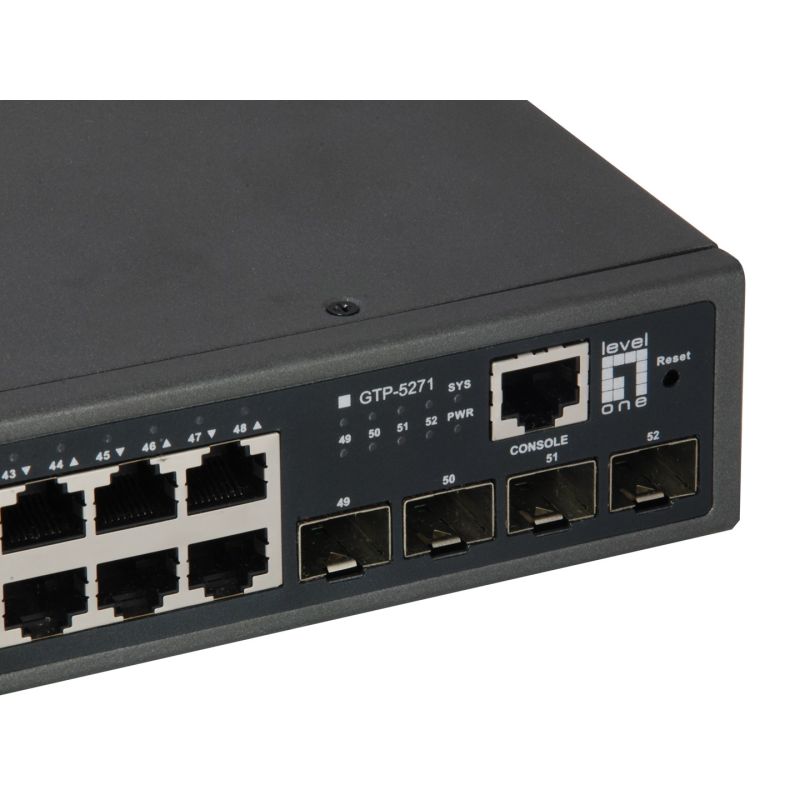

- Number of SFP+ Module slots: 4
- Basic RJ-45 Switching Number of Ethernet Ports: 48

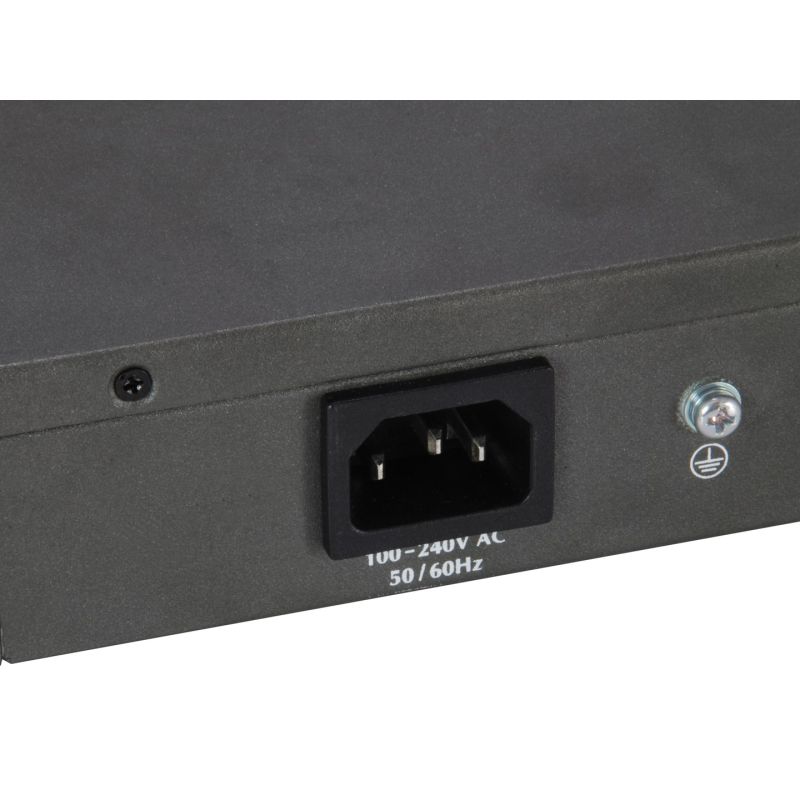

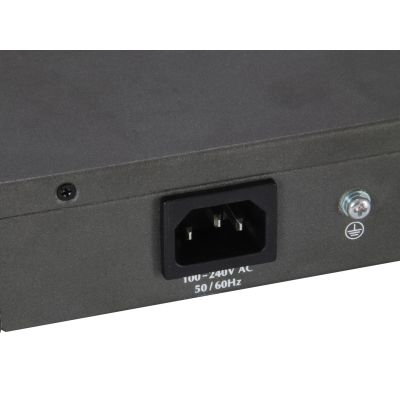

- Power Connector: AC Input Socket
- Number of Gigabit Ethernet ports: 48
- Console port: RJ-45
- Logistics data
- Harmonized System (HS) code: 85176990
- Country of origin: China
- Data transfer
- Jumbo Frame Compatible: Yes
- Store-and-forward: Yes
- Forwarding speed: 130.944 Mpps
- Jumbo Frames Expansion: 12000
- Address table size: 16000 entries
- Packet buffer memory: 512 MB
- Power over Ethernet (PoE)
- Total Power over Ethernet (PoE) budget: 400 W
- Number of Fast Ethernet (PoE) ports: 48
- PoE Support: Yes
- Power over Ethernet (PoE) power per port: 30 W
- Multicast functions
- Multicast Listener Discovery (MLD) snooping: v1/v2
- Multicast Support: Yes
