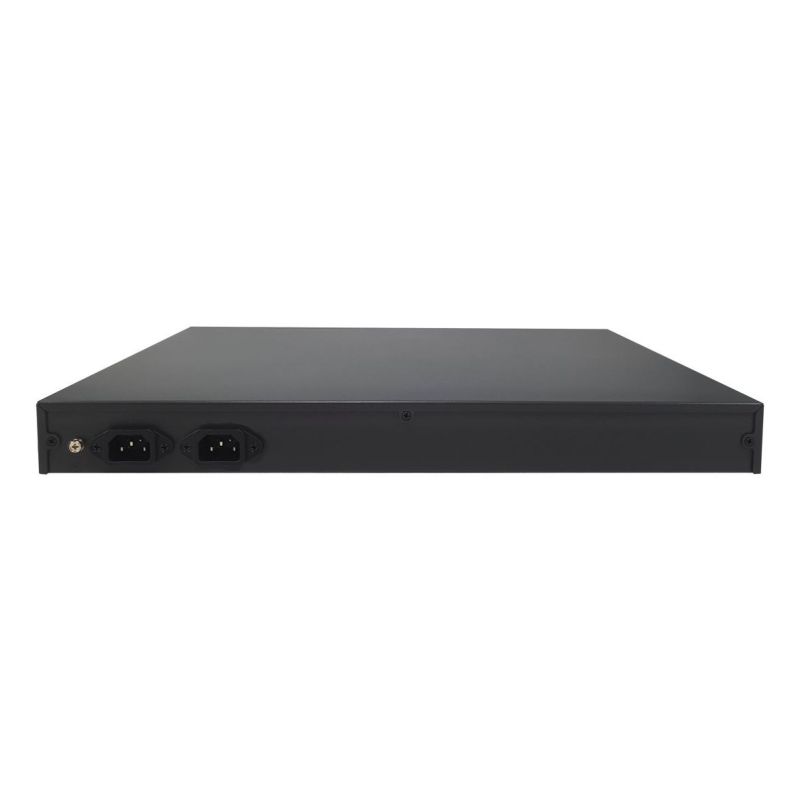

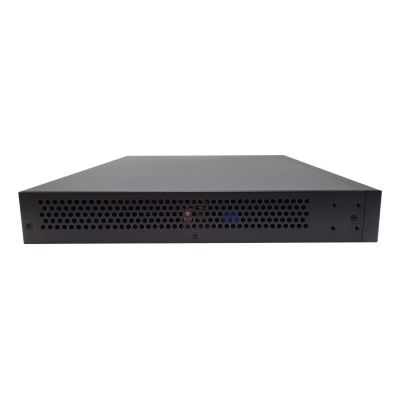

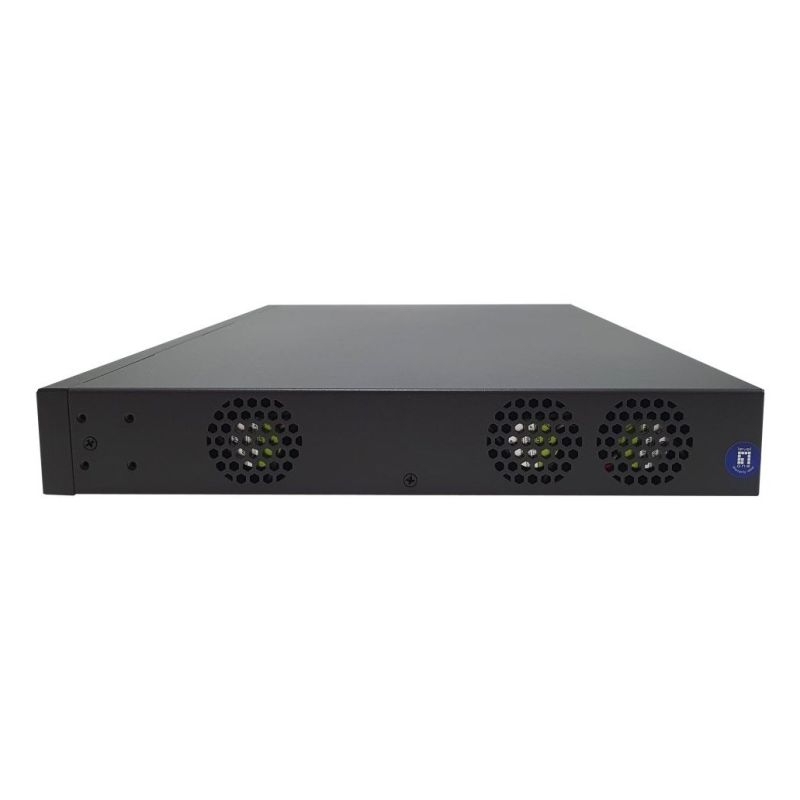

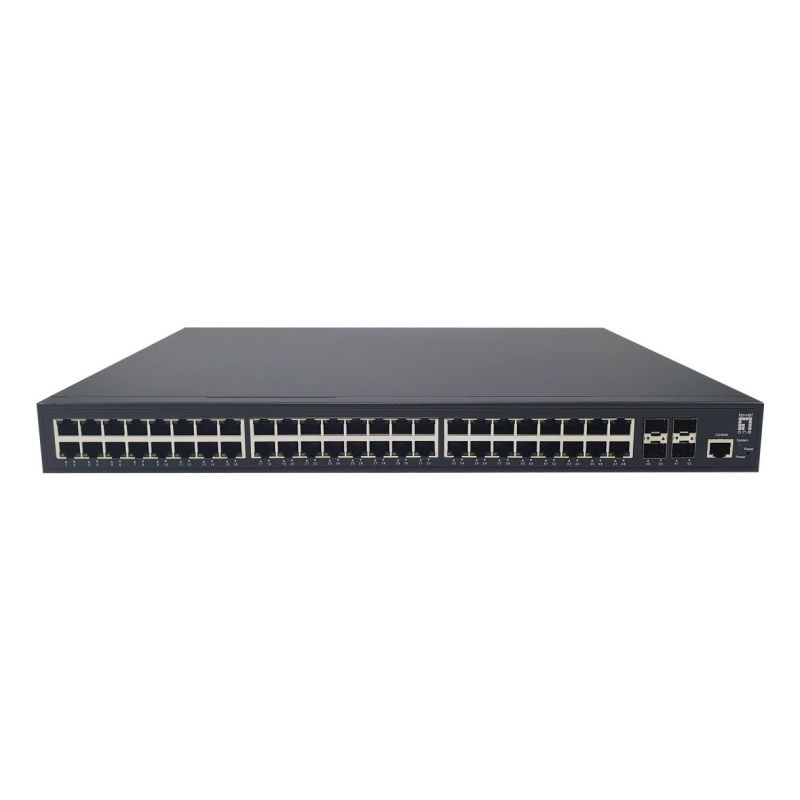

LevelOne GTP-5271DP Managed L2/L3 Gigabit Ethernet Network Switch (10/100/1000) with PoE Support, 1U, Grey
LevelOne GTP-5271DP Managed L2/L3 Gigabit Ethernet Network Switch (10/100/1000) with PoE Support, 1U, Grey
LevelOne GTP-5271DP Managed L2/L3 Gigabit Ethernet Network Switch (10/100/1000) with PoE Support, 1U, Grey
PRICE:
2264,99
€
IN A WAREHOUSE
LAST ITEM!
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product colour: Grey
- LED indicators
- Link
- Activity
- Power
- PoE
- Rack mounting: Yes
- Market segment: Business
- Form factor: 1U
- Power
- AC input frequency: 50/60 Hz
- AC input voltage: 100 - 240 V
- Power source: AC
- Power consumption (max): 440 W
- Redundant Power Supply (RPS) support: Yes
- Power supply included: Yes
- Number of power supply units: 2
- Weight and dimensions
- Product height: 44 mm
- Product depth: 400 mm
- Product weight: 5.5 kg
- Product width: 440 mm
- Security
- DHCP functions
- DHCP client
- DHCP snooping
- Encryption/security
- SNMPv2
- SNMP
- HTTPS
- SNMPv3
- SNMPv2c
- IGMP snooping: Yes
- Access Control List (ACL): Yes
- Authentication type: RADIUS
- Authentication: MAC-based authentication
- DHCP functions
- Management features
- Quality of Service (QoS) support: Yes
- Switch layer: L2/L3
- Switch type: Managed
- ARP inspection: Yes
- Operating conditions
- Temperature range (storage): -40 - 70 °C
- Heat dissipation: 136.48 BTU/h
- Permitted relative humidity: 5 - 90%
- Temperature range (operating): 0 - 50 °C
- Relative humidity range: 10 - 90%
- Network
- 10G support: Yes
- Ethernet LAN data transfer rates: 10,100,1000 Mbit/s
- Communication standards
- IEEE 802.1D
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.1p
- IEEE 802.1s
- IEEE 802.1Q
- IEEE 802.3ah
- IEEE 802.1v
- IEEE 802.3ab
- IEEE 802.1ag
- IEEE 802.3ad
- IEEE 802.1x
- Copper Ethernet cabling technology
- 100BASE-TX
- 1000BASE-T
- 1000BASE-X
- Full duplex: Yes
- VLAN support: Yes
- Virtual LAN features
- IP subnet–based VLAN
- MAC address-based VLAN
- Spanning Tree Protocol: Yes
- Port mirroring: Yes
- Ethernet Ring Protection Switching (ERPS): Yes
- Link aggregation: Yes
- QinQ implementation
- Basic QinQ
- QinQ
- Performance
- Memory type: Flash
- Noise level: 45 dB
- MTBF (Mean Time Between Failures): 534057 h
- Flash memory size: 512 MB
- Internal memory capacity: 256 MB
- Telnet: Yes
- Fanless: No

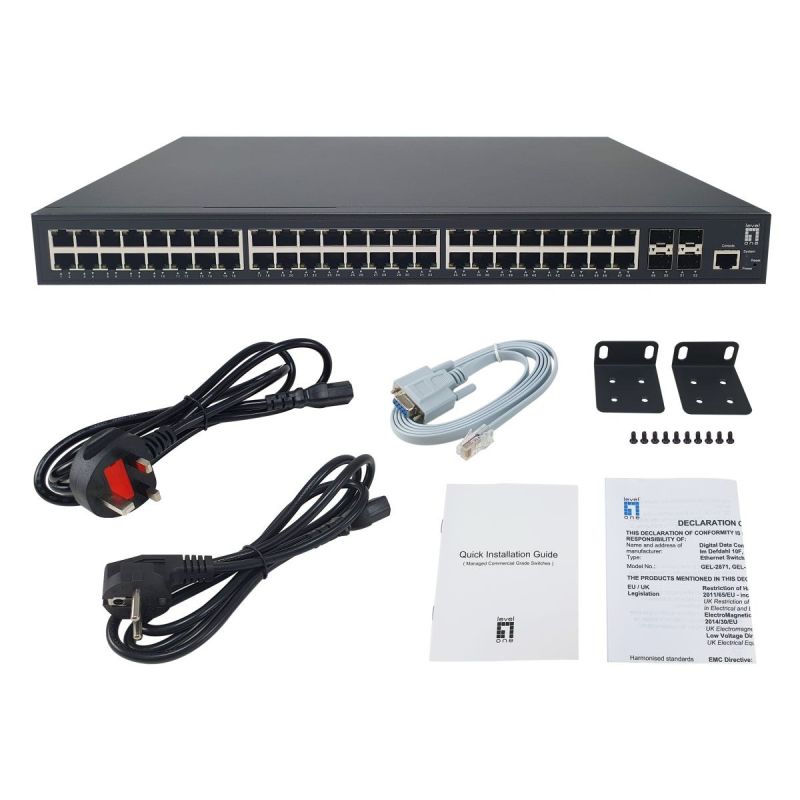

- Packaging content
- Cables: Power
- Quick start guide: Yes
- Hook mounting kit: Yes
- Certificates
- Compliance certificates
- Federal Communications Commission (FCC)
- CE
- RoHS
- Compliance certificates
- Protocols
- IPv4 and IPv6 features
- IPv6 TFTP
- Dual stack IPv4/IPv6
- IPv6 SSH
- IPv4 and IPv6 features
- Ports and interfaces
- Power connector: AC input socket
- RJ-45 basic switching – number of Ethernet ports: 48
- RJ-45 Ethernet basic switching port type: Gigabit Ethernet (10/100/1000)
- Number of SFP+ module slots: 4
- Number of Fibre uplink ports: 4
- Other features
- Size: 48.3 cm (19")
- Logistics data
- Harmonized System code (HS): 851762
- Customs product code (TARIC): 8517620000
- Data transmission
- Address table size: 16000 entries
- Packet buffer memory: 1.5 MB
- Routing/switching capacity: 336 Gbit/s
- Forwarding rate: 499.9 Mpps
- Power over Ethernet (PoE)
- Total Power over Ethernet (PoE) budget: 400 W
- PoE support: Yes
- Number of Power over Ethernet Plus (PoE+) ports: 48
- Supported Power over Ethernet (PoE) type: PoE+
- Sustainability
- Does not contain
- Mercury
- Lead
- Cadmium
- Does not contain
| Name | Details |
|---|---|
| Department | Electronics |
| Product Type | Network switches |
| Producer | No name |
| Colour | Gray/Silver |
