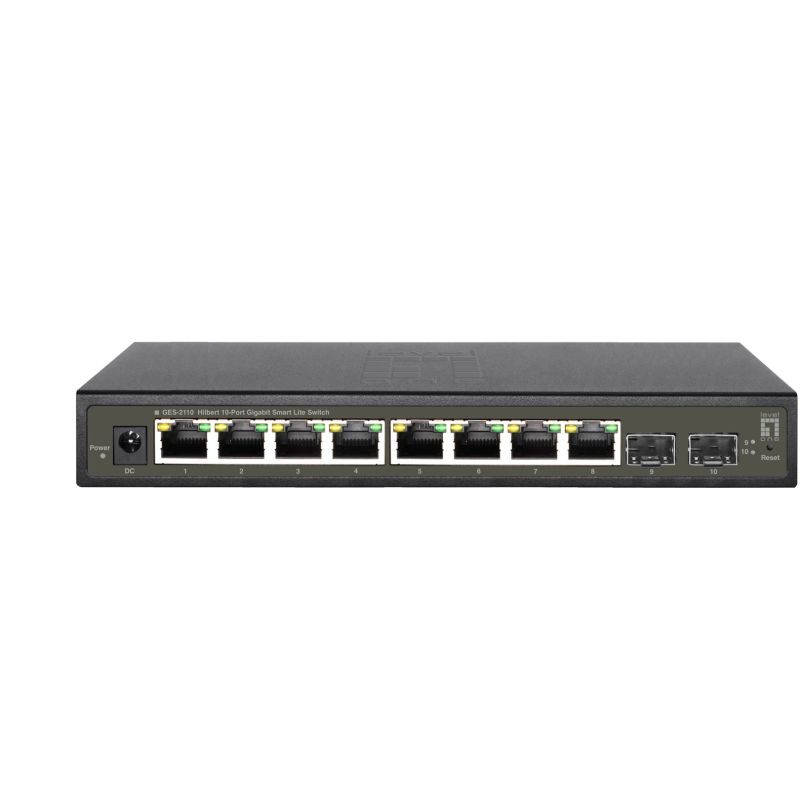

LevelOne Hilbert 10-Port Gigabit Smart Lite Switch
LevelOne Hilbert 10-Port Gigabit Smart Lite Switch
LevelOne Hilbert 10-Port Gigabit Smart Lite Switch
PRICE:
157,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Collecting boxes (external) per pallet (air): 16 pcs.
- Pallet height (air): 174.4 cm
- Gross pallet width: 120 cm
- Gross pallet length: 80 cm
- Design
- Rack mounting options: No
- LED diodes
- Action
- Link
- Product color: Black
- Power
- DC input voltage: 12V
- Input current: 1 A
- Power source: DC
- Power consumption (max): 10 W
- Power supply included: Yes
- Protection against sudden voltage increases
- Yes
- 8 kV
- Weight and dimensions
- Product height: 35 mm
- Product width: 225 mm
- Product depth: 121 mm
- Product weight: 700 g
- Security
- IGMP snooping: Yes
- Management features
- Switch Layer: L2
- Switch type: Managed
- Website management: Yes
- Quality of Service (QoS) Support: Yes
- Working conditions
- Temperature range (storage): -40 - 70 °C
- Heat emission: 34.12 BTU/h
- Temperature range (operation): 0 - 45 °C
- Permissible relative humidity: 5 - 95%
- Relative humidity range: 10 - 90%
- Network
- MAC address auto-aging supported: Yes
- Virtual LAN Features: Tagged VLAN
- 10G Support: No
- Number of VLANs: 32
- Full duplex: Yes
- Traffic Growth Control: Yes
- MAC address auto-learning supported: Yes
- Communication standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.1p
- IEEE 802.3az
- IEEE 802.3z
- IEEE 802.1Q
- Flow Control Support: Yes
- Port Mirroring: Yes
- Connection Aggregator: Yes
- VLAN support: Yes
- Frequency Limit: Yes
- Efficiency
- Noise level: 0 dB
- No fan: Yes
- Flash memory size: 2 MB
- MTBF (Mean Time Between Failures): 43800 h
- Packaging data
- Packaging type: Box
- Package depth: 172 mm
- AC adapter: Yes
- Weight with packaging: 950 g
- Package width: 290 mm
- Package height: 93 mm
- Package contents
- Quick Start Guide: Yes
- Certificates
- Certificates of conformity
- CE
- RoHS
- Certificates of conformity
- Ports and interfaces
- Number of Gigabit Ethernet ports: 8
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Number of SFP Combo Ports: 2
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Logistics data
- Height of the standard (outer) box: 400 mm
- Main (outer) housing gross weight: 12.2 kg
- Net weight in bulk packaging: 750 g
- Main (outer) case length: 320 mm
- Products in the main (outer) box: 12 pcs.
- Country of origin: China
- Width of the collection box (external): 540 mm
- Data transfer
- Jumbo Frames Expansion: 9000
- Number of rounds: 4
- Address table size: 8000 entries
- Jumbo Frame Compatible: Yes
- Packet buffer memory: 1.5 MB
- Routing/switching capacity: 20 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
- Sustainable development
- Sustainability: Yes
