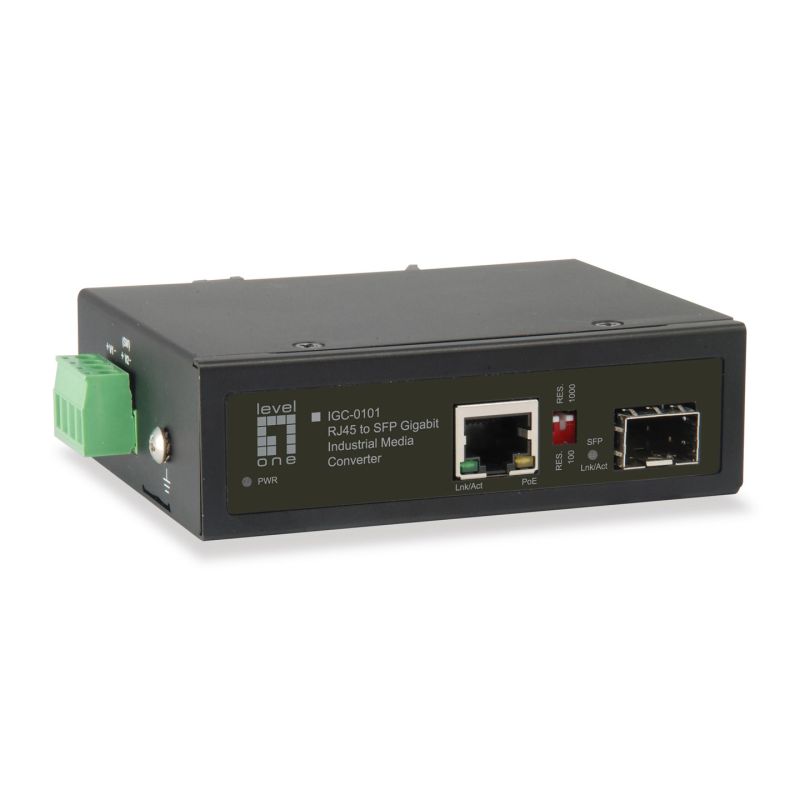

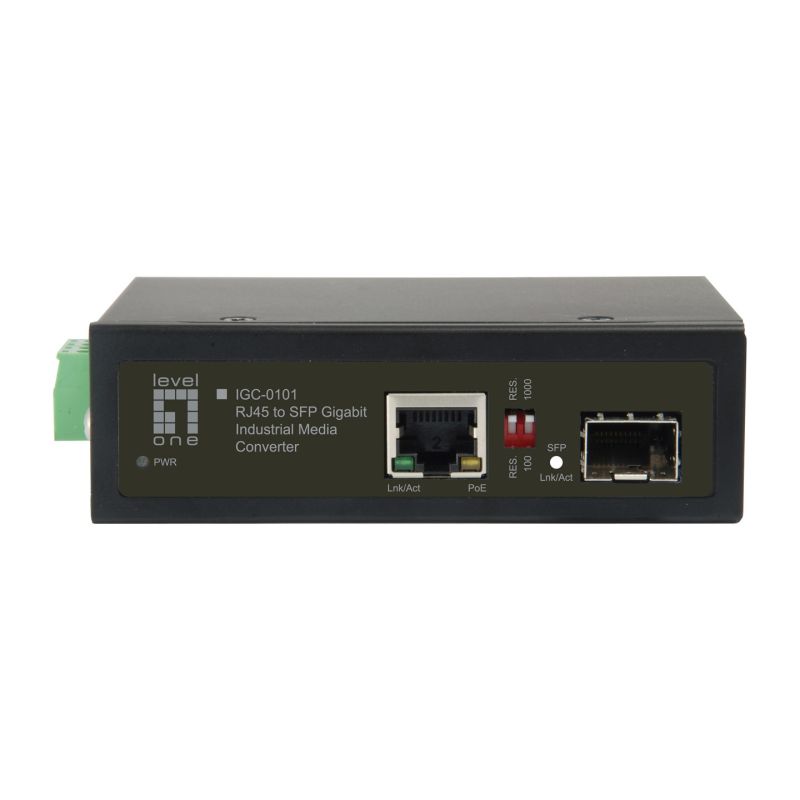

LevelOne IGC-0101 - Media converter - GigE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X - RJ-45 / SFP (mini-GBIC)
LevelOne IGC-0101 - Media converter - GigE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X - RJ-45 / SFP (mini-GBIC)
LevelOne IGC-0101 - Media converter - GigE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X - RJ-45 / SFP (mini-GBIC)
PRICE:
195,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Internal: No

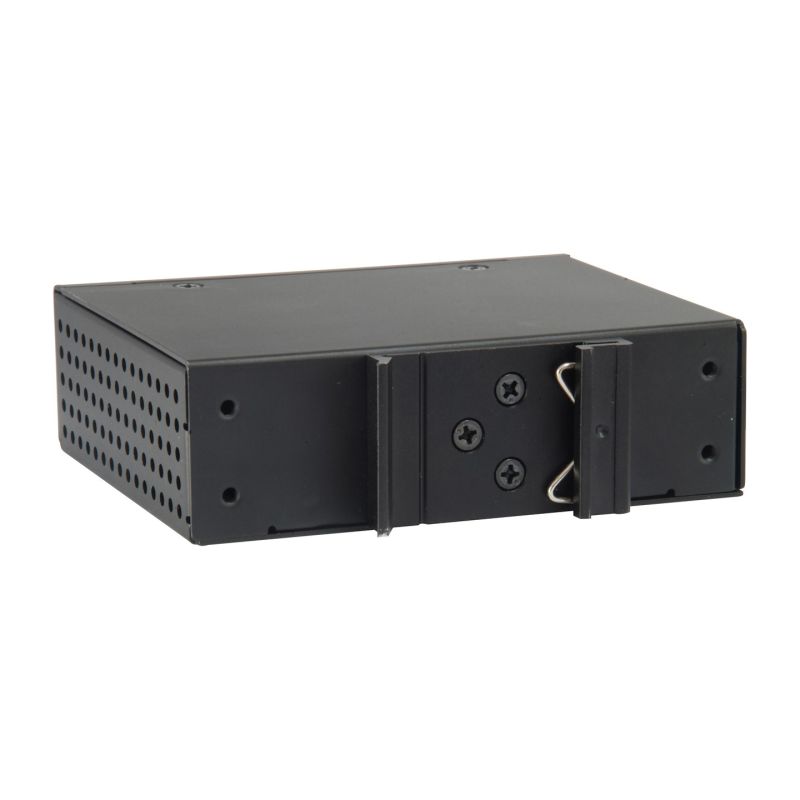

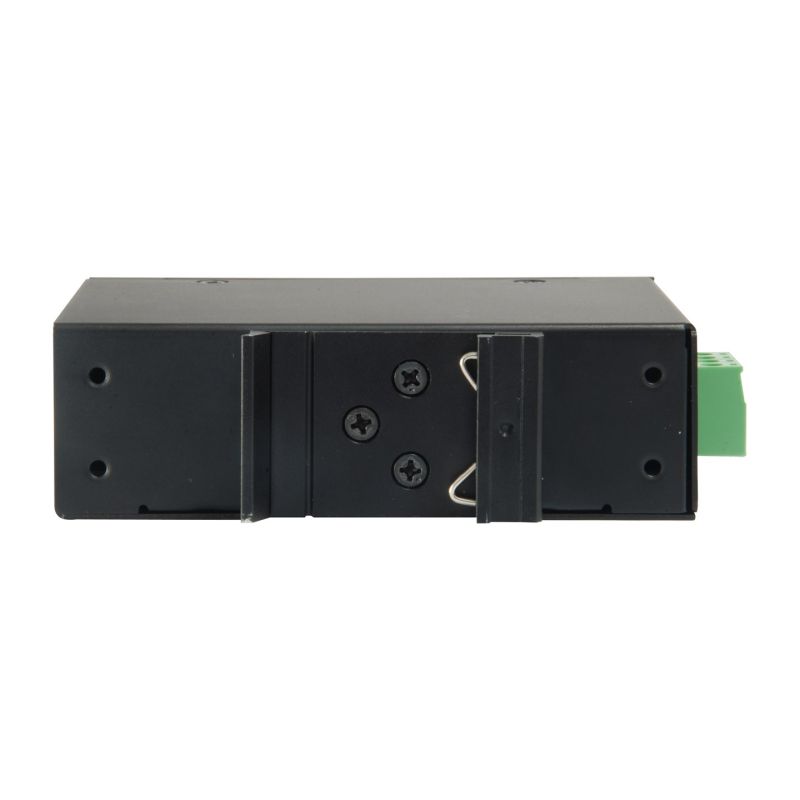

- DIN rail mounting: Yes
- LED diodes
- Link
- Power supply
- Action
- Power

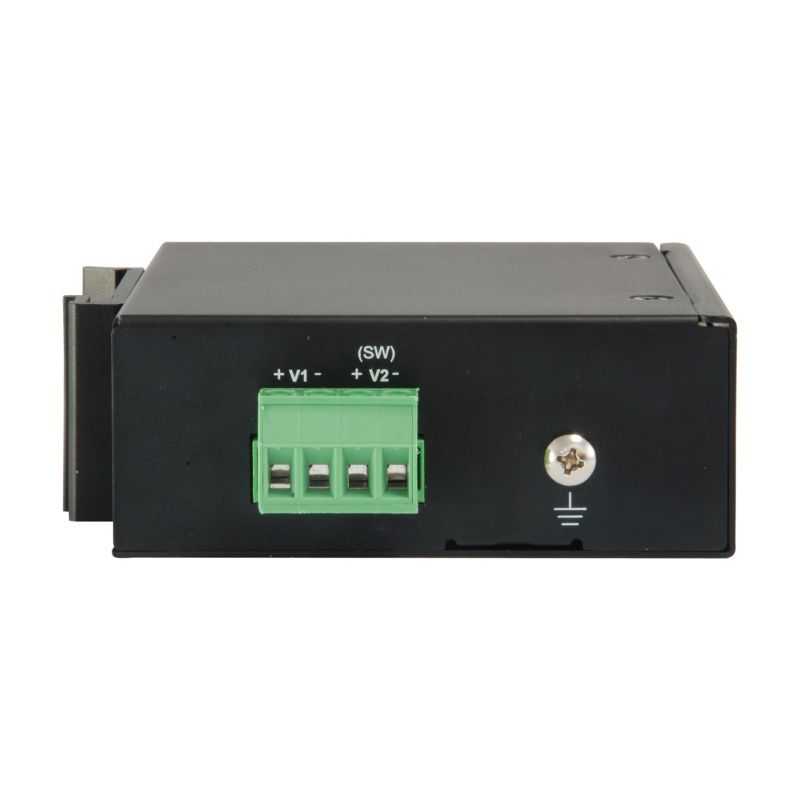

- Voltage: 48 - 56 V
- PoE Support: Yes
- Power consumption: 2 W
- Total Power over Ethernet (PoE) budget: 30 W
- Weight and dimensions
- Product weight: 135 g
- Product height: 103.5 mm
- Product width: 32 mm
- Product depth: 81.5 mm
- Working conditions
- Temperature range (operation): -40 - 75 °C
- Relative humidity range: 5 - 95%
- Network
- Flow Control Support: Yes
- Ethernet interface type: Gigabit Ethernet
- Jumbo Frames Expansion: 9000
- Copper Ethernet cabling technology
- 1000BASE-T
- 100BASE-TX
- 10BASE-T
- Jumbo Frame Compatible: Yes
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- Maximum data transfer speed: 1000 Mbit/s
- Communication standards
- IEEE 802.3
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3u
- IEEE 802.3at
- Efficiency
- MTBF (Mean Time Between Failures): 500000 h
- Packaging data
- Package width: 165 mm
- Weight with packaging: 350 g
- Package height: 215 mm
- Package depth: 65 mm
- Package contents
- User Manual: Yes
- Certificates
- Safety: IEC EN60950-1
- Ports and interfaces
- Number of ports: 1
- Fiber optic connector: SFP
- Number of Ethernet LAN ports (RJ-45): 1
- Number of Fast Ethernet (PoE) ports: 1
- Connection method: Wired
- Logistics data
- Main (outer) case length: 240 mm
- Height of the standard (outer) box: 560 mm
- Main (outer) housing gross weight: 6.6 kg
- Harmonized System (HS) code: 85176990
- Products in the main (outer) box: 16 pcs.
- Width of the collection box (external): 350 mm
- Country of origin: Taiwan
