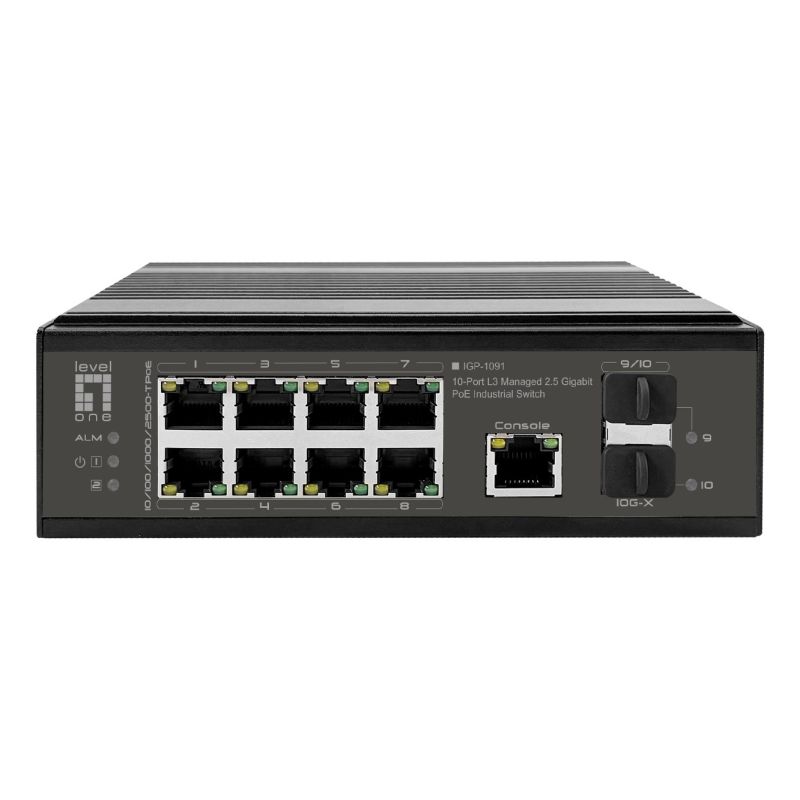

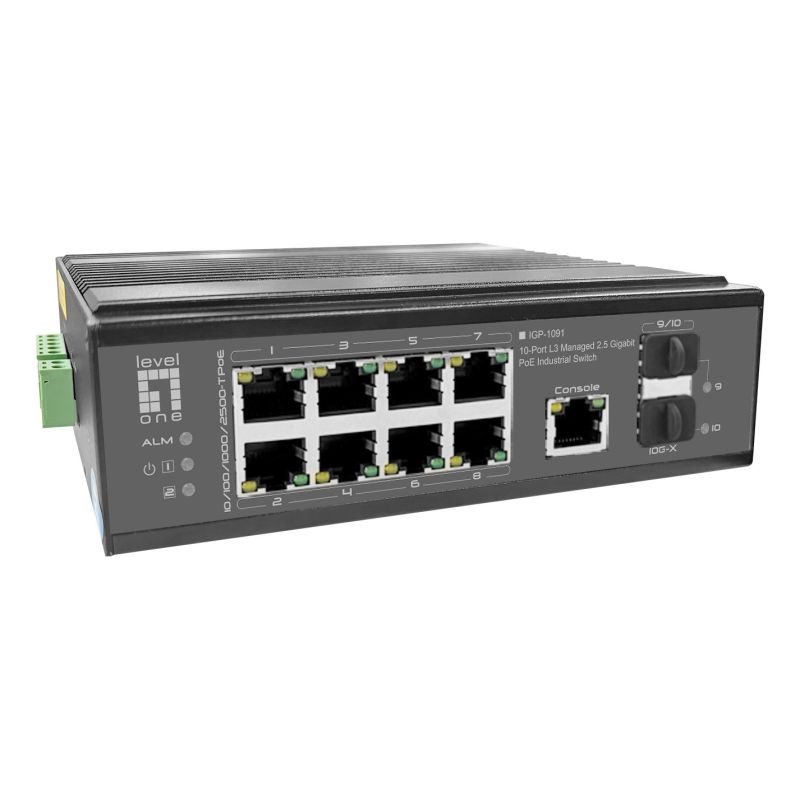

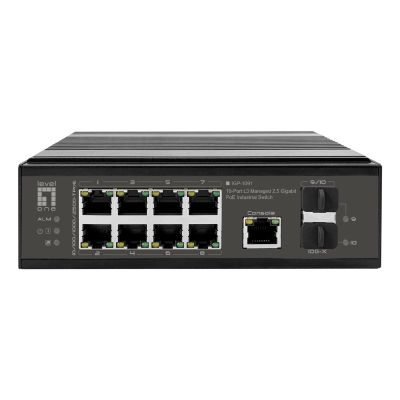

LevelOne IGP-1091 Managed L3 2.5G Ethernet (100/1000/2500) Supports PoE Desktop/Wall Mount Black
LevelOne IGP-1091 Managed L3 2.5G Ethernet (100/1000/2500) Supports PoE Desktop/Wall Mount Black
LevelOne IGP-1091 Managed L3 2.5G Ethernet (100/1000/2500) Supports PoE Desktop/Wall Mount Black
PRICE:
962,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Reset button: Yes
- LED diodes
- Power supply
- PoE
- Action
- Link
- Product color: Black
- Layout: Desk/Wall Mount
- IP protection class: IP40
- Rack mounting options: No

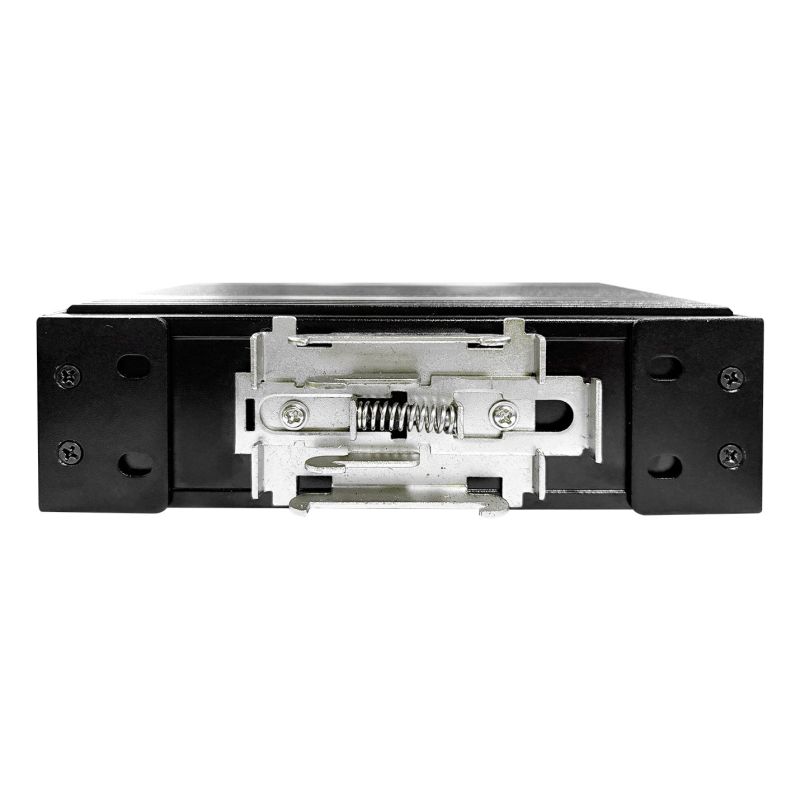

- DIN rail mounting: Yes
- Wall mountable: Yes
- Power
- Power source: DC
- DC input voltage: 48 - 57 V
- Protection against sudden voltage increases
- Yes
- 6 kV
- Power Supply Included: No
- Weight and dimensions
- Product height: 50 mm
- Product depth: 115 mm
- Product weight: 1 kg
- Product width: 165 mm
- Management features
- Switch Layer: L3
- Switch type: Managed
- System Event Report: Yes
- Working conditions
- Temperature range (storage): -40 - 85 °C
- Temperature range (operation): -40 - 75 °C
- Relative humidity range: 0 - 95%
- Network
- Data transfer speed via Ethernet LAN: 100,1000,2500,10000 Mbit/s
- Communication standards
- IEEE 802.3af
- IEEE 802.3bt
- IEEE 802.3az
- IEEE 802.3at
- IEEE 802.3ab
- IEEE 802.3u
- IEEE 802.3ae
- IEEE 802.3
- IEEE 802.3bz
- Traffic Growth Control: Yes
- 10G Support: Yes
- Connection Aggregator: Yes
- Port Mirroring: Yes
- MAC address auto-learning supported: Yes
- Efficiency
- No fan: Yes
- Certificates
- Certificates of conformity
- CE
- RoHS
- UKCA
- Federal Communications Commission (FCC)
- Certificates of conformity
- Protocols
- Route Selection Protocol
- RIP
- VRRP
- OSPF
- Route Selection Protocol
- Ports and interfaces

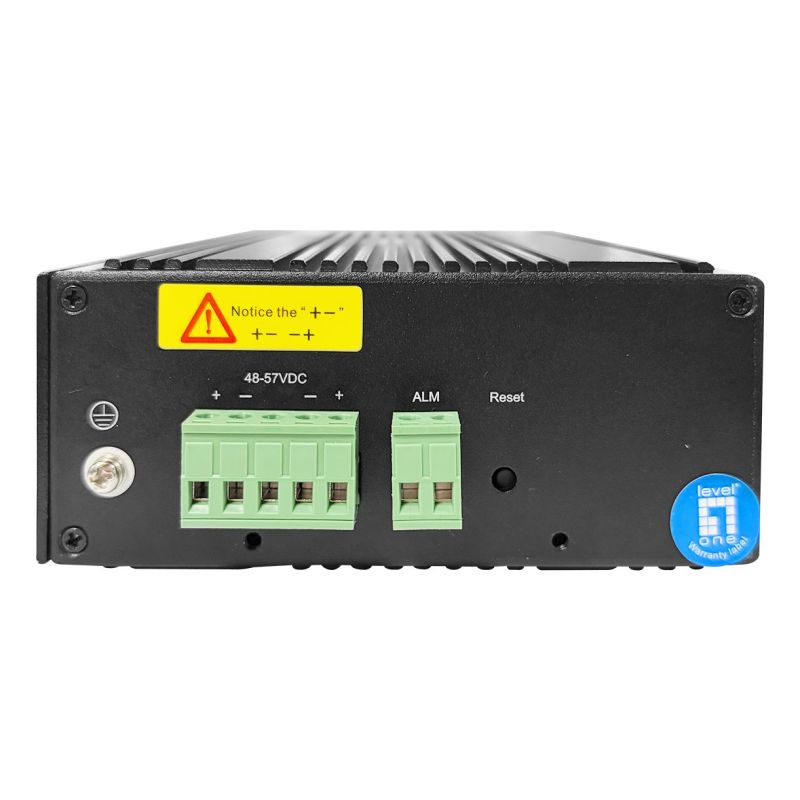

- Power connector: Terminal block (5-pin)
- Number of SFP+ Module slots: 2
- Console port: RJ-45
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Basic Ethernet Switching RJ-45 Ports Type: 2.5G Ethernet (100/1000/2500)
- Logistics data
- Customs product code (TARIC): 8517620000
- Data transfer
- Packet Forwarding: Yes
- Forwarding speed: 89.28 Mpps
- Address table size: 16000 entries
- Routing/switching capacity: 120 Gbit/s
- Jumbo Frame Compatible: Yes
- Jumbo Frames Extension: 12228
- Power over Ethernet (PoE)
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 480 W
- Number of Fast Ethernet (PoE) ports: 8
- Power over Ethernet (PoE) type supported
- PoE+
- PoE++ (4PPoE)
- Power over Ethernet (PoE) power per port: 90 W
- Sustainable development
- Does not contain
- Lead
- Mercury
- Cadmium
- Does not contain
