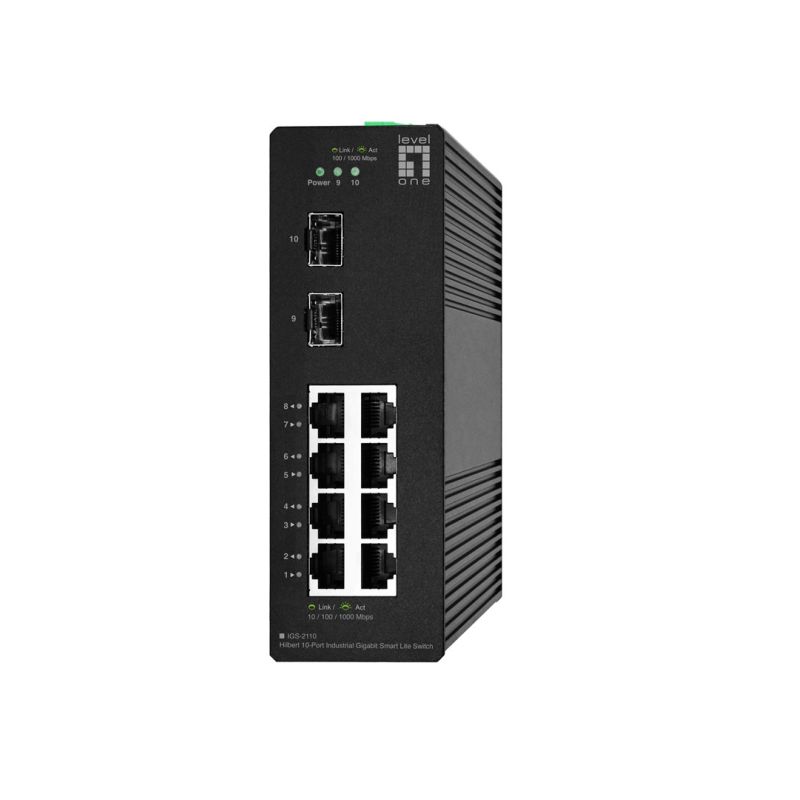

LevelOne IGS-2110 Managed L2 Gigabit Ethernet (10/100/1000) Network Switch Black
LevelOne IGS-2110 Managed L2 Gigabit Ethernet (10/100/1000) Network Switch Black
LevelOne IGS-2110 Managed L2 Gigabit Ethernet (10/100/1000) Network Switch Black
PRICE:
261,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Gross pallet width: 120 cm
- Gross pallet length: 80 cm
- Layers on pallet (air): 16 pcs.
- Design
- IP protection class: IP30

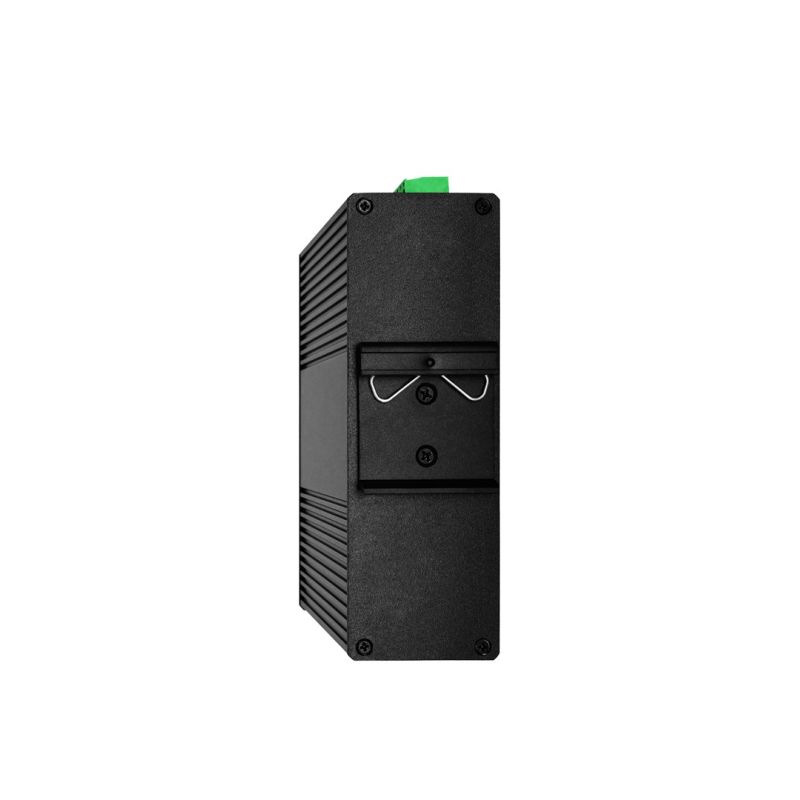

- DIN rail mounting: Yes
- LED diodes

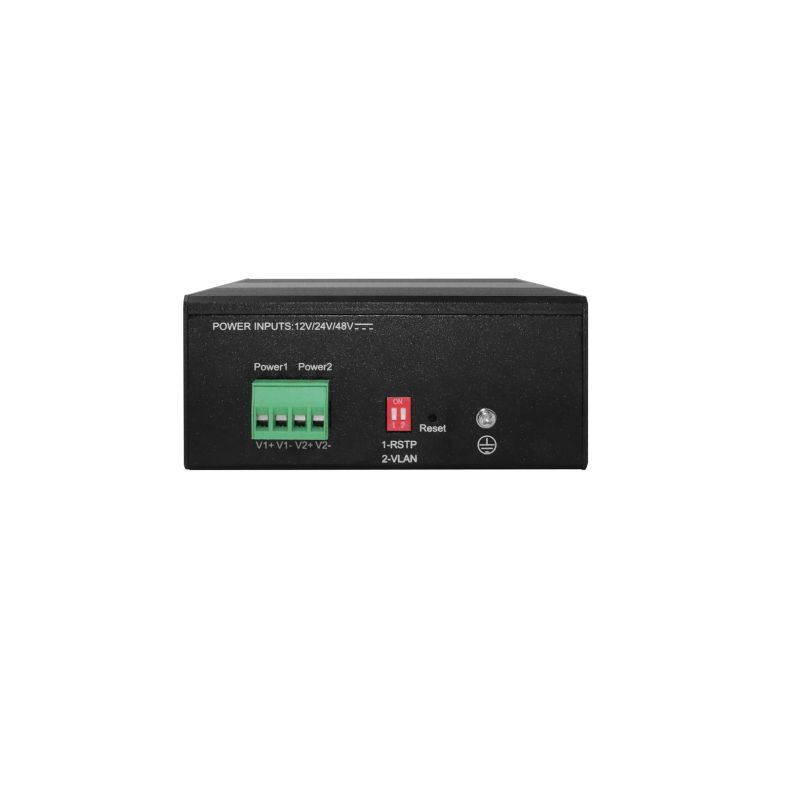

- Power supply
- Action
- Link
- Product color: Black
- Power
- Power source: DC
- Power consumption: 9 W
- DC input voltage: 12 - 57 V
- Protection against sudden voltage increases
- Yes
- 4 kV
- Power Protection Features: Surge Protection
- Backup Power Supply (RPS) Support: Yes
- Power Supply Included: No
- Weight and dimensions
- Product width: 149.5 mm
- Product depth: 122.5 mm
- Product height: 50 mm
- Product weight: 540 g
- Security
- IGMP snooping: Yes
- Queue scheduling algorithms: Priority queuing (PQ)
- Management features
- Switch Layer: L2
- Switch type: Managed
- Quality of Service (QoS) Support: Yes
- Website management: Yes
- Working conditions
- Heat emission: 30.71 BTU/h
- Permissible relative humidity: 5 - 95%
- Relative humidity range: 10 - 90%
- Temperature range (operation): -40 - 75 °C
- Temperature range (storage): -40 - 85 °C
- Network
- Copper Ethernet cabling technology
- 1000BASE-X
- 10BASE-T
- 1000BASE-T
- 100BASE-TX
- MAC address auto-aging supported: Yes
- MAC address auto-learning supported: Yes
- Auto-Negotiation: Yes
- 10G Support: No
- Auto MDI/MDI-X: Yes
- Full duplex: Yes
- Traffic Growth Control: Yes
- Flow Control Support: Yes
- Number of VLANs: 32
- Connection Aggregator: Yes
- Port Mirroring: Yes
- Virtual LAN Features
- Tagged VLAN
- Port-based VLAN
- VLAN support: Yes
- Frequency Limit: Yes
- Spanning Tree Protocol: Yes
- Half-duplex: Yes
- Communication standards
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.1p
- IEEE 802.3
- IEEE 802.3az
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3x
- IEEE 802.1Q
- IEEE 802.1D
- Copper Ethernet cabling technology
- Efficiency
- MTBF (Mean Time Between Failures): 43800 h
- Flash memory size: 2 MB
- No fan: Yes
- Noise level: 0 dB
- Packaging data
- Package height: 73 mm
- Packaging depth: 160 mm
- Strip included: Yes
- DIN rail included: Yes
- Packaging type: Box
- Weight with packaging: 780 g
- Package width: 230 mm
- Package contents
- Quick Start Guide: Yes
- Certificates
- Certificates of conformity
- Federal Communications Commission (FCC)
- UKCA
- CE
- RoHS
- Certificates of conformity
- Ports and interfaces
- Number of Gigabit Ethernet ports: 8
- Number of SFP Module slots: 2
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Number of Fiber uplink ports: 2
- Logistics data
- Gross pallet height: 154.4 cm
- Main (outer) case length: 395 mm
- Harmonized System (HS) code: 8517620090
- Products in the main (outer) box: 20 pcs.
- Height of the standard (outer) box: 350 mm
- Gross weight of the main (outer) housing: 16 kg
- Width of the collection box (external): 480 mm
- Country of origin: China
- Data transfer
- Packet buffer memory: 1.5 MB
- Jumbo Frame Compatible: Yes
- Jumbo Frames Expansion: 9000
- Address table size: 4000 entries
- Forwarding speed: 14.88 Mpps
- Routing/switching capacity: 20 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
- Sustainable development
- Sustainability: Yes
