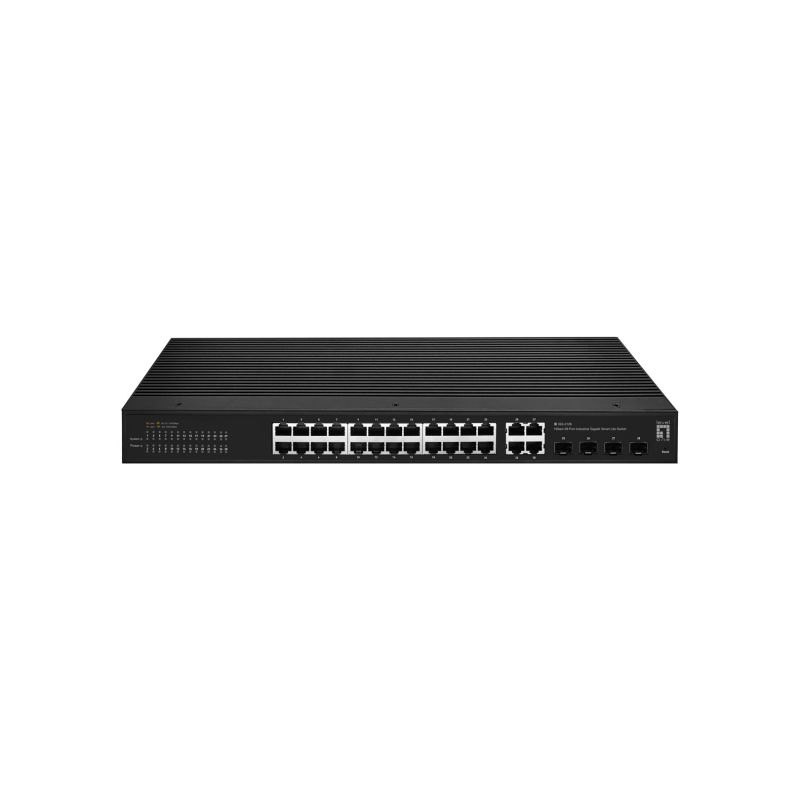

LevelOne IGS-2128 Managed L2 Gigabit Ethernet (10/100/1000) Network Switch Black
LevelOne IGS-2128 Managed L2 Gigabit Ethernet (10/100/1000) Network Switch Black
LevelOne IGS-2128 Managed L2 Gigabit Ethernet (10/100/1000) Network Switch Black
PRICE:
864,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Layers on pallet (air): 16 pcs.
- Gross pallet width: 120 cm
- Gross pallet length: 80 cm
- Design
- Rack mounting options: Yes
- IP protection class: IP30
- LED diodes
- Power supply
- Link
- Action
- Product color: Black
- Power
- DC input voltage: 12 - 57 V
- Protection against sudden voltage increases
- 4 kV
- Yes
- Backup Power Supply (RPS) Support: Yes
- Power consumption: 20 W
- Power source: DC
- Power Supply Included: No
- Power Protection Features: Surge Protection
- Weight and dimensions
- Product width: 440 mm
- Product depth: 244 mm
- Product height: 45 mm
- Product weight: 3.4 kg
- Security
- Queue scheduling algorithms: Priority queuing (PQ)
- IGMP snooping: Yes
- Management features
- Switch Layer: L2
- Quality of Service (QoS) Support: Yes
- Switch type: Managed
- Website management: Yes
- Working conditions
- Heat emission: 68.24 BTU/h
- Temperature range (storage): -40 - 85 °C
- Temperature range (operation): -40 - 75 °C
- Relative humidity range: 10 - 90%
- Permissible relative humidity: 5 - 95%
- Network
- MAC address auto-learning supported: Yes
- Traffic Growth Control: Yes
- MAC address auto-aging supported: Yes
- Flow Control Support: Yes
- Virtual LAN Features
- Tagged VLAN
- Port-based VLAN
- Connection Aggregator: Yes
- Frequency Limit: Yes
- Full duplex: Yes
- 10G Support: No
- Number of VLANs: 32
- Copper Ethernet cabling technology
- 100BASE-TX
- 1000BASE-T
- 10BASE-T
- 1000BASE-X
- VLAN support: Yes
- Port Mirroring: Yes
- Communication standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3az
- IEEE 802.3x
- IEEE 802.1Q
- IEEE 802.1p
- IEEE 802.3z
- IEEE 802.3ab
- Efficiency
- No fan: Yes
- Flash memory size: 2 MB
- Noise level: 0 dB
- MTBF (Mean Time Between Failures): 43800 h
- Packaging data
- Strip included: Yes
- Package width: 510 mm
- Package height: 93 mm
- Package depth: 375 mm
- Packaging type: Box
- Weight with packaging: 4 kg
- Package contents
- Hook mounting kit: Yes
- Quick Start Guide: Yes
- Certificates
- Certificates of conformity
- Federal Communications Commission (FCC)
- CE
- UKCA
- RoHS
- Certificates of conformity
- Ports and interfaces
- Number of Gigabit Ethernet ports: 24
- Number of SFP Combo Ports: 4
- Basic RJ-45 Switching Number of Ethernet Ports: 28
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Logistics data
- Products in the main (outer) box: 3 pcs.
- Height of the standard (outer) box: 400 mm
- Gross weight of the main (outer) housing: 12.5 kg
- Main (outer) case length: 320 mm
- Gross pallet height: 174.4 cm
- Harmonized System (HS) code: 8517620090
- Width of the collection box (external): 540 mm
- Country of origin: China
- Data transfer
- Jumbo Frames Expansion: 9000
- Routing/switching capacity: 56 Gbit/s
- Jumbo Frame Compatible: Yes
- Address table size: 8000 entries
- Packet buffer memory: 4.1 MB
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
- Sustainable development
- Sustainability: Yes
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | No name |
| Colour | Black |
