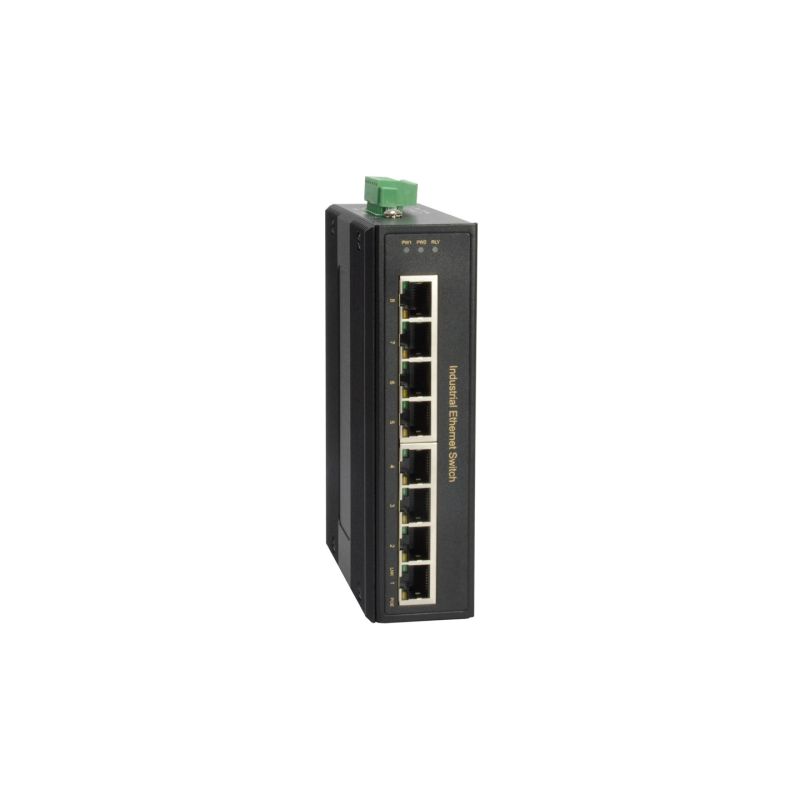

LevelOne Industrial GB PoE+ Switch 8-Port IP30 DIN 200W 1Gbps
LevelOne Industrial GB PoE+ Switch 8-Port IP30 DIN 200W 1Gbps
LevelOne Industrial GB PoE+ Switch 8-Port IP30 DIN 200W 1Gbps
PRICE:
535,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- DIN rail mounting: Yes
- Product color: Black
- Safety: EN60950-1, EN60068
- Wall mountable: Yes
- Housing material: Metal
- IP protection class: IP30
- LED diodes
- Power supply
- PoE
- Power

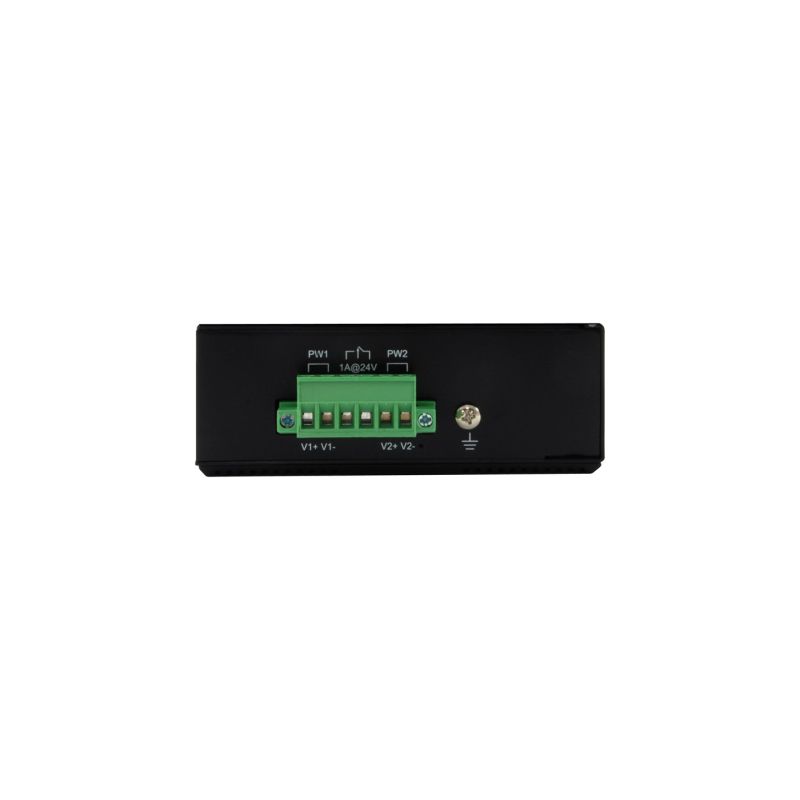

- DC input voltage: 48 - 56 V
- Backup Power Supply (RPS) Support: Yes
- Weight and dimensions
- Product weight: 525 g
- Product depth: 36.2 mm
- Product width: 105 mm
- Product height: 142 mm
- Management features
- Switch Type: Unmanaged
- Working conditions
- Temperature range (operation): -40 - 75 °C
- Relative humidity range: 5 - 95%
- Network
- Communication standards
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3at
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3z
- IEEE 802.3ab
- Full duplex: Yes
- Copper Ethernet cabling technology
- 1000BASE-T
- 100BASE-TX
- 10BASE-T
- Auto MDI/MDI-X: Yes
- Communication standards
- Efficiency
- MTBF (Mean Time Between Failures): 510304 h
- Plug & Play Support: Yes
- Packaging data
- Wall mounting kit: Yes
- Strip included: Yes
- Package depth: 65 mm
- Packaging type: Box
- Weight with packaging: 730 g
- Package height: 215 mm
- Package width: 165 mm
- Package contents
- User Manual: Yes
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Other functions
- Terminal Port Blocking: Yes
- Logistics data
- Width of the collection box (external): 350 mm
- Height of the standard (outer) box: 570 mm
- Main (outer) case length: 240 mm
- Country of origin: Taiwan
- Harmonized System (HS) code: 85176990
- Main (outer) housing gross weight: 12.6 kg
- Products in the main (outer) box: 16 pcs.
- Data transfer
- Store-and-forward: Yes
- Jumbo Frames Expansion: 9000
- Address table size: 8000 entries
- Jumbo Frame Compatible: Yes
- Routing/switching capacity: 16 Gbit/s
- Power over Ethernet (PoE)
- Power over Ethernet (PoE) voltage range: 48 - 56 V
- Power over Ethernet Plus (PoE +) ports: 8
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 200 W
- Power over Ethernet (PoE) power per port: 36 W
