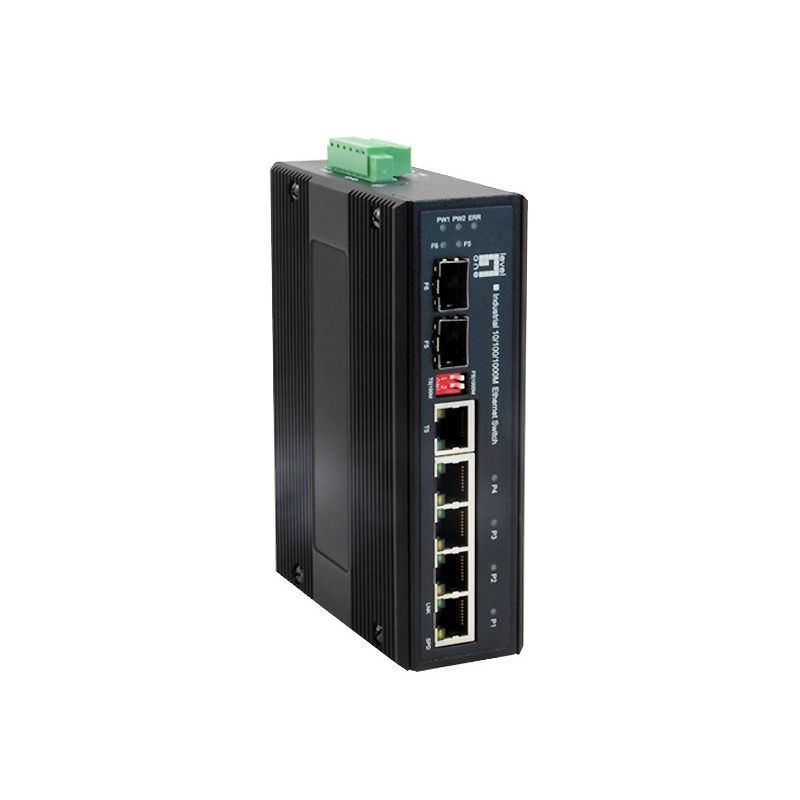

LevelOne Industrial GB Switch 6-Port/IP30+DIN 1Gbps
LevelOne Industrial GB Switch 6-Port/IP30+DIN 1Gbps
LevelOne Industrial GB Switch 6-Port/IP30+DIN 1Gbps
PRICE:
377,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- IP protection class: IP30
- Housing material: Metal
- Wall mountable: Yes
- DIN rail mounting: Yes
- Product color: Black
- LED diodes
- Action
- Power supply
- Link
- Power
- Power protection features
- Overload
- Switching frequency
- Voltage: 5 - 56 V
- Power protection features

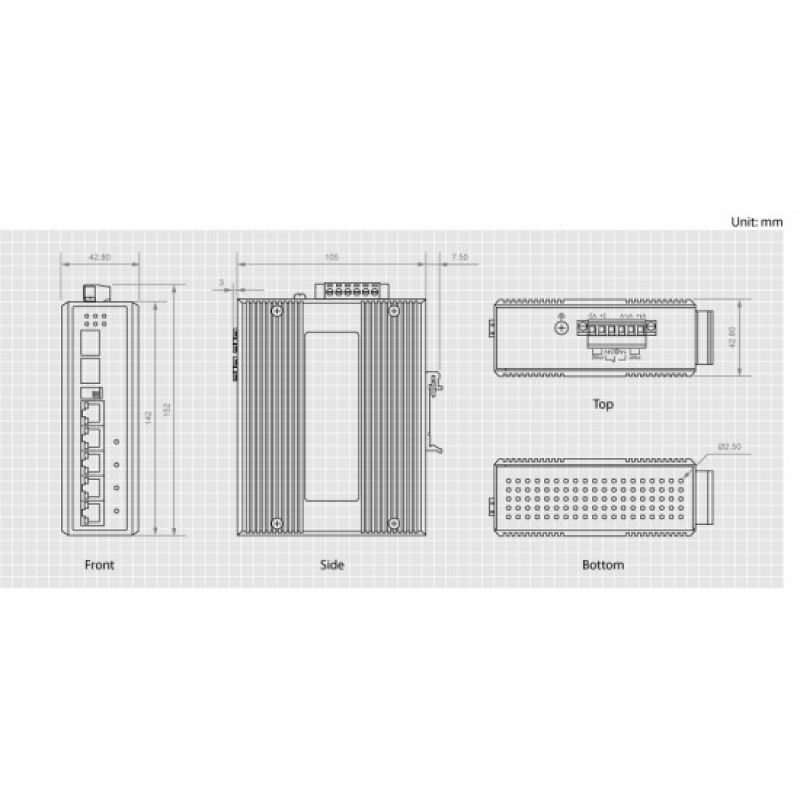

- Weight and dimensions
- Product height: 38 mm
- Product depth: 105 mm
- Product width: 40 mm
- Product weight: 720 g
- Working conditions
- Temperature range (operation): -40 - 75 °C
- Relative humidity range: 5 - 95%
- Permissible relative humidity: 5 - 95%
- Temperature range (storage): -40 - 85 °C
- Network
- Auto MDI/MDI-X: Yes
- Full duplex: Yes
- Auto-Negotiation: Yes
- 10G Support: No
- Flow Control Support: Yes
- Communication standards
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3u
- Packaging data
- Package height: 65 mm
- Packaging type: Box
- Package depth: 165 mm
- Package width: 215 mm
- Weight with packaging: 120 g
- Package contents
- Quick Start Guide: Yes
- Ports and interfaces
- Number of SFP Module slots: 1
- Basic RJ-45 Switching Number of Ethernet Ports: 4
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Other functions
- Terminal Port Blocking: Yes
- Logistics data
- Harmonized System (HS) code: 85176990
- Country of origin: Taiwan
- Data transfer
- Routing/switching capacity: 12 Gbit/s
- Jumbo Frames Expansion: 10000
- Packet forwarding range (100 Mbps): 148000 pps
- Packet forwarding range (1 Gbps): 1488000 pps
- Packet buffer memory: 1 MB
- Address table size: 1024 entries
- Packet forwarding range (10 Mbps): 14880 pps
- Store-and-forward: Yes
- Power over Ethernet (PoE)
- PoE Support: No
