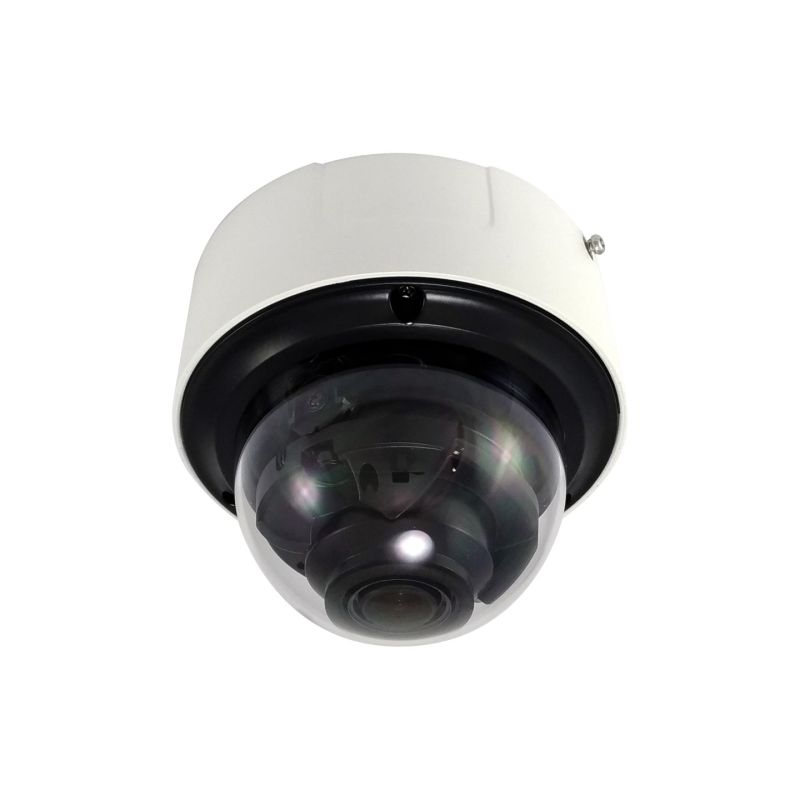

LevelOne IP Camera with Dome Input 2MP/H.265/IR/10W/PoE/HFR
LevelOne IP Camera with Dome Input 2MP/H.265/IR/10W/PoE/HFR
Sign up and unlock up to 10% off!
- Design
- Weather-resistant product: Yes
- IK code: IK10
- Product color: White
- Country of origin: China
- IP protection class: IP67
- Mounting type: Ceiling
- Layout: Dome
- Power
- Power consumption (PoE): 8 W
- Power supply type: DC, PoE
- PoE Support: Yes
- Weight and dimensions
- Product height: 153.4 mm
- Product width: 133.1 mm
- Product depth: 153.4 mm
- Product weight: 1.29 kg
- Security
- Anti-glare: Yes
- Digital Watermark: Yes
- Password protection: Yes
- Video motion detection: Yes
- Mirror: Yes
- Intelligent Video Surveillance (IVS) Features
- Defocus
- Region Entry Detection
- Crossing the border
- Face detection
- Intrusion
- Region exit detection
- IP Filtering: Yes
- Management features
- Reset button: Yes
- Working conditions
- Temperature range (operation): -30 - 60 °C
- Relative humidity range: 0 - 95%
- Network
- Live View: Yes
- Number of simultaneous live view channels: 20 channels
- Bluetooth: No
- Wired LAN: Yes
- Supported network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,SNMP,IGMP,802.1X, QoS, IPv6, Bonjour
- Wi-Fi: No
- Efficiency
- Dynamic range: 140 dB
- Infrared (IR) Cut-off Filter: Yes
- Alarm I/O: Yes
- Model: IP Security Camera
- Connection method: Wired
- Wide Dynamic Range (WDR): Yes
- Intended use: Indoor/outdoor
- Packaging data
- Weight with packaging: 1.71 kg
- Packaging type: Box
- Package height: 244 mm
- Package width: 174 mm
- Package depth: 173 mm
- Package contents
- Driver CD: Yes
- Screws Included: Yes
- Number of cameras: 1
- Audio
- Audio codecs
- G.711
- G.726
- G.722.1
- MP2L2
- G.722
- Audio codecs
- Data carrier
- Supported memory cards
- MicroSD
- SDXC
- SD
- SDHC
- Integrated card reader: Yes
- Built-in HDD: No
- Maximum memory card size: 256 GB
- Supported memory cards

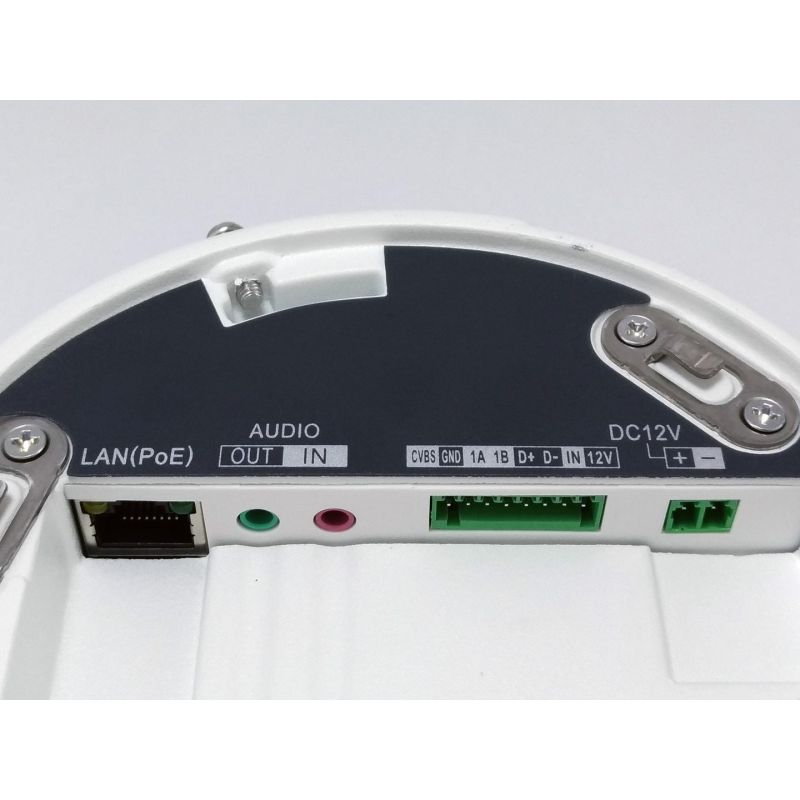

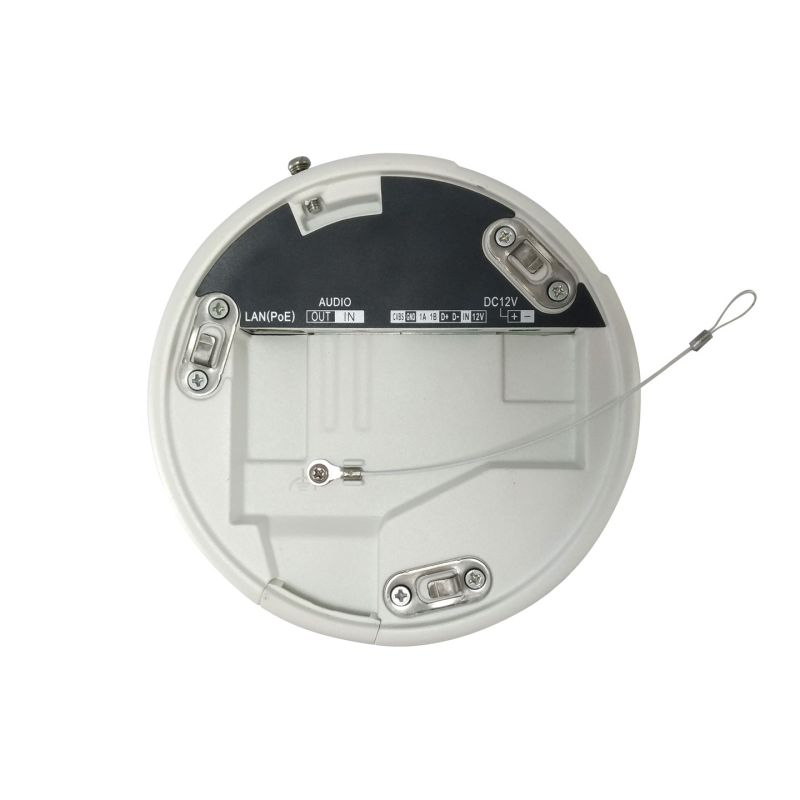

- Ports and interfaces
- Headphone outputs: 1
- Microphone: Yes
- DC output socket: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Lens viewing angle, diagonal: 124°
- Lens viewing angle, horizontal: 103°
- Vertical lens viewing angle: 54°
- Shutter speed: 1 - 1/100000 s
- White balance: Automatic
- Other functions
- Supported browsers: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
- Logistics data
- Height of the standard (outer) box: 504 mm
- Harmonized System (HS) code: 85258900
- Main (outer) housing gross weight: 13.7 kg
- Main (outer) case length: 372 mm
- Width of the collection box (external): 365 mm
- Products in the main (outer) box: 8 pcs.
- Photosensitive matrix
- Image sensor type: CMOS
- CCD sensor size: 25.4 / 1.8 mm (1 / 1.8")
- Progressive Scan: Yes
- Night mode
- Night mode: Yes
- Night Vision Distance: 150 m
- LED type: Infrared
- Video
- Control Gain: Automatic
- Quality regulation
- Contrast
- Sharpness
- Saturation
- Brightness
- Privacy Mask: Yes
- Noise reduction: Yes
- Backlight compensation: Yes
- Supported graphics resolutions
- 1920 x 1080 (HD 1080)
- 1280 x 960
- 1280 x 720 (HD 720)
- Maximum resolution: 1920 x 1080 px
- Data flow speed: 32Kbps~16Mbps
- Noise reduction technology: 3D noise reduction
- Supported video file formats
- H.265
- M-JPEG
- H.264
- Frame rate: 60 fps
- Total megapixels: 2 MP
- Lens system
- Zoom capability: Yes
- Optical zoom: 4.3x
