LevelOne IXP-2871 Managed Network Switch L2+ Gigabit Ethernet (10/100/1000) PoE Support Black
LevelOne IXP-2871 Managed Network Switch L2+ Gigabit Ethernet (10/100/1000) PoE Support Black
LevelOne IXP-2871 Managed Network Switch L2+ Gigabit Ethernet (10/100/1000) PoE Support Black
PRICE:
2333,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Gross pallet width: 120 cm
- Gross pallet length: 80 cm
- Design
- LED diodes
- Status
- Power supply
- USB
- Fault
- PoE
- Product color: Black
- IP protection class: IP40
- Rack mounting options: Yes
- LED diodes
- Power
- Protection against sudden voltage increases
- 6 kV
- Yes
- Power consumption (max): 402 W
- Power source: DC/PoE
- Power consumption: 32 W
- Backup Power Supply (RPS) Support: Yes
- Protection against sudden voltage increases
- Weight and dimensions
- Product weight: 4.14 kg
- Product depth: 280 mm
- Product width: 440 mm
- Product height: 45 mm
- Security
- MAC address filtering: Yes
- DHCP functions: DHCP server
- Supports SSH/SSL: Yes
- MAC address entries
- Static MAC address entries
- Dynamic MAC address entries
- IGMP snooping: Yes
- Password protection: Yes
- Access Control List (ACL): Yes
- IP-MAC-Port Binding: Yes
- Loop protection: Yes
- Authentication type: IEEE 802.1x
- Encryption/Security: HTTPS
- Management features
- Website management: Yes
- System Event Report: Yes
- Configuring Location Settings (CLI): Yes
- Switch type: Managed
- Switch Layer: L2+
- ARP Inspection: Yes
- Quality of Service (QoS) Support: Yes
- Working conditions
- Relative humidity range: 10 - 90%
- Temperature range (storage): -40 - 85 °C
- Permissible relative humidity: 5 - 95%
- Temperature range (operation): -40 - 80 °C
- Network
- Communication standards
- IEEE 802.3u
- IEEE 802.3bt
- IEEE 802.1s
- IEEE 802.1Q
- IEEE 802.3z
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.3ad
- IEEE 802.1x
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3
- IEEE 802.3at
- Flow Control Support: Yes
- Connection Aggregator: Yes
- Virtual LAN Features
- Protocol-based VLAN
- Stacked VLAN
- MAC address-based VLAN
- VLAN mapping
- IP subnet–based VLAN
- Port Mirroring: Yes
- Spanning Tree Protocol: Yes
- Traffic Growth Control: Yes
- Port Channel System: Yes
- Frequency Limit: Yes
- Cable length measurement: Yes
- 10G Support: Yes
- Ethernet Ring Protection Switching (ERPS): Yes
- VLAN support: Yes
- Communication standards
- Efficiency
- Dying Gasp: Yes
- Telnet: Yes
- No fan: Yes
- MTBF (Mean Time Between Failures): 200000 h
- Packaging data
- Strip included: Yes
- Package width: 525 mm
- Package height: 95 mm
- Weight with packaging: 4.8 kg
- Package depth: 390 mm

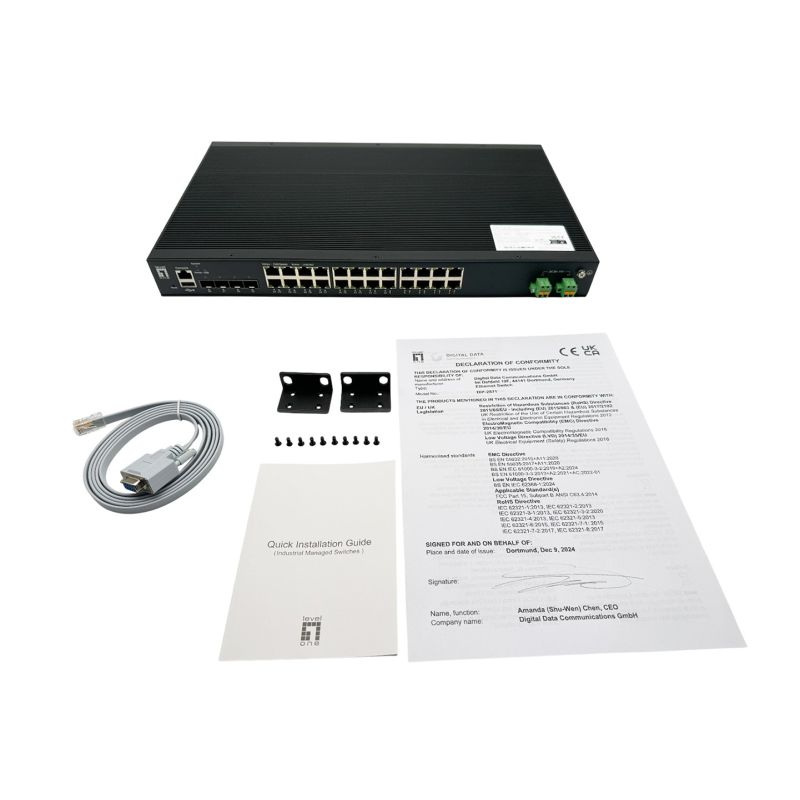

- Package contents
- Hook mounting kit: Yes
- Quick Start Guide: Yes
- Cables: LAN (RJ-45) to DB9
- Certificates
- Certificates of conformity
- Federal Communications Commission (FCC)
- RoHS
- CE
- UKCA
- Certificates of conformity
- Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- Ports and interfaces
- Number of SFP+ Module slots: 4
- Basic RJ-45 Switching Number of Ethernet Ports: 24
- Console port: RJ-45
- Number of Gigabit Ethernet ports: 24
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Number of USB Type-A ports: 1
- Other functions
- Terminal Port Blocking: Yes
- Logistics data
- Country of origin: China
- Gross pallet height: 177.6 cm
- Main (outer) case length: 205 mm
- Width of the collection box (external): 535 mm
- Height of the standard (outer) box: 408 mm
- Main (outer) housing gross weight: 10.6 kg
- Products in the main (outer) box: 2 pcs.
- Harmonized System (HS) code: 851762
- Data transfer
- Transfer speed: 190.4 Mpps
- Address table size: 16000 entries
- Packet buffer memory: 12 MB
- Jumbo Frame Compatible: Yes
- Static Route: Yes
- Jumbo Frames Expansion: 16000
- Routing/switching capacity: 128 Gbit/s
- Power over Ethernet (PoE)
- Power over Ethernet (PoE) type supported
- PoE+
- PoE++ (4PPoE)
- Total Power over Ethernet (PoE) budget: 370 W
- PoE Support: Yes
- Number of Fast Ethernet (PoE) ports: 24
- Power over Ethernet (PoE) power per port: 90 W
- Power over Ethernet (PoE) type supported
- Multicast functions
- Multicast Support: Yes
