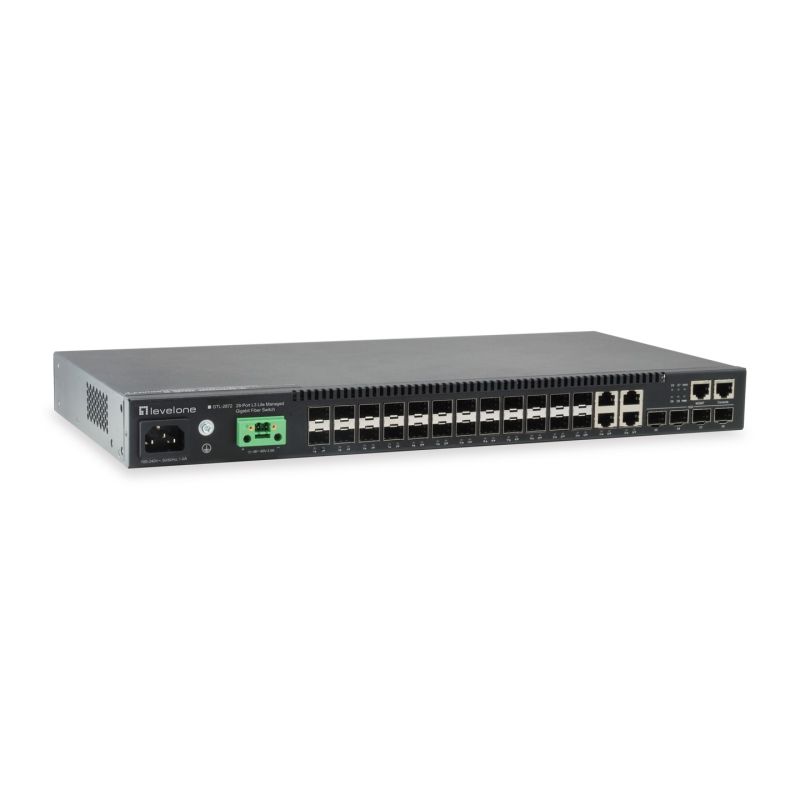

LevelOne KILBY GB/L3 28-Port 19" 10 Gb/s Managed Switch
LevelOne KILBY GB/L3 28-Port 19" 10 Gb/s Managed Switch
LevelOne KILBY GB/L3 28-Port 19" 10 Gb/s Managed Switch
PRICE:
1575,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- LED diodes
- Link
- Power supply
- Diagnostics
- Product color: Black
- Safety: UL (UL60950-1)
- Rack mounting options: Yes
- LED diodes
- Power
- Voltage: 48 - 60 V
- Backup Power Supply (RPS) Support: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption: 21.48 W
- Weight and dimensions
- Product weight: 2.82 kg
- Product width: 440 mm
- Product depth: 220 mm
- Product height: 44 mm
- Security
- Packet filtering: CDP/PVST+
- Authentication: MAC-based authentication, Port-based authentication, Web-based authentication
- Loop protection: Yes
- Static Port Protection: Yes
- IGMP snooping: Yes
- Access Control List (ACL): Yes
- Management features
- ARP Inspection: Yes
- Switch Layer: L3
- Quality of Service (QoS) Support: Yes
- Switch type: Managed
- Working conditions
- Relative humidity range: 10 - 90%
- Temperature range (operation): 0 - 50 °C
- Network
- Connection Aggregator: Yes
- Auto MDI/MDI-X: Yes
- VLAN support: Yes
- Full duplex: Yes
- Communication standards
- IEEE 802.1ag
- IEEE 802.3ah
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.1w
- IEEE 802.1D
- IEEE 802.3ae
- IEEE 802.3ad
- IEEE 802.1s
- 10G Support: Yes
- Auto-Negotiation: Yes
- Virtual LAN Features
- Protocol-based VLAN
- MAC address-based VLAN
- IP subnet–based VLAN
- Port-based VLAN
- Efficiency
- Telnet: Yes
- Flash memory size: 256 MB
- Memory type: DRAM
- MTBF (Mean Time Between Failures): 298951 h
- Internal memory capacity: 512 MB
- Packaging data
- Packaging type: Box
- Package width: 580 mm
- Weight with packaging: 3.77 kg
- Package height: 80 mm
- Driver CD: Yes
- Package depth: 405 mm
- Package contents
- Hook mounting kit: Yes
- Wires: Alternating Current
- Quick Start Guide: Yes
- Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- IPv4 and IPv6 features: Dual stack IPv4/IPv6
- Management protocols: CLI, WEB, TELNET
- Ports and interfaces
- Number of SFP Module slots: 20
- Number of SFP+ Module slots: 4
- Console port: RJ-45
- Fiber optic connector: SFP
- Basic Ethernet Switching RJ-45 Ports Type: No
- Number of SFP Combo Ports: 4
- Logistics data
- Harmonized System (HS) code: 85176990
- Height of the standard (outer) box: 340 mm
- Width of the collection box (external): 600 mm
- Country of origin: China
- Main (outer) case length: 435 mm
- Products in the main (outer) box: 4 pcs.
- Main (outer) housing gross weight: 16.6 kg
- Data transfer
- Static Route: Yes
- Jumbo Frames Expansion: 9000
- Transfer speed: 95 Mpps
- Address table size: 16000 entries
- Routing/switching capacity: 128 Gbit/s
- Jumbo Frame Compatible: Yes
- Power over Ethernet (PoE)
- PoE Support: No
- Fiber optic
- Fiber Ethernet cabling technology
- 1000BASE‑ZX
- 1000BASE-SX
- 10GBASE-SR
- 1000BASE-LHX
- 10GBASE-LR
- 10GBASE-ER
- 1000BASE‑LX
- Fiber Ethernet cabling technology
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | No name |
