LevelOne Media Converter RJ45->SC GE SM Smart 1310nm 20km
LevelOne Media Converter RJ45->SC GE SM Smart 1310nm 20km
LevelOne Media Converter RJ45->SC GE SM Smart 1310nm 20km
PRICE:
135,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- LED diodes
- Link
- Power supply
- Action
- Product color: Black
- Website management: Yes
- Internal: No
- LED diodes
- Power
- Output current: 2 A
- Operating voltage: 5 V
- Power consumption: 10 W
- Weight and dimensions
- Product height: 26 mm
- Product depth: 71 mm
- Product width: 94 mm
- Product weight: 177 g
- Working conditions
- Temperature range (operation): 0 - 45 °C
- Permissible relative humidity: 5 - 90%
- Relative humidity range: 5 - 90%
- Temperature range (storage): -40 - 70 °C
- Network
- Communication standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.1p
- IEEE 802.3az
- IEEE 802.3ab
- IEEE 802.1Q
- Maximum data transfer speed: 1000 Mbit/s
- Flow Control Support: Yes
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- Jumbo Frame Compatible: Yes
- Auto-Negotiation: Yes
- VLAN support: Yes
- Output interface converter
- 1000Base-T
- 100Base-T
- 10Base-T
- Jumbo Frames Expansion: 9000
- Ethernet network interface type
- Fast Ethernet
- Gigabit Ethernet
- Two-way duplex transmission
- Full
- Half-duplex
- Quality of Service (QoS) Support: Yes
- Communication standards
- Efficiency
- Single-mode fiber structure: Single
- Wavelength: 1310 nm
- MTBF (Mean Time Between Failures): 400000 h
- Maximum transfer distance: 20000 m
- Packaging data
- Packaging type: Box
- Package depth: 78 mm
- Package width: 118 mm
- Package height: 86 mm
- Weight with packaging: 350 g

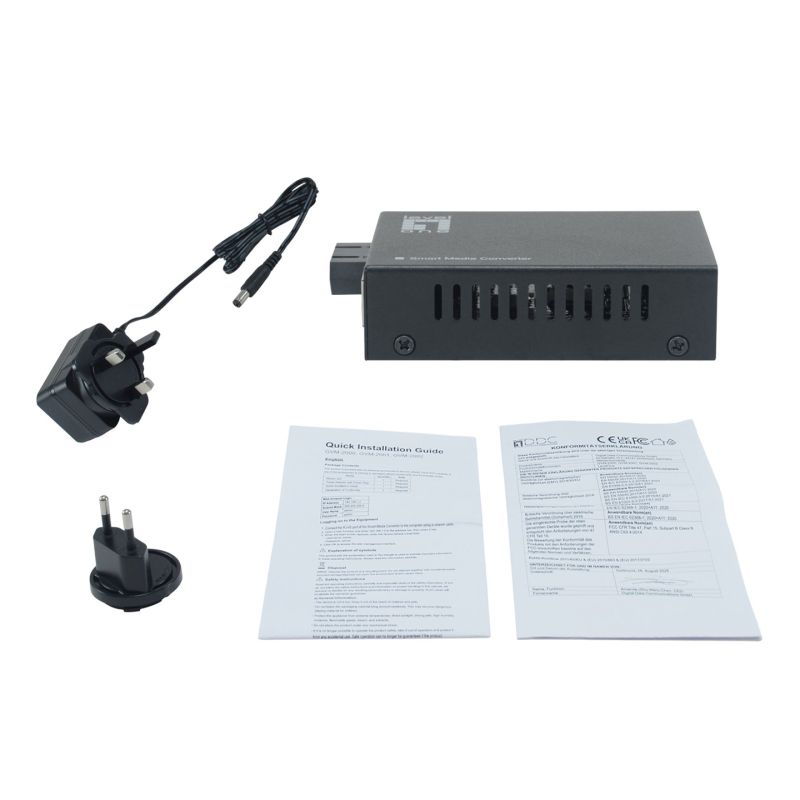

- Package contents
- Quick Installation Guide: Yes
- AC adapter: Yes
- Ports and interfaces
- Connection method: Wired
- Number of Ethernet LAN ports (RJ-45): 1
- Fiber optic connector: SC
- Number of ports: 1
- Logistics data
- Country of origin: China
- Height of the standard (outer) box: 280 mm
- Main (outer) housing gross weight: 13.2 kg
- Width of the collection box (external): 500 mm
- Gross pallet height: 154.5 cm
- Main (outer) box length: 250 mm
- Gross pallet length: 80 cm
- Products in the main (outer) box: 36 pcs.
- Gross pallet width: 120 cm
- Customs product code (TARIC): 8517620000
