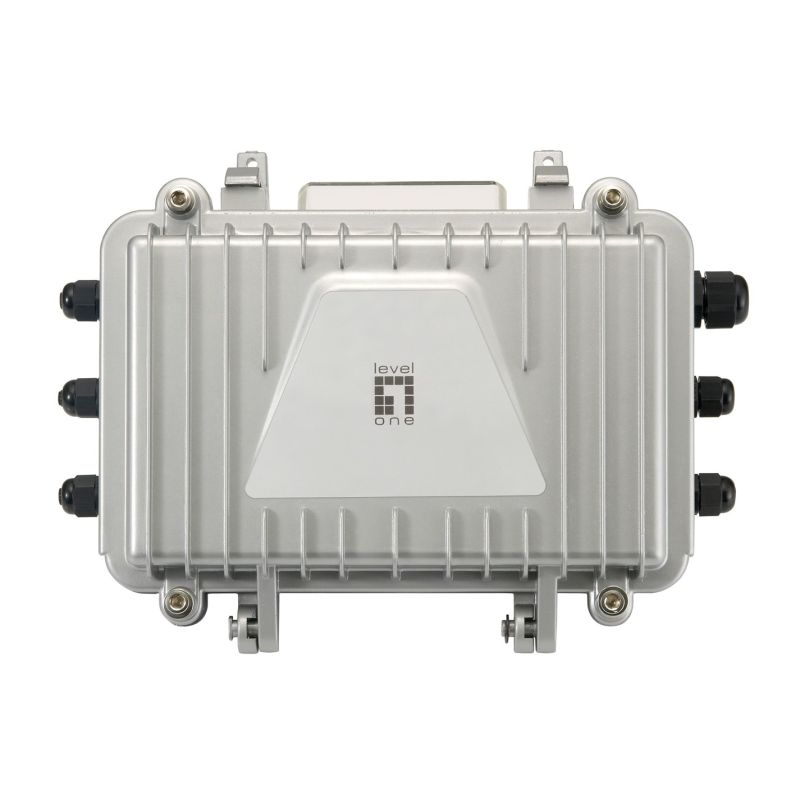

LevelOne PFE-1014R Network Extender Network Receiver Gray
LevelOne PFE-1014R Network Extender Network Receiver Gray
LevelOne PFE-1014R Network Extender Network Receiver Gray
PRICE:
1034,99
€
IN A WAREHOUSE
LAST ITEM!
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- LED diodes
- PoE
- LAN
- Power supply
- Country of origin: Taiwan
- Product color: Gray
- Mounting type: Wall
- LED diodes
- Power
- Power consumption (max): 60 W
- Power over Ethernet (PoE) voltage range: 47 - 56 V
- Power consumption: 20 W
- PoE Support: Yes
- Weight and dimensions
- Product weight: 1 kg
- Product height: 72 mm
- Product depth: 200 mm
- Product width: 240 mm
- Working conditions
- Temperature range (operation): -40 - 60 °C
- Relative humidity range: 10 - 90%
- Permissible relative humidity: 5 - 90%
- Temperature range (storage): 0 - 60 °C
- Network
- Communication standards
- IEEE 802.3
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3u
- Cabling technology: 10/100Base-T(X)
- Communication standards
- Efficiency
- Two-way duplex transmission
- Half-duplex
- Full
- Flow Control Support: Yes
- Packet forwarding range (10 Mbps): 14880 pps
- Packet forwarding range (100 Mbps): 148000 pps
- Maximum transfer distance: 2000 m
- Actual data transfer speed: 100 Mbit/s
- Automatic IEEE MDIX: Yes
- Address table size: 1000 entries
- Model: Network Receiver
- IP protection class: IP66
- Two-way duplex transmission
- Packaging data
- Packaging type: Box
- Package depth: 210 mm
- Weight with packaging: 200 g
- Package width: 250 mm
- Package height: 85 mm
- Package contents
- Wires: Alternating Current
- Quick Start Guide: Yes
- Ports and interfaces
- Number of ports: 1
- Number of Ethernet LAN ports (RJ-45): 4
- Terminal Port Blocking: Yes
- Number of Fast Ethernet (PoE) ports: 4
- Fiber optic connector: LC
- Logistics data
- Harmonized System (HS) code: 85176990
| Name | Details |
|---|---|
| Department | Electronics |
| Category | Networking & Communication, Computers and accessories |
| Product Type | Network switches |
| Producer | No name |
| Colour | Gray/Silver |
