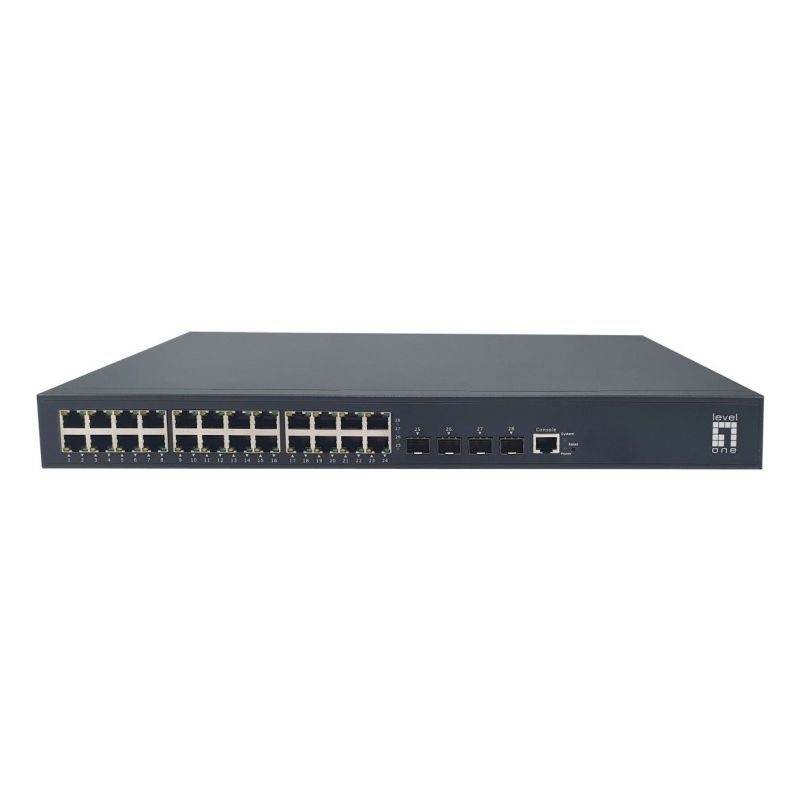

LevelOne PoE+Switch 24xGE PoE/4x10GSFP+ 440W 19" Managed L3
LevelOne PoE+Switch 24xGE PoE/4x10GSFP+ 440W 19" Managed L3
LevelOne PoE+Switch 24xGE PoE/4x10GSFP+ 440W 19" Managed L3
PRICE:
1627,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Gray
- LED diodes
- PoE
- Link
- Power supply
- System
- Action
- Layout: 1U
- Market segment: Business
- Rack mounting options: Yes
- Power
- AC input frequency: 50/60 Hz
- AC input voltage: 100 - 240 V
- Power source: AC
- Power consumption (max): 440 W
- Power supply included: Yes
- Backup Power Supply (RPS) Support: Yes
- Number of power units: 2
- Weight and dimensions
- Product weight: 4.8 kg
- Product height: 44 mm
- Product depth: 350 mm
- Product width: 440 mm
- Security
- Encryption/Security
- SNMP
- SNMPv2c
- HTTPS
- SNMPv2
- SNMPv3
- DHCP functions
- DHCP client
- DHCP snooping
- Authentication type: RADIUS
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Authentication: MAC-based authentication
- Encryption/Security
- Management features
- Website management: Yes
- Configuring Location Settings (CLI): Yes
- Quality of Service (QoS) Support: Yes
- Switch Layer: L2/L3
- ARP Inspection: Yes
- Switch type: Managed
- Working conditions
- Permissible relative humidity: 5 - 95%
- Relative humidity range: 10 - 90%
- Temperature range (operation): 5 - 50 °C
- Temperature range (storage): -10 - 70 °C
- Heat emission: 136.48 BTU/h
- Network
- Communication standards
- IEEE 802.3az
- IEEE 802.3at
- IEEE 802.3z
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3ab
- IEEE 802.3
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.1Q
- IEEE 802.1D
- IEEE 802.3ad
- IEEE 802.1s
- IEEE 802.1p
- QinQ Implementation: QinQ
- VLAN support: Yes
- Virtual LAN Features
- IP subnet–based VLAN
- Protocol-based VLAN
- MAC address-based VLAN
- Number of VLANs: 4000
- Copper Ethernet cabling technology
- 10BASE-T
- 1000BASE-T
- 100BASE-TX
- 1000BASE-X
- Flow Control Support: Yes
- Spanning Tree Protocol: Yes
- Connection Aggregator: Yes
- Ethernet Ring Protection Switching (ERPS): Yes
- 10G Support: Yes
- Communication standards
- Efficiency
- Noise level: 45 dB
- Memory type: Flash
- MTBF (Mean Time Between Failures): 100000 h
- Internal memory capacity: 256 MB
- Telnet: Yes
- Without fan: No
- Flash memory size: 512 MB

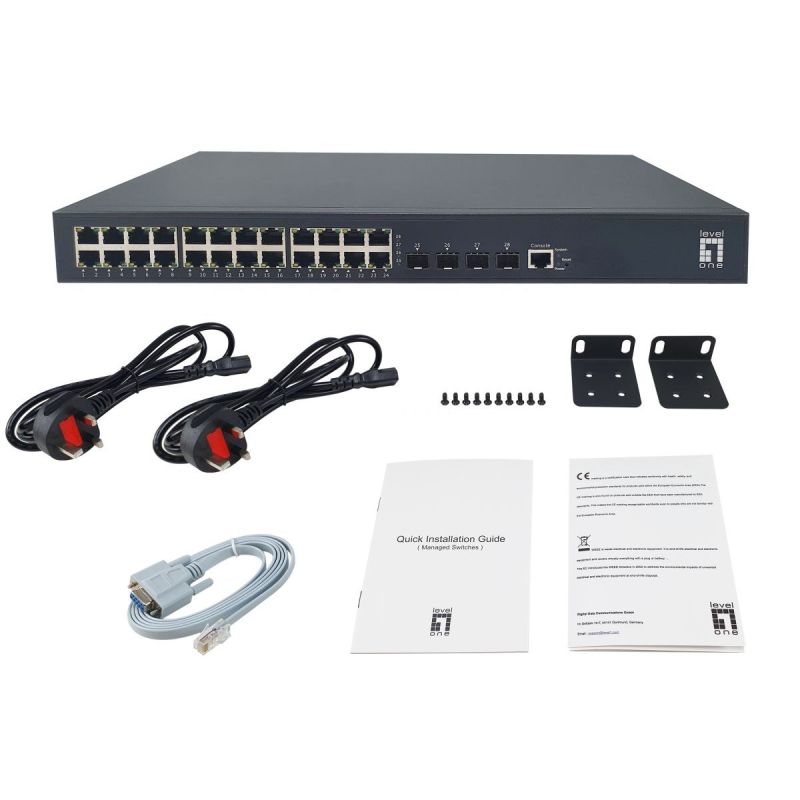

- Package contents
- Quick Start Guide: Yes
- Wires: Power
- Hook mounting kit: Yes
- Certificates
- Certificates of conformity
- CE
- Federal Communications Commission (FCC)
- RoHS
- Certificates of conformity
- Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- IPv4 and IPv6 features: Dual stack IPv4/IPv6
- Ports and interfaces
- Power Connector: AC Input Socket
- Basic RJ-45 Switching Number of Ethernet Ports: 24
- Number of Gigabit Ethernet ports: 24
- Number of Fiber uplink ports: 4
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Number of SFP+ Module slots: 4
- Other functions
- Size: 48.3 cm (19")
- Authentication method: Login
- Logistics data
- Customs product code (TARIC): 8517620000
- Harmonized System (HS) code: 851762
- Data transfer
- Routing/switching capacity: 128 Gbit/s
- Packet buffer memory: 1.5 MB
- Address table size: 16000 entries
- Transfer speed: 190.4 Mpps
- Jumbo Frame Compatible: Yes
- Power over Ethernet (PoE)
- PoE Support: Yes
- Power over Ethernet (PoE) type supported: PoE+
- Total Power over Ethernet (PoE) budget: 400 W
- Power over Ethernet Plus (PoE +) ports: 24
- Multicast functions
- Multicast Support: Yes
- Sustainable development
- Does not contain
- Cadmium
- Mercury
- Lead
- Does not contain
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | No name |
| Department | Electronics |
