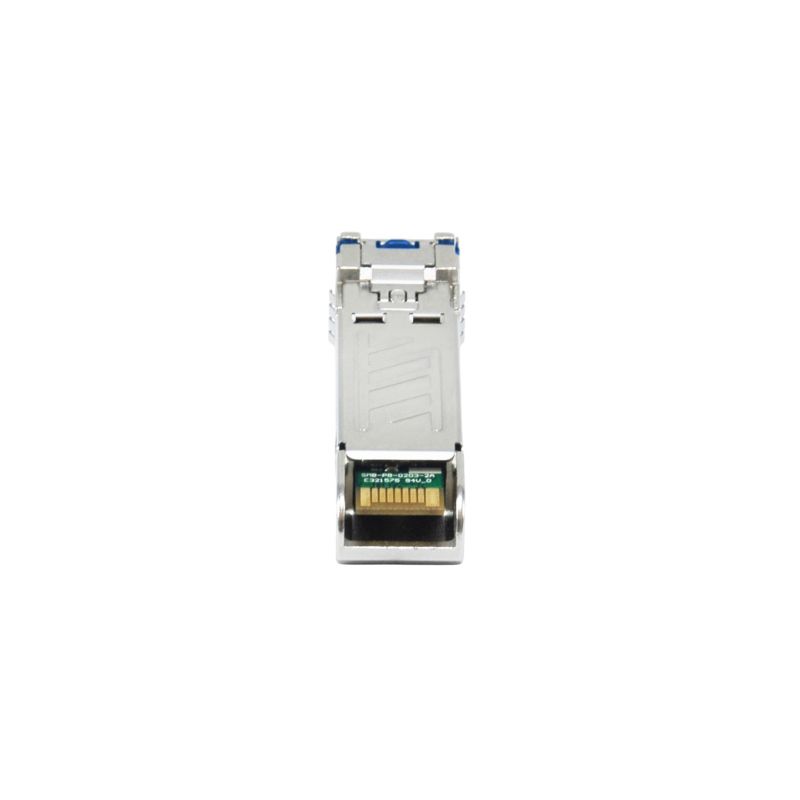

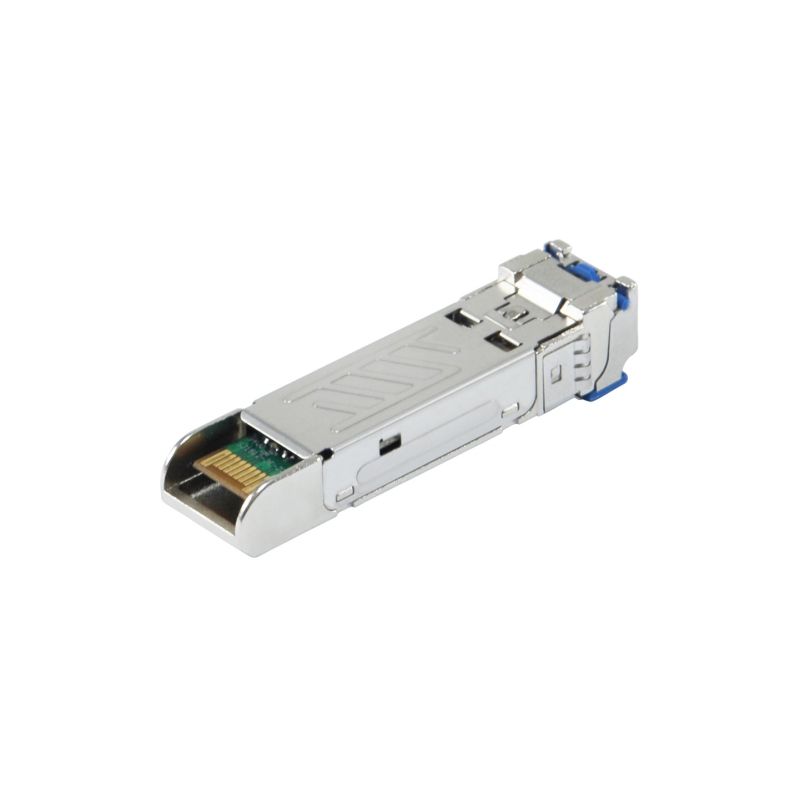

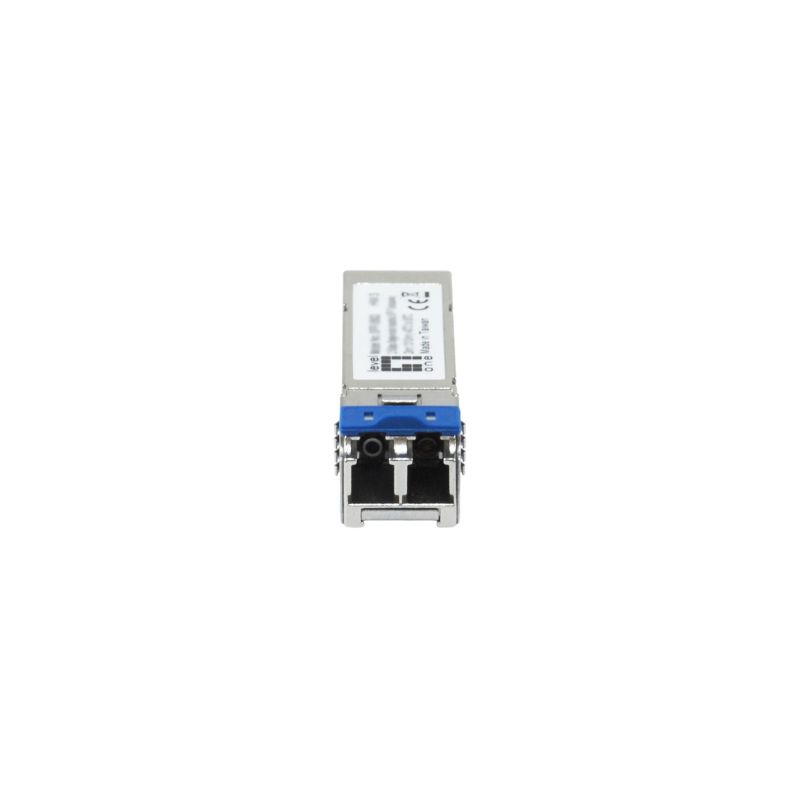

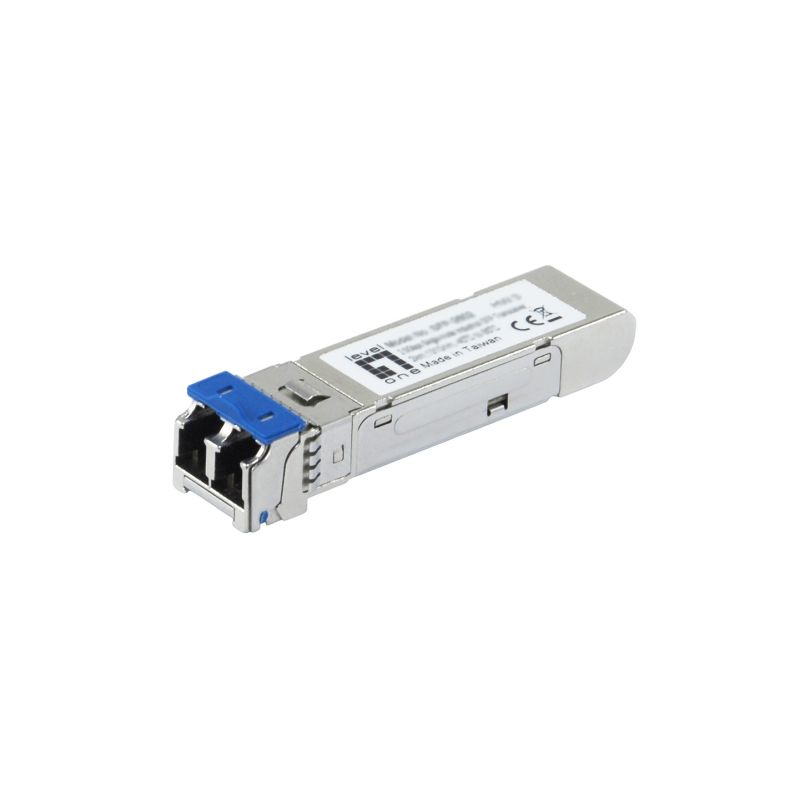

LevelOne SFP-2603 Network Transceiver Module 2500 Mbit/s 1310 nm Fiber Optic
LevelOne SFP-2603 Network Transceiver Module 2500 Mbit/s 1310 nm Fiber Optic
LevelOne SFP-2603 Network Transceiver Module 2500 Mbit/s 1310 nm Fiber Optic
PRICE:
86,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Plug & Play Support: Yes
- Layout: SFP
- Hot swap: Yes
- Product color: Silver
- Power
- Power consumption: 1 W
- Weight and dimensions
- Product weight: 15.5 g
- Product width: 55.9 mm
- Product height: 13 mm
- Product depth: 13.4 mm
- Working conditions
- Temperature range (storage): -40 - 85 °C
- Permissible relative humidity: 5 - 85%
- Temperature range (operation): -40 - 85 °C
- Relative humidity range: 5 - 85%
- Efficiency
- Tx power (maximum): 0 dBmW
- Interface type: SFP
- Single-mode fiber (SMF) support: Yes
- SFP Transceiver Type: Fiber Optic
- Maximum transfer distance: 20000 m
- Wavelength: 1310 nm
- Maximum data transfer speed: 2500 Mbit/s
- Supported fiber optic cable diameters: 9/125 µm
- Tx power (minimum): -5 dBmW
- Fiber optic connector: LC
- Copper Ethernet cabling technology: 2.5GBASE
- Digital Diagnostic Monitoring (DDM): Yes
- Packaging data
- Weight with packaging: 41.66 g
- Package depth: 67 mm
- Package height: 25 mm
- Package width: 110 mm
- Package contents
- Number of pieces: 1
- Certificates
- Certificates of conformity
- CE
- Federal Communications Commission (FCC)
- CB
- RoHS
- TÜV mark
- UL
- Certificates of conformity
- Logistics data
- Gross pallet length: 80 cm
- Gross pallet width: 120 cm
- Country of origin: Taiwan
- Main (outer) case length: 343 mm
- Gross pallet height: 164.4 cm
- Height of the standard (outer) box: 250 mm
- Collective (external) boxes per pallet: 34 pcs.
- Width of the collection box (external): 365 mm
- Gross weight of the main (outer) housing: 5.5 kg
- Products in the main (outer) box: 100 pcs.
- Customs product code (TARIC): 8517620000
